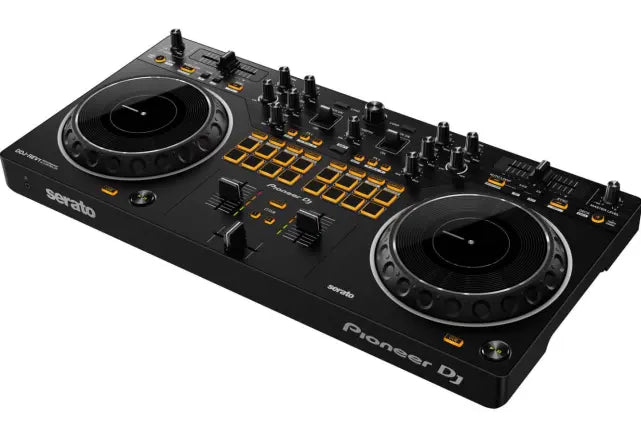

Pioneer DJ DDJ-REV1 | Battle-Style 2-Channel | Serato DJ Lite Controller with Large Jog Wheels

2-Channel Scratch DJ Controller

The Pioneer DJ DDJ-REV1 is a beginner-friendly, yet performance-ready 2-channel DJ controller designed for open-format and scratch DJs using Serato DJ Lite. With a layout inspired by professional battle mixers and turntables, the DDJ-REV1 brings intuitive control, large jog wheels, and creative tools like Tracking Scratch and Scratch Bank to a compact, affordable package.

Pioneer DJ DDJ-REV1 Competitive Differences

• Battle-style layout with horizontal tempo sliders and performance pads in the mixer section
• Mixed microphone and master audio output for seamless streaming without external gear

Pioneer DJ DDJ-REV1 Description

The DDJ-REV1 is the ultimate entry point for scratch-style DJing, combining the feel of a DJM-S mixer and PLX turntables into a compact 2-channel Serato controller. Its innovative layout mirrors battle setups used by professional DJs, placing long 60mm tempo sliders horizontally above each deck and moving the performance pads to the center for easy access during mixing and scratching. The large 154mm jog wheels are the same size as those found on the higher-tier DDJ-SR2, providing ample room for accurate scratching and cueing. Use the Lever FX paddles to apply effects momentarily or lock them on while you focus on cuts and transitions. Creative features include Tracking Scratch, which returns the track to its cue point automatically when the jog is moved forward — eliminating the need to reset manually. The Scratch Bank lets you instantly load samples from Serato DJ Lite or Pro with a single pad press, making freestyle scratching fast and fluid. Stream with ease using the mixed mic/master output — a first for Pioneer DJ controllers at this level — which sends all audio directly to your computer via USB. And since the unit is class-compliant, there’s no need for extra drivers — just plug in and play.

Model Features

• Battle-style layout with professional mixer and deck emulation
• 154mm jog wheels for responsive scratching and track control
• Lever FX paddles for quick-access effects from Serato DJ Lite
• Tracking Scratch mode auto-returns to cue point for effortless cuts
• Scratch Bank pad mode for instant sample access
• Mixed mic and master output for plug-and-play streaming
• Class-compliant USB power and audio interface — no drivers needed
• Serato DJ Lite compatible out of the box; Serato DJ Pro upgrade supported

Model Specifications

• Compatible Software: Serato DJ Lite (included), Serato DJ Pro (upgrade available)
• Channels: 2
• Deck Control: 4 (switchable)
• Jog Wheel Diameter: 154 mm
• Audio Interface: 24-bit / 48 kHz
• Signal-to-Noise Ratio: 103 dB
• Frequency Response: 20 Hz – 20,000 Hz
• Inputs: 1 x 1/4” TS mic input
• Outputs: 1 x RCA Master, 1 x 3.5mm headphones
• USB: 1 x USB Type-B (bus-powered)
• Dimensions: 20.71 x 10.06 x 2.33 in (526 x 255.5 x 59.2 mm)
• Weight: 4.63 lb (2.1 kg)

What's In The Box

• Pioneer DJ DDJ-REV1 controller
• USB cable
• Quick start guide
• Warranty information (region-dependent)
