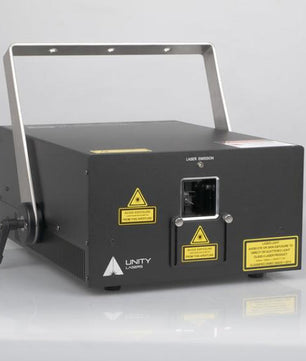

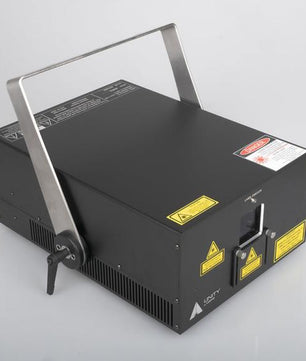

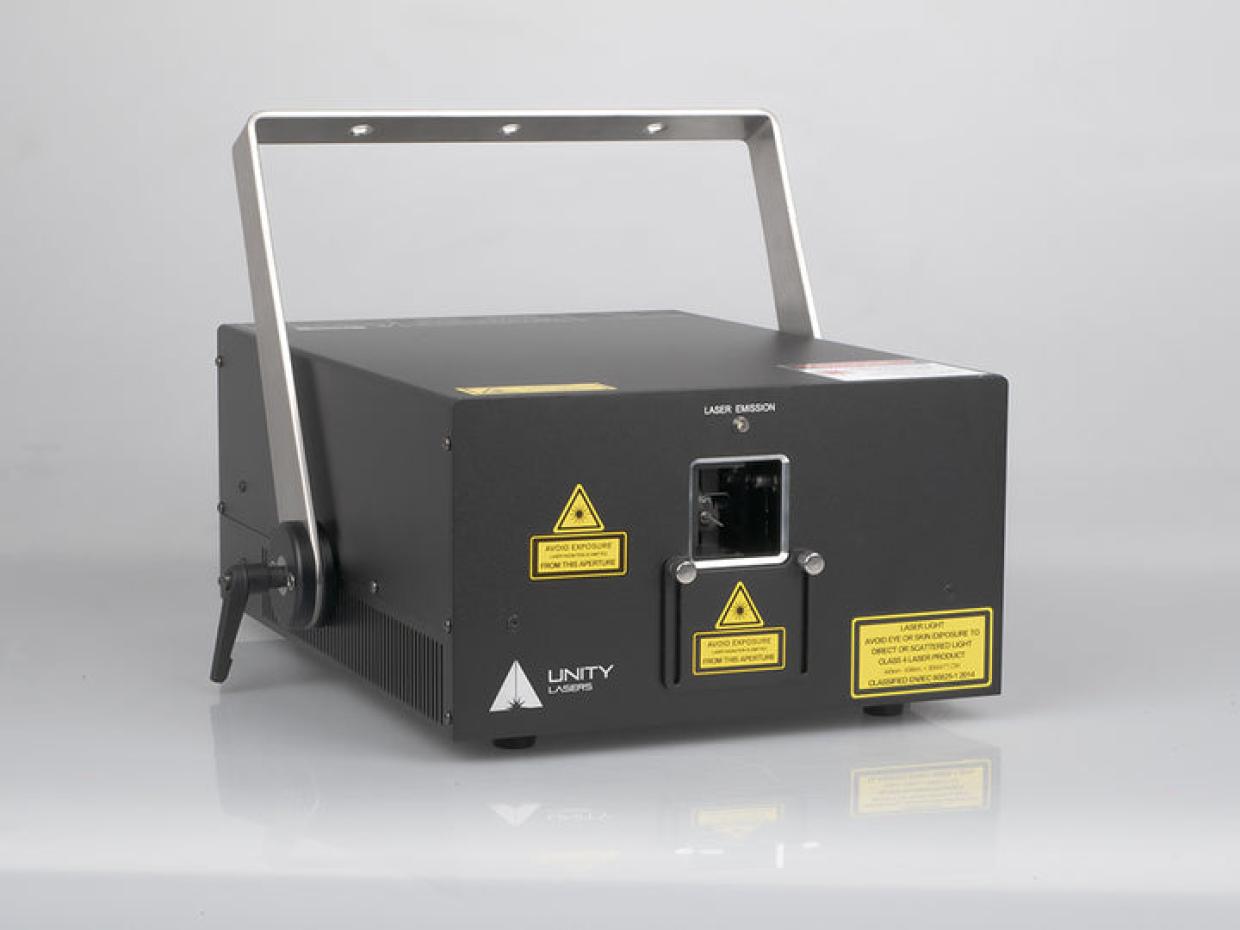

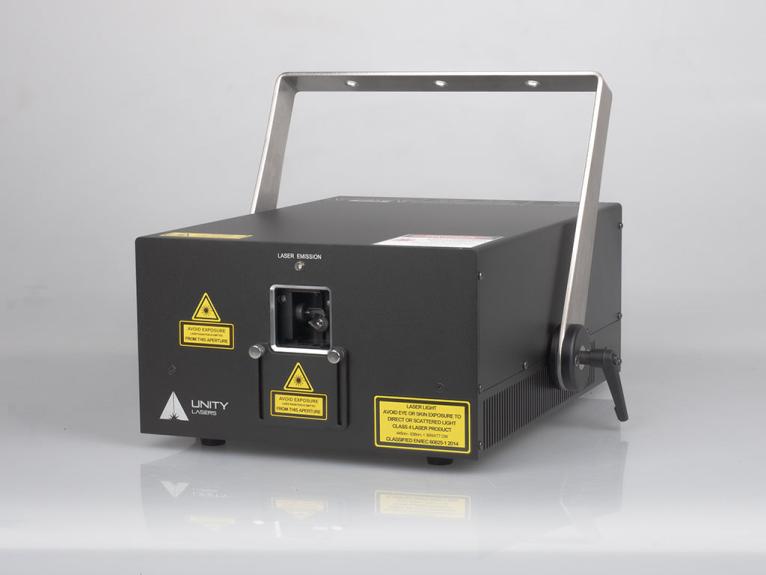

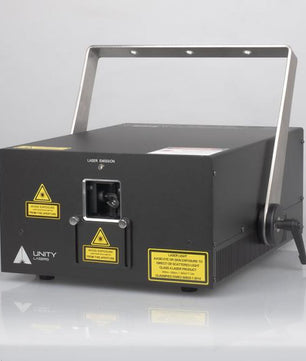

Pangolin Unity RAW 10 | 10W RGB Laser Projector | High-Power Aerial & Graphic Effects with ILDA + DMX

High-Power RGB Laser Projector

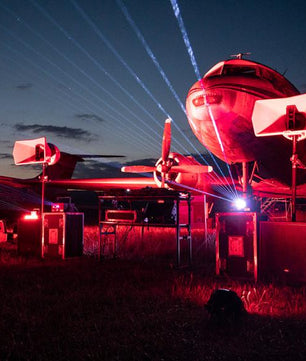

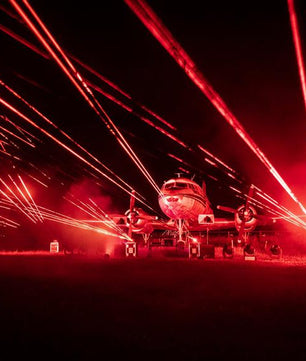

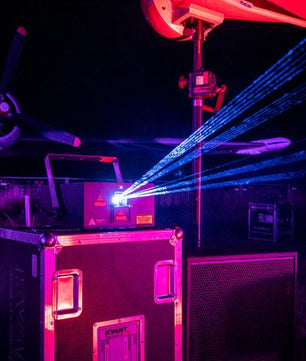

The Pangolin Unity RAW 10 is a powerful full-color RGB laser system designed for large clubs, DJs, and production environments that demand striking aerial effects and detailed laser graphics. With over 10 watts of guaranteed optical output and ILDA + DMX control options, it’s the ideal system for professionals and semi-professionals who need high brightness and reliable performance in a cost-effective package.

Pangolin Unity RAW 10 Competitive Differences

• 10W full-color RGB output with balanced red, green, and blue diodes
• Supports ILDA, DMX, and sound-active modes with onboard adjustments

Pangolin Unity RAW 10 Description

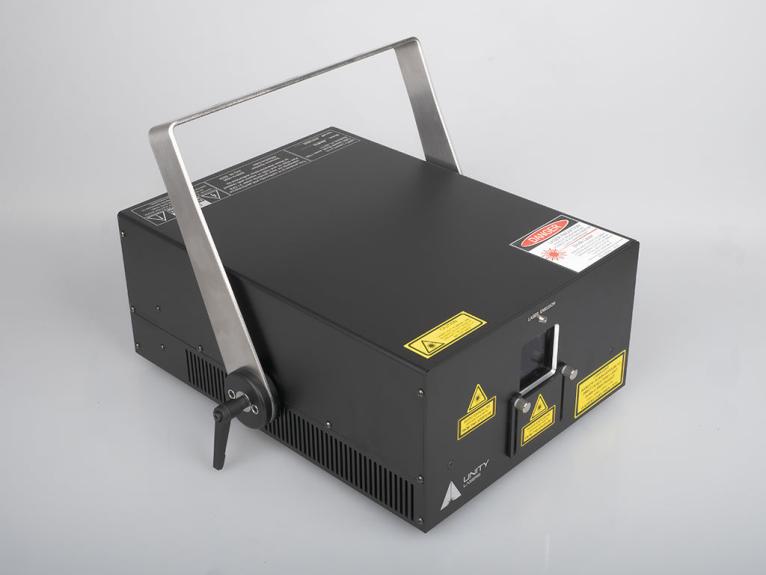

The Unity RAW 10 is purpose-built for serious lighting designers and event producers looking for an affordable but professional-grade laser projector. It features diode-based red (2,700mW), green (2,700mW), and blue (4,800mW) laser modules, delivering brilliant color mixing with high brightness for large venues over 5,000 people or medium-sized outdoor events. This unit supports ILDA control—ideal when used with Pangolin's FB3QS hardware and QuickShow software—as well as DMX and sound-active modes for standalone operation. The scanning system operates at 30K PPS at 8°, with a wide 50° max scan angle for precise graphics, text, and logo projection. With a durable housing rated IP4X and packed with safety features like keyed interlock, emission delay, scan-fail safety, and mechanical shutter, the RAW 10 is compliant with international laser safety standards. It’s equally at home in touring rigs, fixed installs, or mobile setups where strong output and reliability are key.

Model Features

• 10W RGB diode laser system with analog modulation

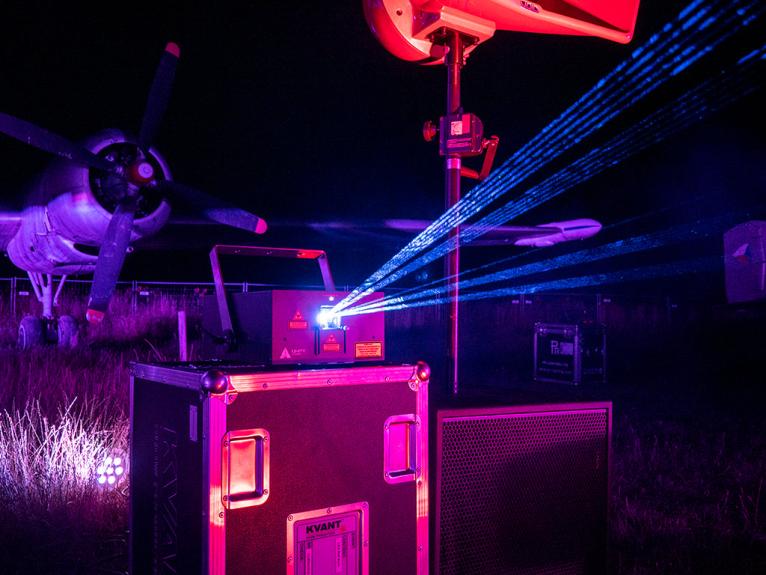

• Ideal for aerial effects, logos, text, and laser mapping
• 30,000 PPS scanning at 8° with 50° max scan angle
• Supports ILDA and DMX control, plus sound-active mode
• Adjustable color, size, position, and invert settings via onboard menu
• Multiple safety systems including mechanical shutter and E-STOP integration

Model Specifications

• Max Optical Output: >10W
• Red / Green / Blue (mW): 2,700 | 2,700 | 4,800
• Beam Size: 5 x 3 mm
• Beam Divergence: <1.1mrad (Full Angle)
• Scanning Speed: 30,000 PPS @ 8°
• Scan Angle: Max 50°
• Modulation: Analog 50kHz
• Control: ILDA, DMX, Sound Active (QuickShow recommended for ILDA)
• Power Requirements: 100–240V / 50Hz
• Power Consumption: Max. 350W
• Operating Temperature: 10–40°C
• Ingress Protection: IP4X
• Dimensions: 13.4 x 9.7 x 5.8 in (340 x 247 x 148 mm)
• Weight: 26.5 lb (12 kg)

What's In The Box

• Unity RAW 10 laser projector
• Mains power cable
• 10M ILDA signal cable
• E-STOP remote with 10M XLR cable
• Set of safety keys
• Interlock (for US installations)
• User manual and quick start guide
• Quality certificate and variance card
