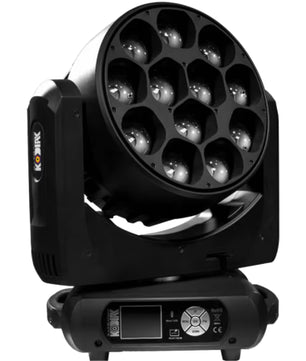

Rasha Kodiak | 12x40W RGBW Pixel Wash | 7°–70° Zoom with Advanced Mapping

Pixelated Moving Head Wash

The Rasha Kodiak is a high-output moving head wash fixture designed for powerful washes, eye-catching beams, and advanced pixel effects. Featuring 12 individually controlled 40W RGBW LEDs and a wide 7°–70° motorized zoom, it delivers up to 23,560 lux at 5 meters in narrow mode—making it ideal for stages, events, and installations that demand bold color and tight visual control.

Rasha Kodiak Competitive Differences

• 12x 40W RGBW LEDs with pixel-mapping across all LEDs
• True 10:1 motorized zoom (7°–70°) with clean transitions

Rasha Kodiak Description

The Kodiak from Rasha Professional is built for designers who want a compact wash light with precision control and rich output. Its 12 RGBW LEDs can be controlled individually for creative pixel-mapped looks, or used as a unified wash for smooth, vibrant color coverage across stages or structures. With a zoom range of 7°–70°, Kodiak easily transitions between narrow aerial beams and wide, even color fields—perfect for everything from dancefloor sweeps to stage backlight walls. A high-quality optical lens system ensures no hot spots at any zoom level, and the 16-bit dimming resolution supports buttery-smooth fades and transitions. Control options include DMX, RDM, Manual, and Sound modes, with four DMX channel profiles (11ch to 58ch) depending on your desired level of pixel control. Pan and tilt motion are fluid and precise, with electronic self-correction and locking mechanisms for transport and setup. A reversible LCD display and rugged build complete the professional-grade package. Kodiak’s high-impact thermoplastic housing, PowerCON I/O, and built-in handles make it equally suited for mobile production and permanent install environments. Whether you’re pixel-mapping complex cues or lighting a large venue with clean, bold color, Kodiak delivers the flexibility and reliability pros demand.

Model Features

• 12 individually controllable 40W RGBW LEDs
• 10:1 motorized zoom from 7° narrow to 70° wide
• Up to 23,560 lux @ 5m for high-output performance
• Advanced pixel-mapping support with 58ch DMX mode
• 540° pan / 270° tilt with 16-bit resolution and self-correction
• DMX, RDM, Manual, and Sound control options
• Built-in strobe (0–20 Hz) and 37 pattern macros
• PowerCON in/out and 3-pin DMX connectivity
• Lightweight yet rugged flame-retardant housing with anti-UV coating
• Reversible LCD menu with 4-button interface

Model Specifications

• Light Source: 12x 40W RGBW LEDs (50,000 hrs)
• Zoom Range: 7° to 70° motorized
• Illuminance: 23,560 lux @ 5m (narrow), 900 lux @ 5m (wide)
• Color Rendering Index (CRI): 80
• Pan/Tilt: 540° / 270° with 16-bit resolution
• Control: DMX (11/17/18/58ch), RDM, Manual, Sound
• Dimensions: 18.5 x 10.25 x 14.375 in (470 x 260 x 365 mm)
• Weight: 33.07 lb (15 kg)
• Power: 500W max @ 120V
• IP Rating: IP20

What's In The Box

• Kodiak fixture
• (2) Omega brackets
• Edison to PowerCON cable
• 3-pin DMX cable
• User manual
