LED Pixel Control Bar

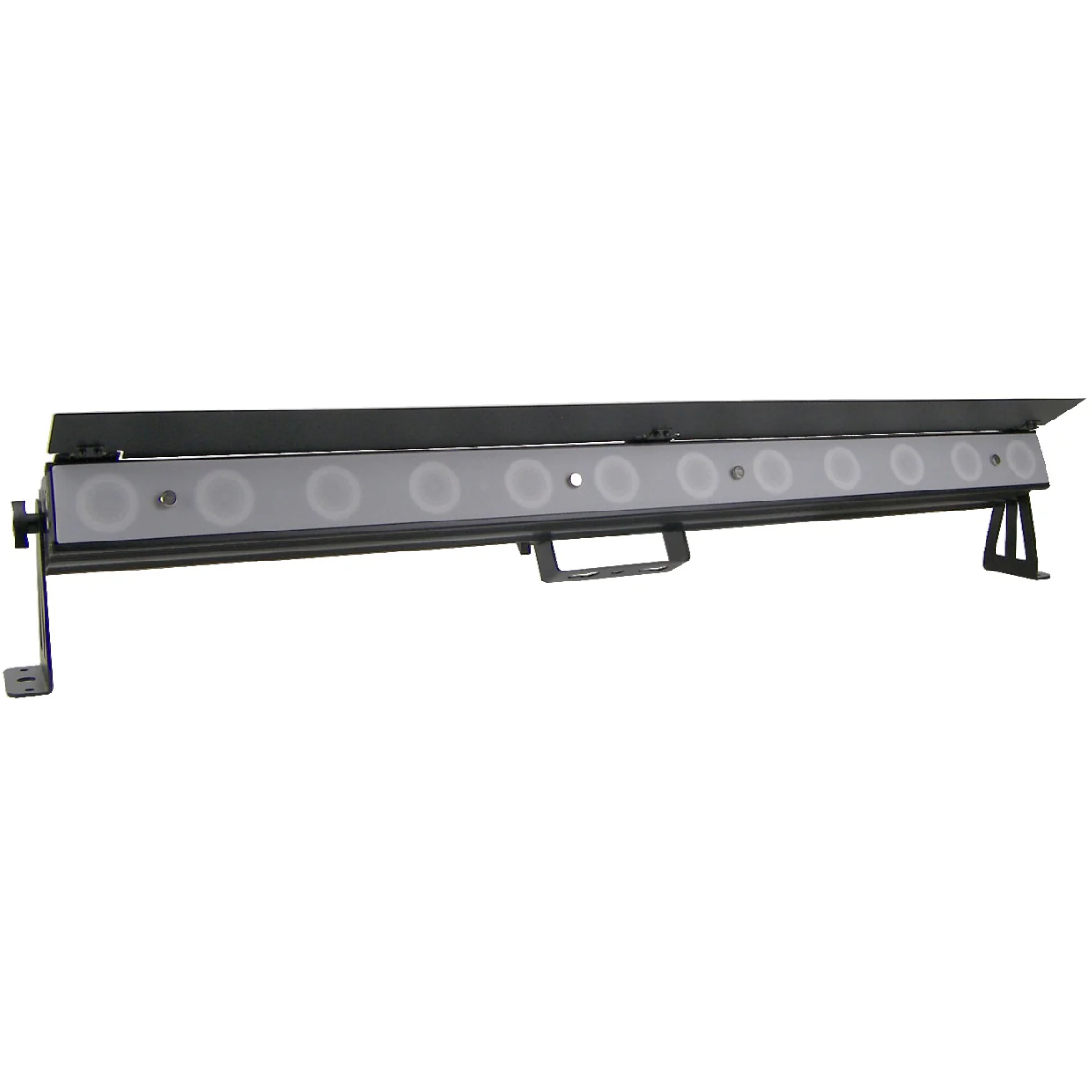

The Event Lighting PIXBAR12H is a professional LED pixel control bar designed to deliver vibrant color washes and dynamic pixel effects for stage, event, and production lighting. Equipped with 12 x 12W RGBWAU LEDs, this fixture offers powerful output and flexible color mixing for creative lighting designs.

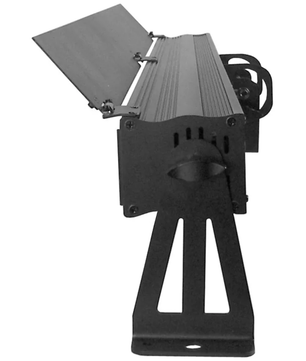

With pixel control capability, multiple DMX channel modes, and professional connectivity including True1 power and both 3-pin and 5-pin DMX connections, the PIXBAR12H integrates easily into modern lighting rigs. The included barndoor and frost filter add additional control over beam shaping and diffusion, making the fixture highly versatile for live events and installations.
Event Lighting PIXBAR12H Competitive Differences

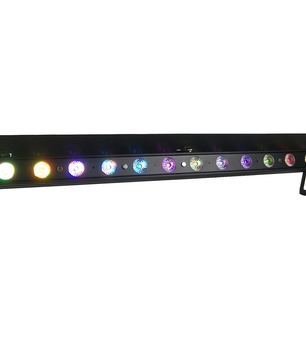

- 12 x 12W RGBWAU LEDs with pixel control for dynamic lighting effects
- Included barndoor and frost filter for beam shaping and diffusion
- True1 power connections with 3-pin and 5-pin DMX support
- High 12,000Hz PWM for flicker-free performance on camera
Event Lighting PIXBAR12H Description

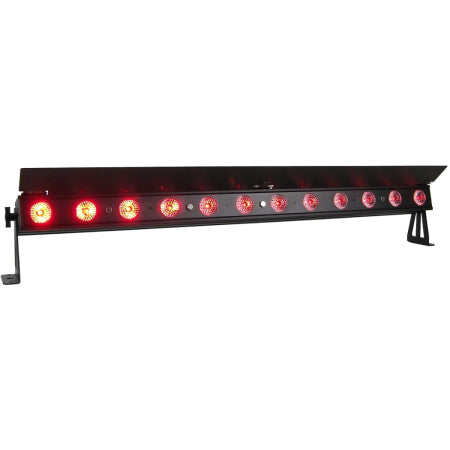

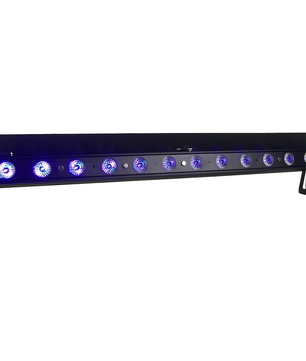

The Event Lighting PIXBAR12H provides powerful wash lighting combined with individual pixel control for dynamic stage effects. Its RGBWAU LED configuration enables a wide color spectrum, including deeper ambers and improved white tones, making it ideal for concerts, productions, architectural lighting, and event installations.
With a standard 30° beam angle and optional 55° lens option, the fixture can adapt to different stage sizes and lighting requirements. Producing 2,050 lux at 2 meters when running at full RGBWAU output, the PIXBAR12H delivers strong illumination while maintaining precise control over color and intensity.
Advanced dimming features include four selectable 16-bit dimming curves for smooth fades and professional lighting transitions. Adjustable strobe effects from 1–30Hz allow the fixture to create dynamic visual effects suitable for concerts and live performances.

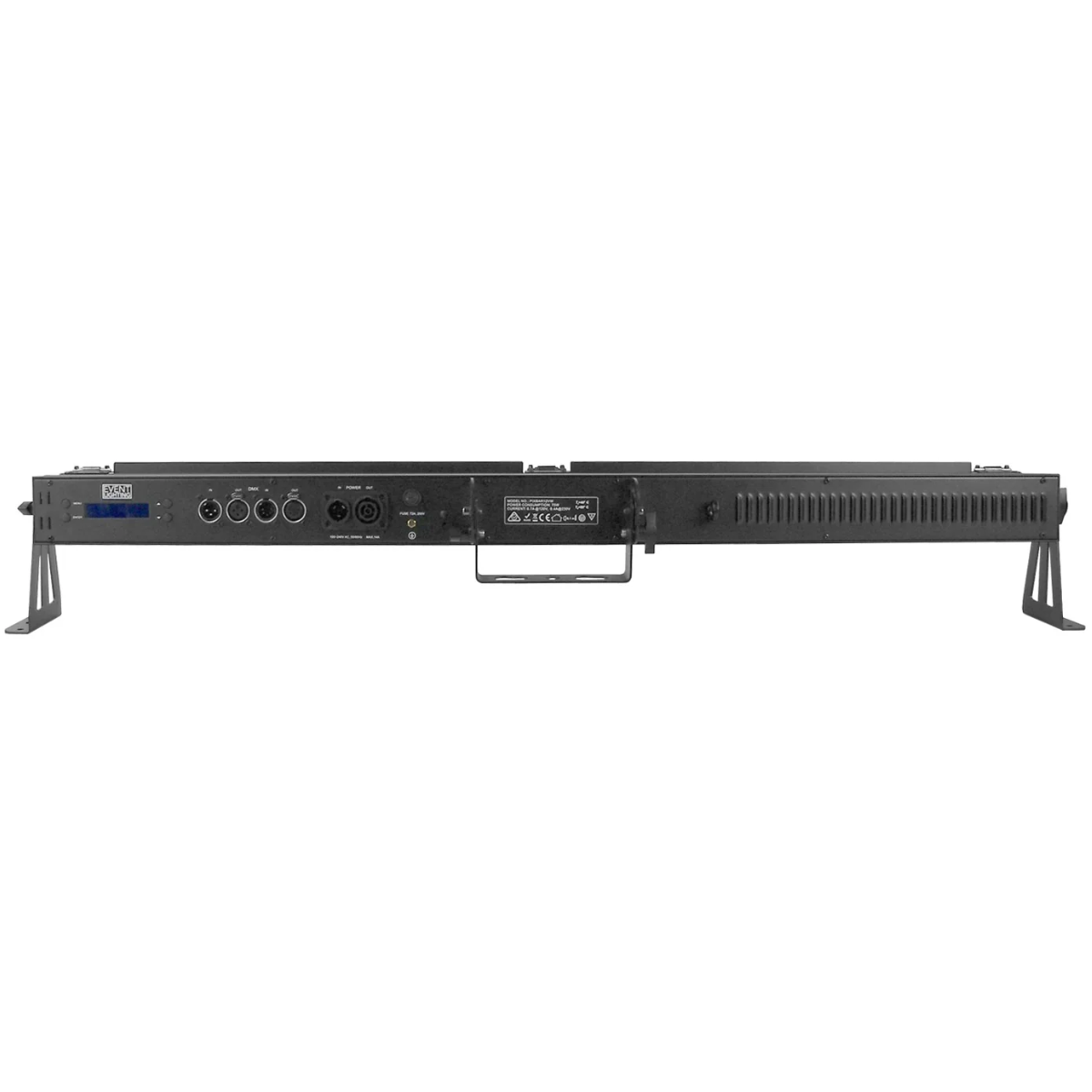

Multiple operation modes including DMX, manual, auto, sound active, master/slave, and multi-fixture chase give lighting designers extensive flexibility. The integrated 4-button LCD control panel provides quick access to settings, while RDM support and DMX software upgrades allow enhanced system integration.
Constructed from durable aluminum with a matte black finish, the PIXBAR12H is designed for reliable use in touring and installed lighting systems. Its fanless cooling ensures silent operation while maintaining consistent performance.
PIXBAR12H Features
- 12 x 12W RGBWAU LEDs with pixel control
- 30° beam angle with optional 55° lens
- 2,050 lux output at 2 meters (RGBWAU full on)
- Four selectable 16-bit dimming curves
- Strobe effect from 1–30Hz
- Multiple DMX channel modes for pixel mapping and programming
- True1 power input and output connections

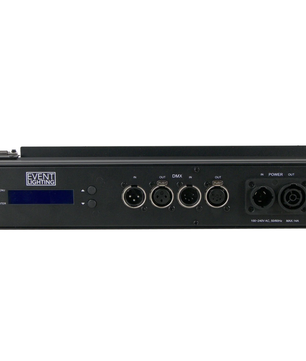

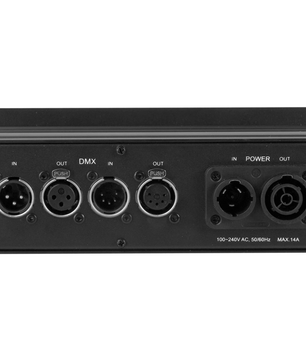

- 3-pin and 5-pin XLR DMX input and output

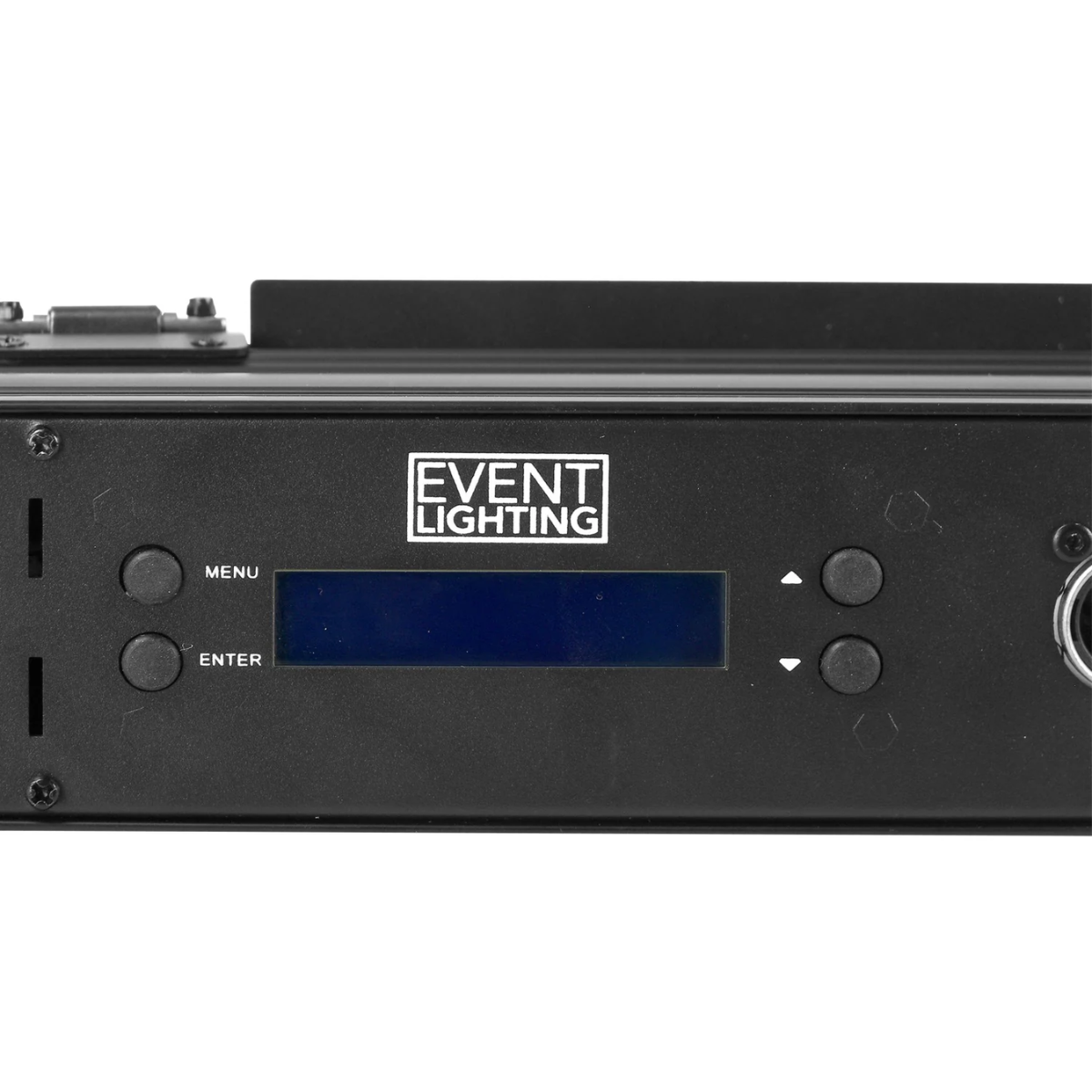

- 4-button LCD control panel
- Fanless cooling system for silent operation

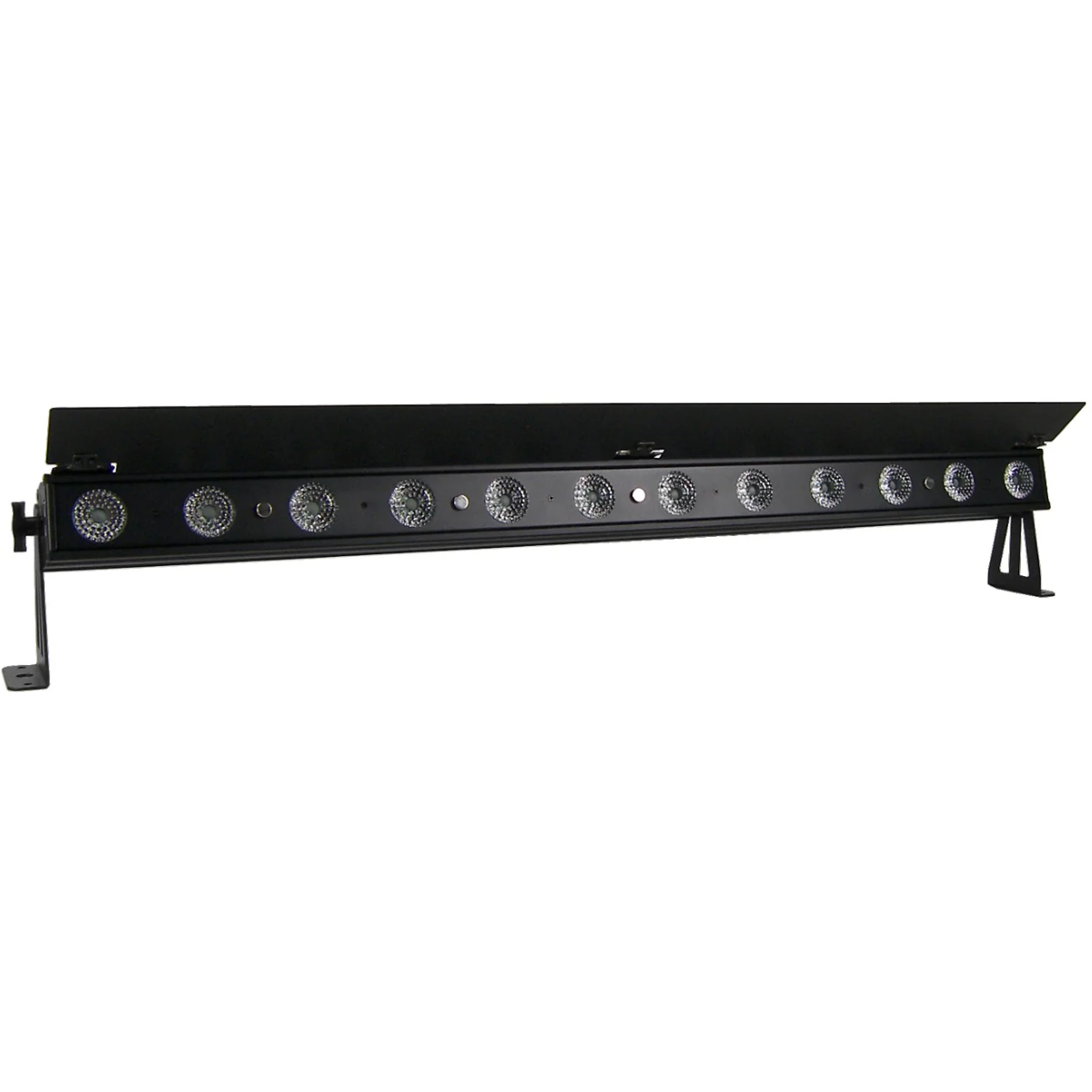

- Included barndoor and frost filter
PIXBAR12H Specifications
- Light Source: 12 x 12W RGBWAU LEDs
- Beam Angle: 30° (Optional 55°)
- Output: 2,050 lux @ 2 m (RGBWAU full on)
- PWM Frequency: 12,000Hz
- LED Lifespan: 50,000 hours
- Dimming: 4 x 16-bit dimming curves
- Strobe: 1–30Hz
- Input Voltage: 100–240V AC, 50/60Hz
- Power Consumption: 150W
- Power Connection: True1 In/Out
- Control Protocol: DMX512
- DMX Channels: 3 / 4 / 4A / 8 / 12 / 14 / 24 / 72 / 74
- DMX Interface: 3-pin and 5-pin XLR In/Out
- Display: 4-button LCD control panel
- Housing: Aluminium with matte black finish
- Cooling: Fanless
- Dimensions: 41.3 x 6.5 x 3.1 in (1050 x 165 x 80 mm)
- Weight: 9.9 lb (4.5 kg)
What's In The Box
- Event Lighting PIXBAR12H LED pixel bar
- Barndoor
- Frost filter
- User manual
