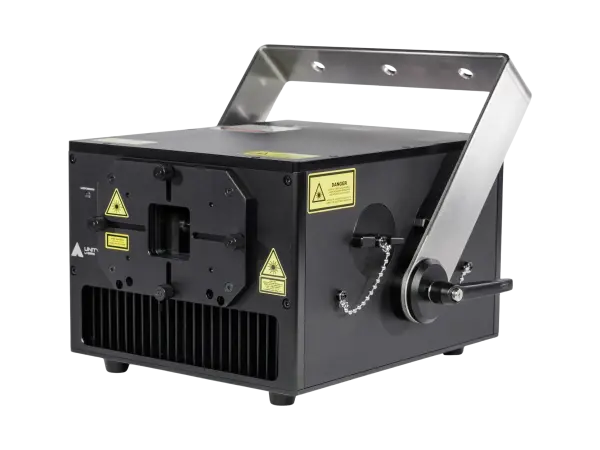

Pangolin Unity Elite 10 Pro FB4 IP65 | 10W Outdoor RGB Laser | Waterproof Housing with FB4 DMX Control

$4,583.00
Order within [hour] to get by [date_end]

Direct Ship from Our Supplier

Contact Us to Order - Most Items Ship Just As Fast

Returns & Exchanges Policy
All orders come with our industry leading 90-Day return policy.
  • Cash Back or Store Credit available for returns within 30 days.
  • Store Credit available for returns within 31-90 days.
Restocking fees
  • Unopened Items: 5%
  • Opened but Mint Condition: 15%
  • Blemished, Missing/Damaged Packing or Accessories: 25%
Shipping Costs
  • Buyer is responsible for return shipping costs
  • If "Free" or discount shipping was provided with original order, our actual shipping cost will be deducted from the amount refunded/credited
Damages & Defects
  • We will swap any item reported as damaged or defective within 7 days of delivery for free. All transportation and replacement costs will be covered by us (within US48 states).


  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Description

Shipping

Return Policies

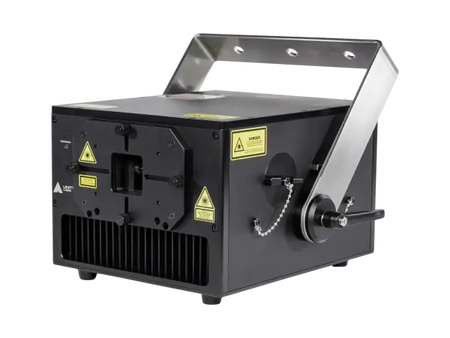

Outdoor-Rated Full-Color RGB Laser Projector

Pangolin Unity Elite 10 Pro FB4 IP65 is a high-power, full-color laser system built for demanding professional environments. With a guaranteed 10W of optical output and an IP65-rated housing, it’s perfect for permanent outdoor installations, touring, and large indoor shows where durability, brightness, and control flexibility are critical.

Pangolin Unity Elite 10 Pro FB4 IP65 Competitive Differences

  • 10W full-color RGB output with precise analog modulation
  • Rugged IP65 waterproof housing for all-weather outdoor use

Pangolin Unity Elite 10 Pro FB4 IP65 Description

The Unity Elite 10 Pro FB4 IP65 sets the standard for high-performance outdoor lasers. Designed for lighting professionals, rental companies, and event venues, it features powerful diode-based RGB output (3,200mW Red, 3,200mW Green, 4,000mW Blue), delivering vibrant beams and graphics even in large-scale environments. Its 35K scanning system ensures high-resolution output for text, logos, beam effects, and laser mapping. This system features Pangolin’s FB4 media server built-in, offering unmatched control via DMX, ArtNet, sACN, or PC—with support for auto-mode and mobile app control. Ideal for integration with lighting consoles and multimedia workflows, it includes pass-through Ethernet and power connections, making multi-laser synchronization simple and efficient. Encased in a durable IP65-rated housing, the Elite 10 Pro is ready for harsh weather conditions. With a wide operating temperature range (-10°C to 45°C), advanced thermal management, and comprehensive laser safety features, it’s a trusted solution for both indoor and outdoor environments.

Model Features

  • Integrated Pangolin FB4 DMX media server for full protocol support (Ethernet, ArtNet, DMX, sACN)
  • 10W RGB output with full-color diode laser system and analog modulation
  • IP65-rated waterproof housing for permanent outdoor use
  • High-speed 35,000 PPS scanning system with 45° scan angle
  • Full digital adjustment via onboard FB4 display (size, position, rotation, color, safety)
  • Advanced laser safety with keyed interlock, emission delay, scan-fail protection, and more

Model Specifications

  • Max Optical Output: >10W
  • Red / Green / Blue (mW): 3,200 | 3,200 | 4,000
  • Beam Size: 6 x 6 mm
  • Beam Divergence: <1.2mrad (Full Angle)
  • Scanning Speed: 35,000 PPS @ 8°
  • Scan Angle: Max 45°
  • Control: Ethernet, ArtNet, DMX, sACN, Auto Mode, Mobile App
  • Modulation: Analog 100kHz
  • Power Requirements: 100–240V / 50Hz
  • Power Consumption: Max. 300W
  • Operating Temperature: -10°C to 45°C
  • Ingress Protection: IP65
  • Dimensions: 12.9 x 13.3 x 7.5 in (328 x 338 x 191 mm)
  • Weight: 28 lb (12.7 kg)

What's In The Box

  • Laser projector with FB4 DMX (IP65-rated)
  • Heavy-duty flight case
  • Laser control software
  • Mains power cable
  • Ethernet cable
  • E-STOP remote
  • E-STOP XLR cable
  • Set of 4 safety keys
  • Interlock (US only)
  • Quickstart guide and manual
  • Quality certificate and variance card
