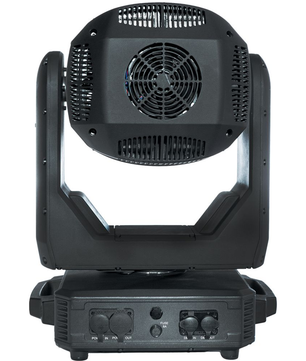

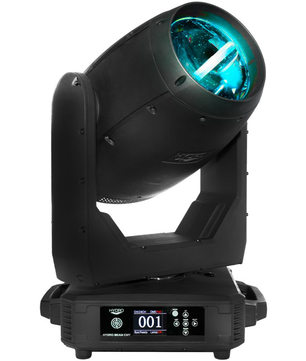

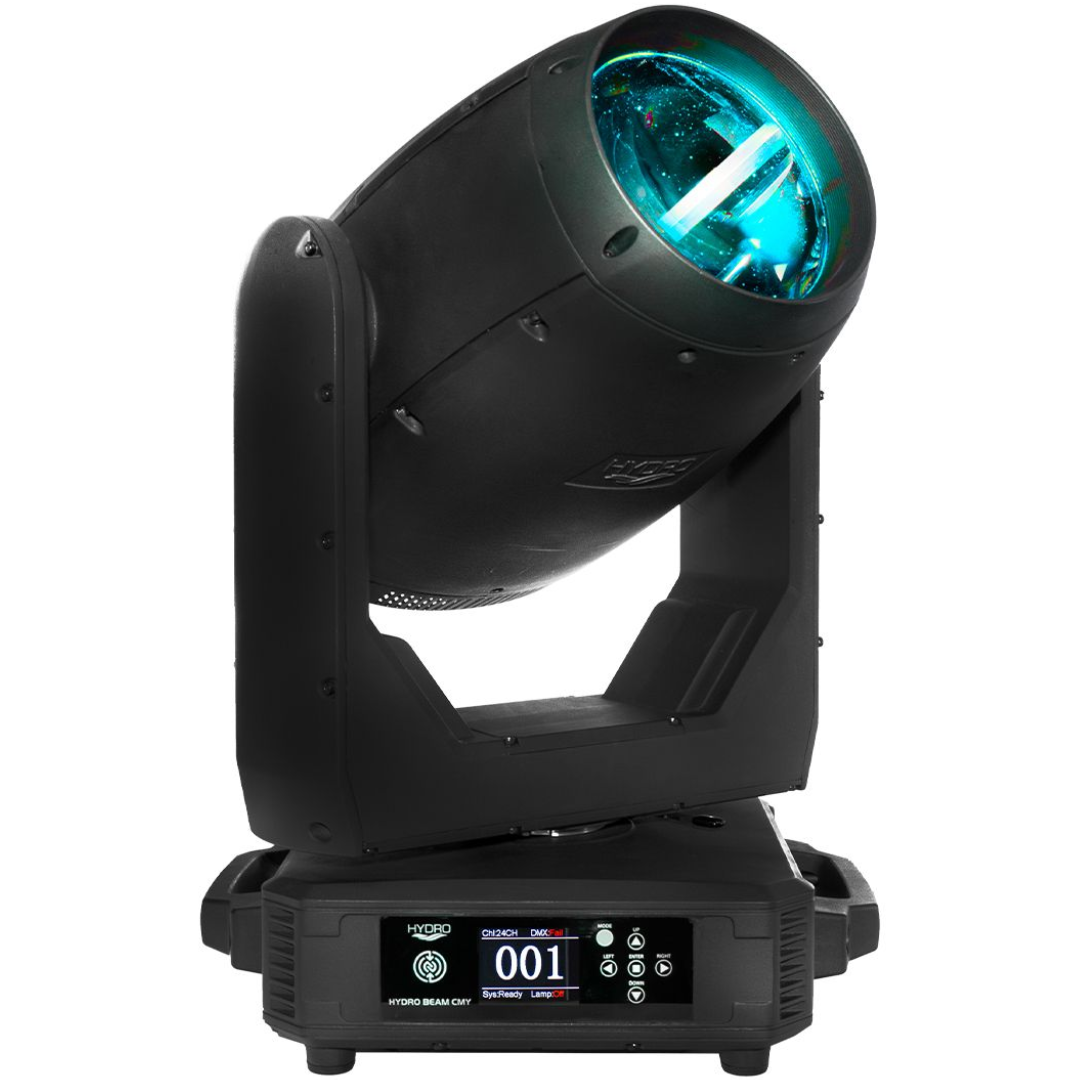

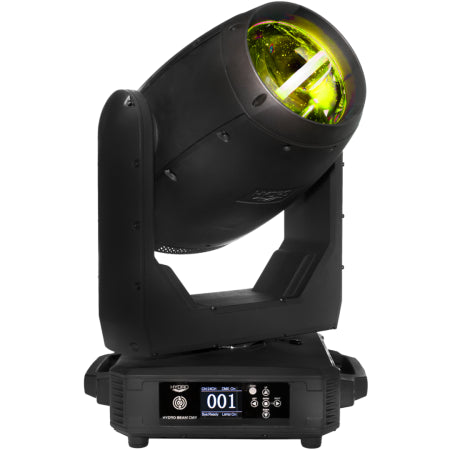

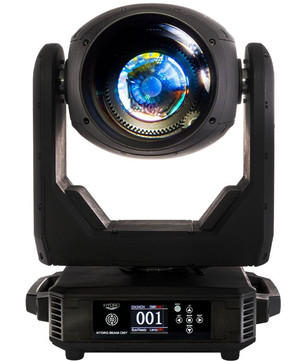

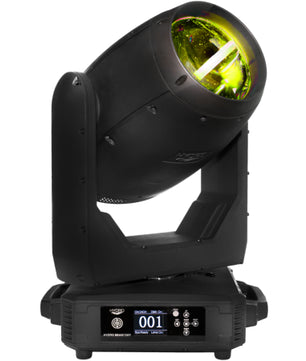

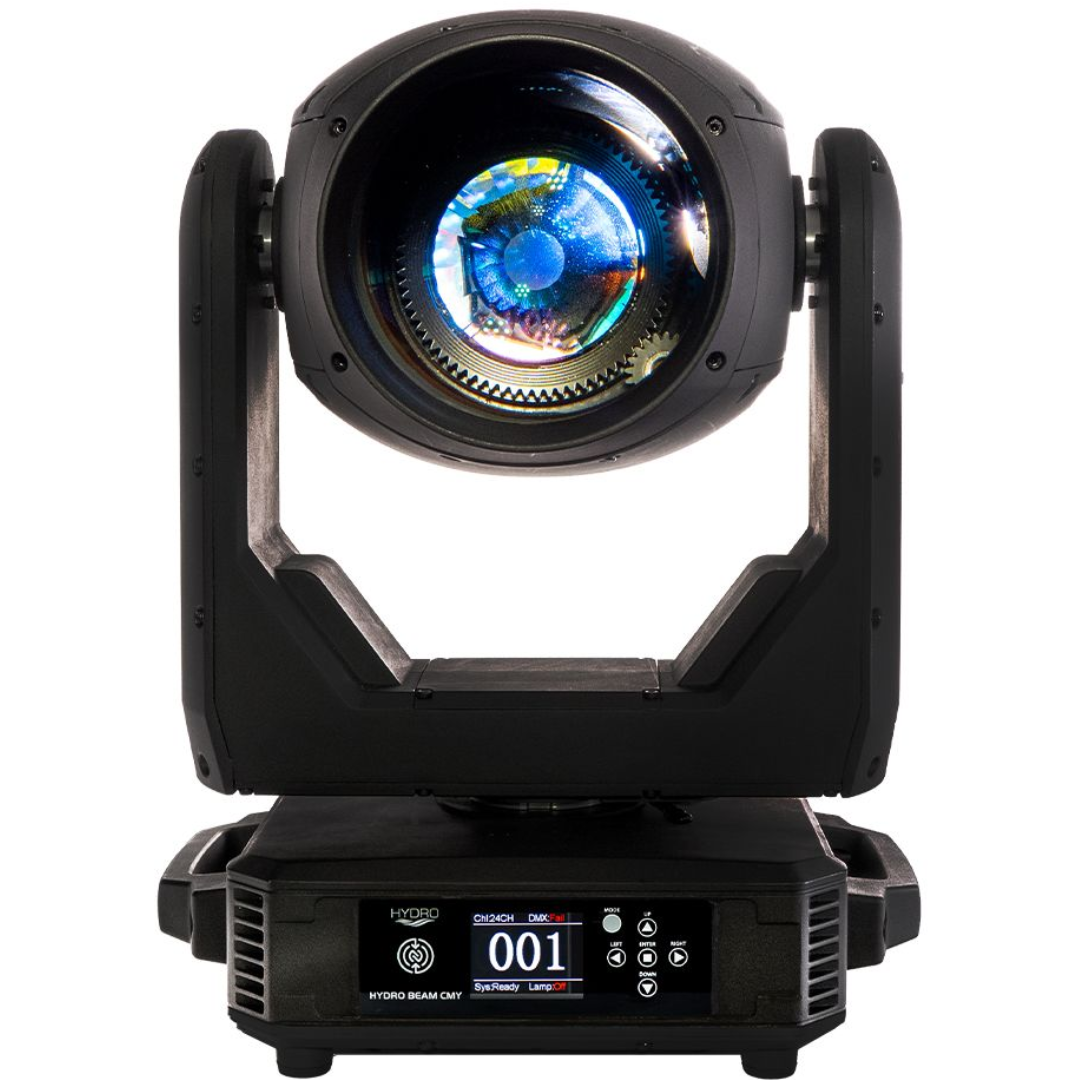

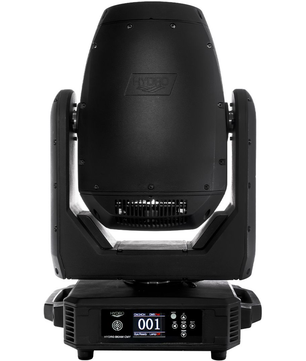

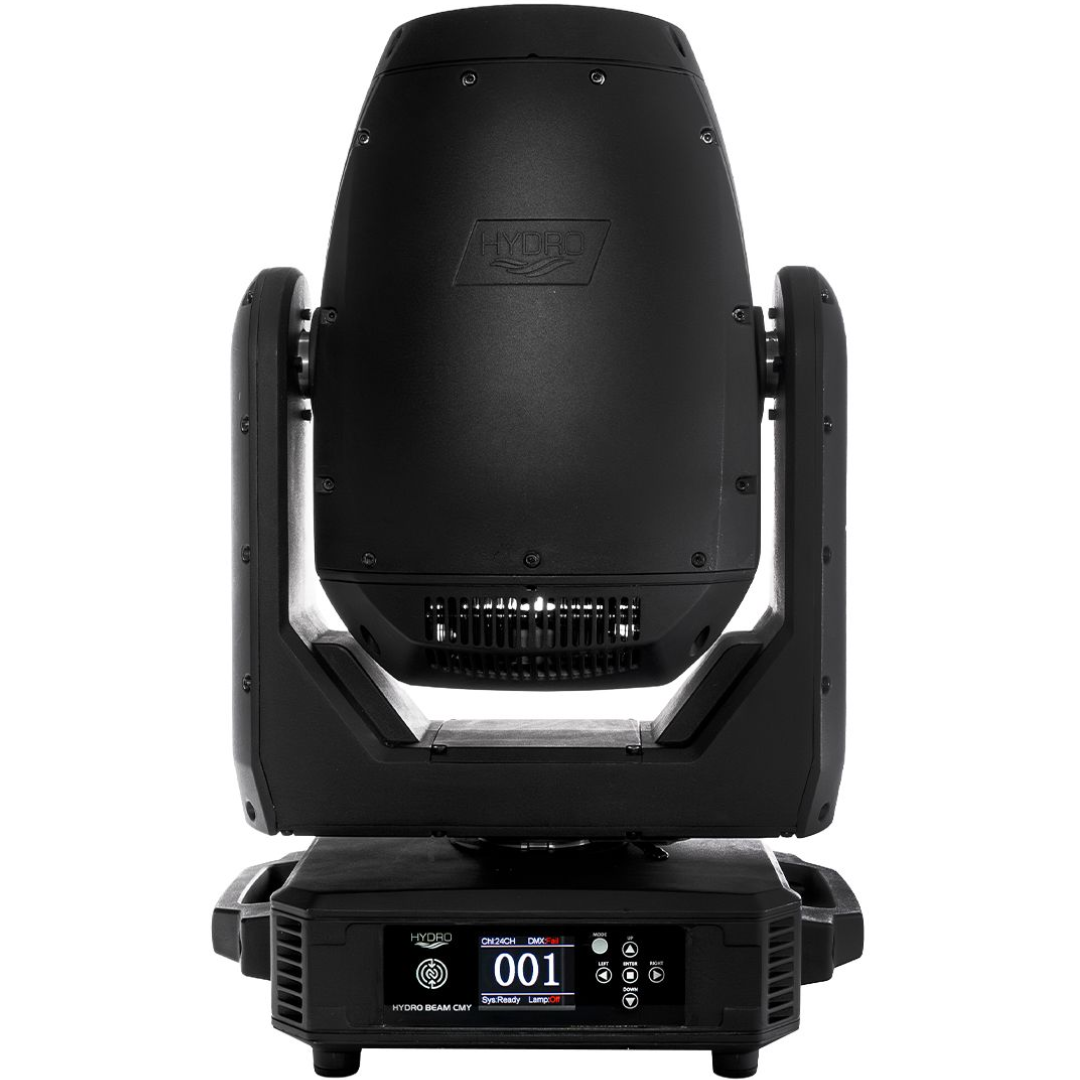

American DJ Hydro Beam CMY | IP65 Outdoor Beam Fixture | 2° Beam with CMY & 310W Discharge Lamp

Outdoor Beam Moving Head

The American DJ Hydro Beam CMY is a professional-grade IP65 beam fixture engineered for the demands of large-scale outdoor productions. Delivering a razor-sharp 2° beam powered by an OSRAM Sirius HRI 310W PRO lamp, this fixture cuts through fog, haze, and ambient light with precision and intensity.

American DJ Hydro Beam CMY Competitive Differences

• IP65-rated design for reliable performance in all weather conditions
• CMY color mixing plus 14-color wheel with CTO, CTB, and UV filters

American DJ Hydro Beam CMY Description

Designed for high-impact lighting applications like outdoor festivals, stadium tours, and theme parks, the Hydro Beam CMY combines power, precision, and durability. Its high-output 310W OSRAM lamp delivers 7850K color temperature and a tight 2° beam angle, enhanced by a premium glass lens and motorized focus with 16-bit resolution for razor-sharp projection at any distance. The fixture’s creative flexibility is driven by a comprehensive feature set. The CMY color mixing system allows for seamless transitions between rich colors, while the 14-position dichroic color wheel adds even more options—including CTO, CTB, UV, and split-color effects. Its GOBO wheel includes 17 static patterns, with four beam reducers for narrowing and shaping the beam. Two rotating prisms (16-facet circular and 6-facet linear) can be used individually or combined, adding depth and complexity to aerial effects. A frost filter is also included to soften the beam for wash-style applications. Advanced pan and tilt motors enable ultra-fast and precise movement, making the Hydro Beam CMY ideal for dynamic environments. In addition to DMX and RDM, the fixture includes ADJ’s Aria X2 wireless DMX and fixture management system, streamlining setup and control. Built to withstand dust, rain, and extreme temperatures, this fixture is perfect for professionals who demand both performance and reliability.

Model Features

• OSRAM Sirius HRI 310W PRO discharge lamp (7850K)
• 2° beam angle with motorized focus
• Full CMY color mixing with additional 14-slot color wheel
• 17 static GOBOs with shake and beam reducer effects
• Dual rotating prisms (16-facet circular and 6-facet linear)
• Frost filter for soft wash effects
• Aria X2 wireless DMX and fixture management
• IP65-rated housing for outdoor use in any weather

Model Specifications

• Light Source: OSRAM Sirius HRI 310W PRO
• Color Temperature: 7850K ±500K
• CRI: 86 ±5
• Beam Angle: 2°
• Prisms: 16-facet circular & 6-facet linear (rotating, overlayable)
• Color Wheel: 14 dichroic colors incl. CTO (3200K), CTB (9000K), UV
• GOBO Wheel: 17 static patterns + open (incl. 4 beam reducers)
• Dimming: 0–100% smooth electronic dimming
• Strobe: Variable strobe speeds
• Pan: 540° + 16-bit fine | Tilt: 270° + 16-bit fine
• Cooling: Fan cooled
• Control Protocols: DMX512, RDM, Aria X2 wireless
• DMX Modes: 20 / 24 channels
• Display: Color LCD with 4-button menu
• Power Input: 100–240V AC, 50/60Hz
• Max Power Consumption: 430W @ 230V

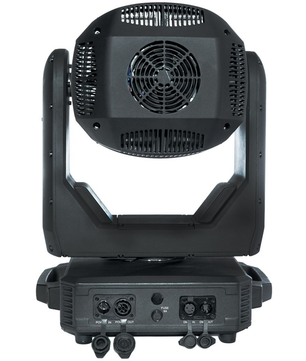

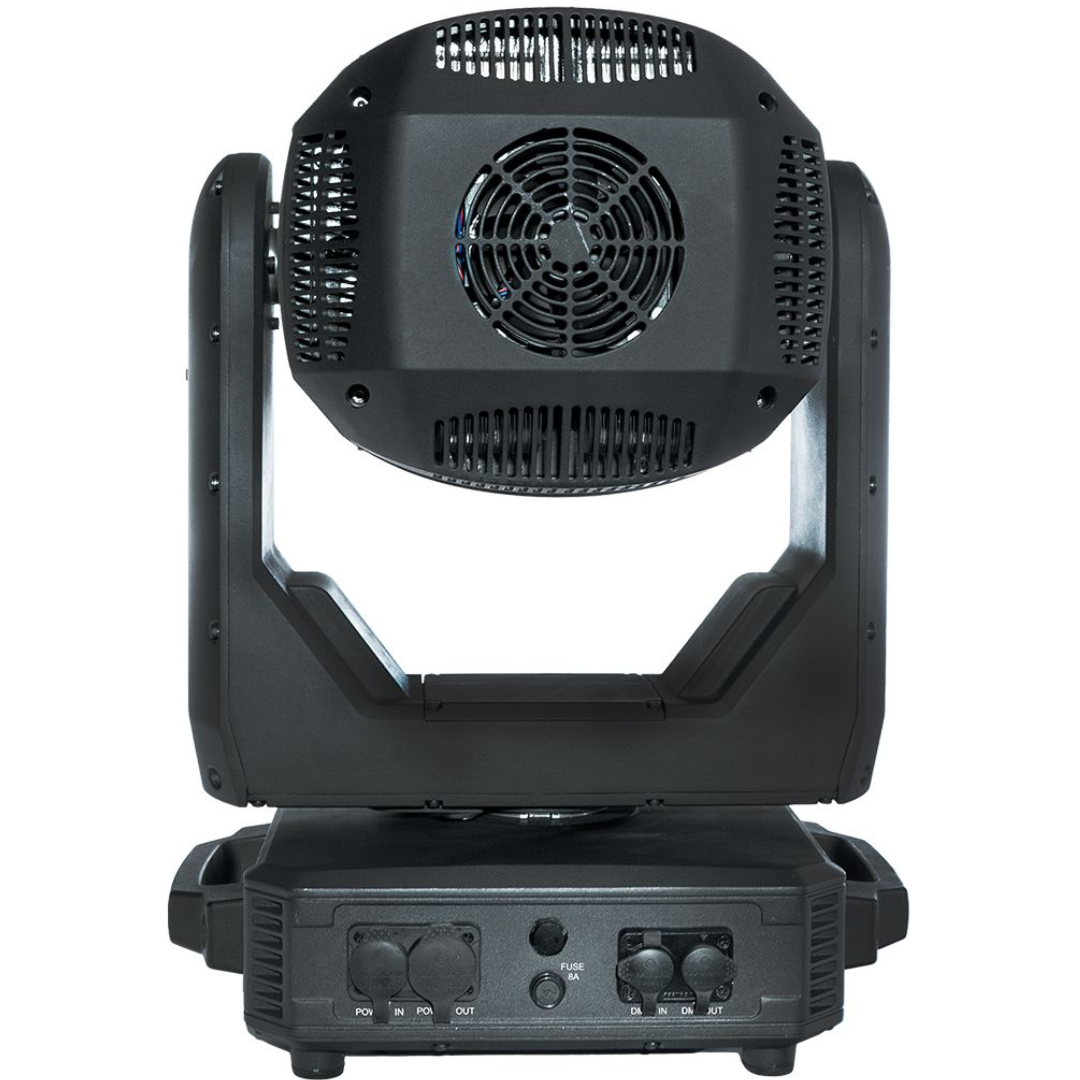

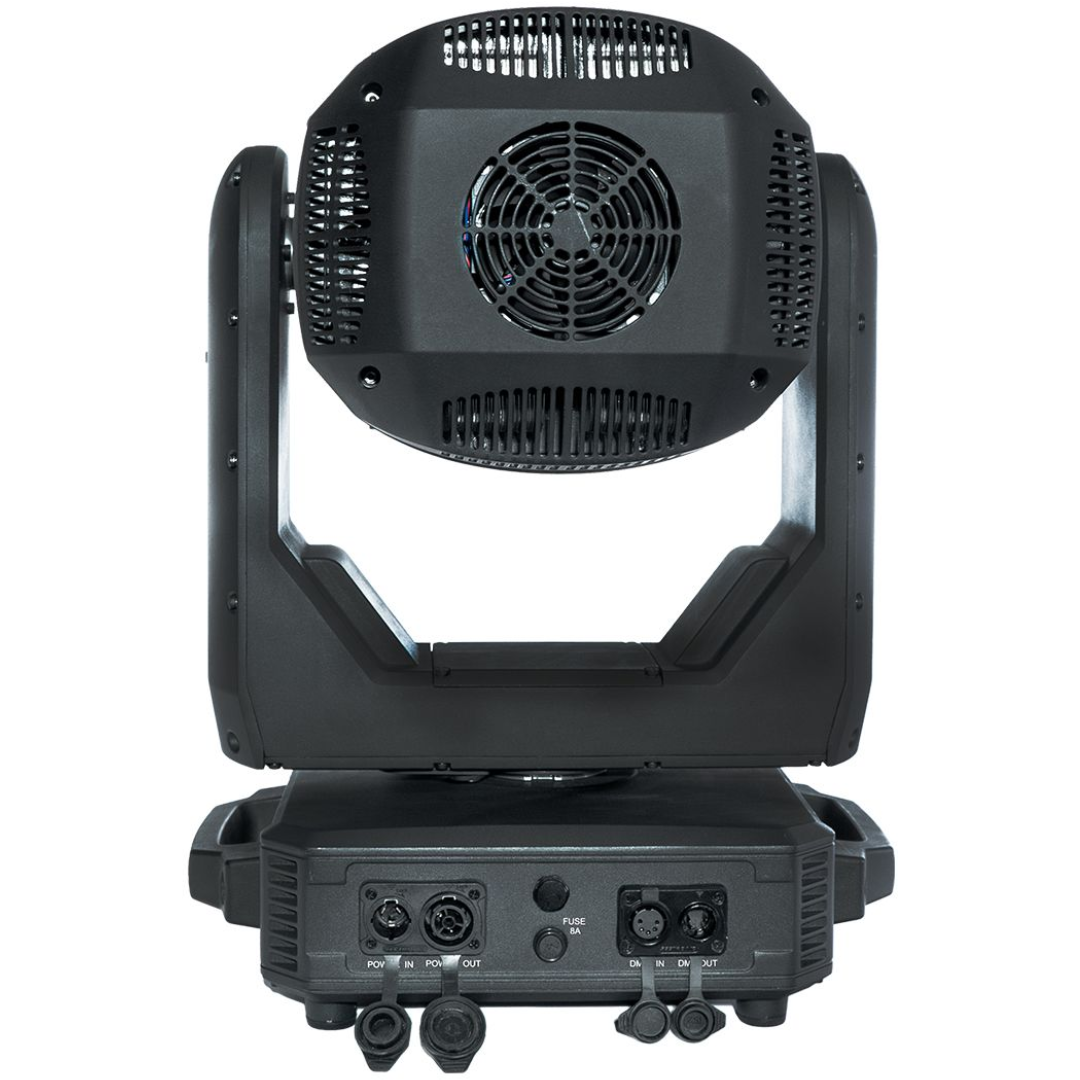

• Connections: 5-pin IP65 DMX In/Out, IP65 locking power In/Out
• Dimensions: 15 x 11.2 x 22.4 in (381.6 x 284.5 x 568.5 mm)
• Weight: 56.4 lbs (25.6 kg)

What's In The Box

• Hydro Beam CMY fixture
• 2 x Omega brackets (107 Type)
• 2m IP65 locking power cable
