American DJ MDF2PSUX117 | 2250W 24V Power Supply | Powers Up to 117 MDF2 Panels

Dance Floor Panel Power Supply

American DJ MDF2PSUX117 is a high-capacity external power supply designed for MDF2 dance floor systems, delivering the power needed to run up to 117 panels from a single unit. It is ideal for large-scale event production, rental setups, and permanent installations requiring reliable and organized power distribution.

American DJ MDF2PSUX117 Competitive Differences

• 2250W power supply supporting up to 117 MDF2 panels
• 9 output connectors with individual resettable breakers for controlled distribution

American DJ MDF2PSUX117 Description

The American DJ MDF2PSUX117 is built for demanding dance floor installations where high panel counts require a centralized and dependable power source. With a 24VDC output and 2250W capacity, it can efficiently power up to 117 MDF2 panels, making it a strong solution for large venues, touring productions, and rental inventories.

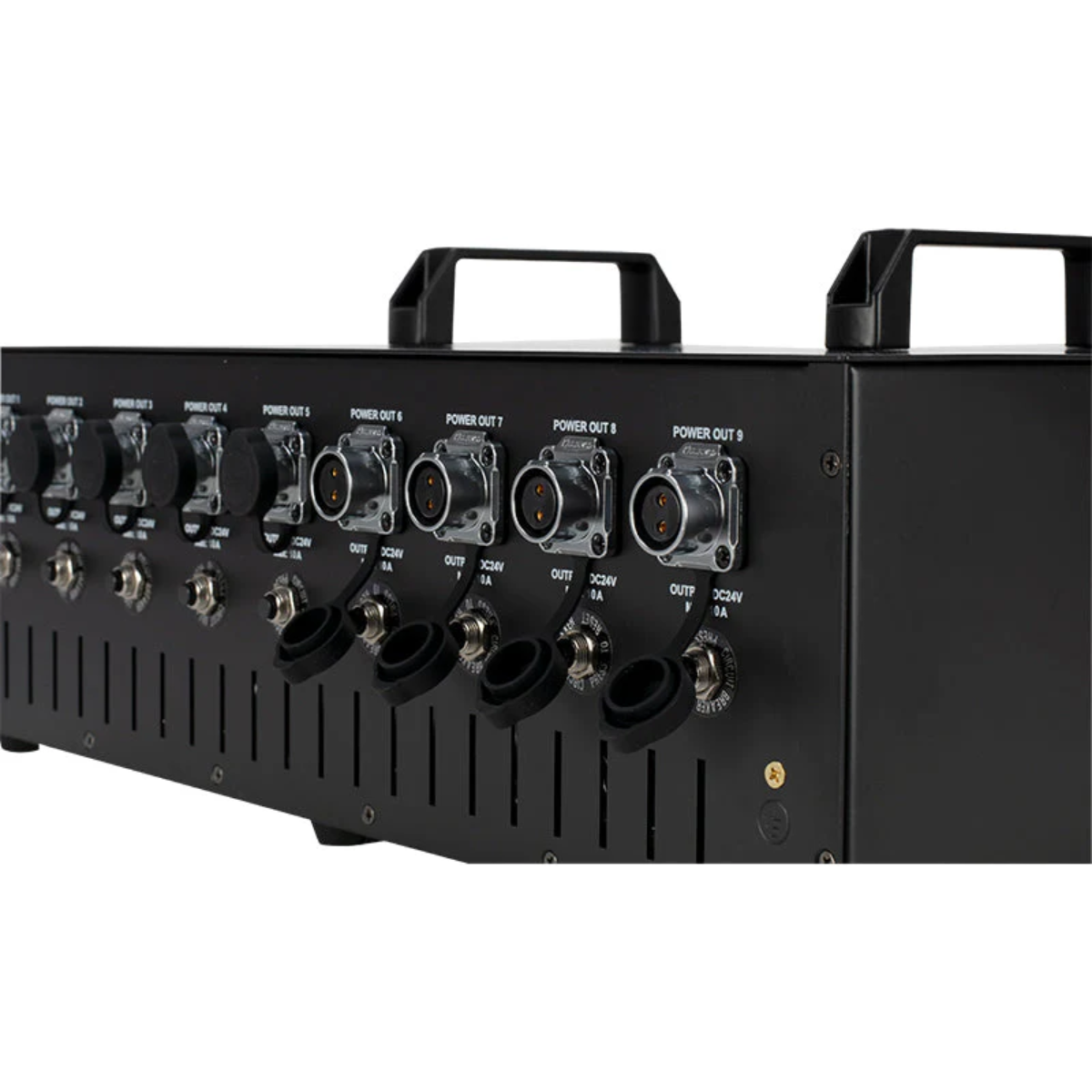

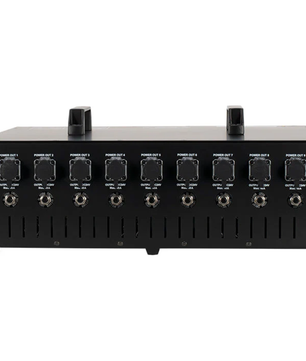

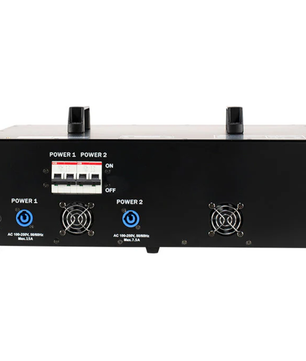

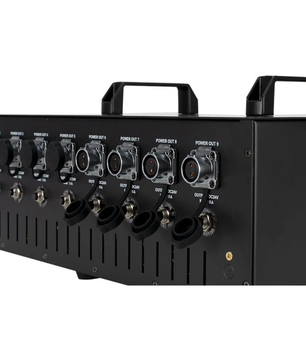

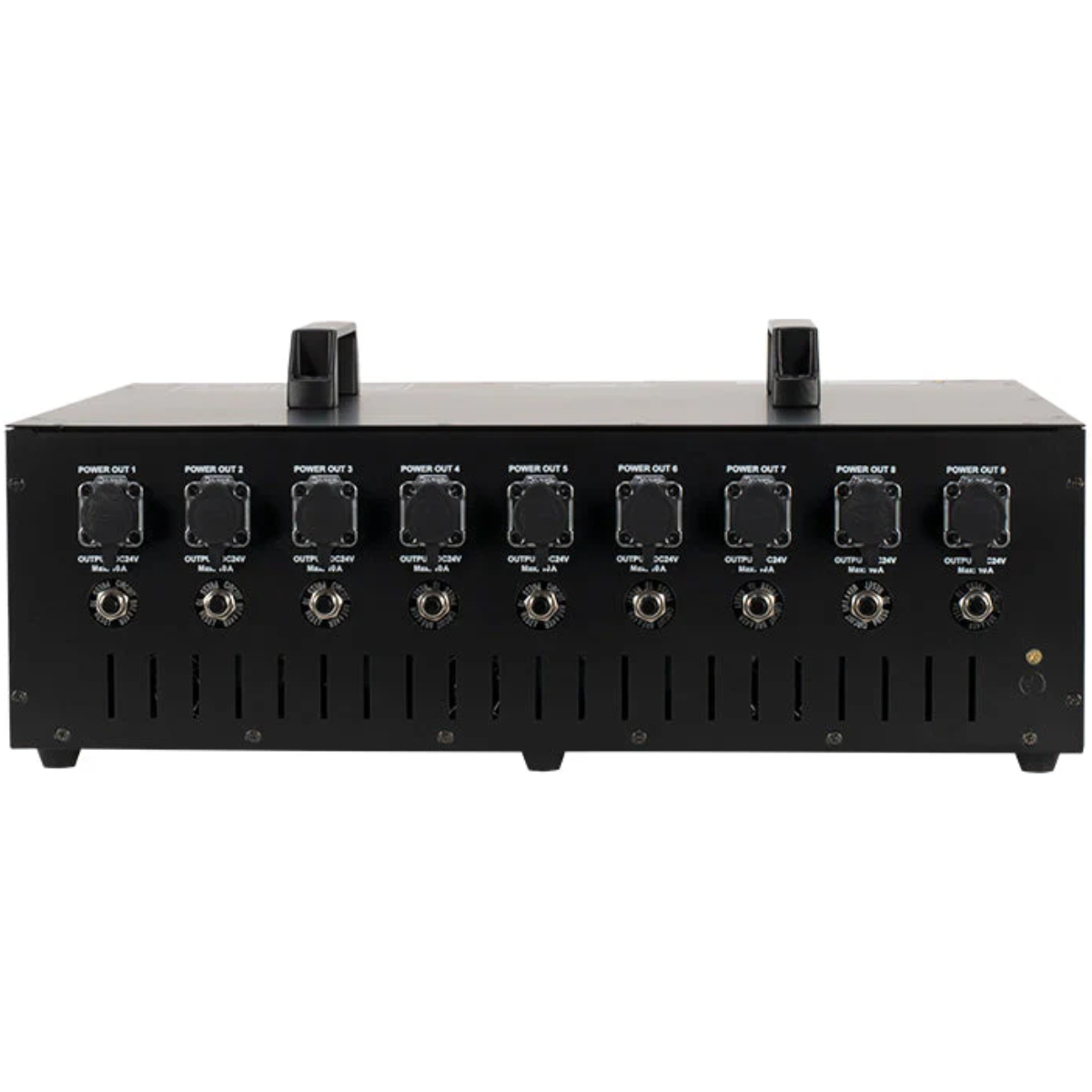

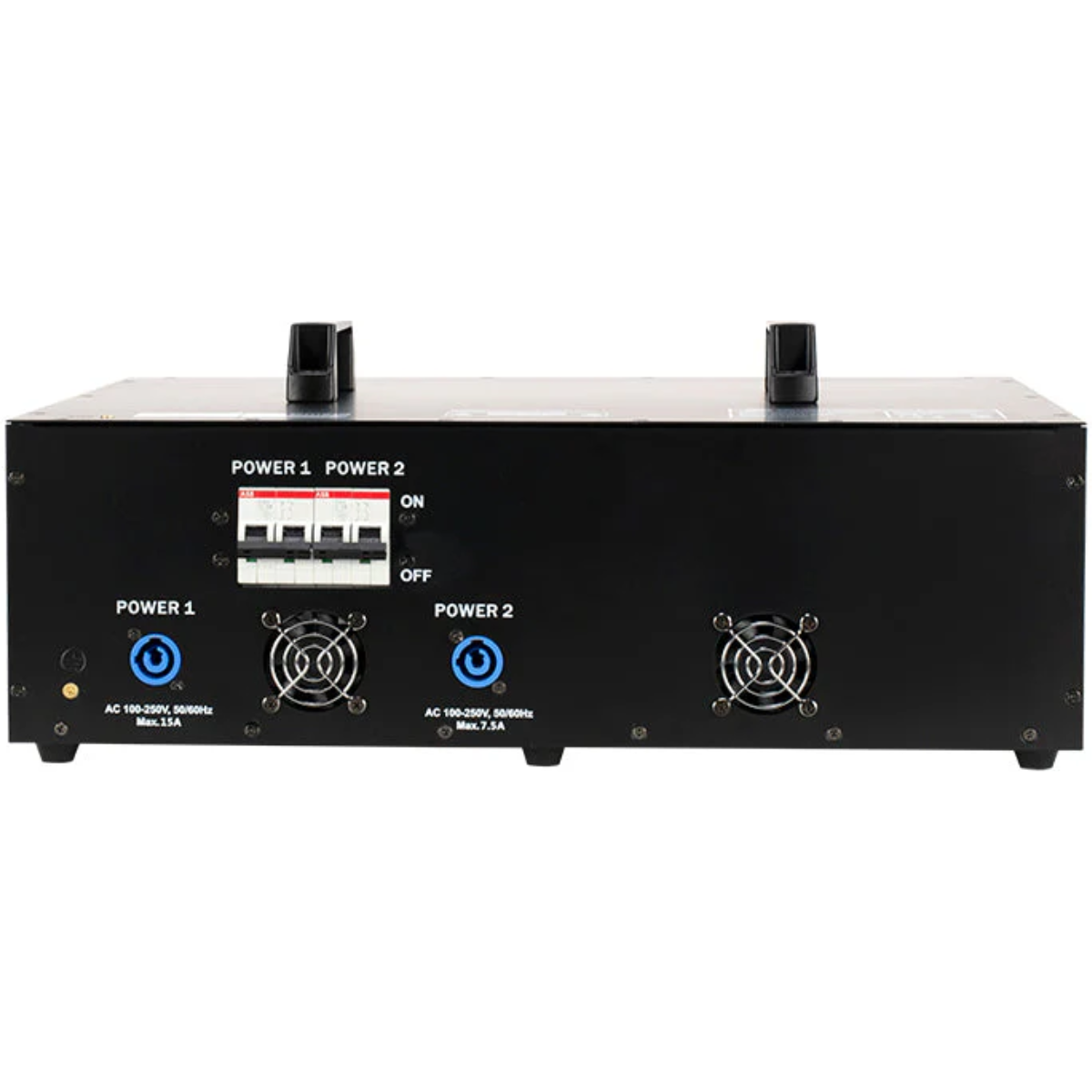

This unit features nine 2-pin output connectors, each capable of powering a row of up to 13 MDF2 panels. Each output is protected by its own resettable breaker, allowing for safer operation and easier troubleshooting. Dual locking power inputs and dual power switches provide added reliability and flexibility when managing larger electrical loads.

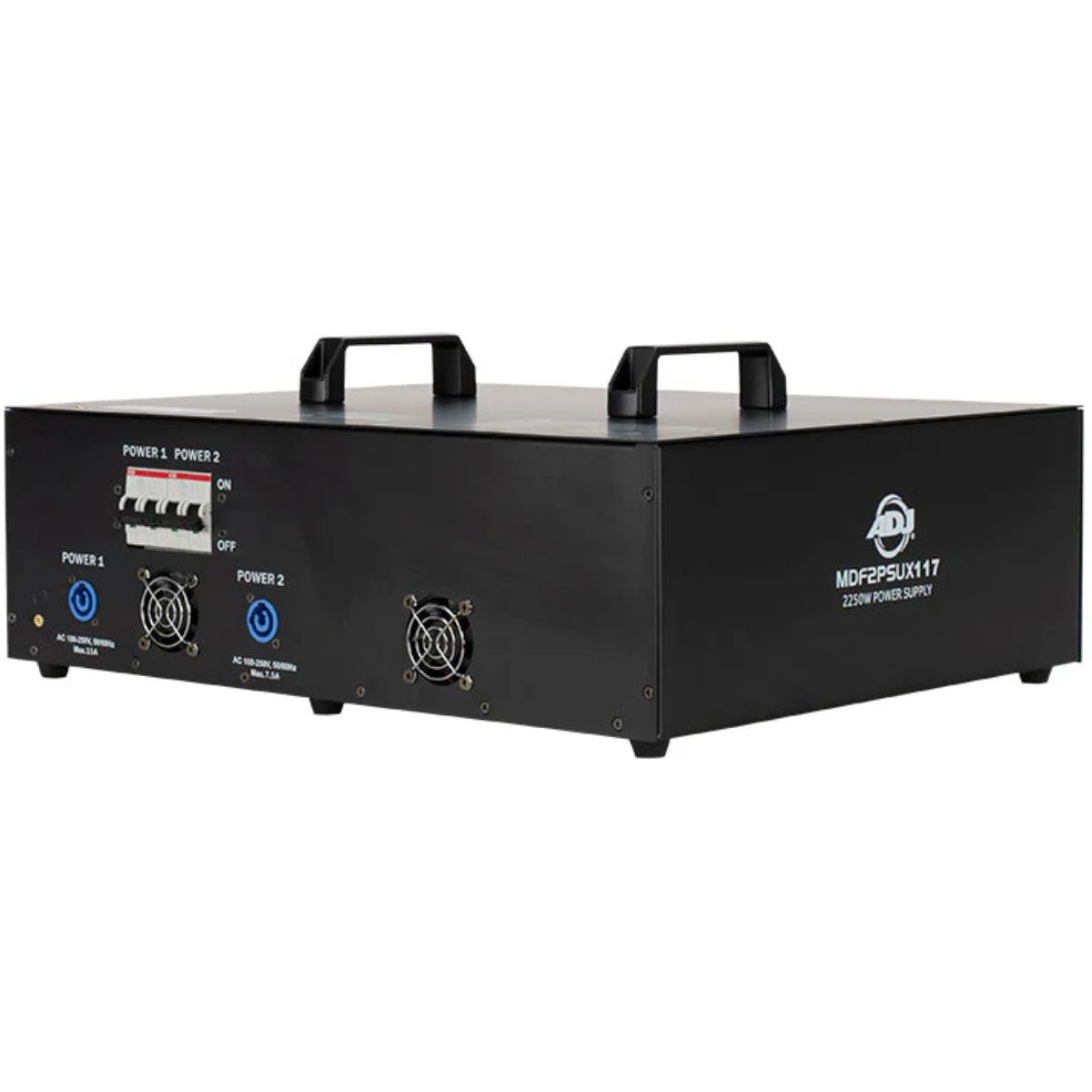

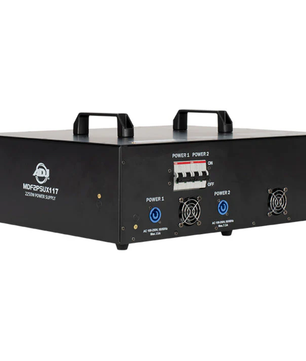

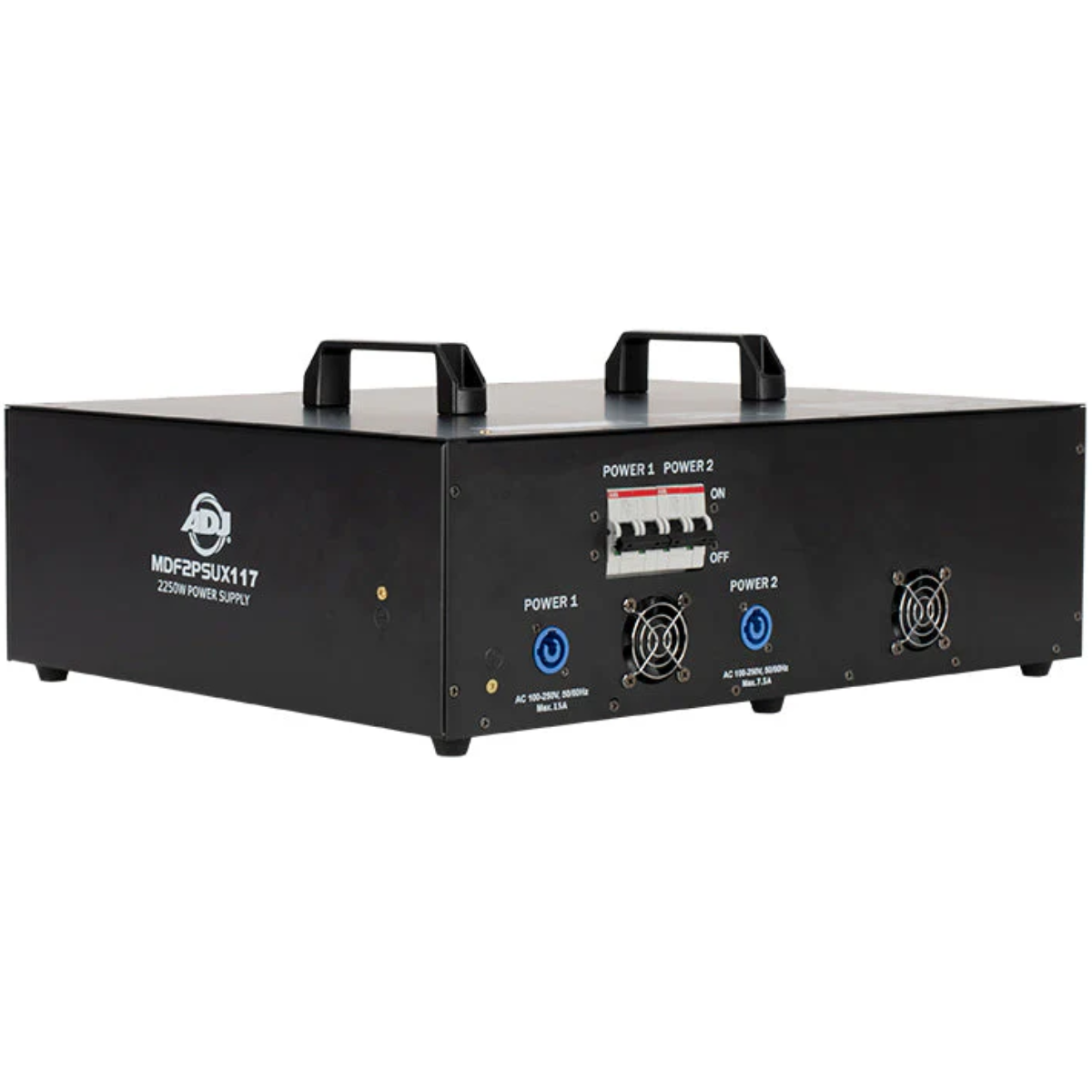

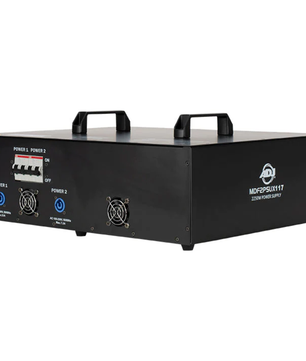

Designed with usability in mind, the MDF2PSUX117 includes two top-mounted carrying handles, rubber feet for stability, and integrated cooling via dual fans to maintain optimal performance during extended operation. The included locking input cables and long output cables make setup straightforward for both mobile and permanent installations.

MDF2PSUX117 Features

• 2250W external power supply for MDF2 dance floor systems
• Powers up to 117 MDF2 panels
• Nine (9) 2-pin power outputs for panel rows
• Nine (9) resettable circuit breakers
• Two (2) locking power inputs
• Two (2) independent power switches
• Dual fan cooling system
• Durable housing with rubber feet for stability
• Integrated carrying handles for transport

MDF2PSUX117 Specifications

• Power Output: 2250W
• Output Voltage: DC 24V
• Input Voltage: AC 100–240V, 50/60Hz
• Load Current: 90A
• Panel Capacity: Up to 117 MDF2 panels
• Outputs: 9 x 2-pin connectors
• Protection: 9 resettable breakers
• Cooling: Dual fan cooled
• Dimensions: 19.7 x 17.0 x 8.1 in (650 x 433 x 205.5 mm)
• Weight: 30 lb (13.6 kg)
• Operating Temperature: -4°F to 158°F (-20°C to 70°C)
• IP Rating: IP20

What's In The Box

• American DJ MDF2PSUX117 power supply

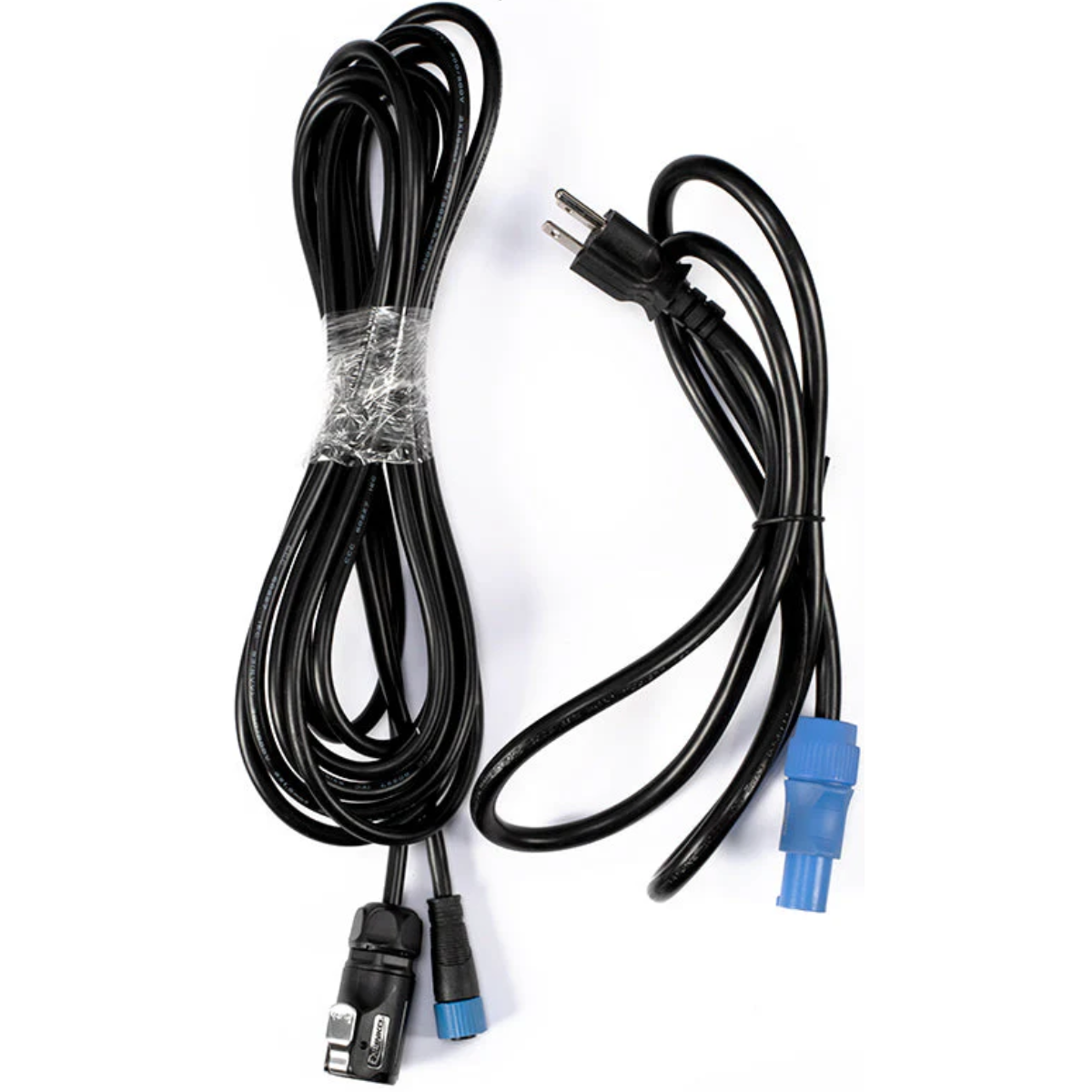

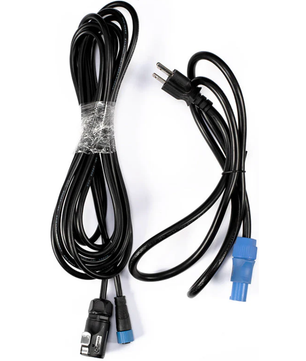

• 2 x 3 ft locking power cables

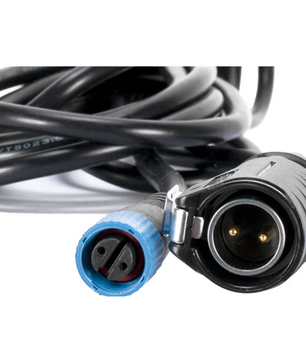

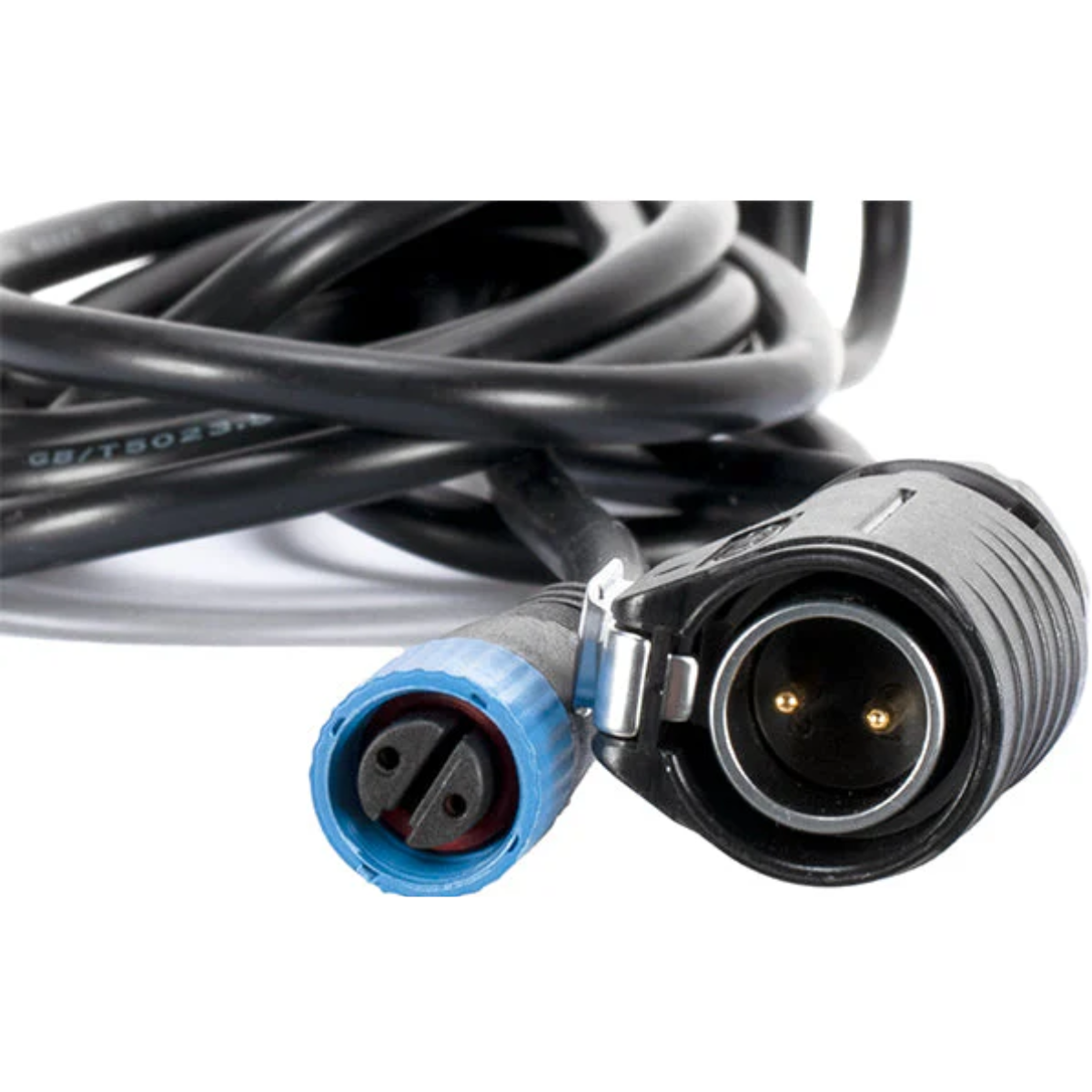

• 9 x 15 ft 2-pin power output cables
