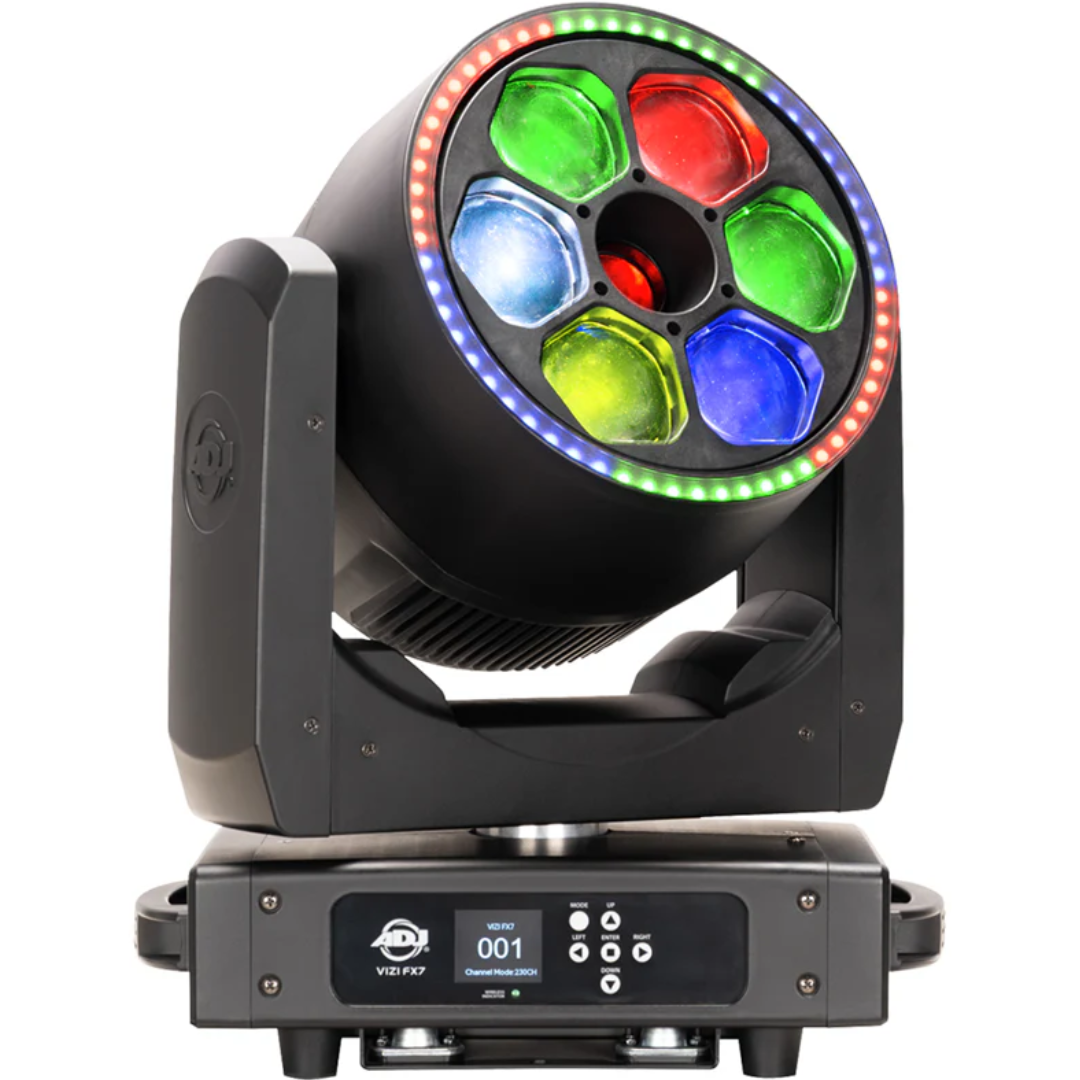

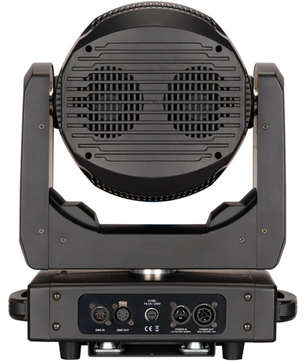

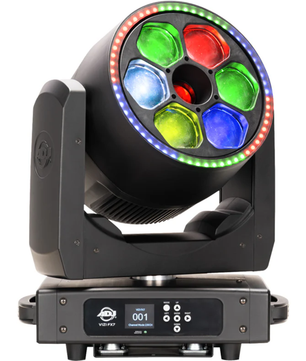

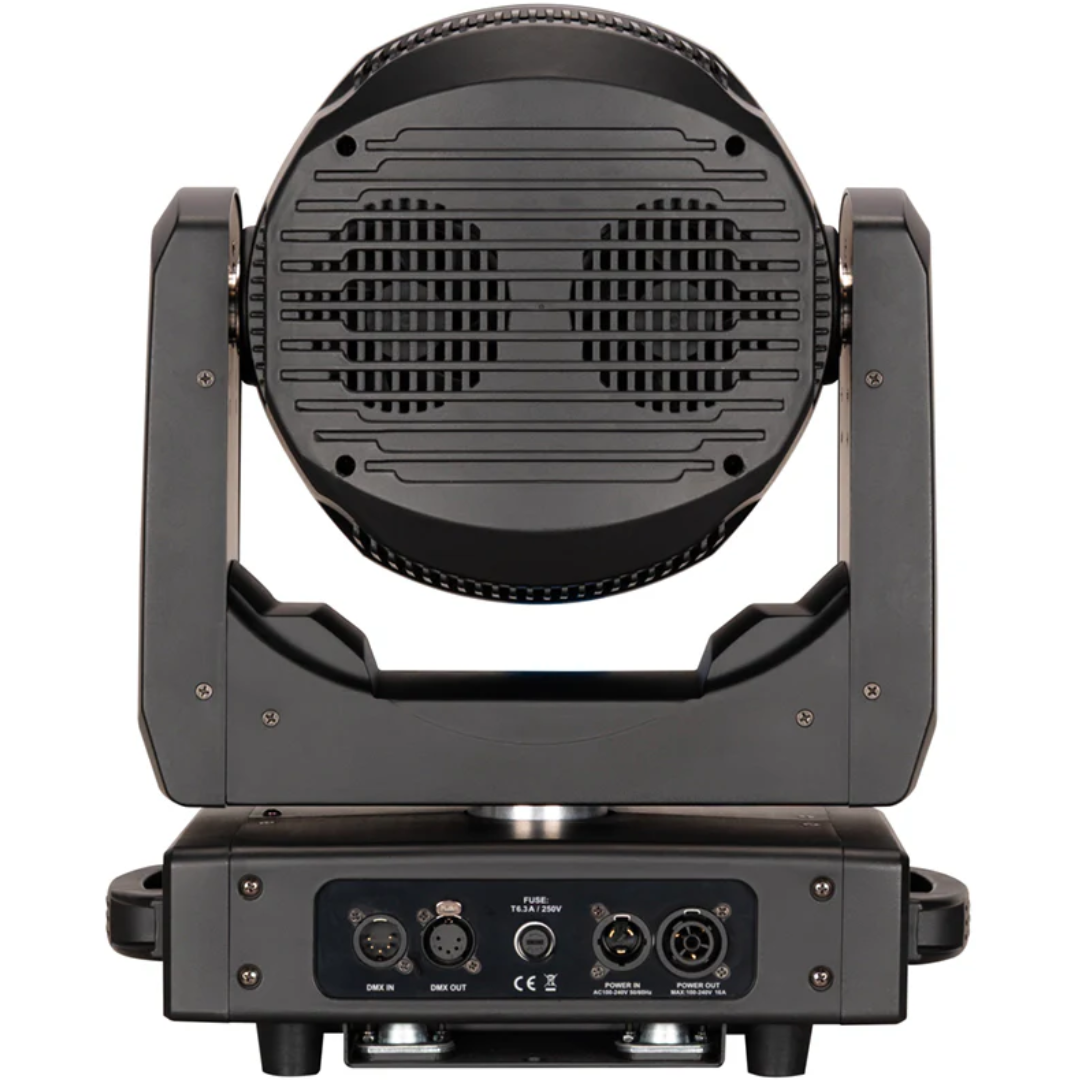

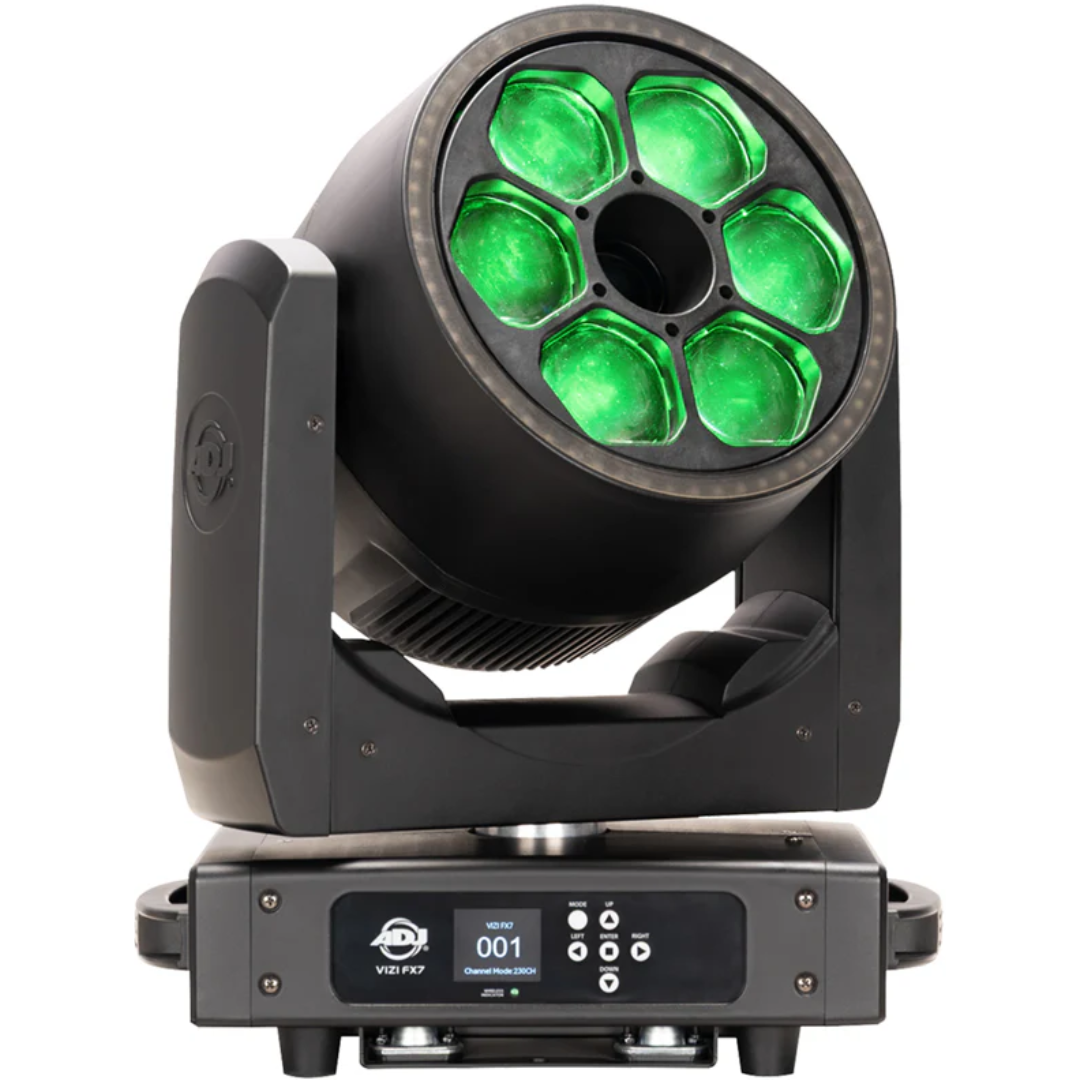

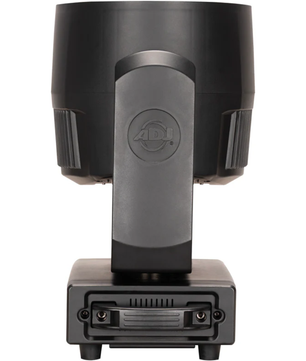

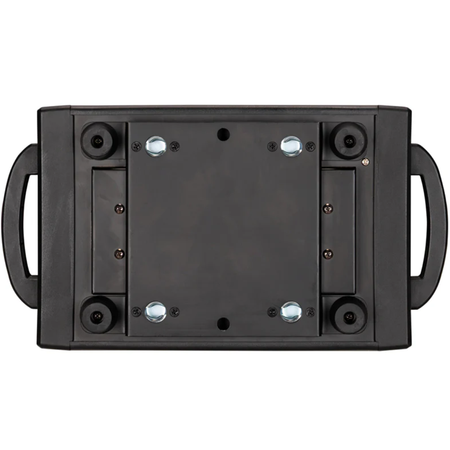

American DJ Vizi FX7 | 420W RGBL Moving Head - Beam, Wash, Kaleidoscope & LED Ring | Zoom 8°–38°, Pixel Control

Multi-Effect Moving Head Fixture

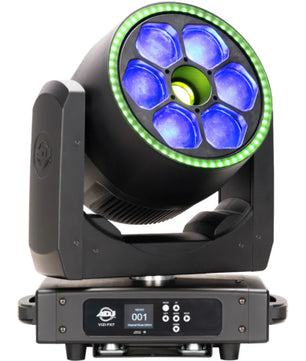

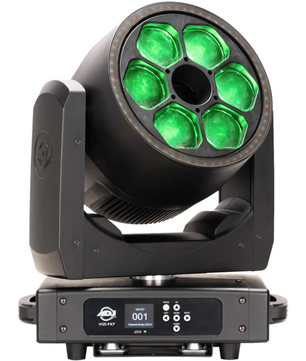

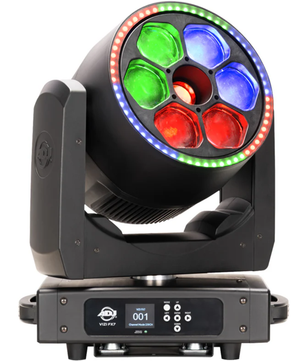

ADJ Vizi FX7 is a powerful and compact moving head luminaire that combines four effects in one fixture: beam, wash, kaleidoscope, and LED ring. With pixel control, motorized zoom, and advanced onboard effects, it offers an all-in-one visual solution for stage, club, worship, or event lighting.

ADJ Vizi FX7 Competitive Differences

• Four Effects in One: Beam, Wash, Kaleidoscope & RGB Ring
• Motorized Zoom (8°–38°) with Individual Pixel Control

ADJ Vizi FX7 Description

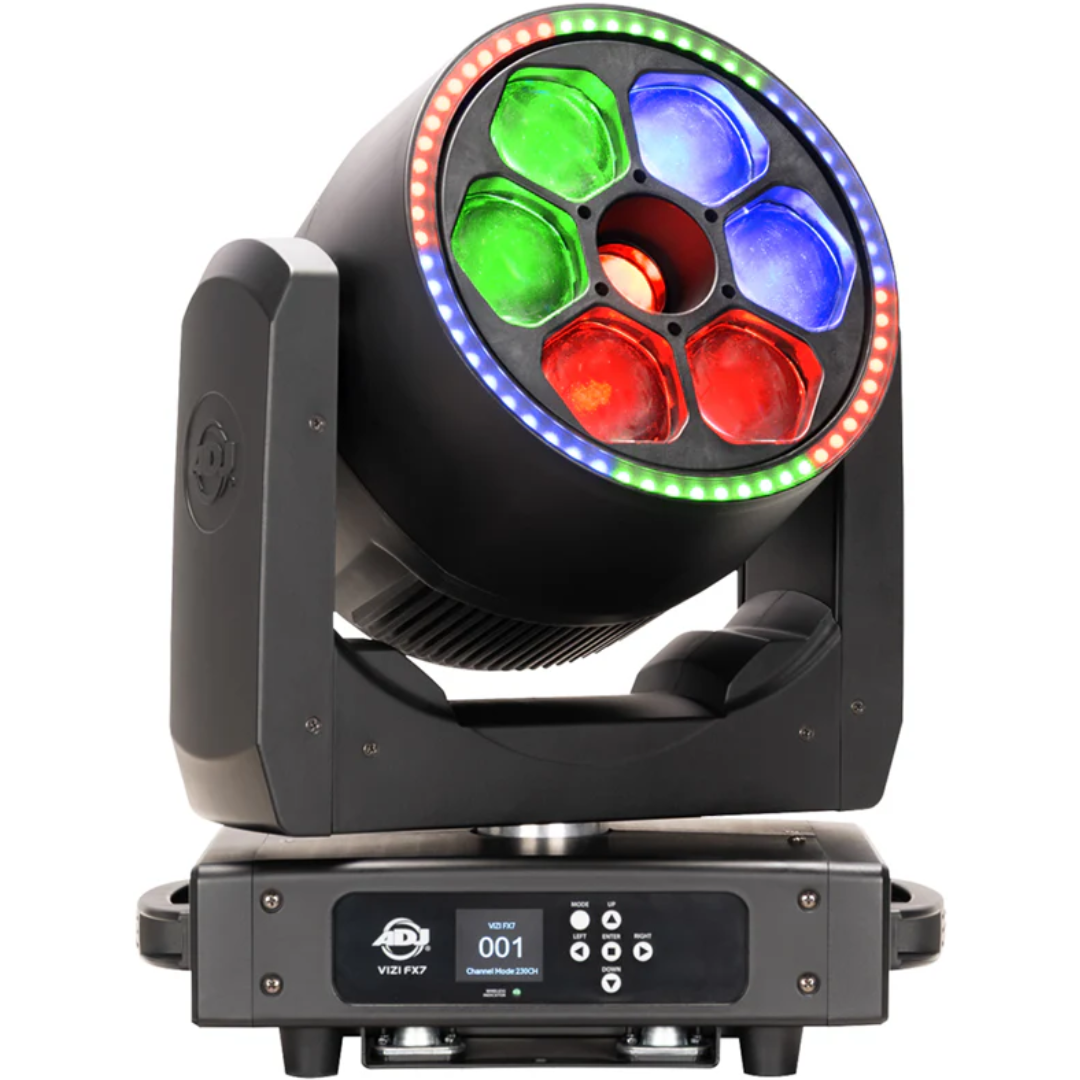

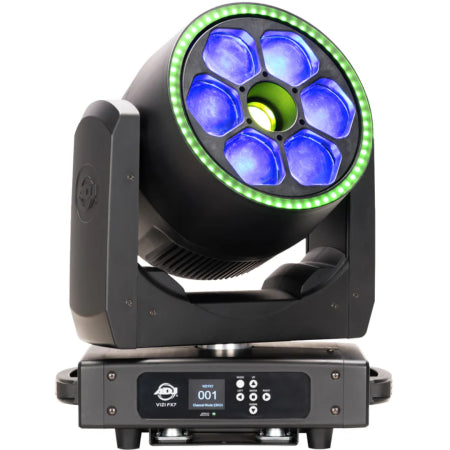

The ADJ Vizi FX7 is a next-generation moving head effect light that delivers immersive, layered visuals using four distinct lighting zones. With six powerful 60W RGBL LEDs, a multi-color kaleidoscope center, and a 60-point RGB LED ring, it provides unmatched flexibility and creativity in one fixture. Its motorized zoom ranges from 8° to 38°, allowing designers to toggle between tight beams and broad wash looks. Each of the primary LEDs supports individual pixel control and can rotate bi-directionally for animated multi-beam effects. The kaleidoscope LED at the center creates mesmerizing rotational patterns, while the outer LED ring produces vibrant eye-candy visuals that shine both on stage and on camera. Designed for professional environments, the Vizi FX7 includes built-in Aria X2 wireless management for cable-free control, plus full 5-pin DMX and RDM support. Selectable dimming curves and LED refresh rates up to 25kHz make it ideal for both live and broadcast use. Fan cooling, advanced macros, and user-definable settings make programming intuitive while delivering exceptional performance. Whether used solo or as part of a synchronized rig, the Vizi FX7 transforms mid-air space with texture, motion, and color—all from one efficient, feature-rich fixture.

Model Features

• 4-in-1 FX: Beam, Wash, Kaleidoscope, and RGB Ring
• 6 x 60W RGBL primary LEDs + 1 x 60W kaleidoscope LED
• 60 x 0.5W RGB LEDs for outer ring effects
• Motorized zoom range: 8° to 38°
• Bi-directional beam & kaleidoscope rotation
• Individual pixel control for primary LEDs
• Built-in FX macros with speed control
• Selectable color temperature presets (2800K–8500K)
• Selectable dimming modes and refresh rates (up to 25kHz)

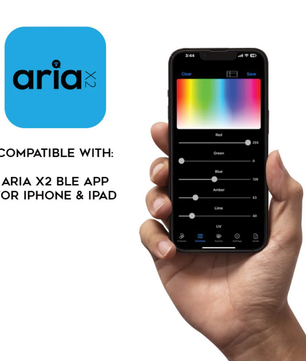

• Aria X2 wireless + RDM & NFC support

Model Specifications

• Max Power Consumption: 400W (3.7A @ 120V)
• Voltage: AC 100–240V, 50/60Hz
• LED Source: 7 x 60W RGBL LEDs + 60 x 0.5W RGB LEDs
• Zoom Range: 8°–38° (motorized)
• Strobe Rate: 1Hz – 20Hz
• Pan: 540°
• Tilt: 190°
• Dimensions: 14.39 x 8.66 x 17.11 in (365 x 220 x 434.4 mm)
• Weight: 29.8 lb (13.5 kg)
• IP Rating: IP20
• UPC: 818651029052

What's In The Box

• Vizi FX7 moving head fixture
• Locking power cable (6 ft)

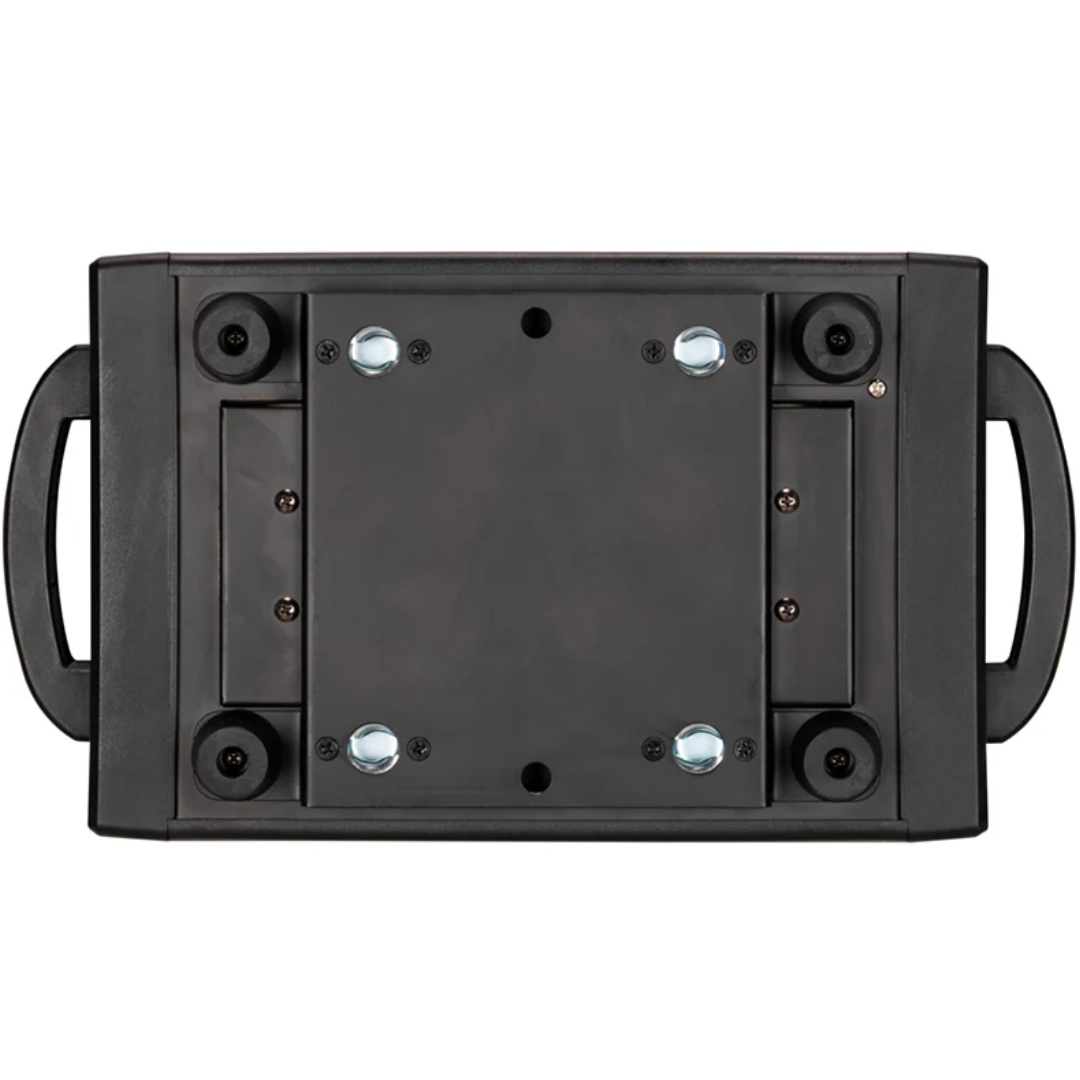

• 2 x Omega brackets
