Ashly ne24.24MT (8×12) | 8x12 DSP Matrix Processor | Modular I/O with Protea Control

Ashly ne24.24MT (8×12) | 8x12 DSP Matrix Processor | Modular I/O with Protea Control

$3,149.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

DSP Audio Matrix Processor

Ashly ne24.24MT (8×12) is a powerful and flexible digital signal processor designed for audio matrixing applications in commercial installations. With 8 analog inputs and 12 analog outputs, it offers precise routing and processing for multi-zone systems using Ashly's intuitive Protea DSP platform.

Ashly ne24.24MT Competitive Differences

8×12 I/O configuration with individual DSP on each expansion card
Mic preamps and 8 GPI ports for control integration

Ashly ne24.24MT Description

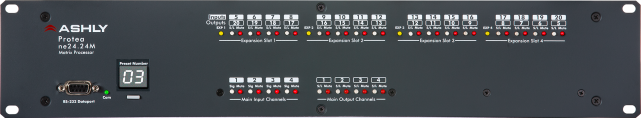

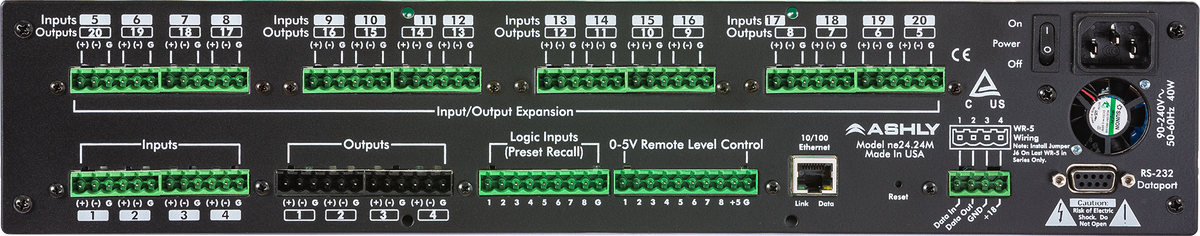

The Ashly ne24.24MT (8×12 configuration) is part of the scalable Protēa™ ne24.24M series of DSP matrix processors, designed to deliver professional-grade routing and processing for commercial audio systems. Built with modular architecture, the system begins with a 4×4 base and expands in 4-channel blocks, each with dedicated DSP. This model is pre-configured with 8 inputs and 12 outputs, making it ideal for multi-zone installations requiring both input flexibility and output density. Featuring 24-bit A/D–D/A conversion, Ethernet and RS-232 connectivity, and Ashly’s proven Protea DSP platform, the ne24.24MT ensures transparent sound quality and precise system tuning. Audio system designers benefit from matrix routing, adjustable gain, delay, dynamics, filters, and EQ — all accessible via PC software or the Ashly Remote app for iOS. With Euroblock connectors, 31 preset locations, and full third-party control compatibility, the ne24.24MT integrates easily into large-scale AV systems. It also supports multi-level security and is TAA compliant, making it suitable for government and commercial use.

Model Features

Protea™ DSP platform with intuitive PC and iOS control
8 analog inputs and 12 analog outputs
Field-installable expansion cards (4 channels per card)
Mic/line inputs with individual DSP processing
8 GPI trigger inputs for control integration
24-bit audio resolution with Euroblock connectors
Matrix routing with per-channel processing
31 user-definable presets and remote control compatibility

Model Specifications

Analog Inputs: 8
Analog Outputs: 12
GPI/Trigger Inputs: 8
GPO/Trigger Outputs: 0
Mic Preamps: Yes
DSP Platform: Protea
Network Control: Ethernet, RS-232
TAA Compliant: Yes
UPC: Not confirmed

What's In The Box

Main unit (ne24.24MT 8×12 configuration)
Power cable
Quick start guide
