Powered Column PA System
BassBoss Sublim8 MK3 is a powerful 3-way active column PA system designed to deliver full-range professional sound in a compact, fast-deploying format. With an 18" subwoofer, dual 8" midrange drivers, and a 3" compression driver on an isophasic waveguide, it provides deep bass, clear vocals, and wide horizontal coverage for small to medium venues and mobile events.
BassBoss Sublim8 MK3 Competitive Differences
- 4000W tri-amplified Class-D system with dedicated power for LF, MF, and HF drivers
- Full-size 18" subwoofer paired with dual 8" midrange drivers for deep bass and strong full-range output
- 120° x 20° coverage pattern for wide audience coverage with controlled vertical dispersion
- Integrated 96 kHz DSP with eight push-button presets and storage for up to 100 presets

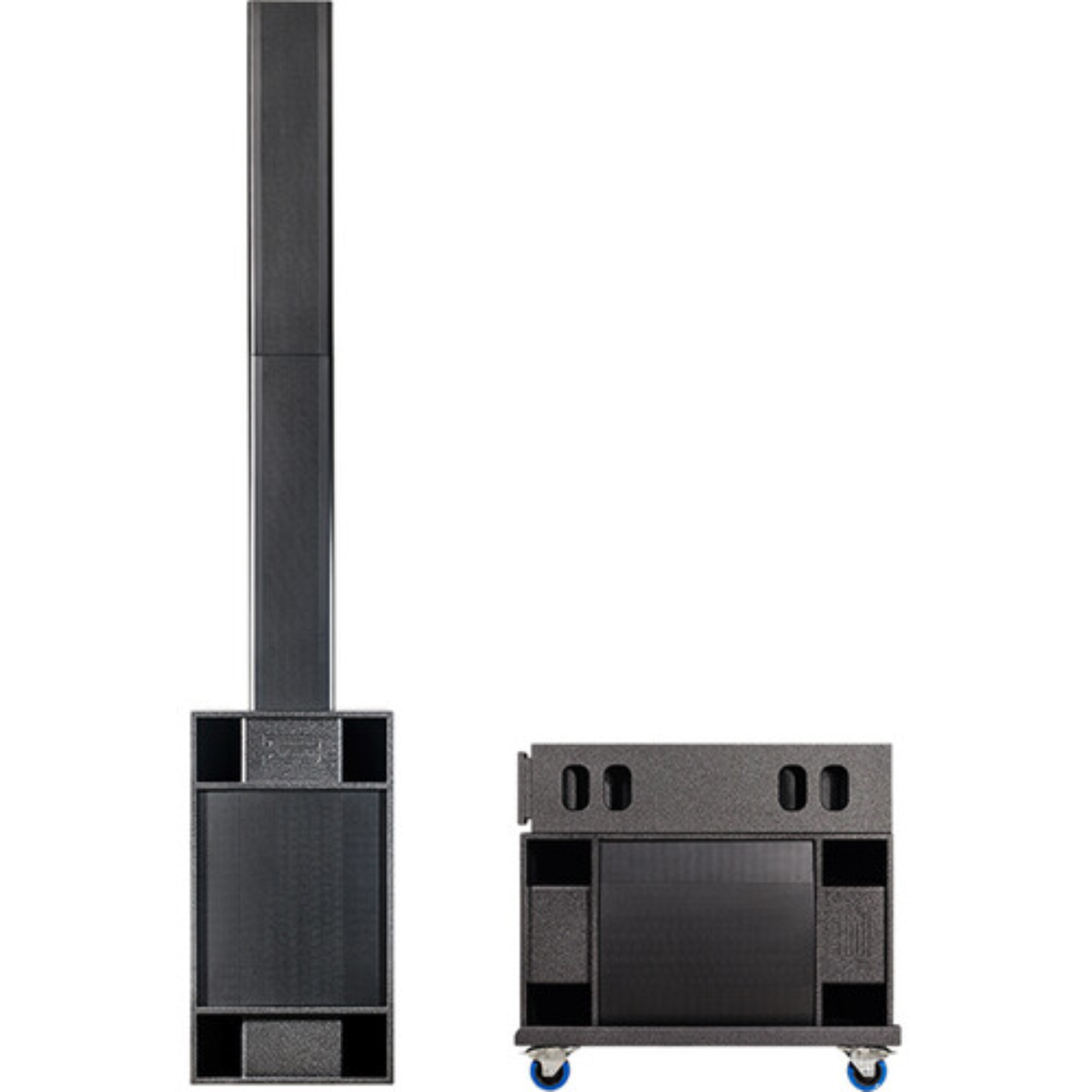

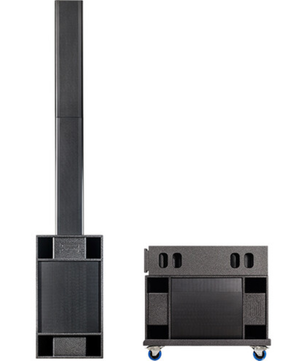

- Includes wheel cart, interconnect cables, and Neutrik powerCON True1 power cable for mobile use
BassBoss Sublim8 MK3 Description
BassBoss Sublim8 MK3 brings the output and depth of a professional PA system into a streamlined column speaker format. Designed for mobile DJs, lounges, bars, houses of worship, schools, event centers, and corporate events, it delivers powerful bass, clean mids, and crisp highs from a visually understated system that sets up quickly.
The tri-amplified 4000W Class-D amplifier provides 2400W to the 18" subwoofer, 800W to the dual 8" midrange section, and 800W to the 3" compression driver. This driver configuration produces a 35 Hz to 19 kHz frequency response and up to 133 dB SPL, giving the system enough output and headroom for demanding small to medium venue applications.
The top section uses dual 8" midrange drivers and a 3" horn-loaded compression driver on an isophasic waveguide, delivering wide 120° horizontal coverage with controlled 20° vertical dispersion. The result is consistent, intelligible sound across the audience area while helping reduce unwanted floor and ceiling reflections.
The system is built from CNC-machined birch plywood with extensive bracing and dado joinery for durability and acoustic strength. A high-pressure bonded polyurea coating, perforated powder-coated steel grilles, integrated handles, and bottom wheels support professional mobile use.
The BassBoss Sublim8 MK3 also includes comprehensive 24-bit / 96 kHz DSP with equalization, phase alignment, high-pass and low-pass filters, and multistage limiting. Eight push-button presets are available directly from the system, with storage capacity for up to 100 presets.
Sublim8 MK3 Features
- 3-way active column PA system with integrated 18" subwoofer
- 4000W total Class-D tri-amplified power
- 2400W peak LF amplifier power
- 800W peak MF amplifier power
- 800W peak HF amplifier power
- 18" neodymium subwoofer with 4" voice coil
- Dual 8" neodymium midrange drivers with 2" voice coils
- 3" horn-loaded compression driver
- Isophasic waveguide-loaded HF section
- 35 Hz to 19 kHz frequency response
- 133 dB maximum SPL
- 120° horizontal x 20° vertical coverage
- 24-bit DSP with 96 kHz sampling rate
- Eight push-button presets
- Storage capacity for up to 100 presets
- High-pass filters, low-pass filters, phase alignment, EQ, and multistage limiting
- CNC-machined birch plywood cabinet construction
- High-pressure bonded polyurea waterproof textured coating
- Perforated powder-coated steel grille
- Six integrated handles
- Bottom-mounted wheels for transport
- Par-ty Con recess for mounting a par light on top of the column
Sublim8 MK3 Specifications
- Speaker Configuration: 3-Way Speaker Column with Subwoofer
- Input Channels: 1 Mono
- Total Amplifier Power: 4000W Peak
- LF Amplifier Power: 2400W Peak
- MF Amplifier Power: 800W Peak
- HF Amplifier Power: 800W Peak
- Amplifier Class: Class-D
- Subwoofer Driver: 18" Woofer with 4" Voice Coil
- MF Drivers: 2 x 8" Cone Drivers with 2" Voice Coils
- HF Driver: 3" Horn-Loaded Compression Driver
- Magnet Type: Neodymium
- Frequency Response: 35 Hz to 19 kHz ±3 dB
- Maximum SPL: 133 dB
- Coverage Angle: 120° H x 20° V
- DSP: 24-Bit / 96 kHz
- Dynamic Processing: Limiter
- Audio Input: 1 x XLR 3-Pin Female Balanced Line Input
- Audio Output: 1 x XLR 3-Pin Male Balanced Line/Link Thru
- AC Input Power: 100 to 240 VAC, 50/60 Hz
- Current Consumption: 5.4 A
- AC Power I/O: 1 x powerCON Input
- Construction Material: Plywood, Polyurethane, Steel
- Transport: 4 x Bottom Wheels
- Dimensions: 106 x 24 x 19 in (269.2 x 61 x 48.3 cm)
- Weight: 175 lb (79.4 kg)
What's In The Box
- BassBoss Sublim8 MK3 Powered Column PA System
- Wheel cart
- Neutrik powerCON True1 power cable
- Interconnect speaker cable
- Interconnect power cable
- User documentation
