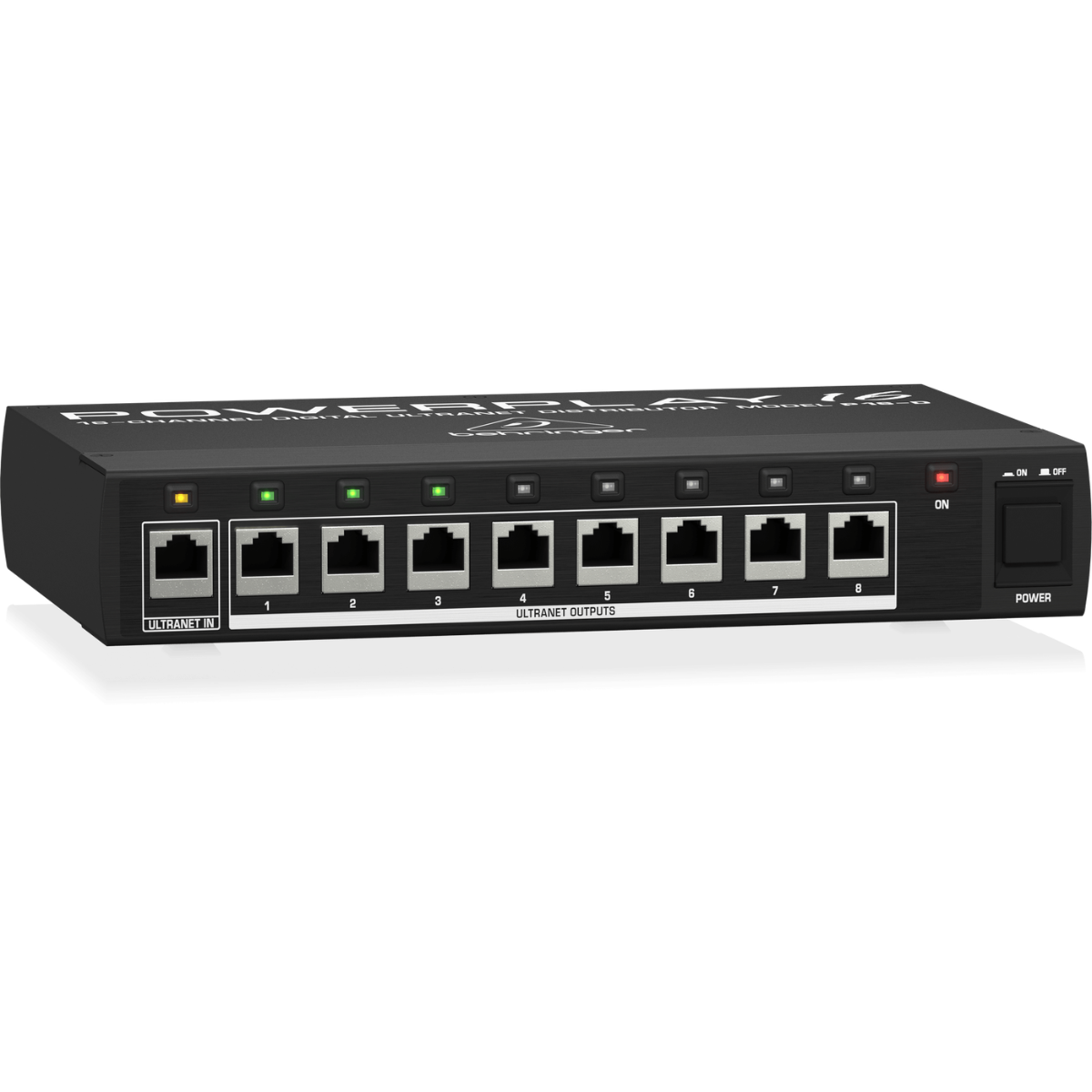

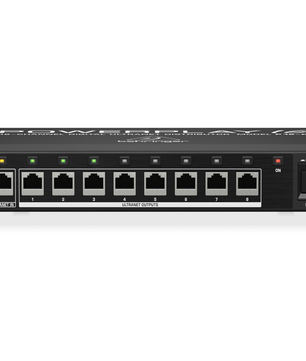

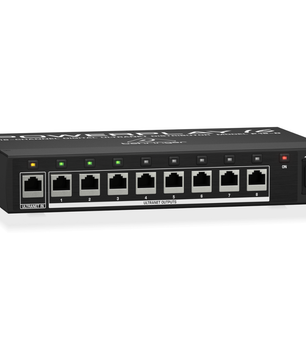

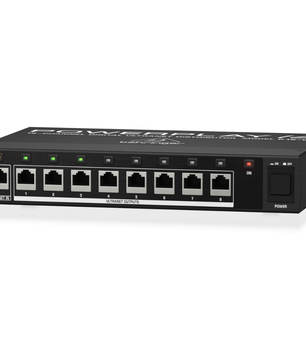

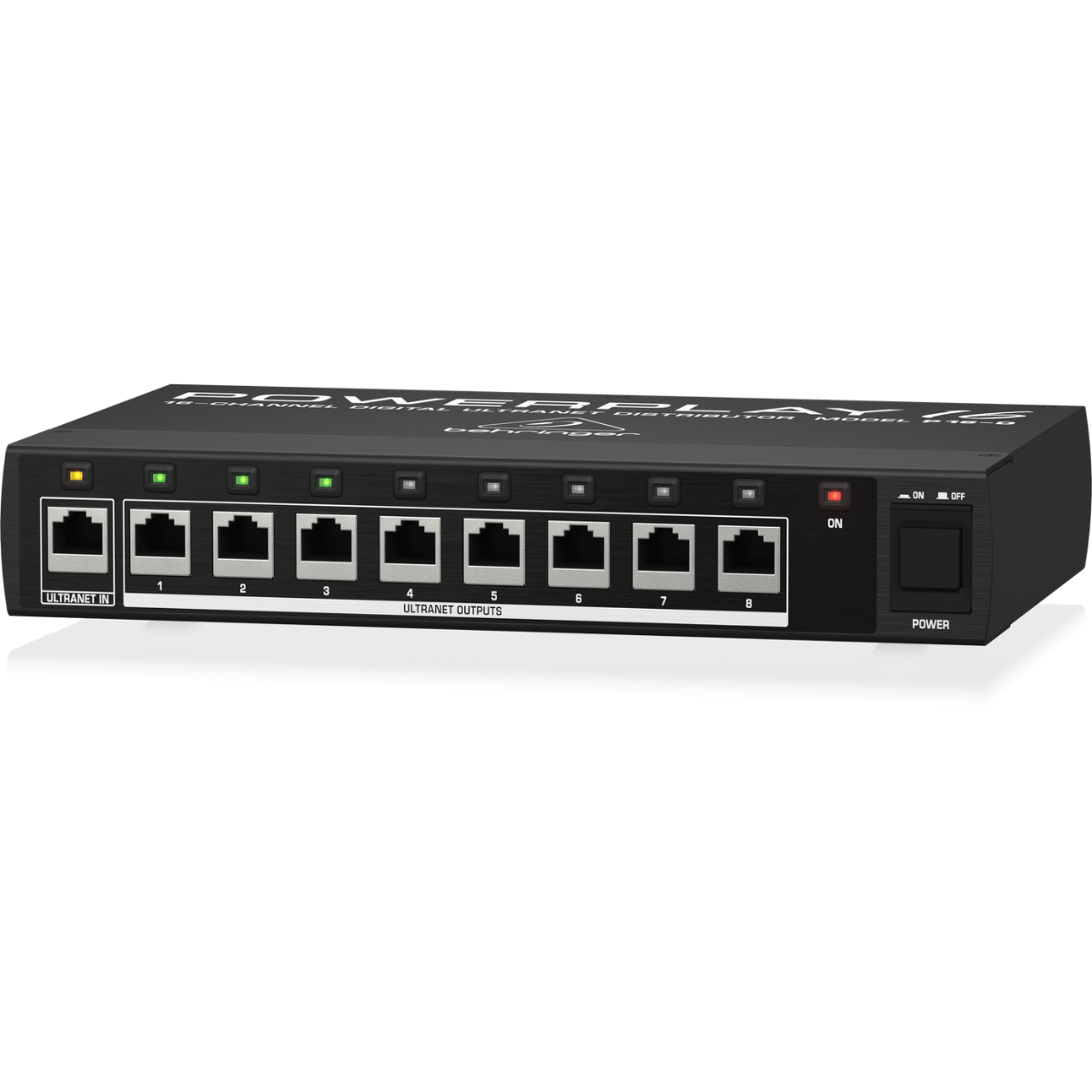

Behringer P16 D | 16 Channel ULTRANET Distributor | 8 Port Personal Monitoring Hub

ULTRANET Distribution Hub

Behringer P16 D is a 16-channel ULTRANET distributor designed to expand personal monitoring systems by delivering both power and audio to multiple devices from a single source. Ideal for live sound and installed systems, it simplifies wiring while maintaining reliable, high-quality signal distribution.

Behringer P16 D Competitive Differences

• Distributes one ULTRANET input to 8 outputs with power and 16-channel audio over CAT5e
• Expandable system allows up to 48 personal mixers using multiple units

Behringer P16 D Description

The Behringer P16 D is a key component in the Powerplay personal monitoring ecosystem, enabling efficient and scalable distribution of audio and power. With one ULTRANET input and eight ULTRANET outputs, it allows multiple performers to connect their personal mixers using a simple CAT5e connection.

Each output delivers both power and a 16-channel digital audio stream, eliminating the need for additional power supplies or complex cabling. This makes setup faster and cleaner, especially in live performance environments where efficiency is critical.

For larger systems, multiple P16 D units can be combined to support up to 48 personal monitoring mixers. Status LEDs on each port provide quick visual confirmation of signal and connection activity, ensuring easy troubleshooting during setup and operation.

Built with an internal autoranging power supply, the unit operates worldwide on 100–240V power while maintaining low noise and high reliability. Its compact, rugged design makes it suitable for both touring rigs and permanent installations.

P16 D Features

• 16-channel ULTRANET distribution hub for personal monitoring systems

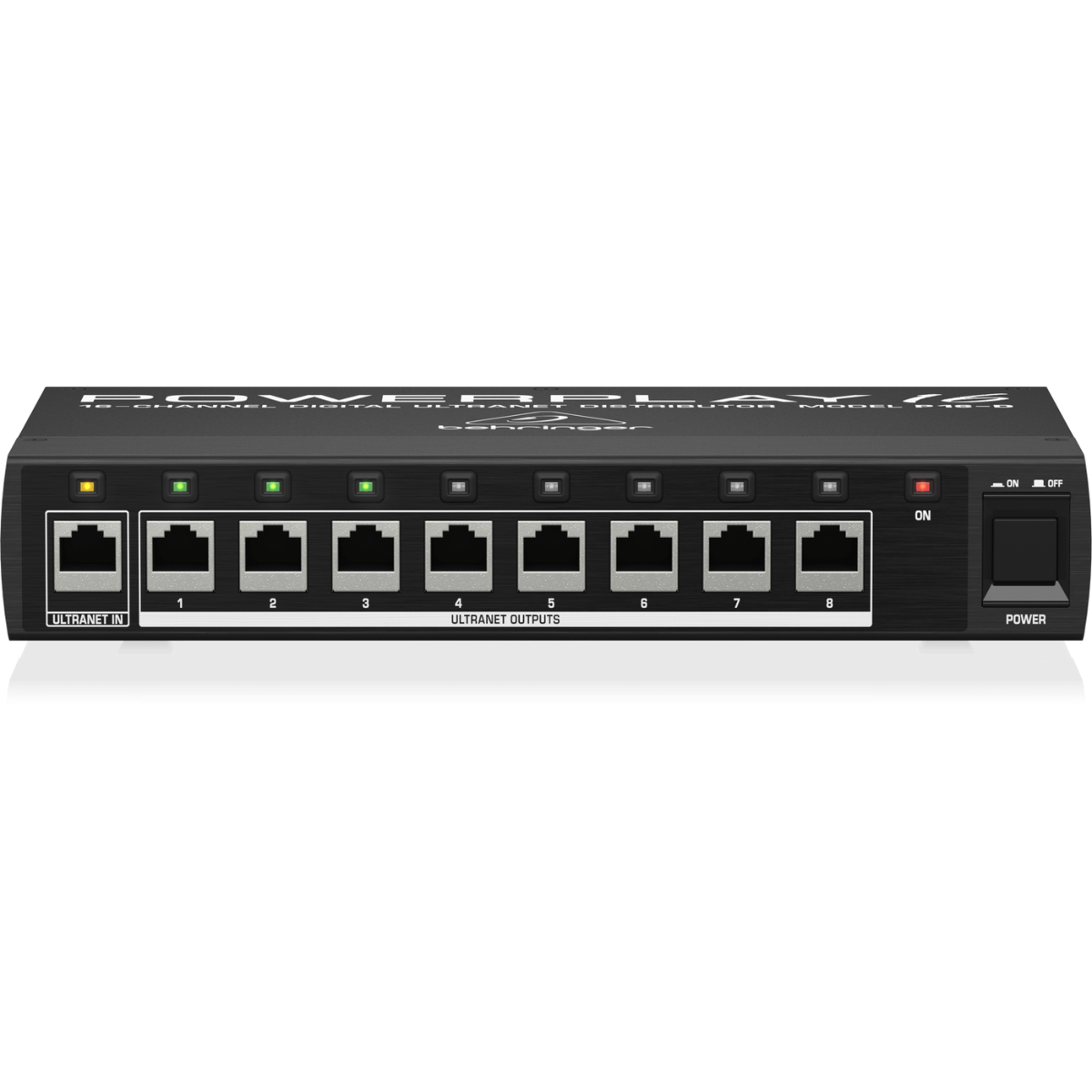

• 1 ULTRANET input and 8 ULTRANET outputs via RJ45
• Delivers both power and audio signal over a single CAT5e cable
• Supports up to 8 personal mixers per unit
• Expandable to up to 48 mixers using multiple distributors
• Status LED indicators for input and outputs
• Compatible with Behringer Powerplay systems
• Internal autoranging power supply (100–240V)
• Compact and durable design for live and installed use

P16 D Specifications

• Type: Digital Stereo Monitor Distribution Module
• Compatibility: Behringer Powerplay Systems
• ULTRANET Input: 1 x RJ45 (16 channels)
• ULTRANET Outputs: 8 x RJ45 (16 channels each)
• Connection Type: RJ45 (ULTRANET)

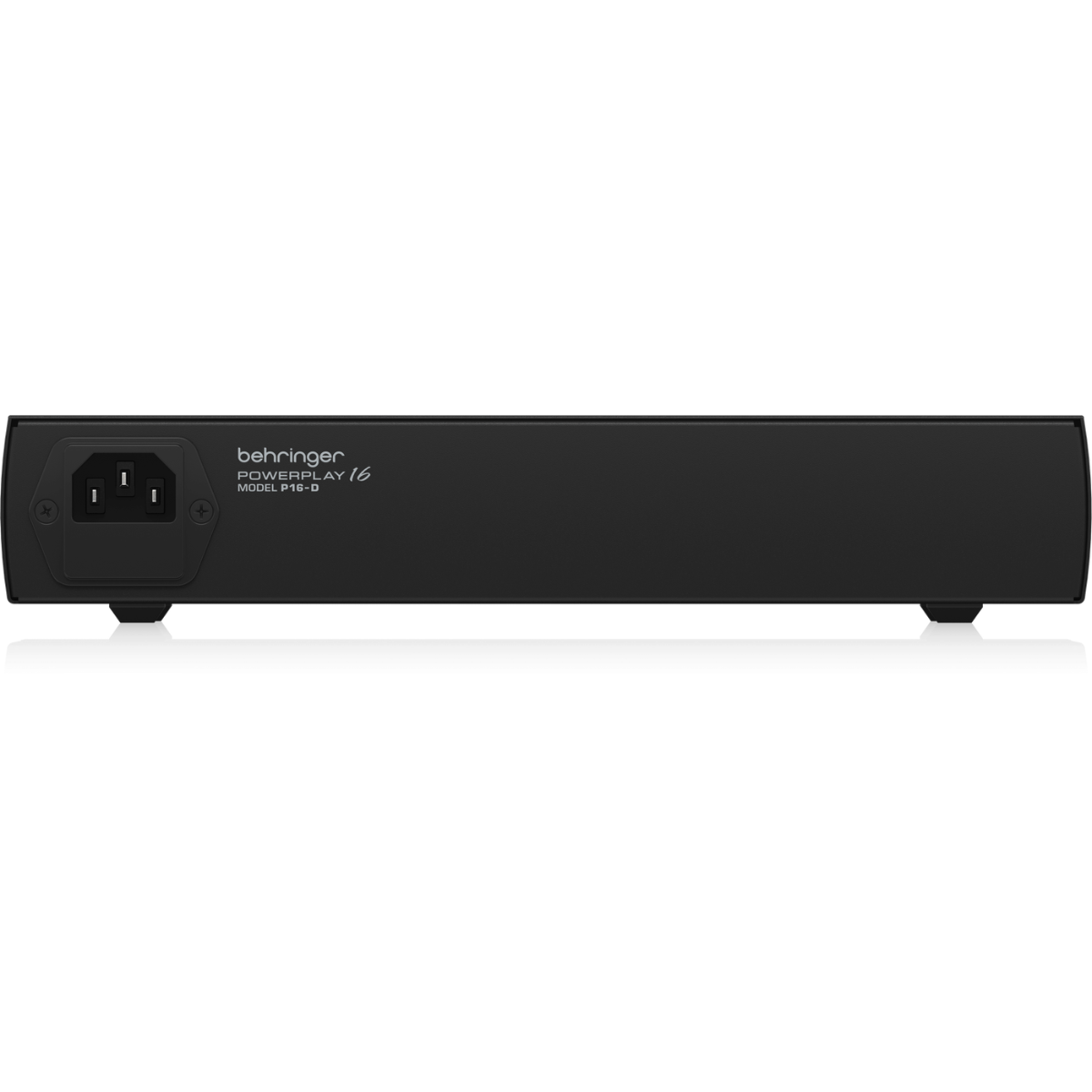

• Power Source: Standard IEC AC cable
• Height: 1.7 in
• Width: 10 in
• Depth: 6.3 in

What's In The Box

• Behringer P16 D ULTRANET distributor
• IEC power cable
• Quick start guide
