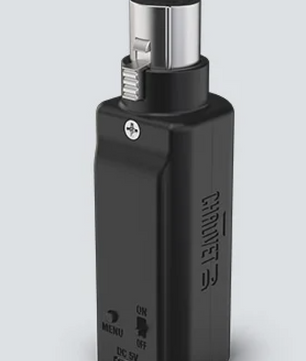

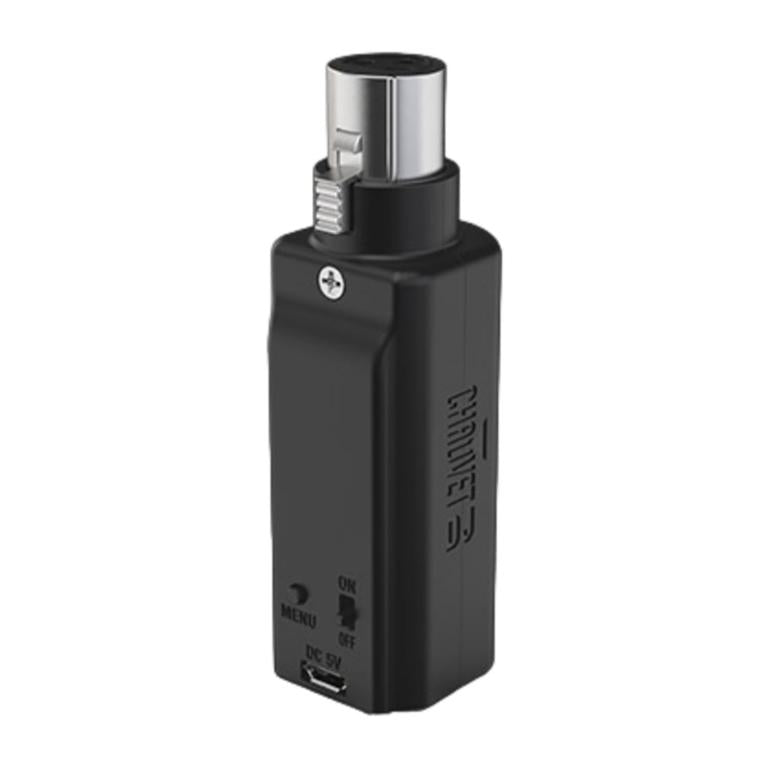

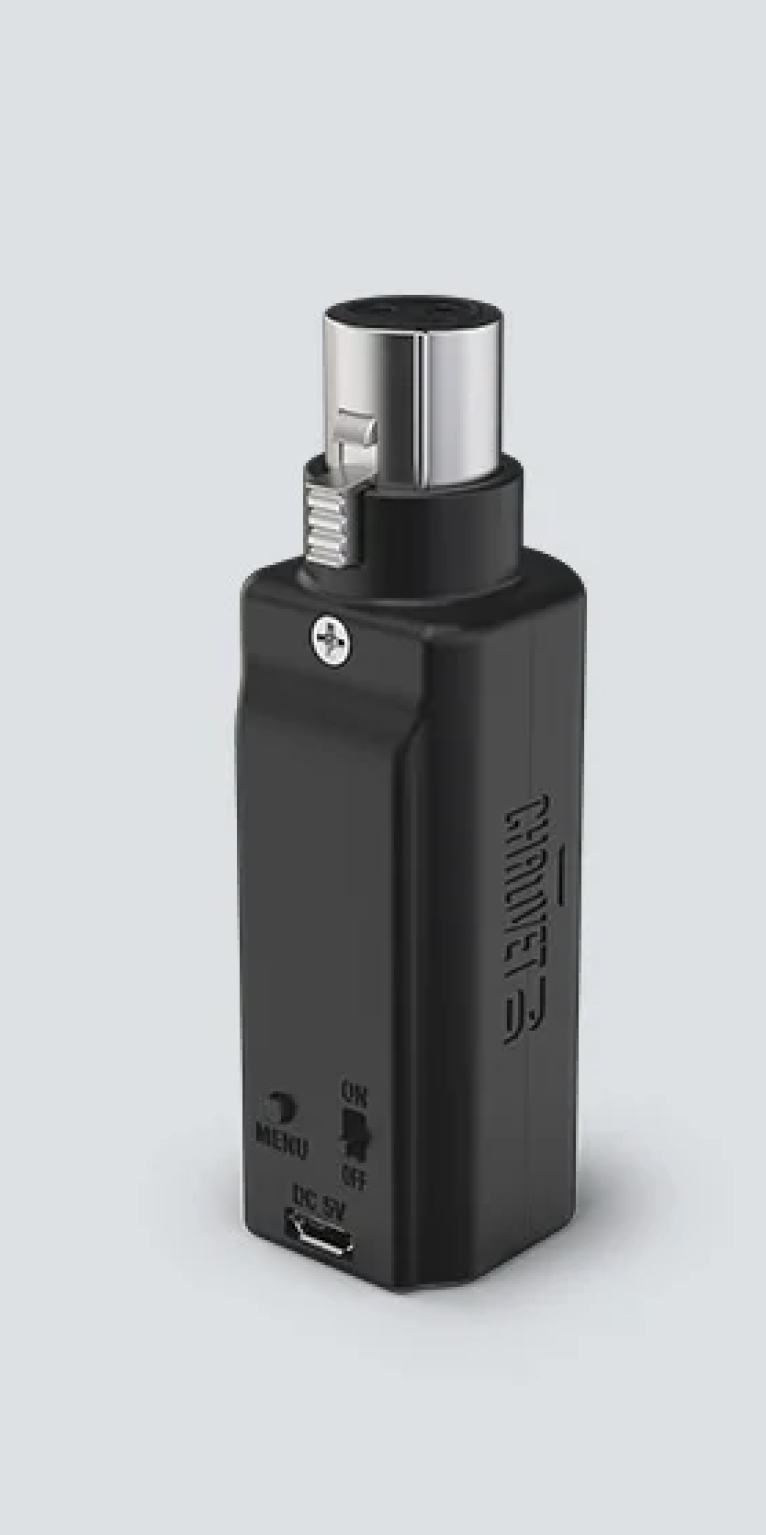

Chauvet DJ D-Fi XLR RX | Wireless DMX Receiver for XLR Fixtures | Battery-Powered, Plug-and-Play

Wireless DMX Receiver

The Chauvet DJ D-Fi XLR RX is a plug-and-play wireless DMX receiver designed to eliminate the need for data cables in your lighting setup. Ideal for DJs, mobile entertainers, and event professionals, it instantly connects DMX-compatible lights through a simple XLR connection, streamlining installations and cutting setup time.

Chauvet DJ D-Fi XLR RX Competitive Differences

• Plugs directly into XLR port of DMX fixtures
• Battery-powered for up to 10 hours of wireless operation

Chauvet DJ D-Fi XLR RX Description

Chauvet DJ D-Fi XLR RX brings simplicity and portability to wireless DMX control. This compact receiver plugs directly into the XLR input of any DMX-compatible lighting fixture, making it easy to convert your rig from wired to wireless in seconds—no additional mounting or cabling required. Designed with mobility in mind, the unit is powered by an internal rechargeable battery that delivers up to 10 hours of continuous use on a single charge. A full recharge takes just 2.5 hours, allowing for fast turnarounds between gigs. The built-in LED indicators show wireless channel status at a glance, reducing setup confusion in dark environments. D-Fi XLR RX communicates using Chauvet DJ’s D-Fi wireless protocol, enabling reliable transmission of DMX and master/slave signals across compatible fixtures. Whether you're syncing multiple units for coordinated effects or reducing setup clutter at live events, this device is a smart addition to any modern lighting system. Fully FCC and RTTE compliant, the D-Fi XLR RX ensures legal and reliable performance in a wide range of environments.

Model Features

• Plugs directly into the XLR input of DMX-compatible lights
• Battery-powered operation (up to 10 hours runtime)
• LED indicators show wireless channel status
• Receives DMX and master/slave signals
• Compatible with Chauvet DJ D-Fi wireless systems

Model Specifications

• Max Unobstructed Distance: 165 ft (50 m)
• Maximum Run Time: Up to 10 hours
• Recharge Time: 2.5 hours
• Operating Frequency: 2.412 to 2.484 GHz
• Input Voltage: 5 VDC, 500 mA
• RF Output: 12.72 dBm
• Dimensions: 3.5 x 1 x 1.14 in (88 x 27 x 29 mm)
• Weight: 1.6 oz (45 g)
• Approvals: CE, FCC, RTTE

What's In The Box

• D-Fi XLR RX
• Quick reference guide
