Chauvet DJ EVE E-100Z | 100W Warm White LED Ellipsoidal | Manual Zoom & Gobo Projection

LED Ellipsoidal Spotlight

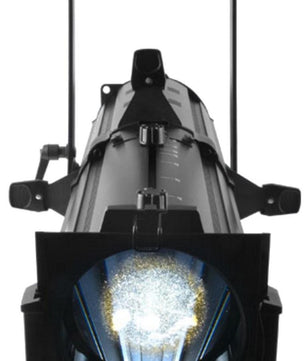

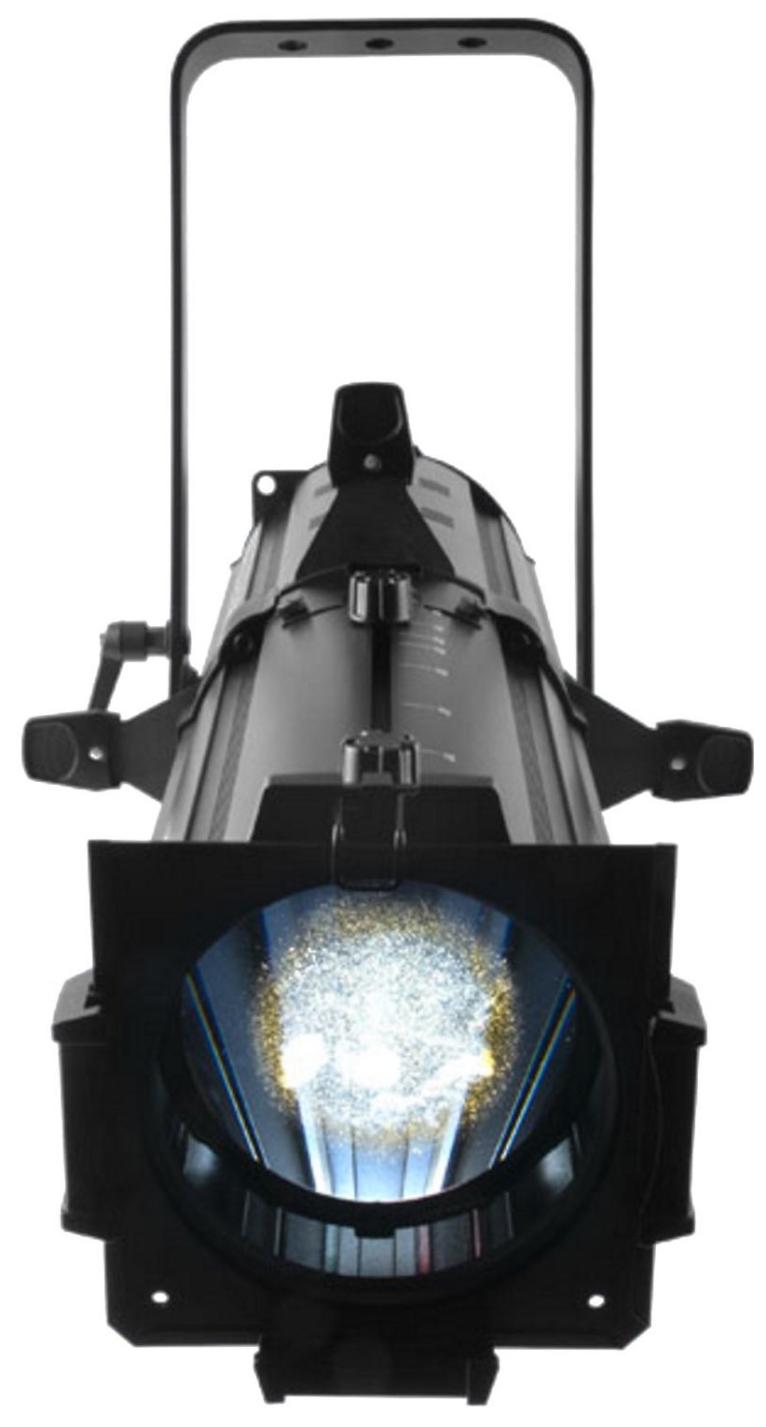

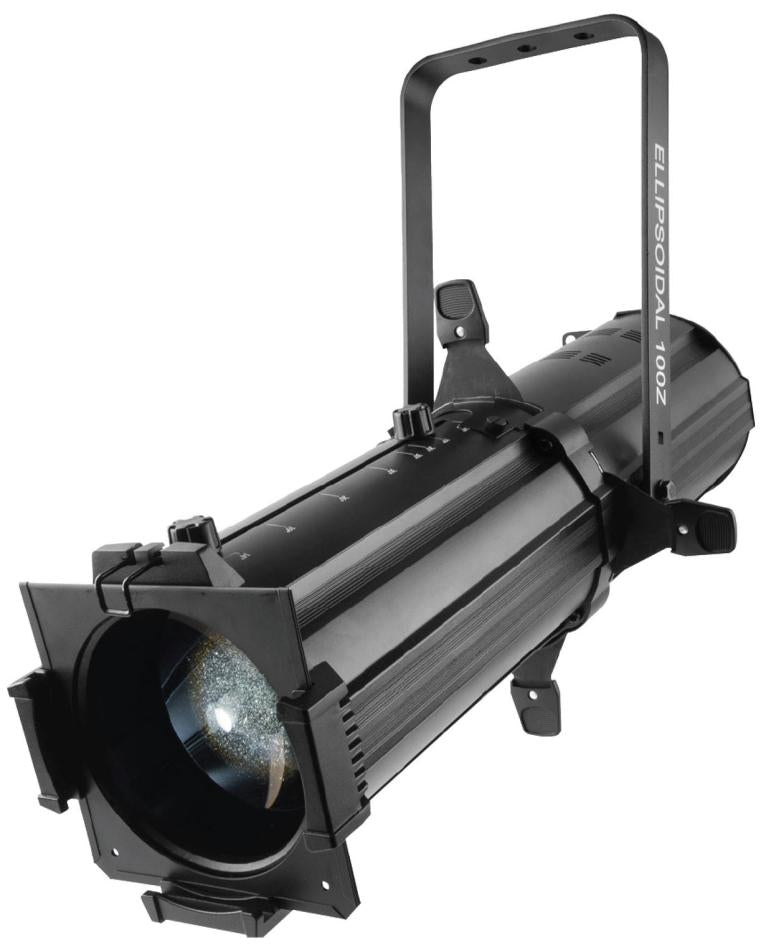

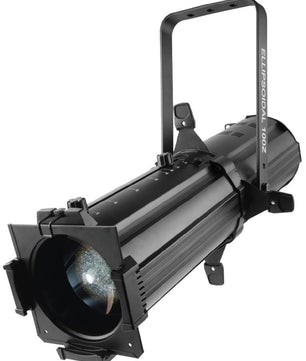

The Chauvet DJ EVE E-100Z is a versatile LED ellipsoidal fixture designed for professional spot projection in theatrical, event, and broadcast environments. Featuring a 100W warm white LED engine and precise manual zoom optics, it delivers clean, hard-edged beams perfect for highlighting performers or projecting gobos.

Chauvet DJ EVE E-100Z Competitive Differences

• Manual zoom with 14°–30° beam angle for flexible throw distances
• Supports steel and glass gobos with crisp pattern projection

Chauvet DJ EVE E-100Z Description

Chauvet EVE E-100Z is built for lighting designers who need accurate, consistent spotlighting without the noise, heat, or maintenance of traditional incandescent fixtures. Its 100W warm white LED (3,500K) provides a smooth, flicker-free output ideal for on-stage use or video production, with a CRI of 80 for natural color rendering. A manual zoom lens allows for flexible beam adjustment between 14° and 30°, making it suitable for short- and mid-throw applications. Framing shutters enable you to shape the beam precisely, and included holders support both steel and glass gobos for custom pattern projection. Standalone operation, DMX compatibility, and power linking streamline setup for both mobile and installed systems. The rugged design and included gel frame holder round out this powerful ellipsoidal, making the EVE E-100Z a go-to choice for venues, churches, schools, and production companies.

Model Features

• 100W warm white LED (50,000-hour life)
• Manual zoom: 14° to 30° beam angle
• Framing shutters for beam shaping
• Supports steel and glass gobos
• Flicker-free operation for on-camera use

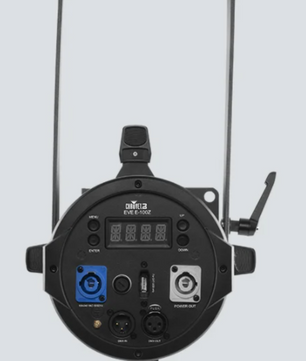

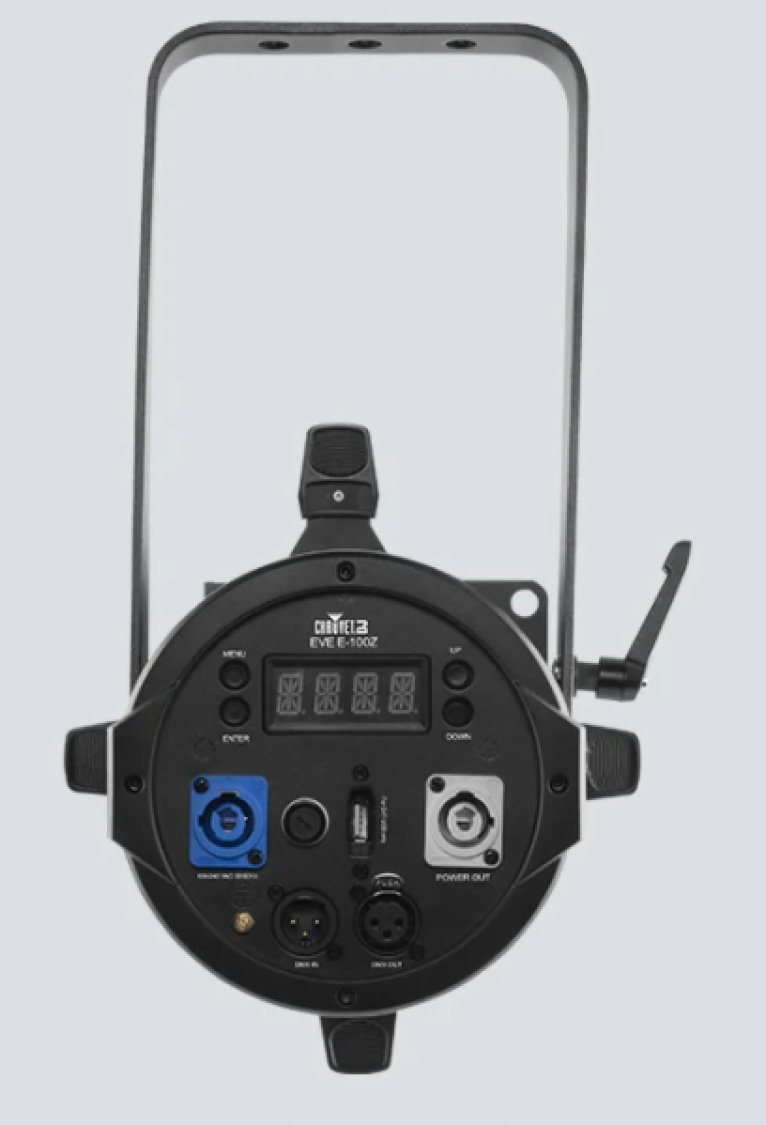

• Standalone or DMX-controlled operation (1 or 3 channels)
• Power linking: 9 units @ 120V, 16 units @ 230V
• Gel frame and gobo holders included

Model Specifications

• DMX Channels: 1 or 3
• DMX Connectors: 3-pin XLR
• Zoom Angle: 14° to 30° (manual)
• Illuminance:
  • 14°: 15,100 lux @ 2 m | 3,238 lux @ 5 m
  • 30°: 3,800 lux @ 2 m | 829 lux @ 5 m
• CRI: 80
• Color Temperature: 3,500K
• Gobo Size: M (66 mm OD, 48 mm image, 2 mm max thickness)
• Accessory Holder: 6.3 x 6.3 in (160 x 160 mm)
• Gel Frame Size: 6.24 x 6.24 in (158.5 x 158.5 mm)
• Power & Current:
  • 106W, 0.9A @ 120V, 60Hz
  • 103W, 0.5A @ 230V, 50Hz
• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
• Size: 24 x 7.2 x 16.9 in (611 x 183 x 430 mm)
• Weight: 12.6 lb (5.7 kg)
• Approvals: CE, MET

What's In The Box

• EVE E-100Z fixture
• Power cord
• Gel frame
• Framing shutters
• Gobo holders for glass and steel gobos
• Warranty card
