Chauvet DJ GigBAR Move ILS | 5-in-1 Lighting System with Moving Heads | ILS, RF, & Footswitch Control

All-in-One ILS-Enabled DJ Lighting System

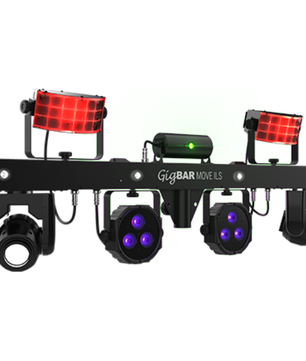

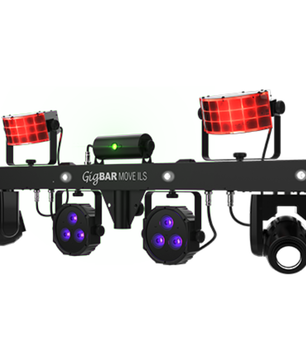

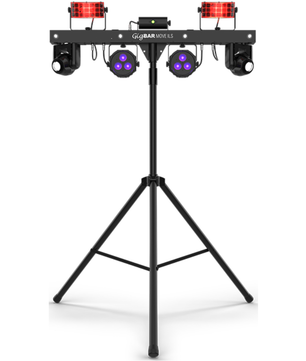

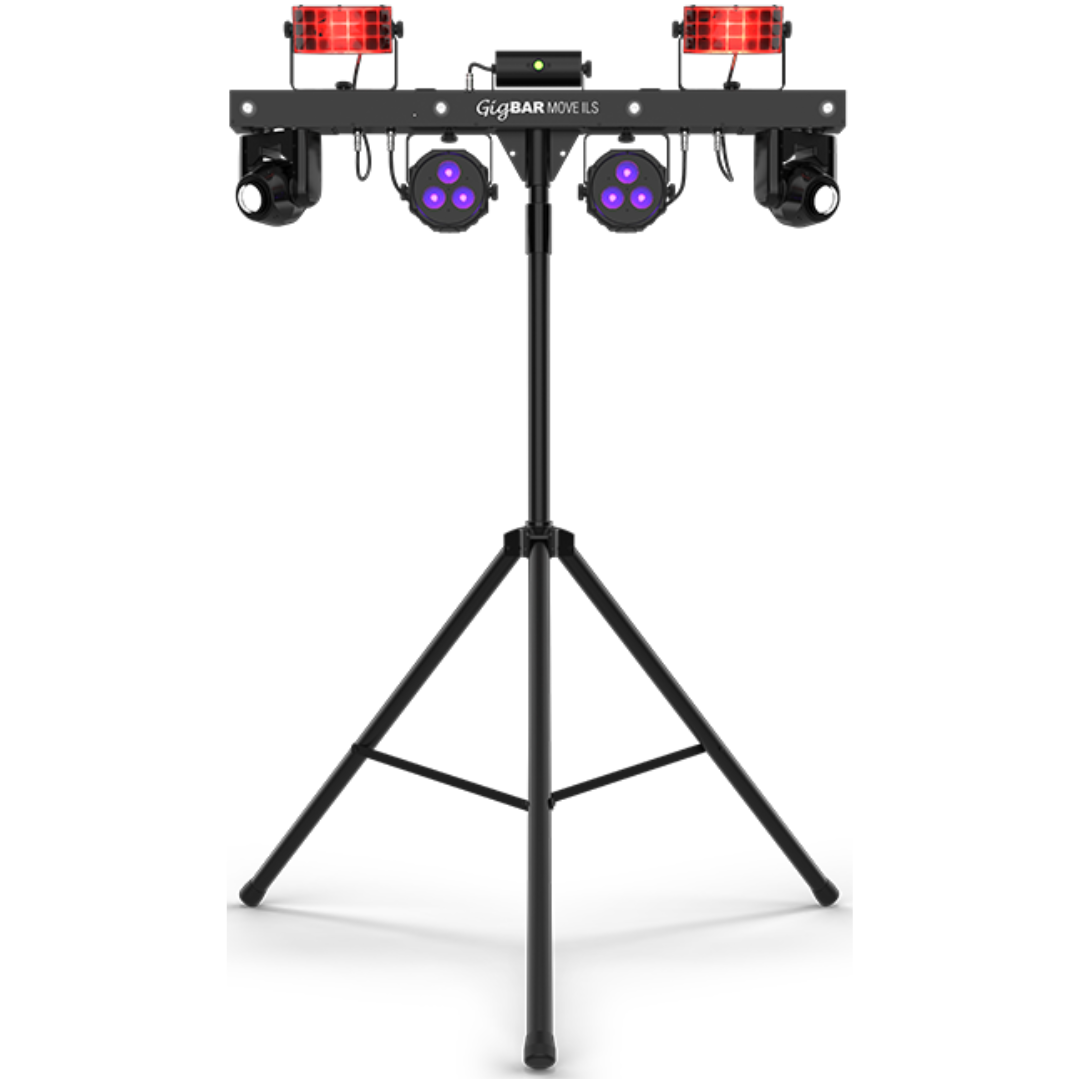

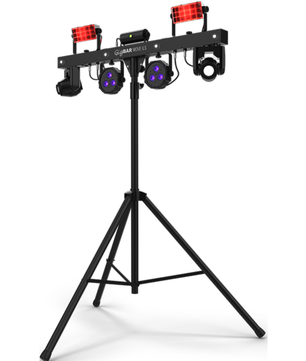

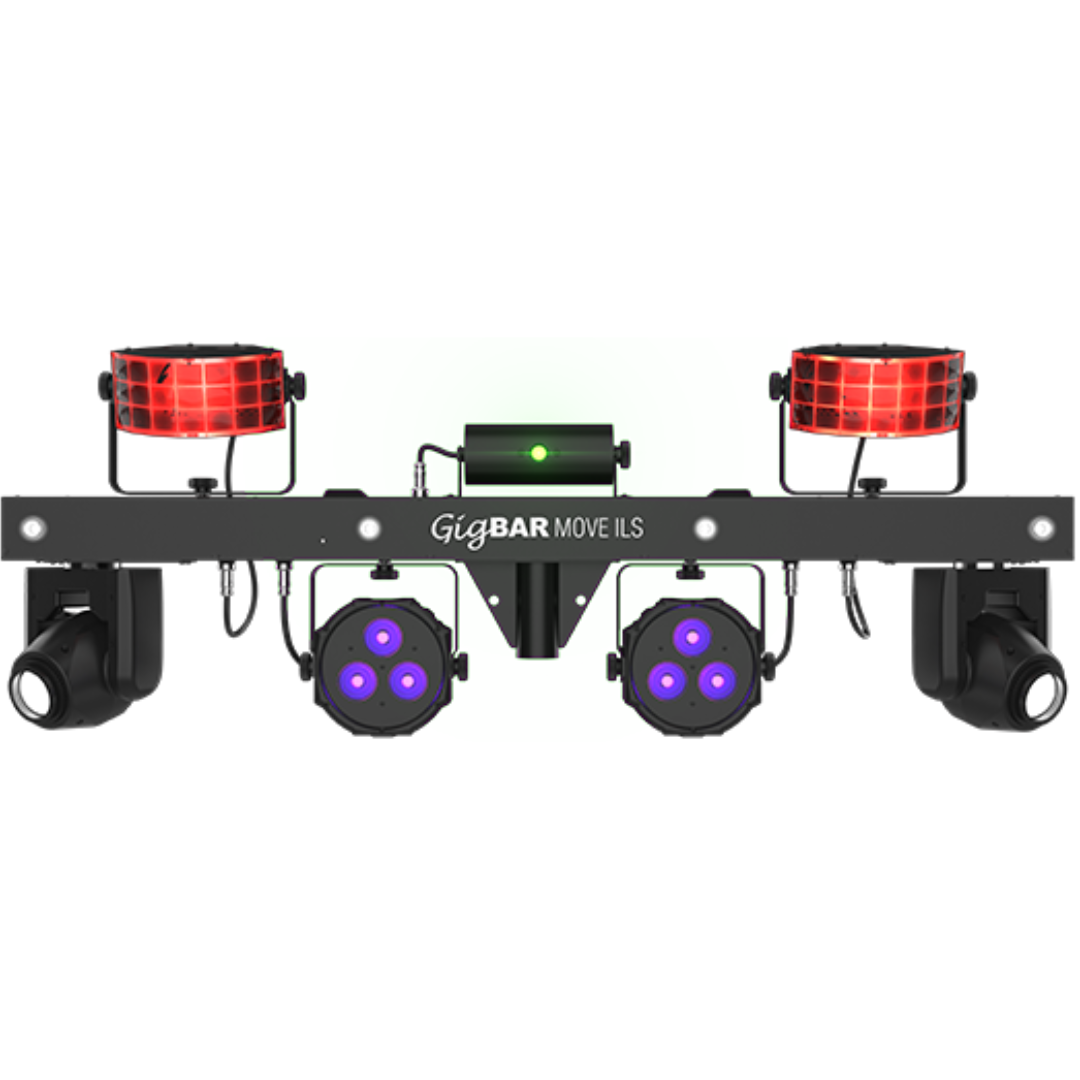

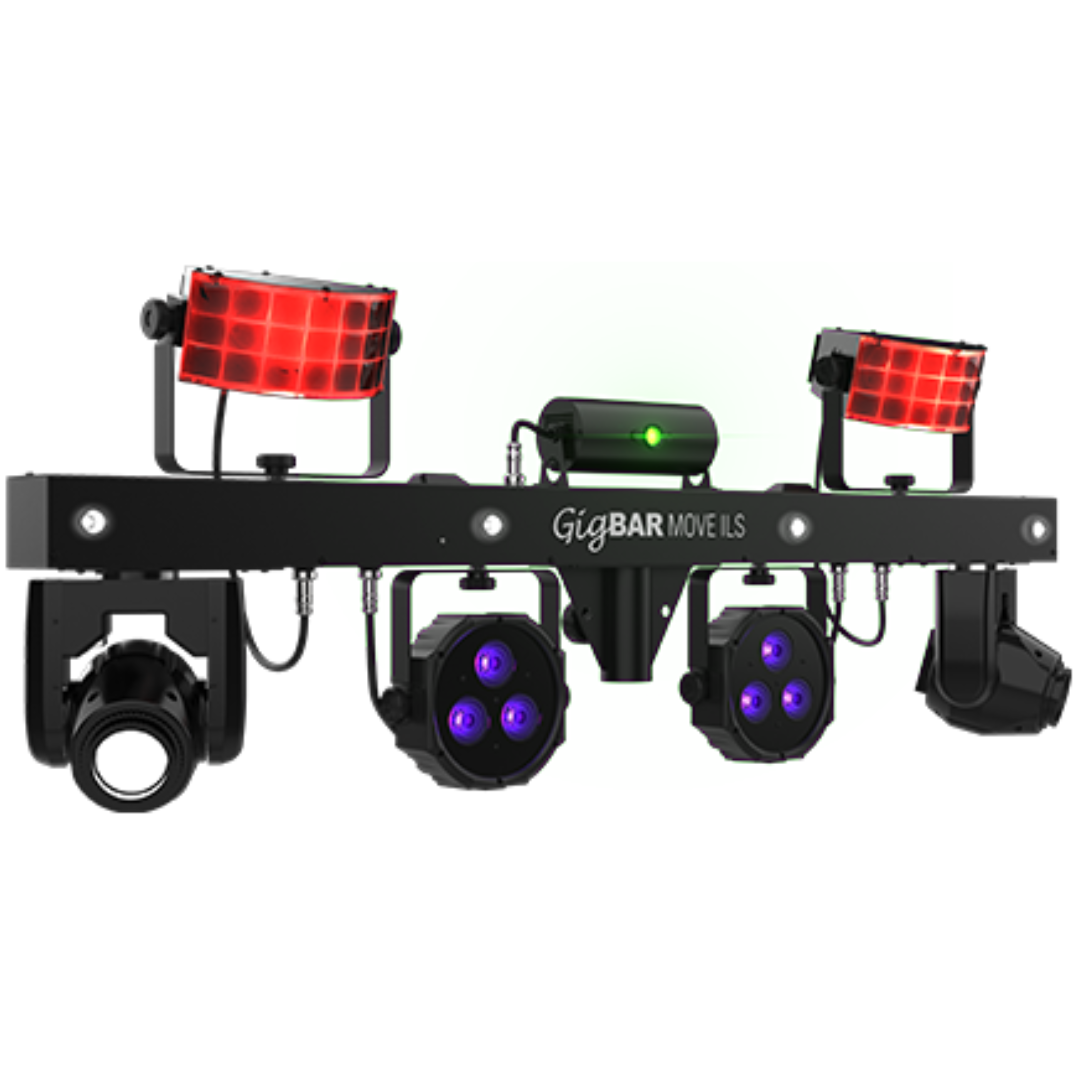

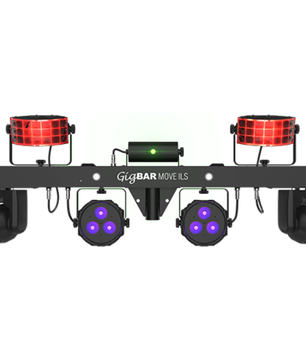

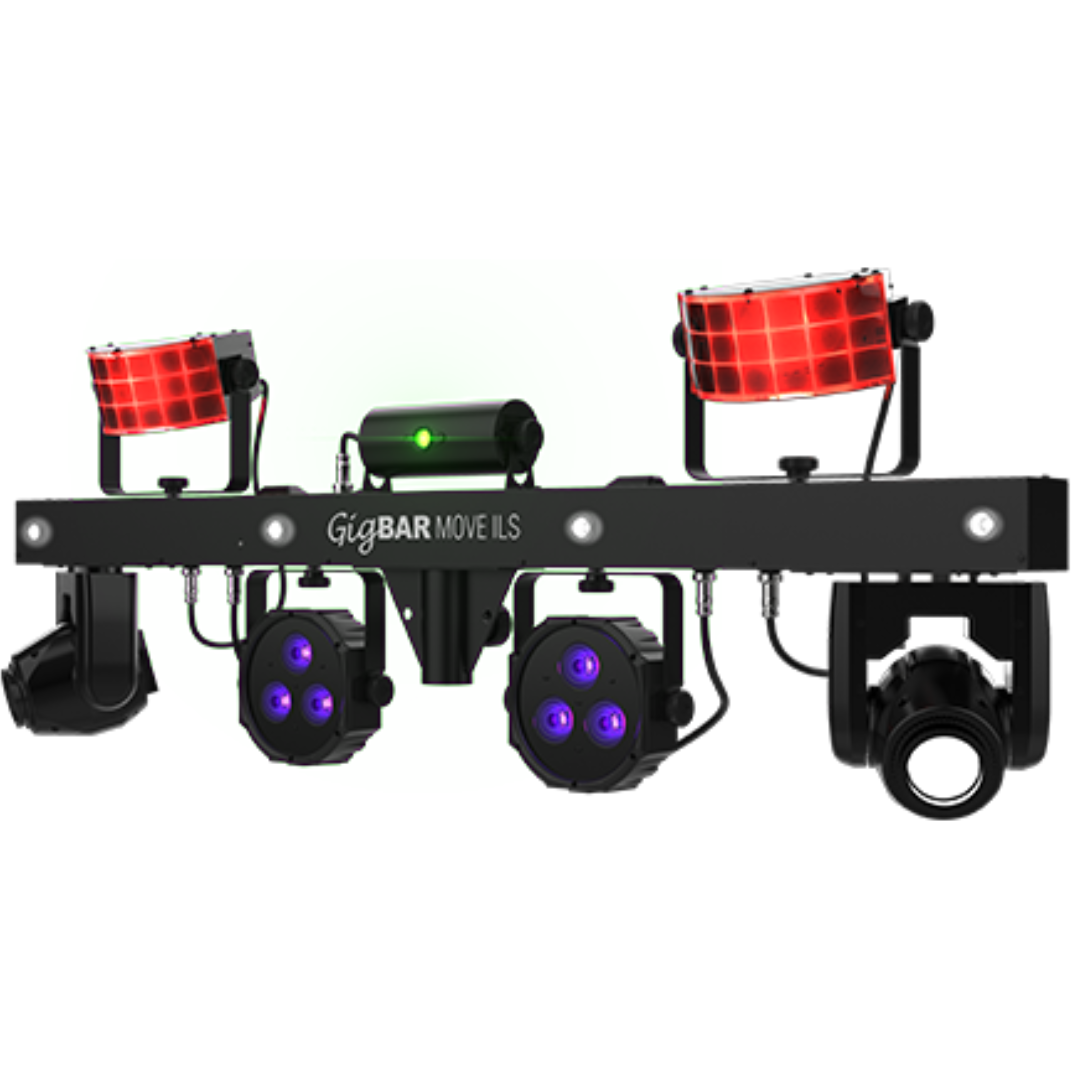

The Chauvet DJ GigBAR Move ILS is a complete 5-in-1 lighting rig designed to deliver fully coordinated, high-impact light shows right out of the box. Featuring moving heads, derbies, washes, a laser, and strobes all pre-mounted to a single bar, this all-in-one system offers fast setup, versatile control, and seamless integration with the ILS (Integrated Lighting System) ecosystem.

Chauvet DJ GigBAR Move ILS Competitive Differences

• Includes two moving heads, derbies, washes, a laser, and strobes on one bar
• Wireless control via RF remote and footswitch with ILS ecosystem support

Chauvet DJ GigBAR Move ILS Description

The GigBAR Move ILS is a powerful, plug-and-play lighting system perfect for DJs, mobile performers, and event setups that need maximum visual impact with minimal effort. It includes five lighting effects—LED moving heads, RGB+UV wash pars, derby effects, strobe lights, and a red/green laser—giving you everything you need in a single, compact fixture. Thanks to its compatibility with Chauvet DJ’s ILS technology, this system can wirelessly control and sync with any ILS-enabled fixture in your rig, eliminating the need for complicated DMX programming. The built-in RF receiver lets you control the system using the included remote or wireless footswitch from up to 100 feet away—without line-of-sight. The full-color LCD display also allows direct access to built-in programs and system settings. Each effect can be controlled individually, enabling complex shows with smooth transitions, gobo changes, prism effects, and more. Totem Mode ensures the moving heads always stay focused on the crowd. With fast setup via the included tripod and carry bag, the GigBAR Move ILS is ideal for weddings, parties, and mobile DJ gigs.

Model Features

• 5-in-1 lighting bar: moving heads, derbies, washes, strobes, and laser
• ILS-compatible for synchronized wireless control of ILS fixtures
• Built-in RF receiver with included RF remote and footswitch
• Separate color and gobo wheels in moving heads for creative programming
• Full-color LCD screen for direct control and scene recall
• Totem mode keeps moving heads focused on the dance floor
• UV LEDs add blacklight effects for fluorescent materials
• All components pre-mounted on a single bar for easy transport

Model Specifications

• DMX Channels: 3, 27, or 46
• Pan/Tilt (Moving Heads): 540°/180°
• Beam Angles:
  • Moving Heads: 11°
  • Pars: 19° (Field: 30°)
  • Strobes: 8° (Field: 18°)
• Derby Coverage Angle: 131°
• Laser Coverage Angle: 93°
• Light Sources:
  • Moving Head: 1x 10W LED (cool white)
  • Pars: 3x 3.5W RGB+UV LEDs
  • Derby: 6x 1W RGB LEDs
  • Strobe: 4x 5W white+UV LEDs
  • Laser: 650nm (red, 100 mW), 532nm (green, 30 mW)
• Illuminance:
  • Moving Heads: 1,056 lux @ 2 m
  • Pars: 1,205 lux @ 2 m (per head)
  • Strobe: 86 lux @ 2 m (per LED)
• Power and Current: 81W, 1.1A @ 120V | 79W, 0.6A @ 230V
• Power Linking: 7 units @ 120V; 12 units @ 230V
• Input Voltage: 100–240V AC, 50/60 Hz
• DMX Connectors: 3-pin XLR

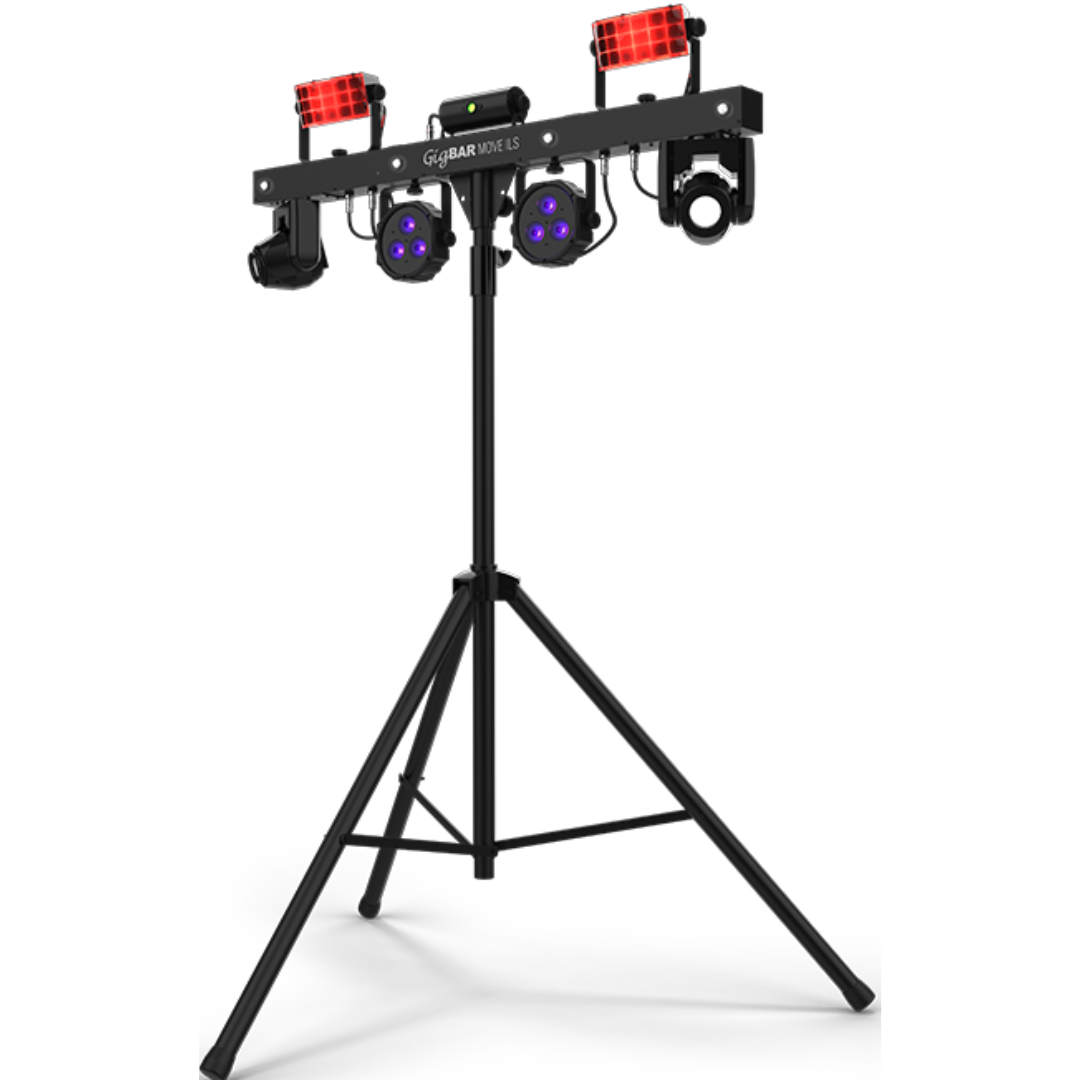

• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
• Tripod Leg Width: 3.9 ft (1.2 m)
• Dimensions: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
• Weight: 23.4 lb (10.7 kg)
• Approvals: CE, RoHS, UKCA, FDA, FCC

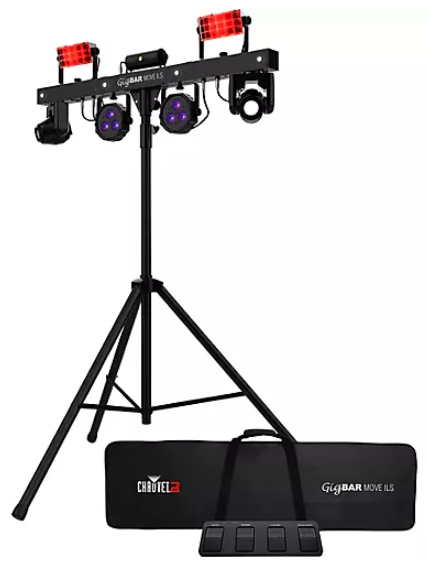

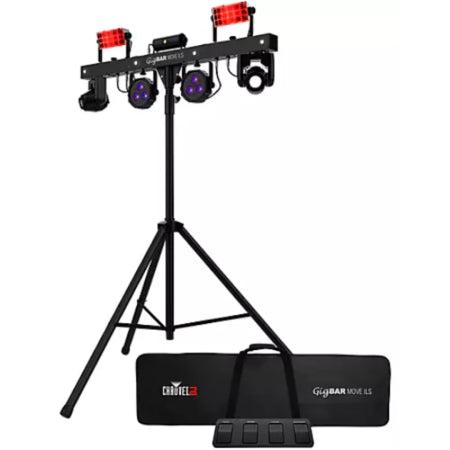

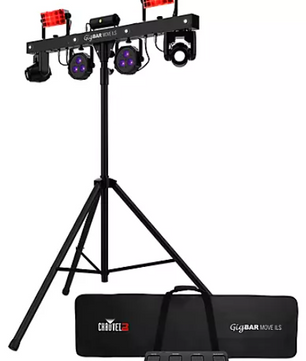

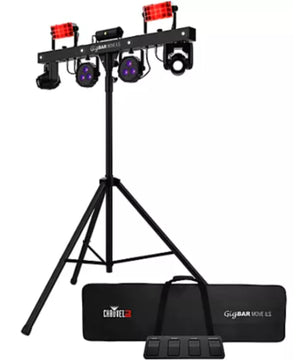

What's In The Box

• GigBAR Move ILS fixture
• Tripod
• Carrying bag
• Wireless footswitch
• RF remote
• Power cord
• Quick reference guide
• Key and interlock (EU)
