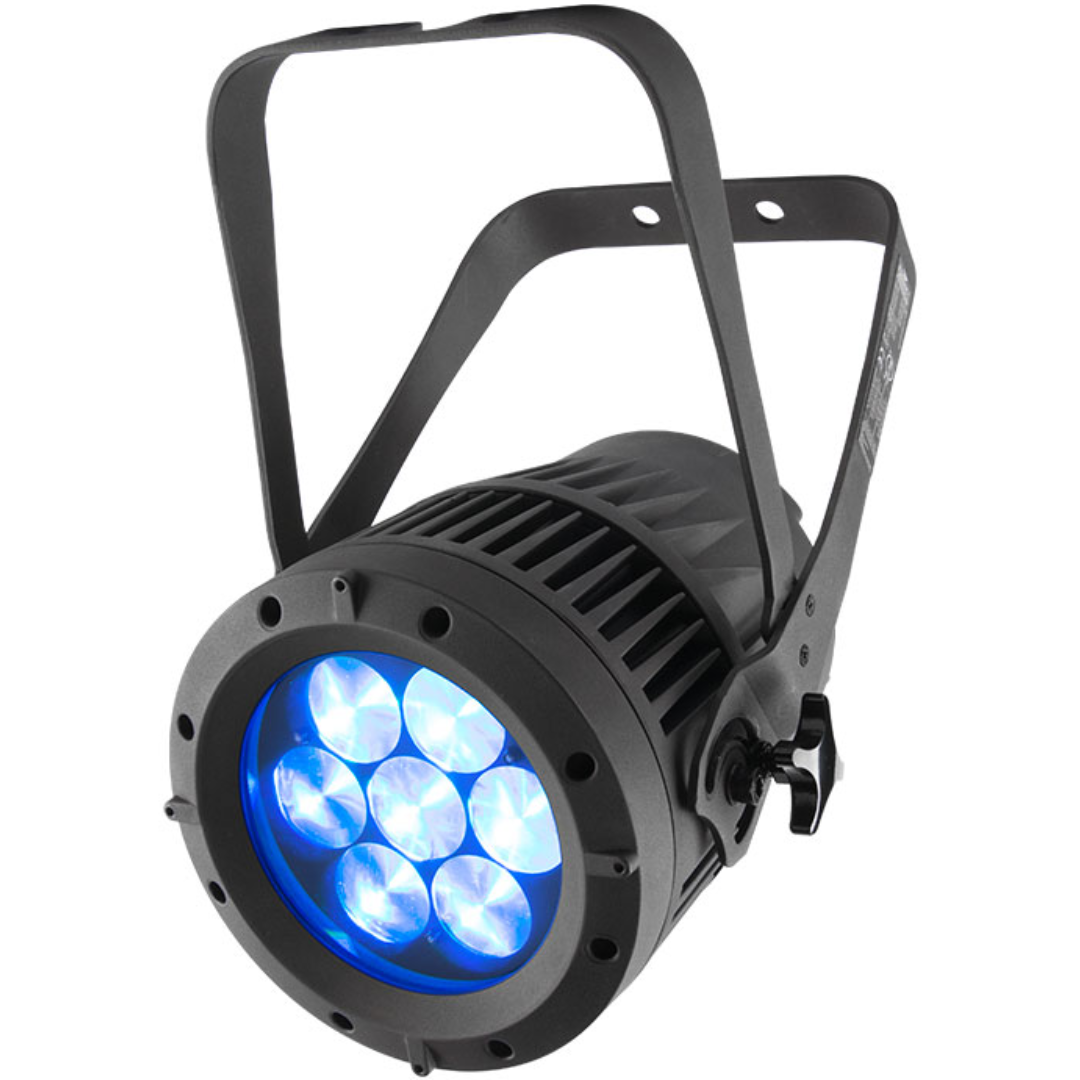

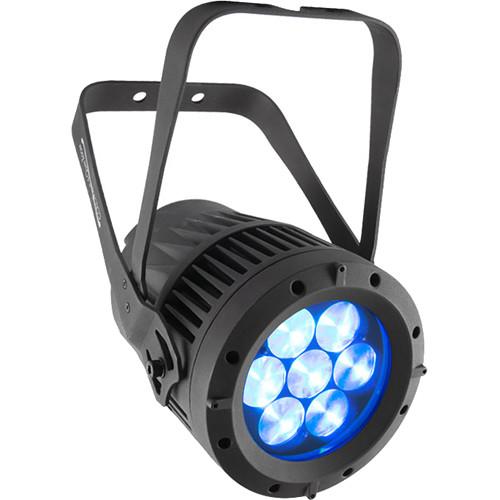

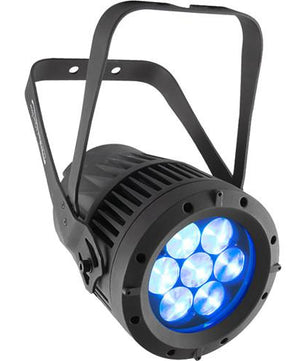

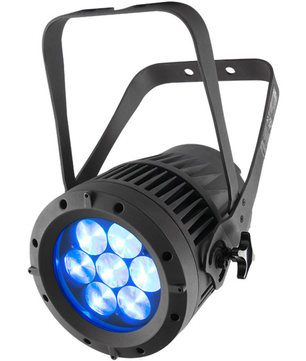

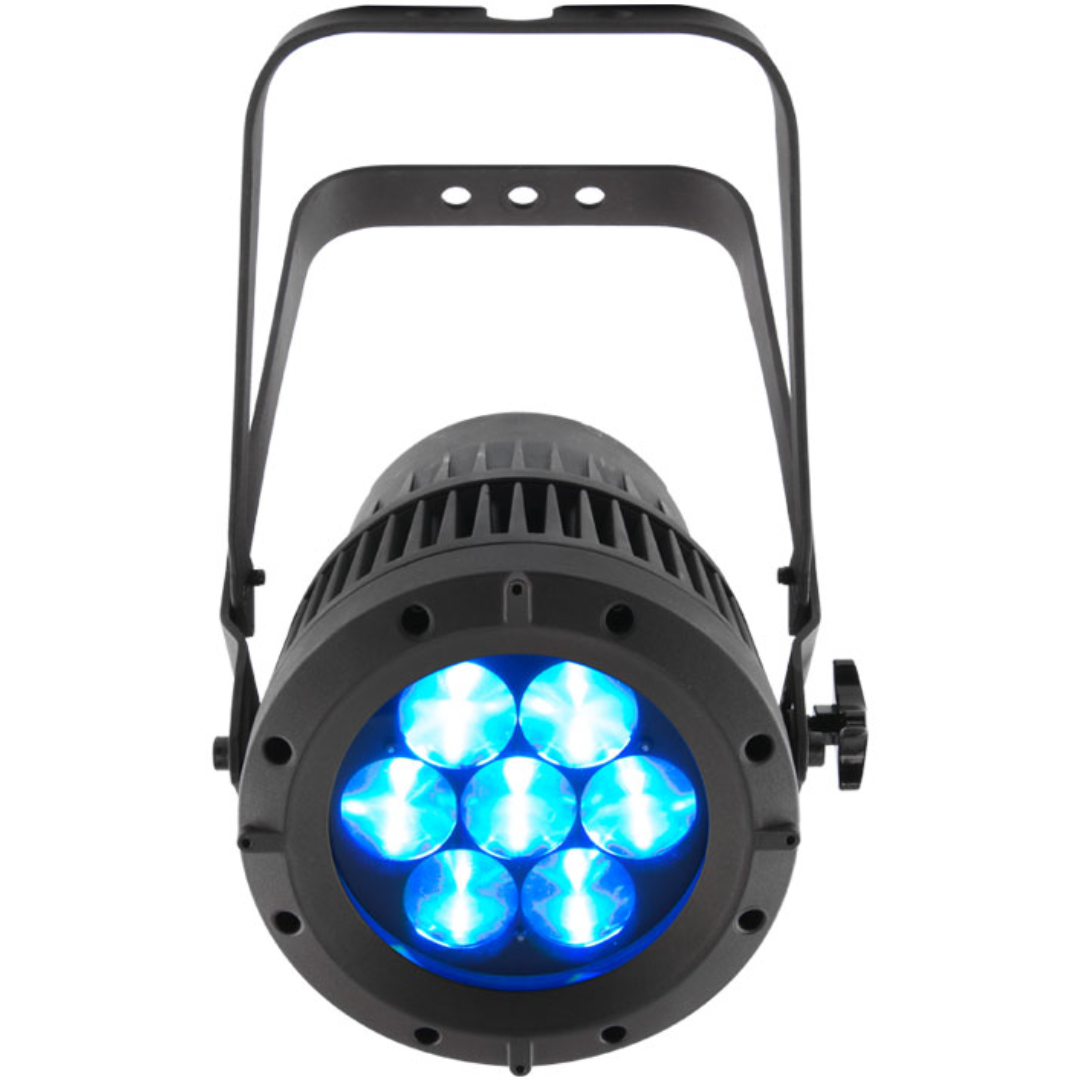

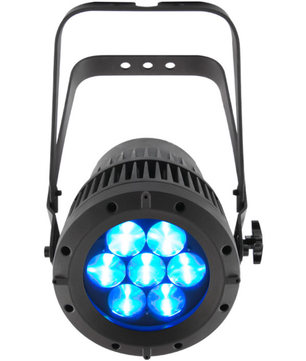

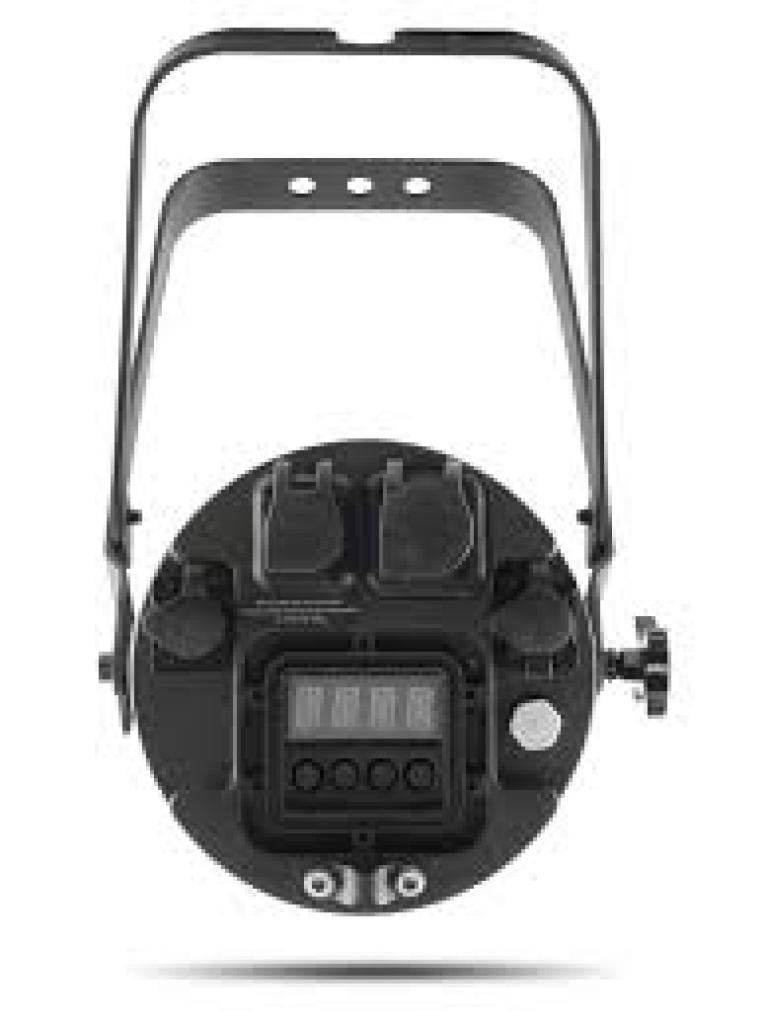

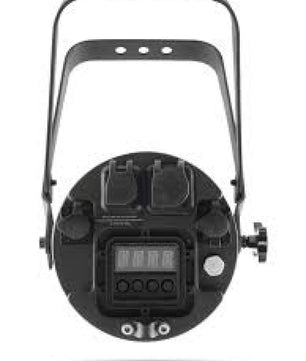

Chauvet Pro COLORado 1-Quad Zoom | 7x 15W RGBW LEDs - IP65 Rated | 7°–45° Zoom with Pixel Ring Control

Outdoor-Rated Zoom LED Wash Light

The Chauvet Pro COLORado 1-Quad Zoom is a powerful, compact RGBW LED wash fixture designed for indoor and outdoor environments. Featuring a wide 7°–45° motorized zoom and individual pixel control, it delivers smooth color mixing, quiet operation, and rugged durability for concert, theatrical, and architectural applications.

Chauvet Pro COLORado 1-Quad Zoom Competitive Differences

• 7x 15W RGBW LEDs with center and ring pixel control
• Motorized 7°–45° zoom in a compact IP65-rated housing

Chauvet Pro COLORado 1-Quad Zoom Description

The COLORado 1-Quad Zoom is built for versatility and performance in challenging environments. With seven Osram RGBW LEDs and a zoom range from a tight 7° beam to a wide 45° wash, this fixture adapts to a wide variety of stage and architectural lighting needs. Whether used as a punchy beam effect or smooth color wash, it maintains rich color output and consistent performance. Full 16-bit dimming on both master and individual colors ensures seamless fades, while selectable dim curves enhance programming flexibility. Unique pixel control allows for separate operation of the center LED and outer ring, enabling creative looks and dynamic movement when mapped. Built-in programs and manual control modes make the unit simple to deploy as a stand-alone fixture, and with IP-rated power and DMX connectors, it’s equally at home on outdoor stages, rooftops, or permanent installs. Despite its compact size, the COLORado 1-Quad Zoom is a workhorse for designers and rental houses alike.

Model Features

• 7x 15W quad-color RGBW LEDs
• Motorized zoom from 7° to 45°
• Individual control of center pixel and outer ring
• Selectable dimming curves and color temp presets
• Built-in and customizable programs via DMX or Master/Slave
• IP65-rated construction for outdoor use
• 16-bit dimming of individual colors and master dimmer
• Supports multiple DMX personalities (3–25 channels)

Model Specifications

• Beam Angle: 7° to 32°
• Field Angle: 13° to 45°
• Illuminance (13°): 3,280 lux @ 5 m
• Illuminance (45°): 296 lux @ 5 m
• Power Consumption: 101W @ 120V
• Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
• DMX Channels: 3 to 25 (12 personalities)
• Dimensions: 14.07 x 9.3 x 7.48 in (357 x 236 x 190 mm)
• Weight: 15.4 lb (7 kg)
• IP Rating: IP65 (temporary outdoor/wet use)

What's In The Box

• COLORado 1-Quad Zoom fixture
• Seetronic PowerKon IP65 power cord
• Gel frame holder (7.5 in / 191 mm)
• Gel frame
