Chauvet Pro COLORado Panel Q40 | 40x15W RGBW Wash Light | IP65 Outdoor Rated with W-DMX & Magnetic Filter

Outdoor-Rated LED Wash Light

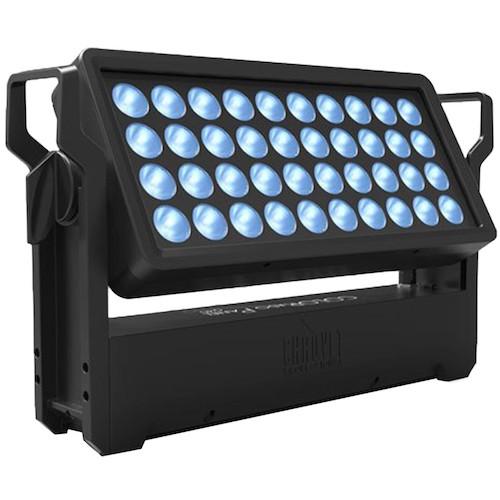

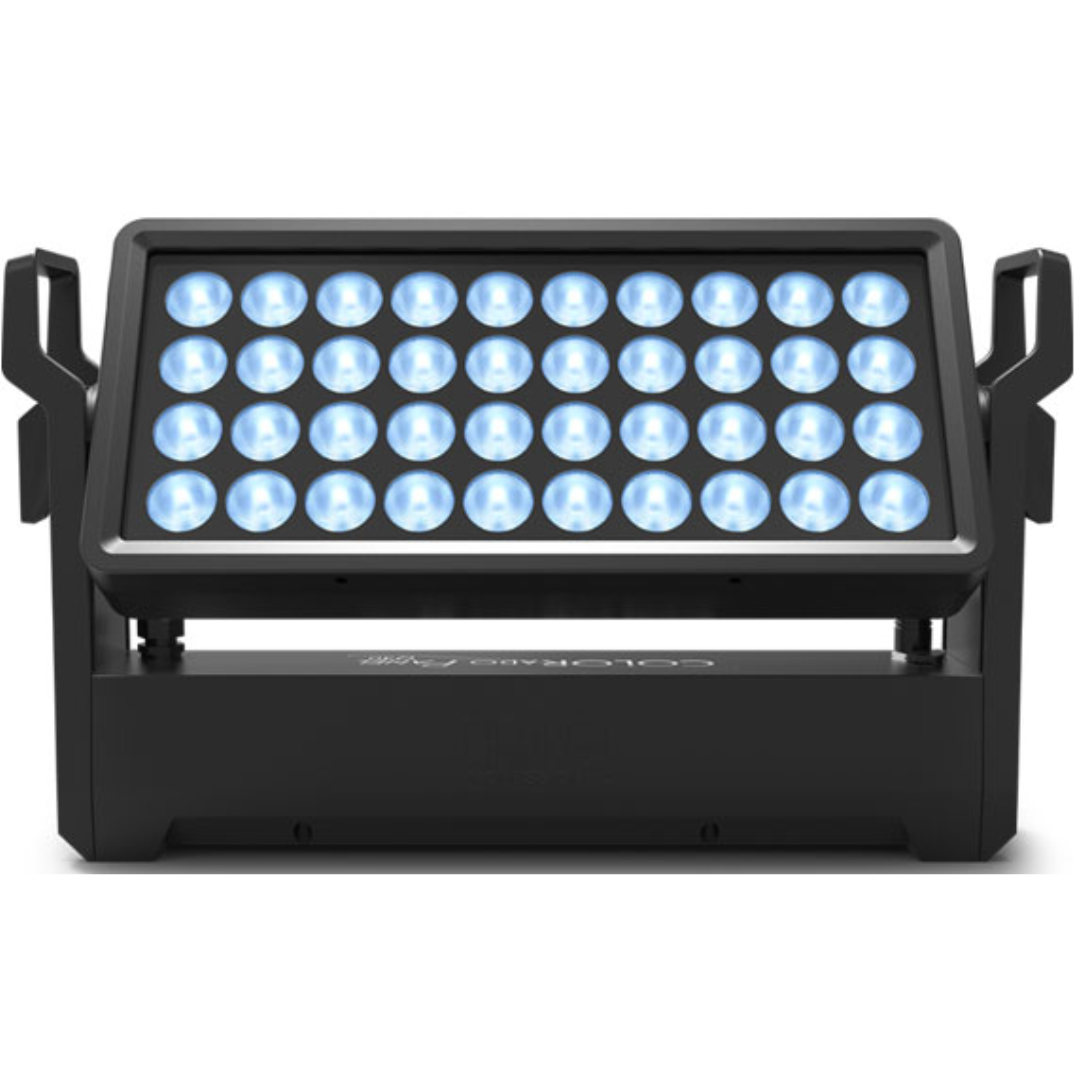

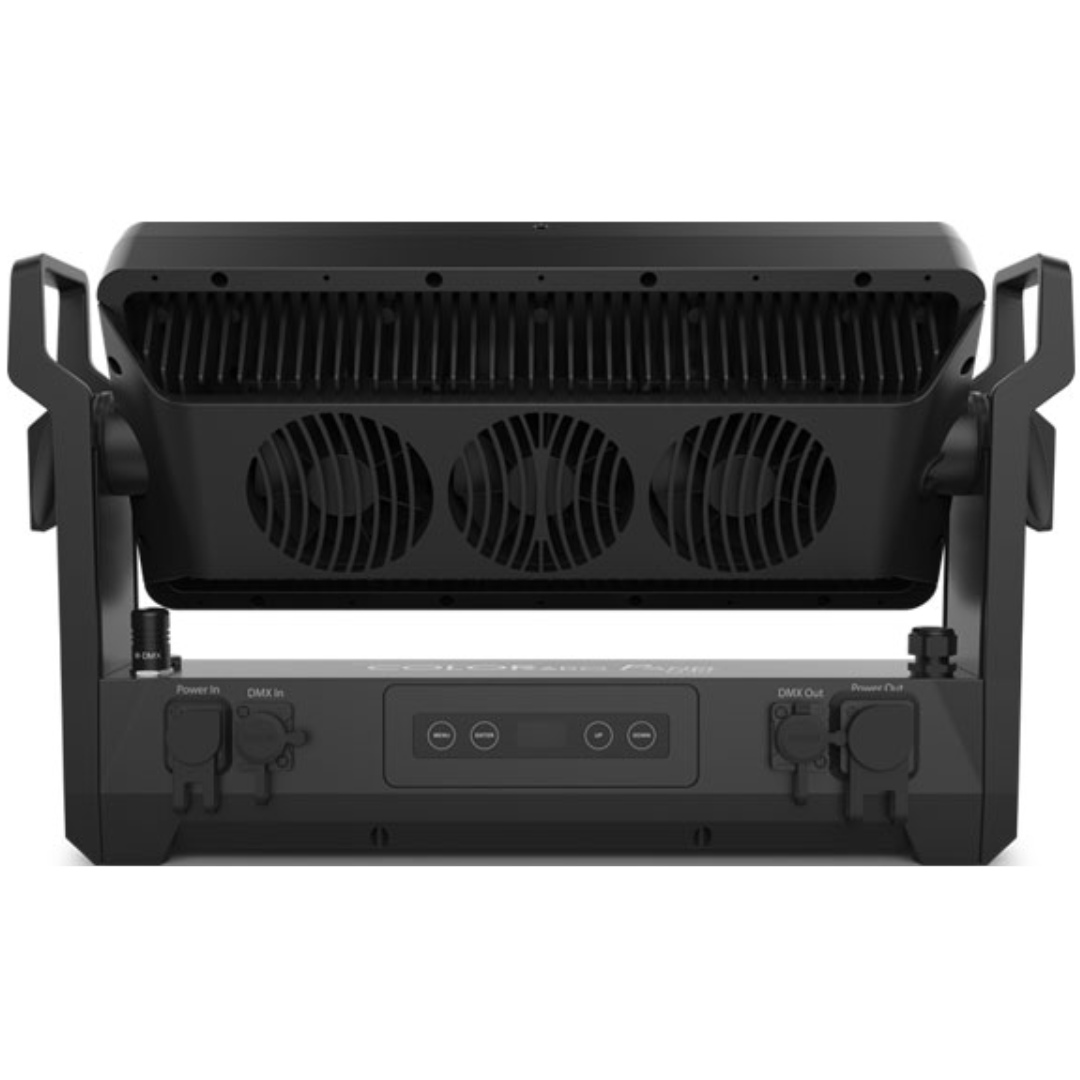

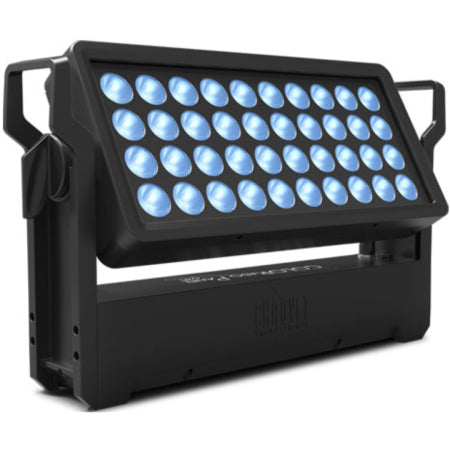

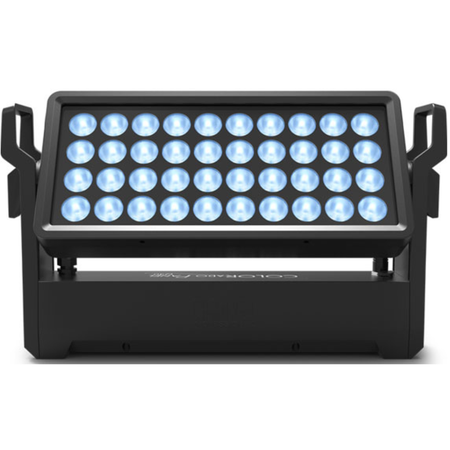

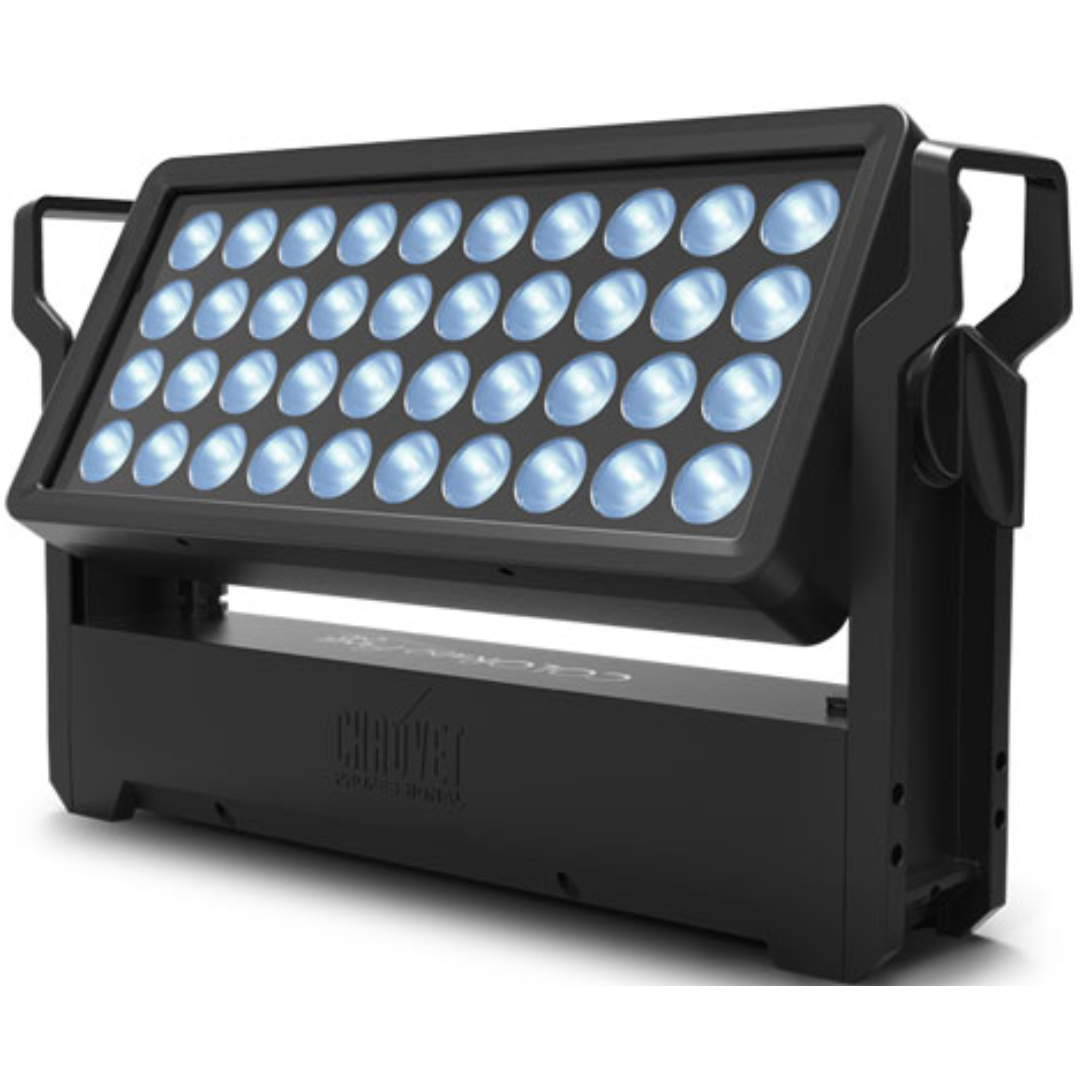

The Chauvet Pro COLORado Panel Q40 is a high-powered, IP65-rated rectangular wash fixture designed for professional indoor and outdoor applications. Featuring 40 quad-color 15W RGBW LEDs, it delivers flawless edge-to-edge color mixing with advanced optics, selectable PWM, and adjustable beam angles. With built-in W-DMX and RDM, the Panel Q40 offers flexible control, rugged construction, and powerful output for events, installations, and broadcast use.

Chauvet Pro COLORado Panel Q40 Competitive Differences

• IP65-rated for full indoor/outdoor use with power and DMX connections
• 40x15W RGBW LEDs with 29,000+ lumens and magnetic flood filter for wide wash

Chauvet Pro COLORado Panel Q40 Description

The COLORado Panel Q40 from Chauvet Professional is a rugged, rectangular LED wash light built to handle harsh outdoor conditions while delivering rich, vibrant color across large surfaces. At its core are 40 individually driven 15W RGBW LEDs capable of producing over 29,000 lumens of output (17,992 lumens with included magnetic flood filter). The fixture’s custom optics ensure consistent, smooth color blending from edge to edge—ideal for scenic, stage, and architectural lighting. Designed for maximum adaptability, the Panel Q40 includes selectable PWM settings (up to 25,000 Hz) for flicker-free operation on camera, making it suitable for film and broadcast environments. Four dimming modes, built-in automated programs, and color temperature presets provide additional creative flexibility, while a wide tilt range (0–150°) enables precise beam aiming. A durable aluminum housing and IP65-rated power/data connectors ensure reliable operation in any weather. The included magnetic flood filter expands the beam to a 50.4° field angle for broader coverage without sacrificing uniformity. The intuitive touchscreen OLED display with password protection provides fast setup, and the included omega bracket allows for secure truss or pipe mounting. Whether for touring, corporate, or permanent install, the COLORado Panel Q40 offers the brightness, control, and build quality demanded by professionals.

Model Features

• 40 x 15W RGBW quad-color LEDs (50,000 hr lifespan)
• Flawless color mixing with edge-to-edge uniformity
• IP65-rated for indoor or outdoor use
• Magnetic flood filter included for wide area washes
• Selectable PWM (600–25,000 Hz) for flicker-free video use
• W-DMX and RDM support for flexible control
• Smooth dimming curves with 4 dimmer modes
• OLED touchscreen display with password lock
• 0–150° tilt range for versatile positioning
• Includes omega mounting bracket and filter lens

Model Specifications

• Light Source: 40 x 15W RGBW LEDs
• Lumens: 29,407 (17,992 with filter)
• Beam Angle: 20.4° (w/o filter), 24.6° (with filter)
• Field Angle: 33.8° (w/o filter), 50.4° (with filter)
• Illuminance: 8,347 lux @ 5m (w/o filter), 2,590 lux @ 5m (with filter)
• Control Protocols: DMX, W-DMX, RDM
• DMX Channels: 4, 7, 11, 16, 22
• Power Consumption: 566W @ 120V, 559W @ 208V, 560W @ 230V
• Power Linking: 2 units @ 120V, 5 units @ 208V/230V
• Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
• IP Rating: IP65
• Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)
• Weight: 28.2 lb (12.8 kg)
• Operating Temp: -4 °F to 113 °F (-20 °C to 45 °C)

What's In The Box

• COLORado Panel Q40 fixture (white housing)
• Seetronic Powerkon IP65 power cord
• Magnetic color blending flood filter
• Omega bracket with mounting hardware
