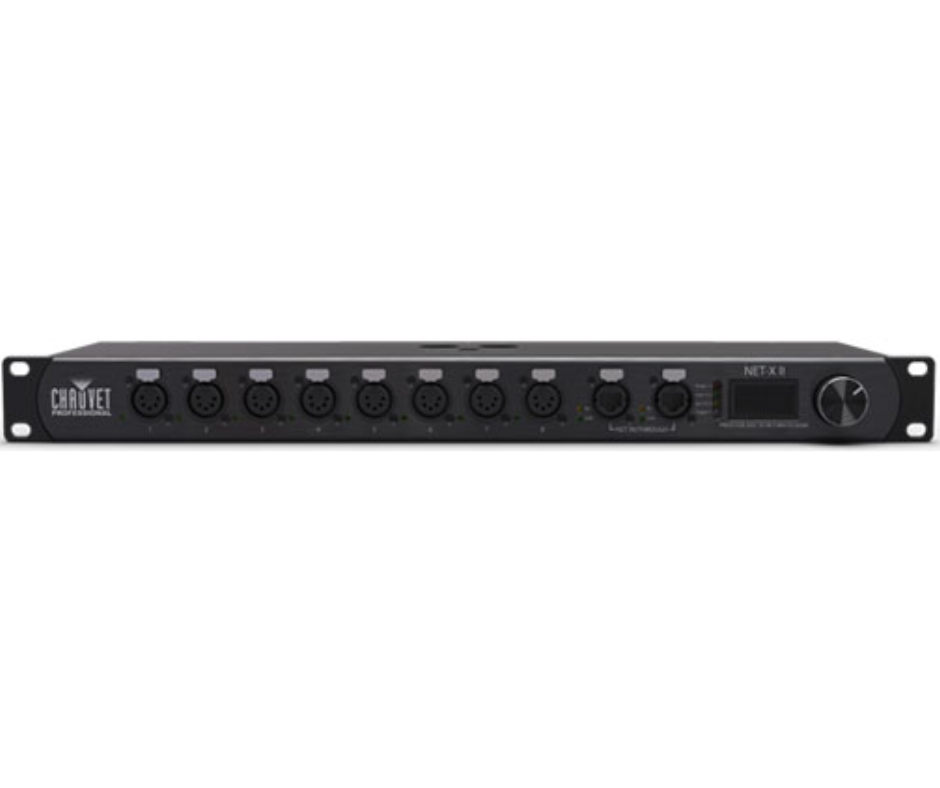

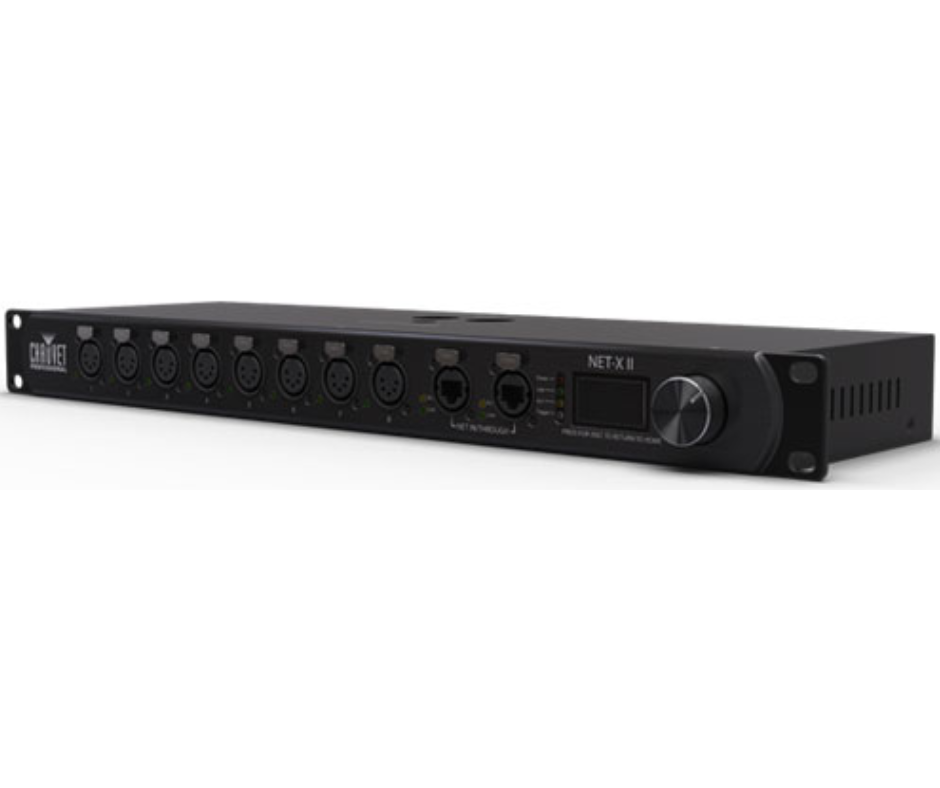

Chauvet Pro Net-X II | 8-Universe Ethernet-to-DMX Node | Art-Net/sACN Converter & Merger

Ethernet-to-DMX Node & Merger

Chauvet Pro Net-X II is a professional-grade, rackmountable Ethernet-to-DMX node and DMX merger capable of handling complex lighting data distribution for large-scale production systems. Designed for flexibility and reliability, it supports Art-Net, sACN, and DMX protocols and offers extensive input/output routing and merging options—all within a compact 1U rack chassis.

Chauvet Pro Net-X II Competitive Differences

• Supports up to 8 DMX universes via Art-Net or sACN
• Dual DMX and dual network input merging with HTP/LTP modes

Chauvet Pro Net-X II Description

The Net-X II provides professional lighting technicians and system designers with a powerful tool for managing and routing DMX data in networked environments. Its dual DMX inputs and 8 fully assignable, optically isolated 5-pin DMX outputs allow for flexible configurations, whether you're splitting DMX lines, converting between protocols, or merging control signals. With full support for Art-Net and sACN, the Net-X II can operate as both a DMX-to-network and network-to-DMX converter—making it ideal for broadcast, theatrical, architectural, or concert applications. Merge two DMX consoles, two Art-Net controllers, or two sACN streams using HTP or LTP logic and route them independently to any output. For added flexibility, the Net-X II includes a show recording feature, allowing up to 10 presets with 100 steps each to be saved and remotely triggered via Phoenix contact closure inputs. Onboard configuration is simple via LCD or web interface, and settings can be backed up or cloned to other Net-X II units. With support for RDM over Art-Net, fixture management becomes streamlined across large systems. Built into a rugged steel 1U chassis with a road-ready design, this device is a core infrastructure solution for any modern lighting rig.

Model Features

• Art-Net/sACN to DMX and DMX to network conversion
• 8 optically isolated, assignable DMX outputs
• Dual DMX inputs and full HTP/LTP merging capabilities
• Record and playback up to 10 DMX presets (100 steps each)
• Web server access for remote configuration and updates
• Supports RDM over network protocols
• Includes Phoenix terminal for remote preset triggering

Model Specifications

• Universes: Up to 8 (Art-Net/sACN)

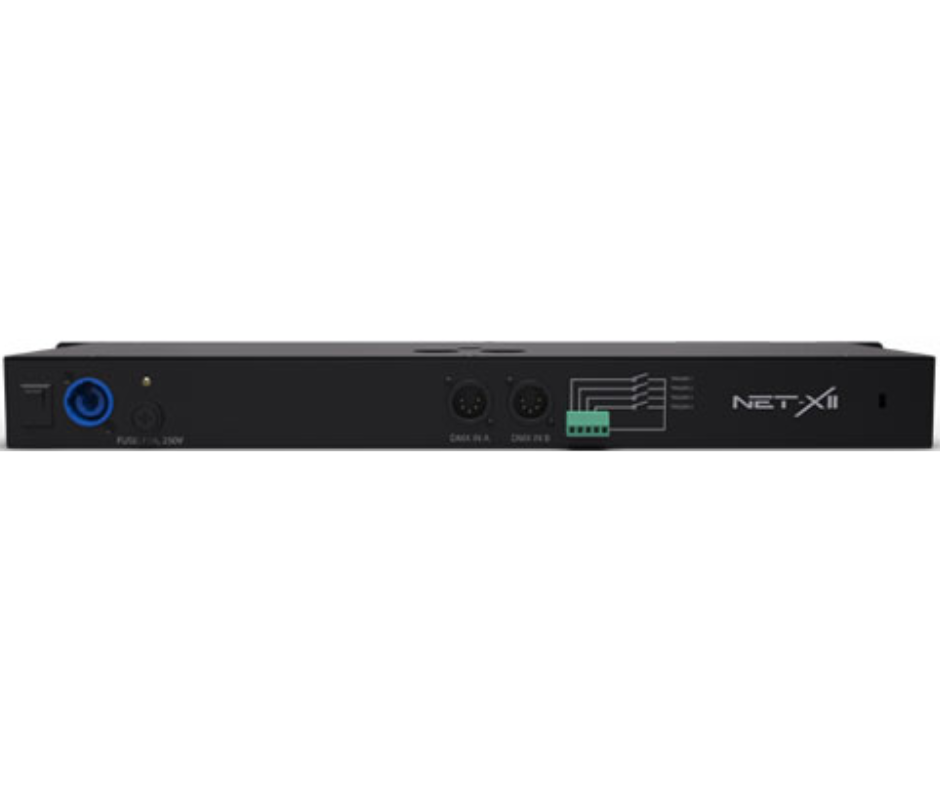

• DMX Inputs: 2x 5-pin XLR
• DMX Outputs: 8x 5-pin XLR (assignable, optically isolated)
• Ethernet: 1x Seetronic etherKON
• Power Input: 100–240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 14 W max
• Dimensions: 19 x 6.22 x 1.73 in (483 x 158 x 44 mm)
• Weight: 4.6 lb (2.1 kg)
• IP Rating: IP20 (dry location)
• Certifications: CE

What's In The Box

• Net-X II unit
• Seetronic powerKON power cord
• Phoenix connector
