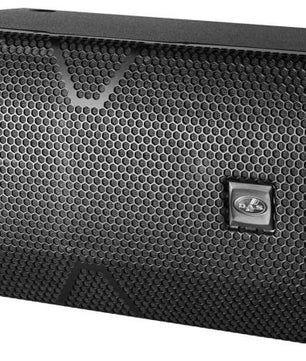

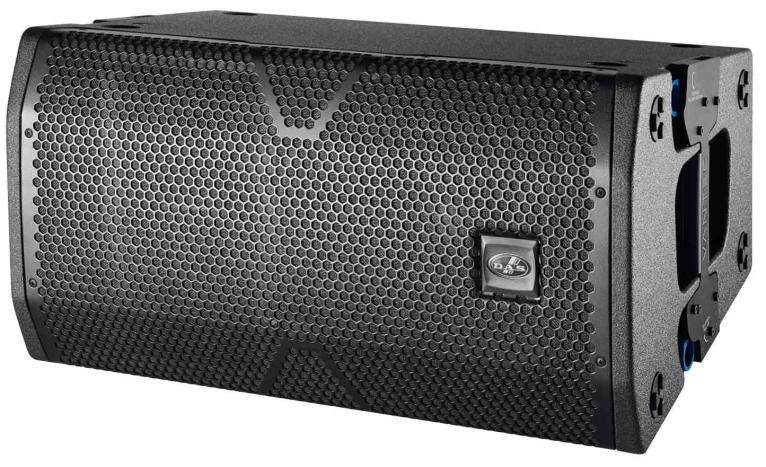

DAS Vantec 20A

Versatile 12-Inch Curved Source Line Array for Professional Sound Applications

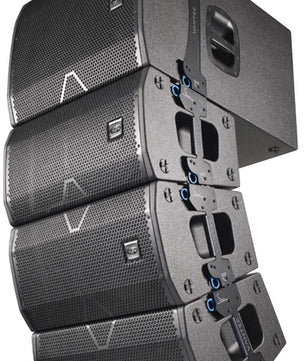

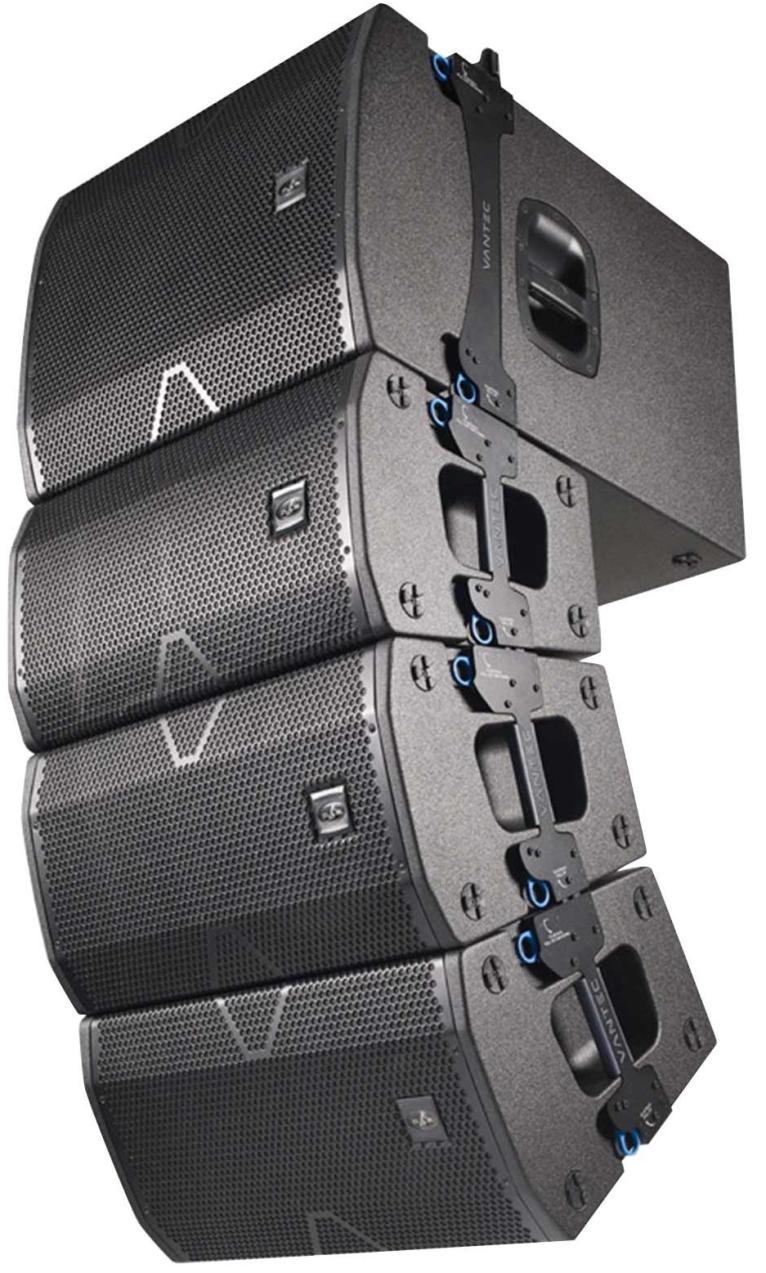

The D.A.S. Audio Vantec-20A is a powerful active curved source line array system designed to deliver exceptional sound performance in a compact form. With a 1500W peak Class-D bi-amplified design, this speaker is perfect for corporate A/V events, mid-size sound reinforcement, and permanent installations. Its flexible design allows for use individually, stacked on a Vantec-118A subwoofer, or flown in arrays of up to 5 units.

D.A.S. Audio Vantec-20A Competitive Differences

• 1500W peak Class-D bi-amplified system for robust audio performance
• 12" DAS 12F4C woofer and dual M-60 compression drivers for wide frequency response (63 Hz - 20 kHz)
• Selectable high-pass filter presets for seamless integration with Vantec-18A and Vantec-118A subwoofers
• DAScontrol™ interface for easy configuration and throw compensation adjustments
• DASlink™ app for wireless streaming and remote control of system functions
• Variable angle pole mount allows for precise aiming with +/- 13.5° tilt
• Durable Baltic birch plywood enclosure with ISO-flex coating for long-lasting performance

D.A.S. Audio Vantec-20A Description

The D.A.S. Audio Vantec-20A is built for flexibility and high-quality sound, making it ideal for various professional applications where compact arrays are needed. Its powerful 1500W peak Class-D amplifier drives a 12-inch DAS 12F4C woofer and two M-60 compression drivers, delivering a frequency range of 63 Hz to 20 kHz. The bi-amplified design ensures precise audio reproduction, while the advanced FIR filters provide a linear phase response for superior clarity and detail. With the intuitive DAScontrol™ interface, users can configure system presets, throw compensation, and array size with ease. The Vantec-20A can be used individually or in arrays of up to 5 units, making it suitable for venues that don't require the power of large line arrays. The variable angle pole mount enables precise adjustments of up to +/- 13.5°, ensuring optimal coverage in any setup. When used as a standalone unit, the DASlink™ app allows for high-definition music streaming and remote control over essential settings. The Vantec-20A's enclosure is constructed from durable Baltic birch plywood and finished with ISO-flex coating for enhanced protection, even in demanding environments. Its compact design, combined with easy rigging options and robust performance, makes it a reliable choice for sound professionals.

Vantec-20A Features

• 12" DAS 12F4C woofer and 2 x M-60 compression drivers for detailed sound
• 1500W peak Class-D bi-amplified design
• Advanced FIR filters for accurate phase response
• DAScontrol™ with presets and DSP configuration options
• DASlink™ app for wireless streaming and remote adjustments
• +/- 13.5° variable tilt pole mount for precise coverage
• IP43-rated enclosure for durability in various environments

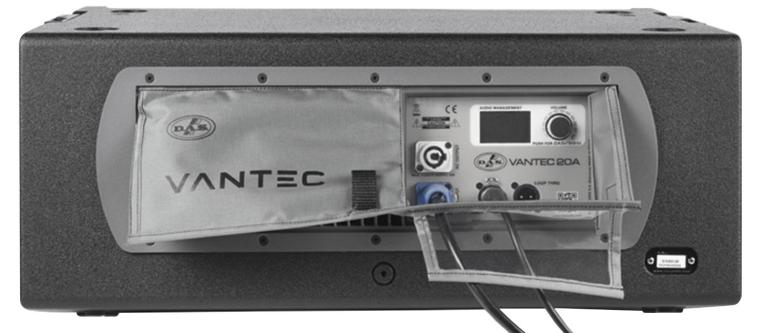

• Balanced XLR input and loop-thru connections for easy integration

Vantec-20A Specifications

• Configuration: Active Curved Source Line Array
• Total Power Capacity: 1500W Peak (Class-D Bi-amplified)
• Frequency Range (-10 dB): 63 Hz – 20 kHz
• Rated Peak SPL: 136 dB
• Dispersion: 90° Horizontal x 15° Vertical
• Input Sensitivity: +8 dBu
• Input Impedance: 20 kΩ Balanced
• Audio Inputs:
  • 1 x XLR 3-Pin Female Input
  • 1 x XLR 3-Pin Male Loop Thru Output
• Power Requirements: 115/230 VAC, 50/60 Hz
• Power Draw: 3.0 A (115 V) / 1.5 A (230 V)
• Enclosure: Baltic Birch Plywood with ISO-flex Finish
• Dimensions (H x W x D): 13 x 24.4 x 17.1 in (33 x 62 x 43.5 cm)
• Weight: 74.8 lb (33.9 kg)

What's In The Box

• D.A.S. Audio Vantec-20A Active Curved Source Line Array Module
• powerCon Power Cord
• Limited 2-Year Warranty
• User Manual
