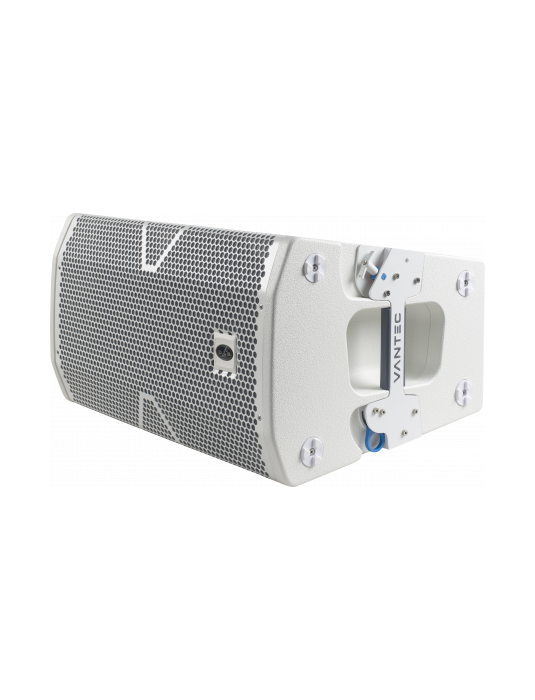

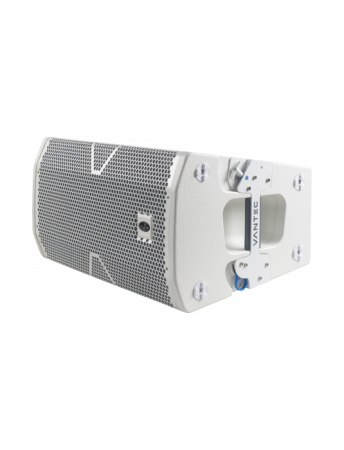

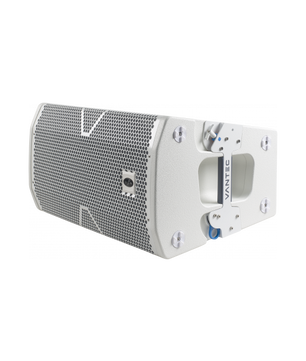

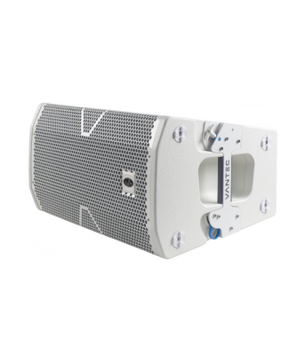

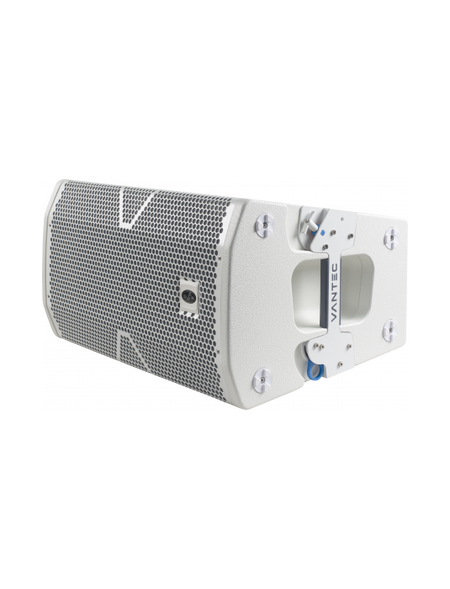

DAS VANTEC-20A-W | 12in Curved Array - 135dB SPL | White Powered Speaker with DSP & Wireless Control

DAS VANTEC-20A-W | 12in Curved Array - 135dB SPL | White Powered Speaker with DSP & Wireless Control

$3,111.99

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Powered Curved Source Line Array

DAS VANTEC-20A-W is a 12” powered curved source speaker in a sleek white finish, engineered for maximum versatility in small to mid-sized sound reinforcement. Designed for standalone use or in arrays of up to five units, it features advanced DSP, wireless control, and easy rigging for fast deployment in mobile or installed applications.

DAS VANTEC-20A-W Competitive Differences

Curved source line array with Click-Lock™ rigging system
DAScontrol™ LCD interface and DASlink™ app for remote streaming/control

DAS VANTEC-20A-W Description

The DAS VANTEC-20A-W is purpose-built for sound professionals seeking high output and flexible deployment in a compact line array format. With a peak SPL of 135dB, its biamplified 1500W Class D amplifier drives a 12F4C woofer and dual M-60 compression drivers for powerful, clear output in a wide range of settings—from corporate AV to fixed installations. This speaker integrates seamlessly with the VANTEC-118A-W subwoofer, both mechanically and acoustically. The proprietary Click-Lock™ rigging system allows for secure flying or ground-stacking, while a variable-angle pole mount offers adjustable tilt for single-unit use. Selectable DSP presets and array configuration tools are accessible via the onboard DAScontrol™ LCD interface, and remote control or streaming is handled via the DASlink™ mobile app. Its birch plywood construction and white ISO-flex paint finish make it both durable and visually suited for houses of worship, event venues, and corporate AV environments. Whether used solo or in clusters, the VANTEC-20A-W delivers consistent horizontal coverage and throw for crystal-clear, scalable sound.

Model Features

Curved source line array with 12” LF and dual 1” HF drivers
1500W peak Class D biamped power (750W continuous)
DAScontrol™ DSP interface with array presets and HPF options
DASlink™ app for wireless streaming and remote control
Compatible with VANTEC-118A-W for flown or ground-stacked systems
Click-Lock™ rigging and adjustable pole mount (±13.5º tilt)
White birch plywood cabinet with ISO-flex paint finish

Model Specifications

Max SPL: 135dB
Power Output: 1500W Peak / 750W Continuous
Dimensions: 13.2 x 24.6 x 17.3 in (335 x 625 x 440 mm)
Weight: 62.8 lb (28.5 kg)

What's In The Box

Main unit
Power cable
Quick start guide
