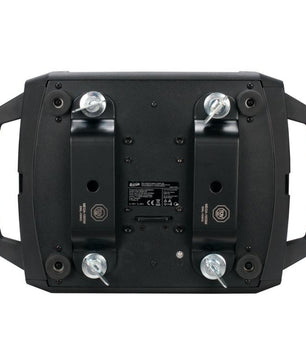

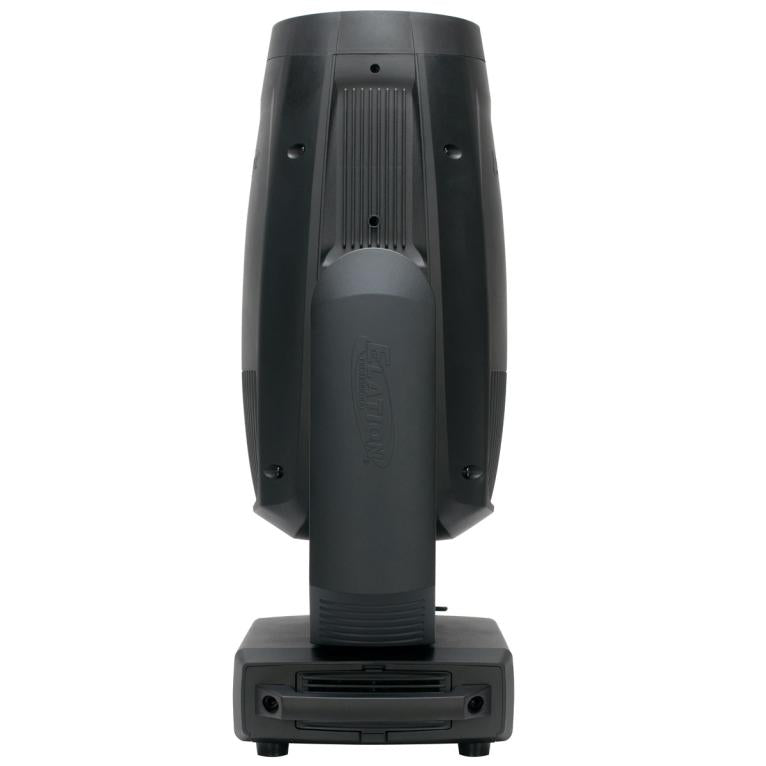

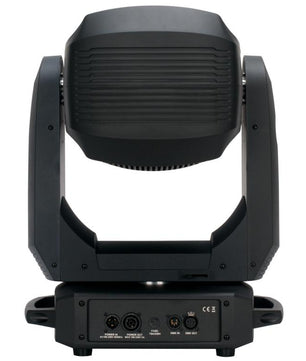

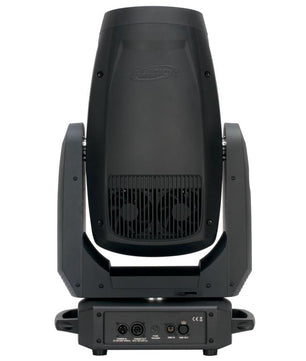

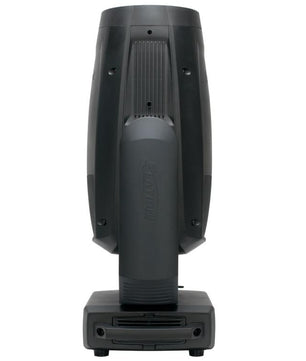

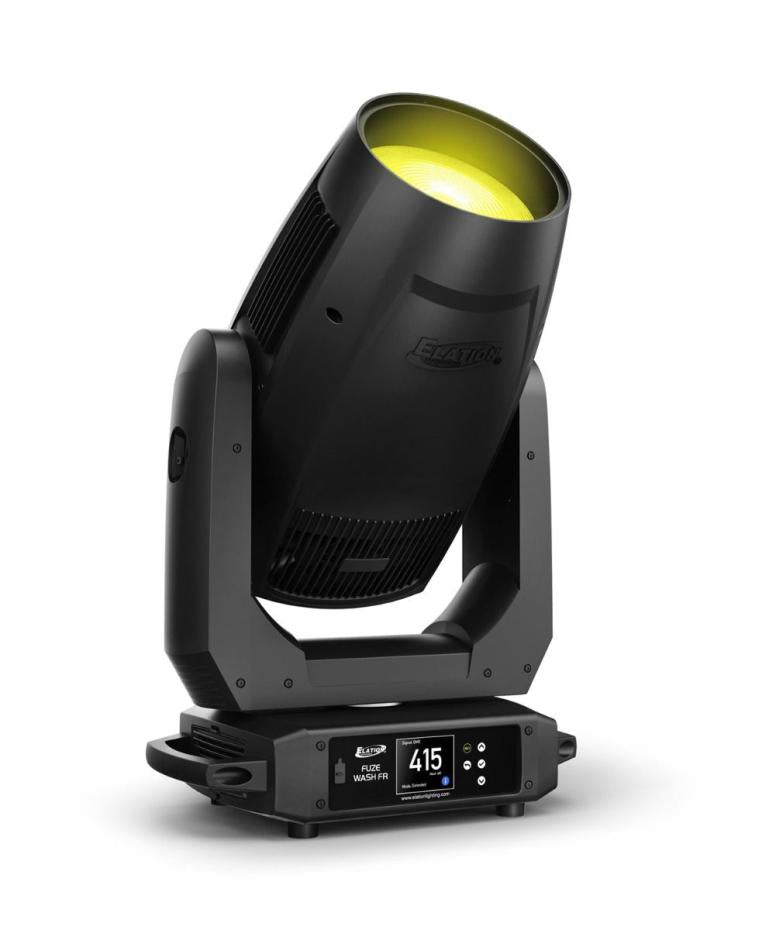

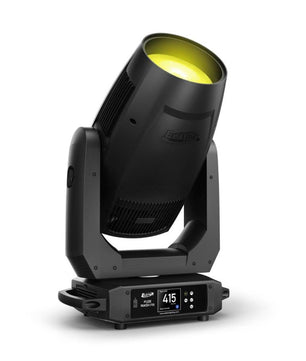

Elation Fuze Wash FR

$5,564.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

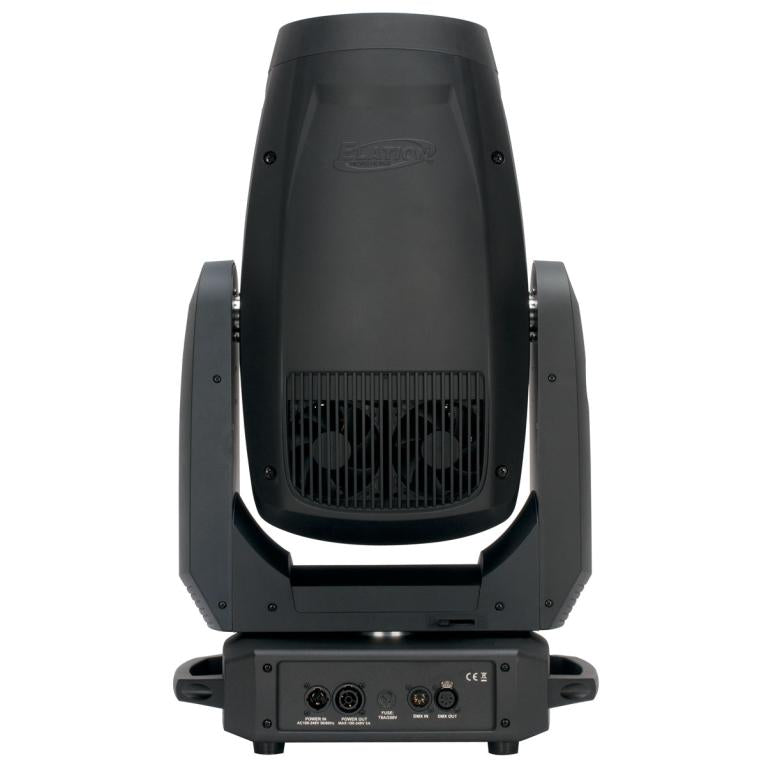

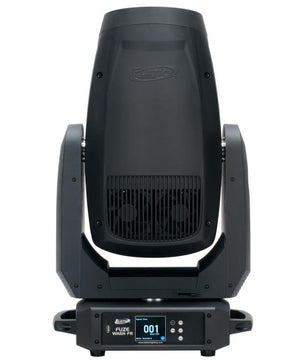

The FUZE WASH FR™ is an automated LED Fresnel wash fixture designed for theater, television and a wide array of other precision lighting applications. A 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of 14,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The FUZE WASH FR is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and framing beam control with a soft field is required.

Features:
480W Full Spectrum RGBMA LED Engine
14,000 Total Lumen Fixture Output @ 6,500K, 92 CRI
Internal 4-Blade Framing Module
Wide Zoom Range from 9° to 60°
Variable 16-bit Dimming Curve Modes
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book

Specifications:
SOURCE
480W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
14,000 Total Lumen Fixture Output
CRI 92

EFFECTS
9° - 60° Motorized Zoom
Framing System
Dual Variable Frost Filters
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe

COLOR
RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book

CONTROL / CONNECTIONS
4 DMX Channel Modes
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

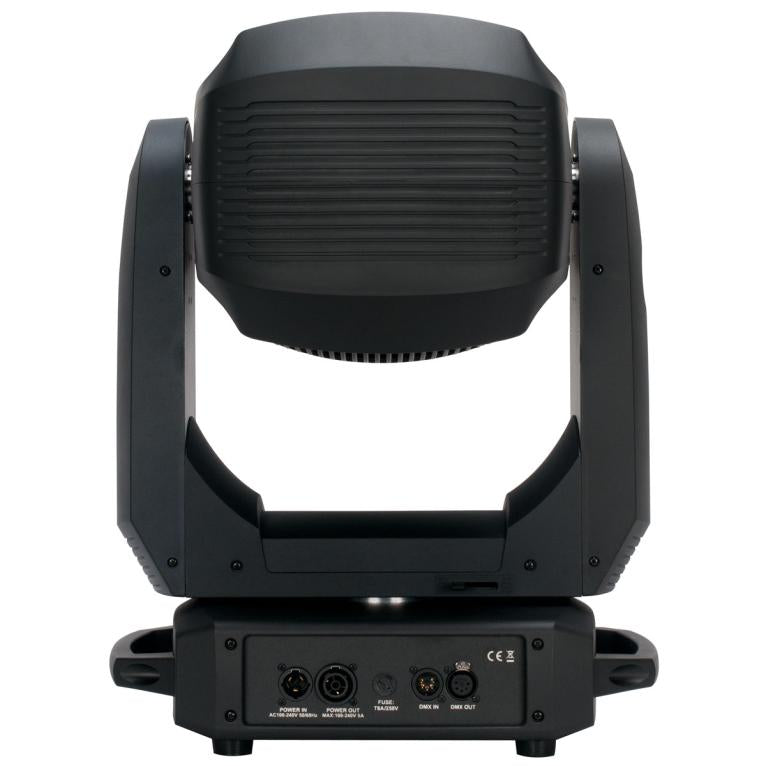

Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector Power In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 16.06" (408mm)
Width: 9.99" (253.72mm)
Vertical Height: 26.74" (679.9mm)
Weight: 55.1 lbs. (25kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption 631W
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | cETLus pending | IP20
