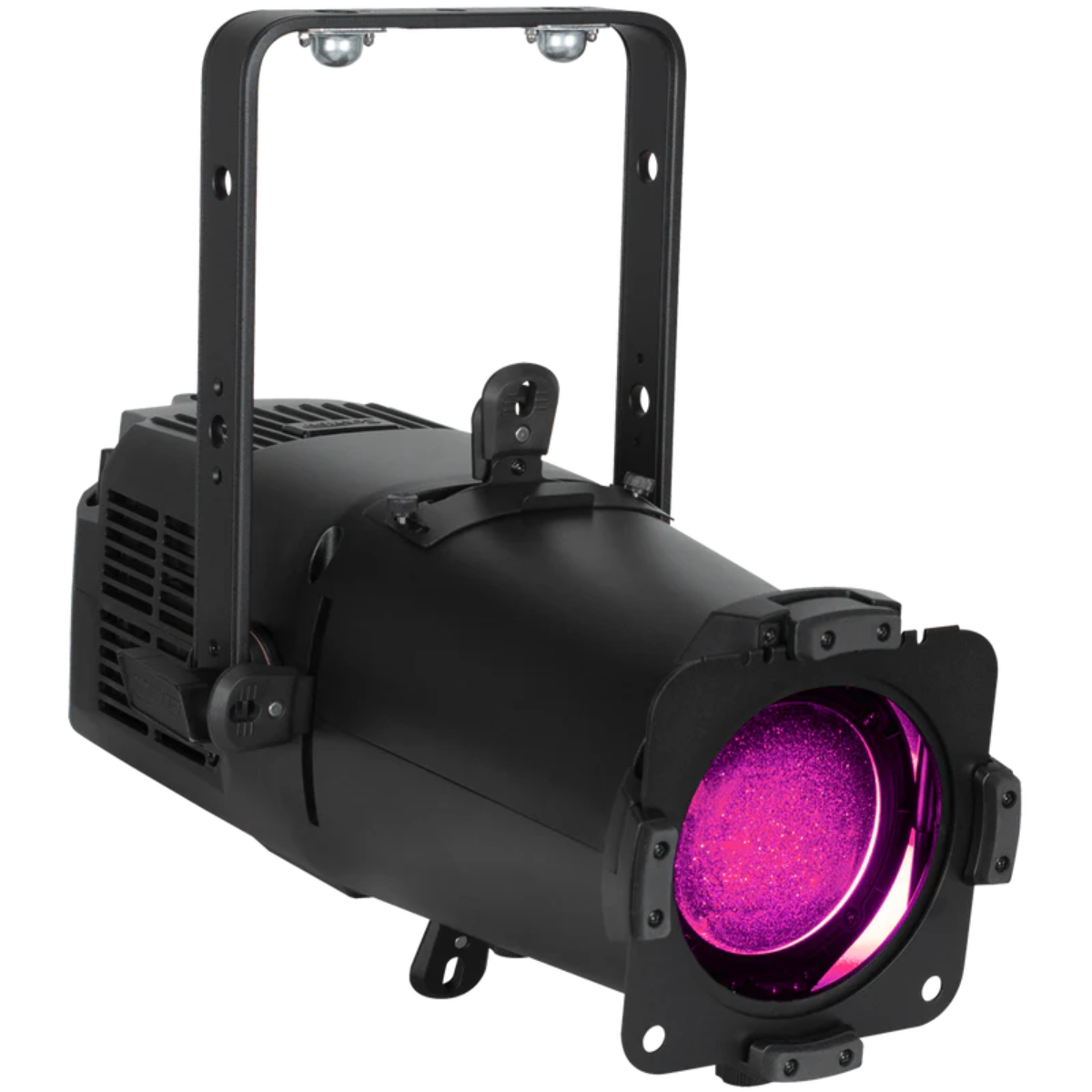

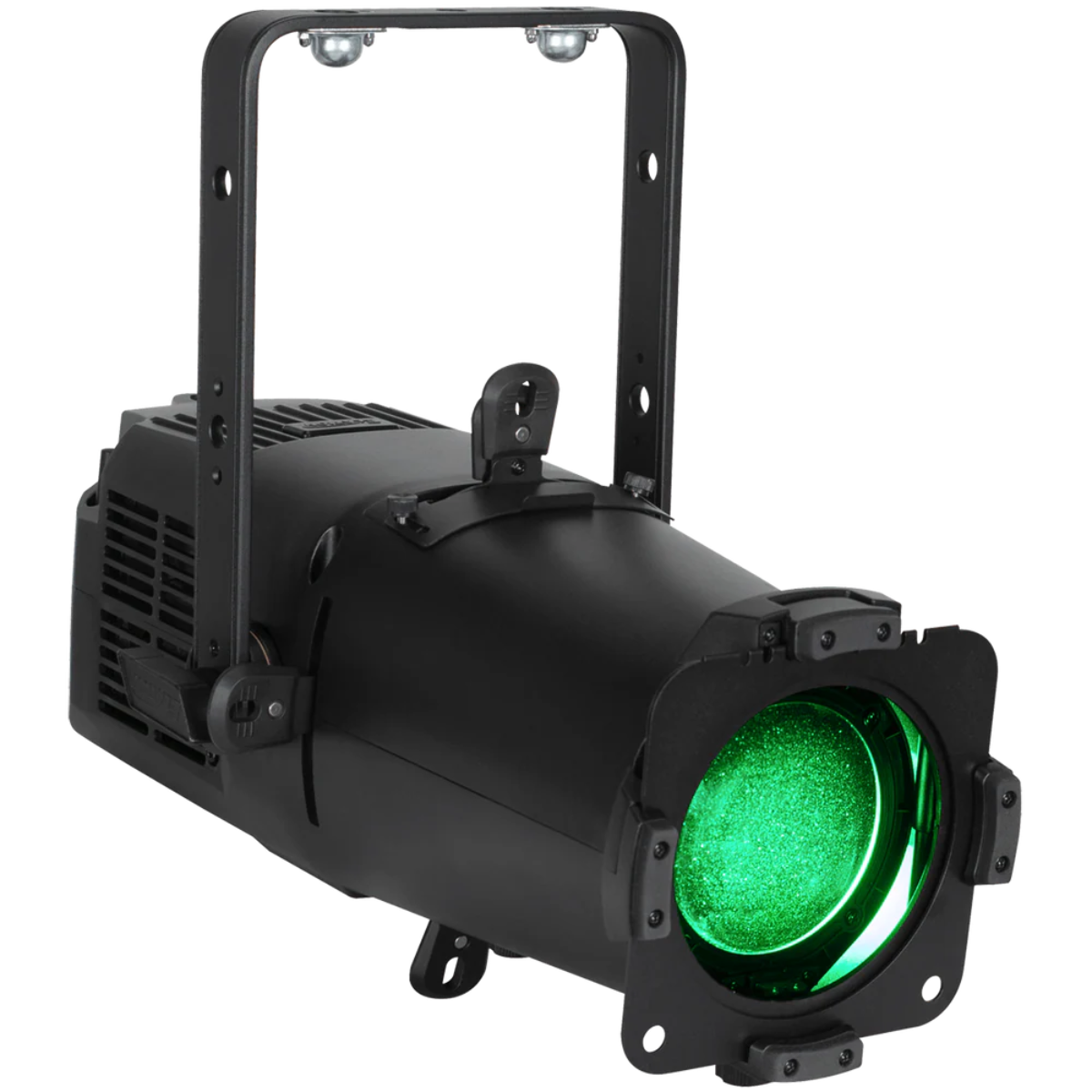

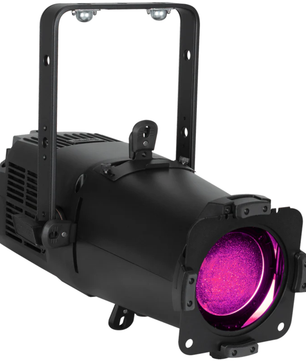

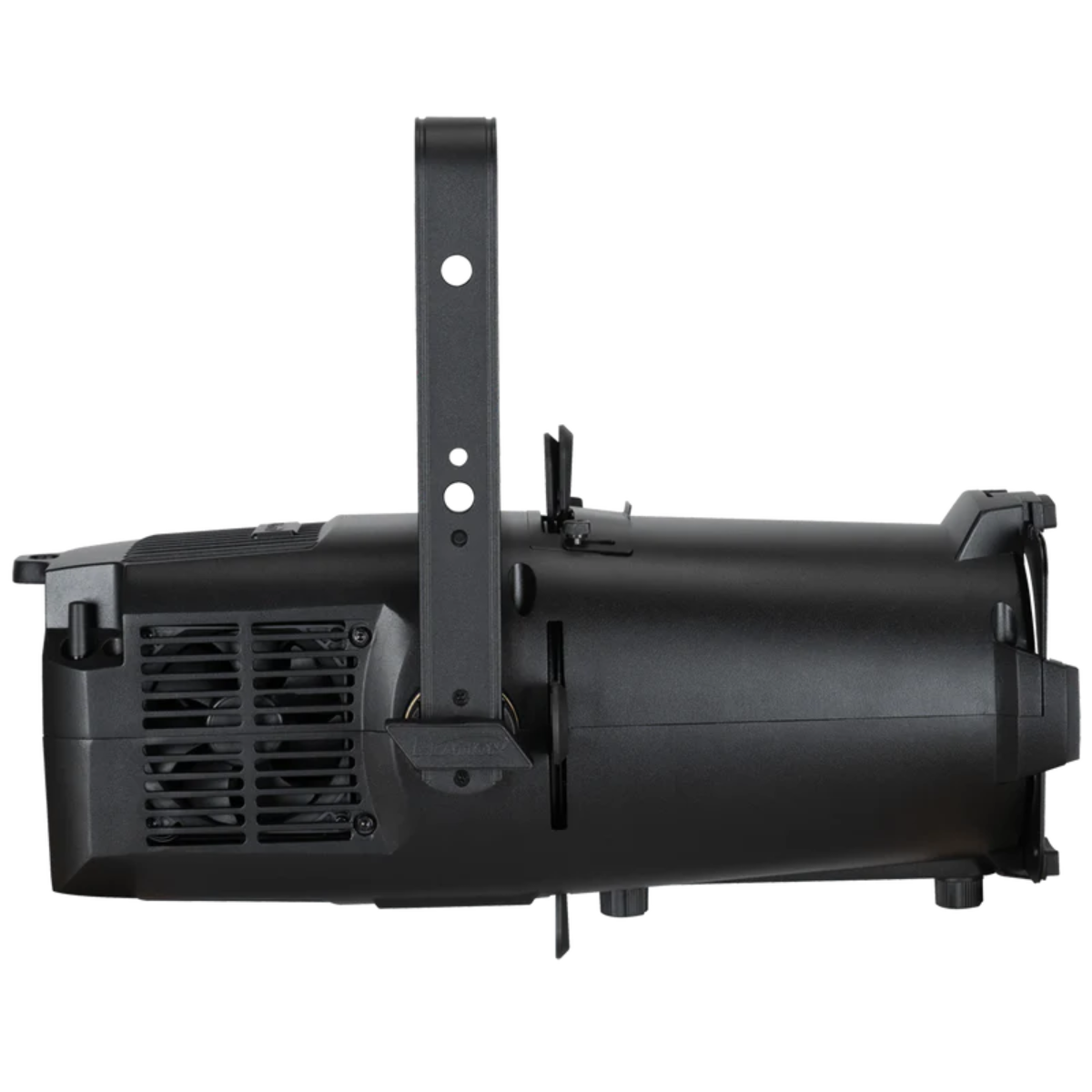

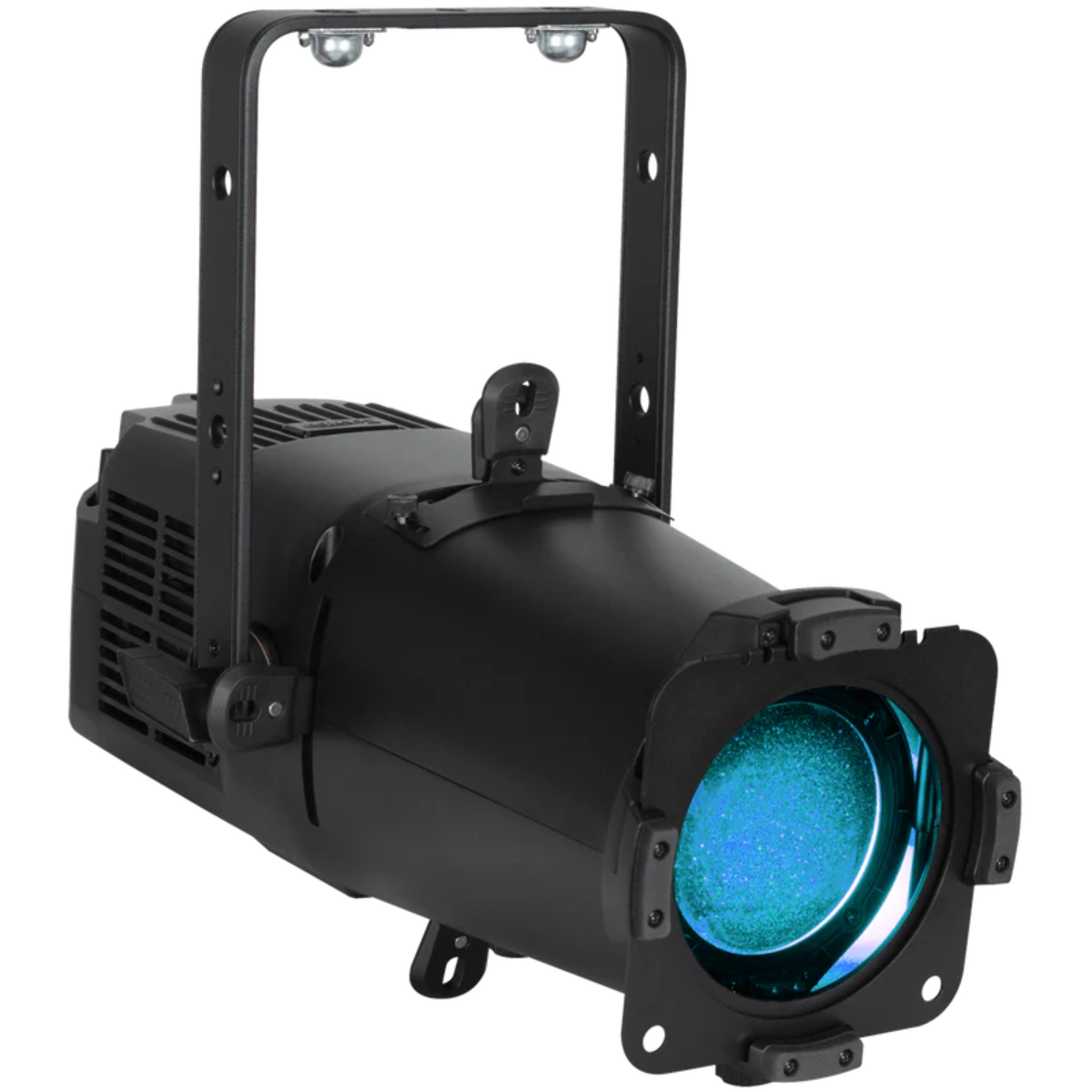

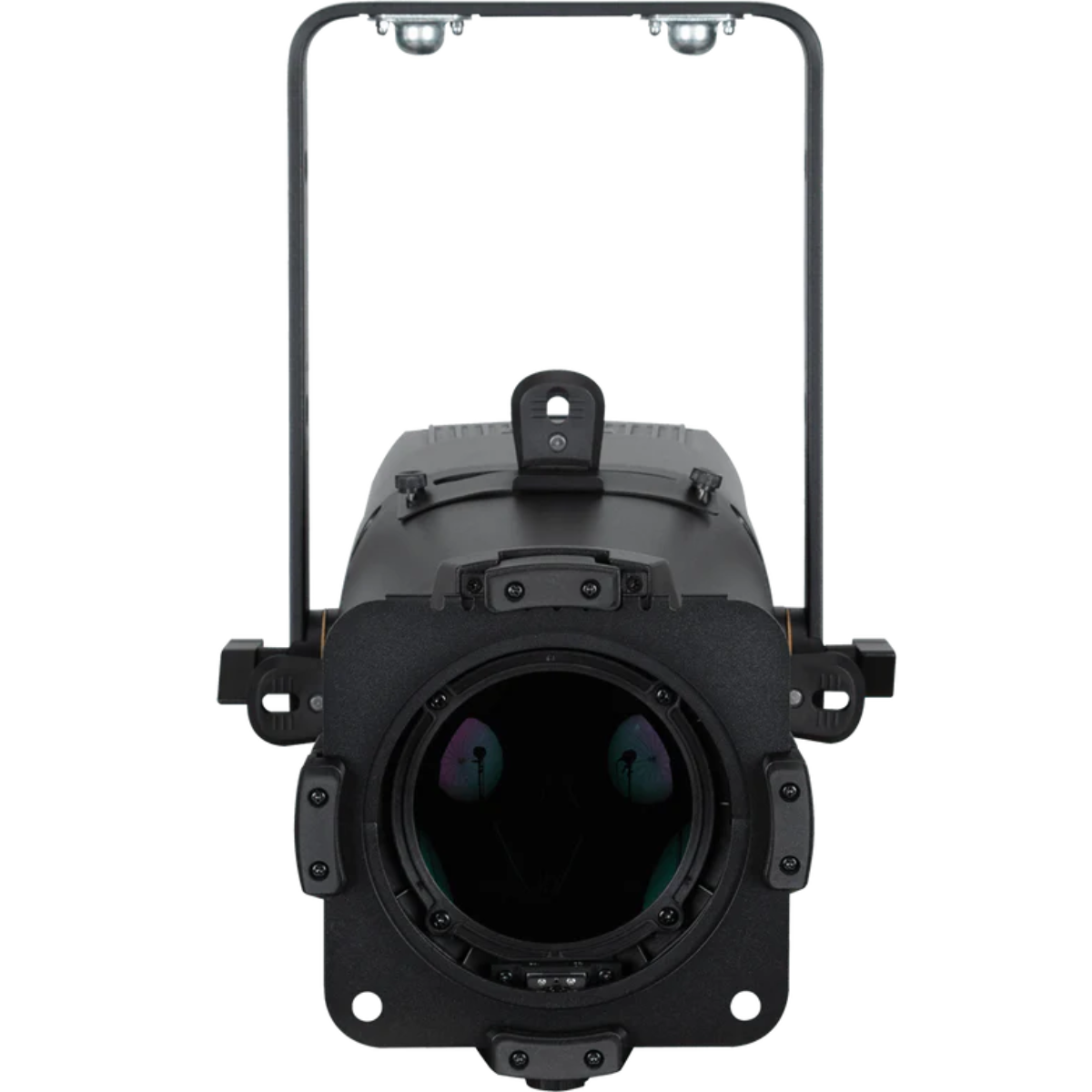

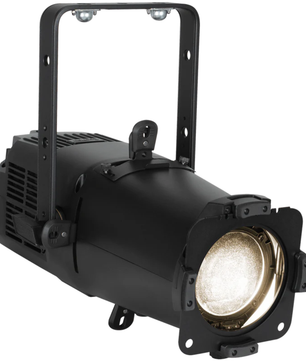

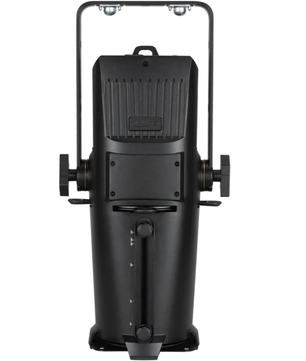

Compact LED Profile Fixture

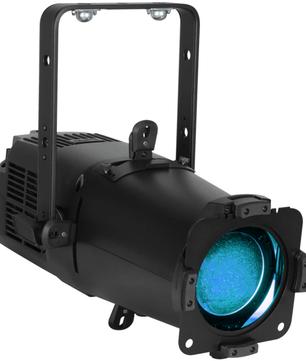

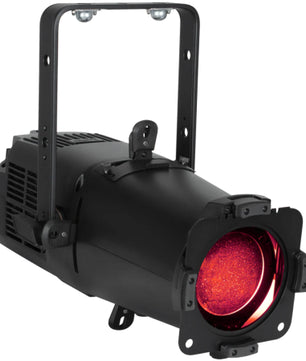

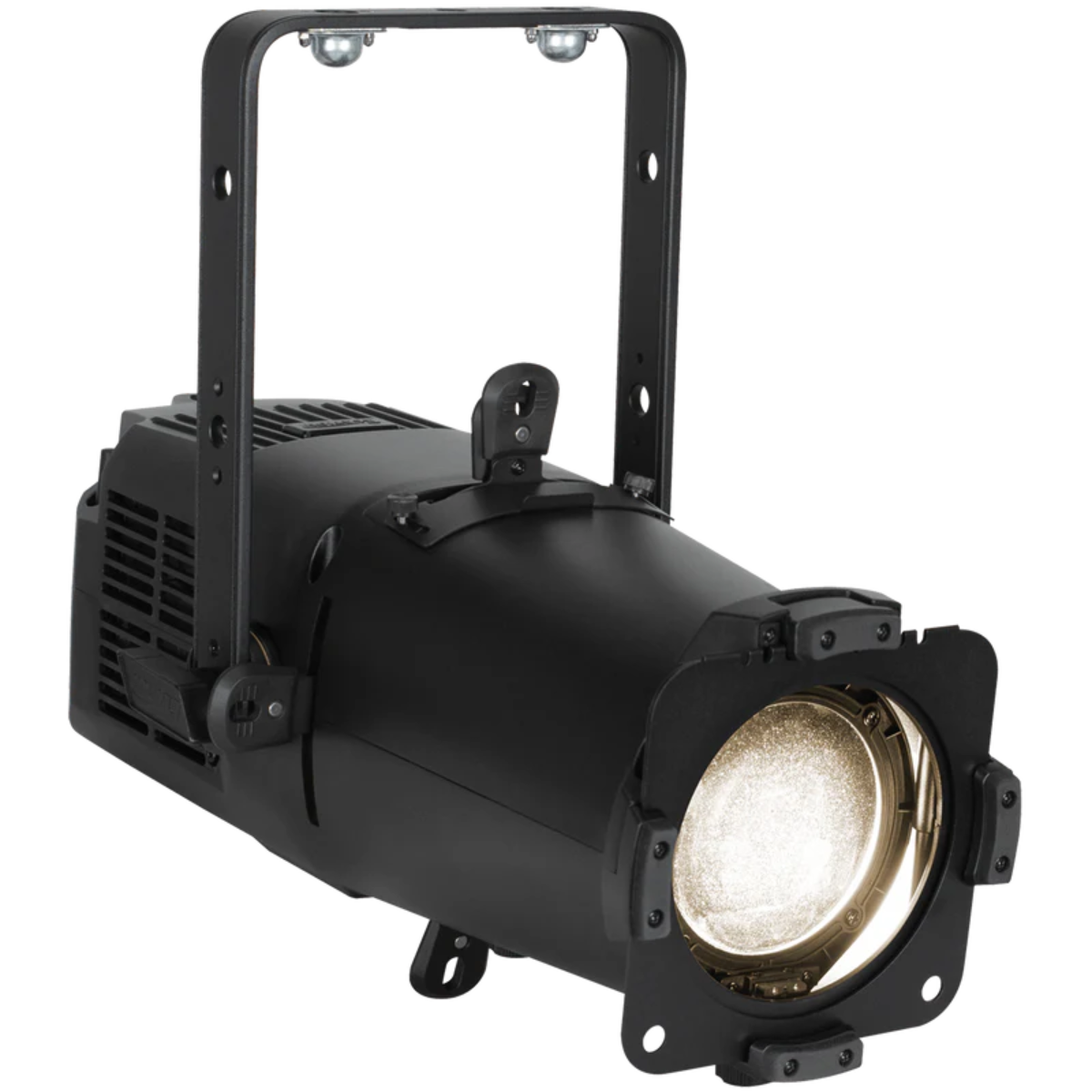

The Elation KLP200 is a compact LED profile fixture designed to produce precise projections, vivid color, and accurate white light in theaters, studios, performance venues, and live-event environments. Its integrated 25°–50° manual zoom, four framing shutters, and advanced RGBMA LED engine give lighting designers flexible control without requiring a large fixture footprint.
Elation KLP200 Competitive Differences
- 225W RGBMA LED engine produces 5,880 total fixture lumens
- Integrated 25°–50° manual zoom supports flexible beam positioning
- High color accuracy with a CRI of 94.9 and TLCI of 95
- Fully variable 16-bit CCT adjustment from 2400K to 8500K
- Four manual framing shutters provide precise beam shaping
- Mute Mode supports ultra-quiet operation in noise-sensitive venues
- NFC and Aria x2 wireless device management simplify configuration
Elation KLP200 Description
The Elation KLP200, also known as the KL Profile Compact, combines a 225W 6000K RGBMA LED engine with advanced optical engineering and premium lens coatings. The fixture delivers sharp projections with consistent color throughout its zoom, focus, and framing range.
An integrated 25°–50° manual zoom allows the beam to be adjusted for short-throw and longer-throw applications. Four manual framing shutters provide detailed beam control, while the included size M metal gobo holder allows custom patterns and projected imagery to be incorporated into a lighting design.
The RGBMA color array supports CMY emulation, green and magenta correction, a virtual gel swatch book, and fully variable color temperature adjustment from 2400K to 8500K. Smooth 16-bit dimming, selectable dimming curves, dim-to-warm emulation, and adjustable LED refresh rates help the fixture perform effectively for live audiences and broadcast cameras.
Designed for professional production environments, the fixture includes a single-touch encoder, OLED display, RDM support, NFC configuration, and Aria x2 wireless device management. Its compact construction, 15.4-pound weight, and quiet operating modes make it suitable for theaters, houses of worship, studios, corporate events, and performance spaces.
KLP200 Features
- 225W 6000K RGBMA LED engine
- 5,880-lumen total fixture output measured with an integrating sphere
- 30,000-hour average LED life under test-lab conditions
- Manual zoom range from 25° to 50°
- Manual focus adjustment
- Four manual framing shutters
- CRI of 94.9 and TLCI of 95
- 16-bit variable CCT adjustment from 2400K to 8500K
- RGBMA color mixing with CMY emulation
- Green and magenta shift adjustment
- Virtual gel swatch book
- Dim-to-warm and red-shift emulation
- Selectable 16-bit dimming modes and curves
- Variable electronic strobe from 1Hz to 20Hz
- Remote LED refresh-rate and fan-speed adjustment
- Ultra-quiet Mute Mode
- Accepts one size M gobo
- Ten DMX channel modes
- Manual and DMX control of dimming and color
- RDM remote device management
- NFC configuration
- Aria x2 wireless device management

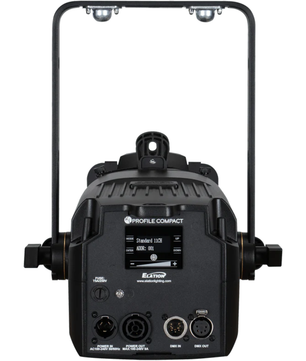

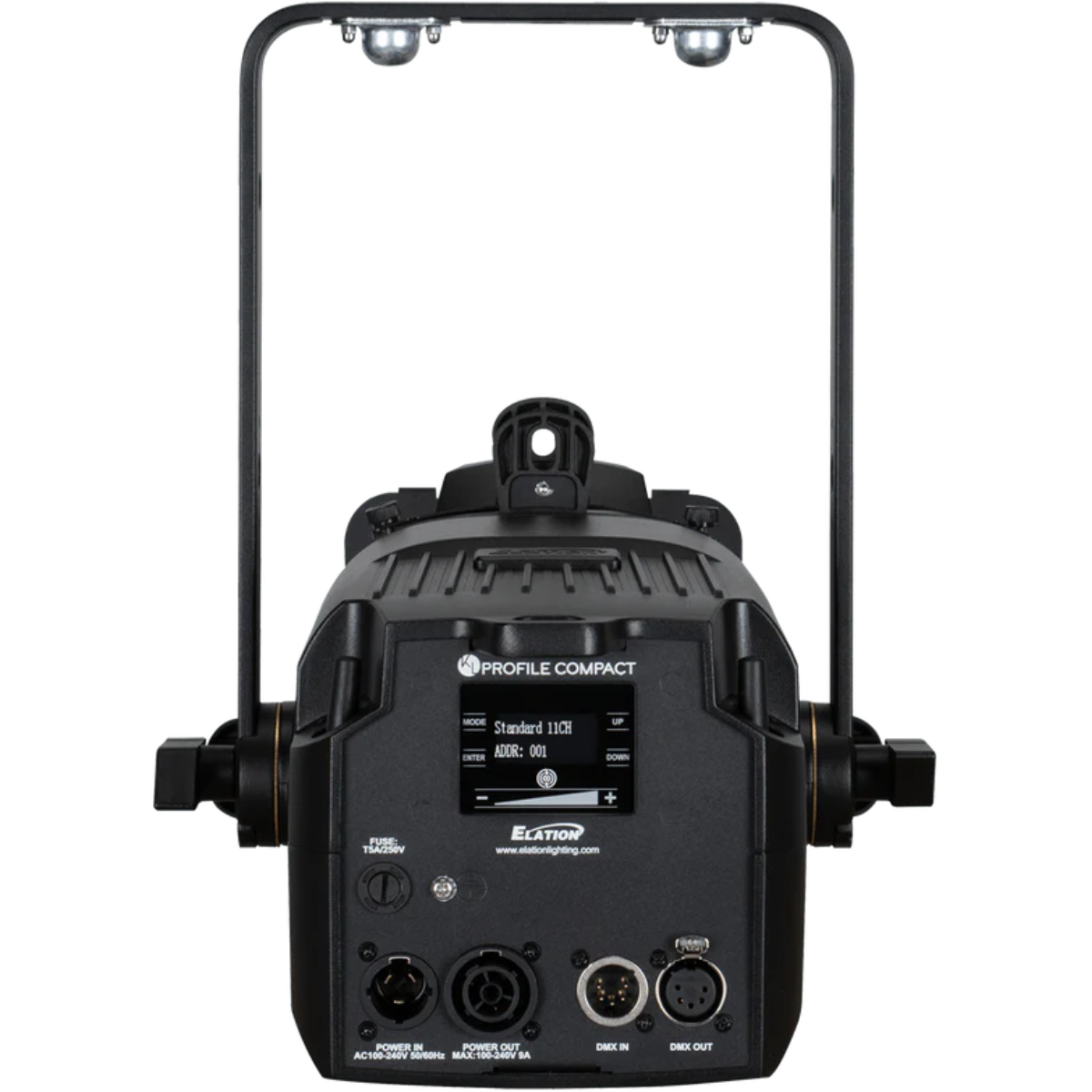

- Single-touch bar encoder with four-button control panel and OLED display
- IP65 5-pin DMX input and output connections
- IP65 locking power input and output connections
- 6.25-inch front accessory slot
- Optional Omega bracket compatibility
KLP200 Specifications
- Light Source: 225W 6000K RGBMA LED engine
- Average LED Life: 30,000 hours under test-lab conditions
- Total Lumen Output: 5,880 lumens, integrating sphere
- CRI: 94.9
- TLCI: 95
- Zoom Range: 25°–50°
- Color Temperature Range: 2400K–8500K
- Strobe Rate: 1–20Hz
- Gobo Size: Size M
- DMX Channel Modes: 1, 3, 5, 6, 7, 9, 10, 11, 15, and 19 channels
- DMX Connections: IP65 5-pin input and output
- Power Connections: IP65 locking input and output
- Input Voltage: AC 100–240V, 50/60Hz
- Maximum Power Consumption: 290W
- Power Thru Capacity: 9A; up to 4 units at 115V or 10 units at 240V
- Operating Temperature: 5°F to 113°F (-15°C to 45°C)
- Thermal Output: 988.9 BTU/hr, ±10%
- Length: 18.6 in (472 mm)
- Length with Yoke at 0°: 21.1 in (536 mm)
- Width: 10.3 in (262 mm)
- Fixture Body Height: 10.1 in (256 mm)
- Height with Yoke at 90°: 15.3 in (394 mm)
- Weight: 15.4 lb (7.0 kg)
- Front Accessory Slot: 6.25 in
- Ratings and Approvals: CE, cETLus, FCC, UKCA, and IP20
What's In The Box
- Elation KLP200 KL Profile Compact fixture
- Gel frame
- Size M metal gobo holder
- Safety cable
- IP65 locking power cable
