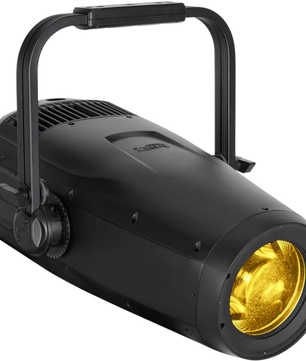

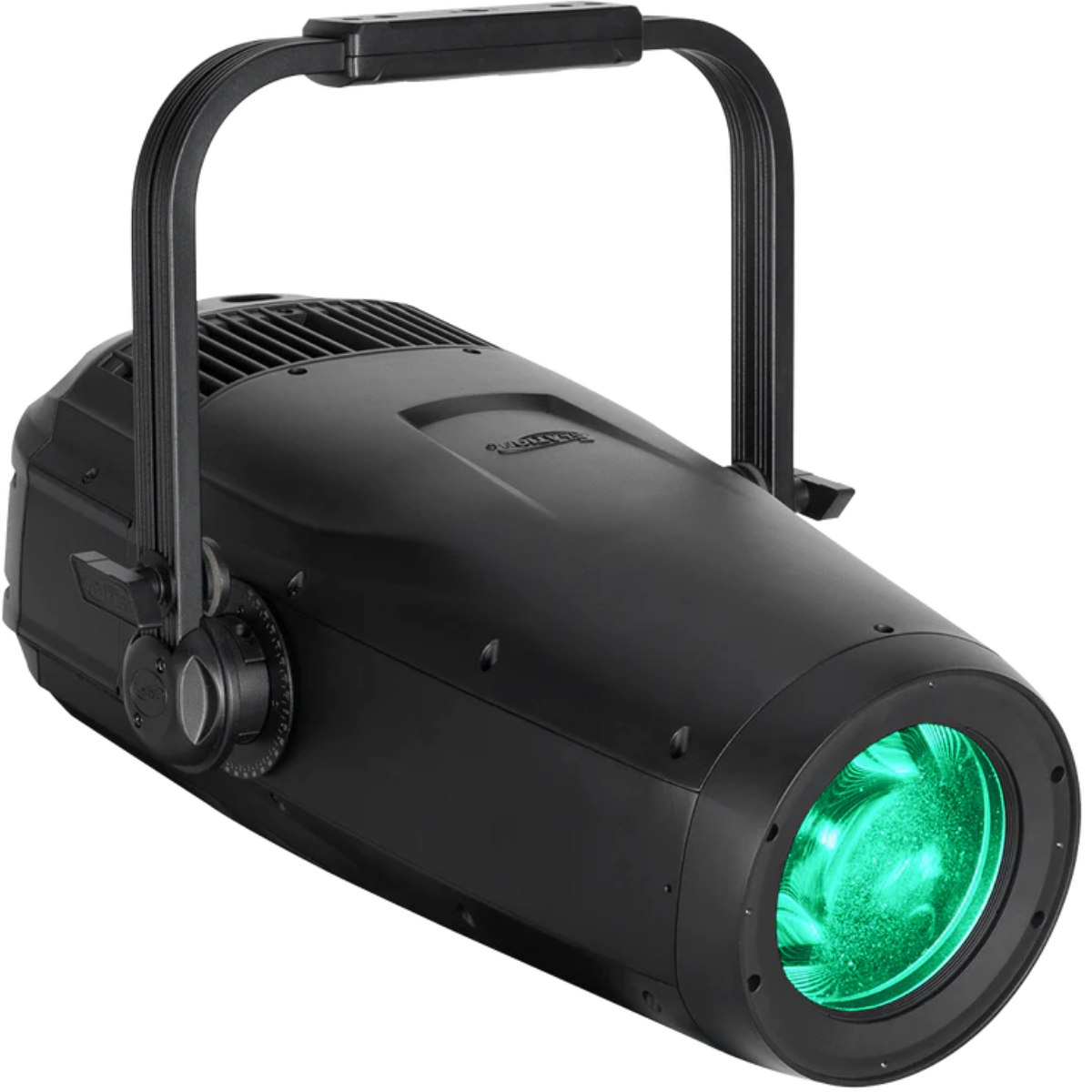

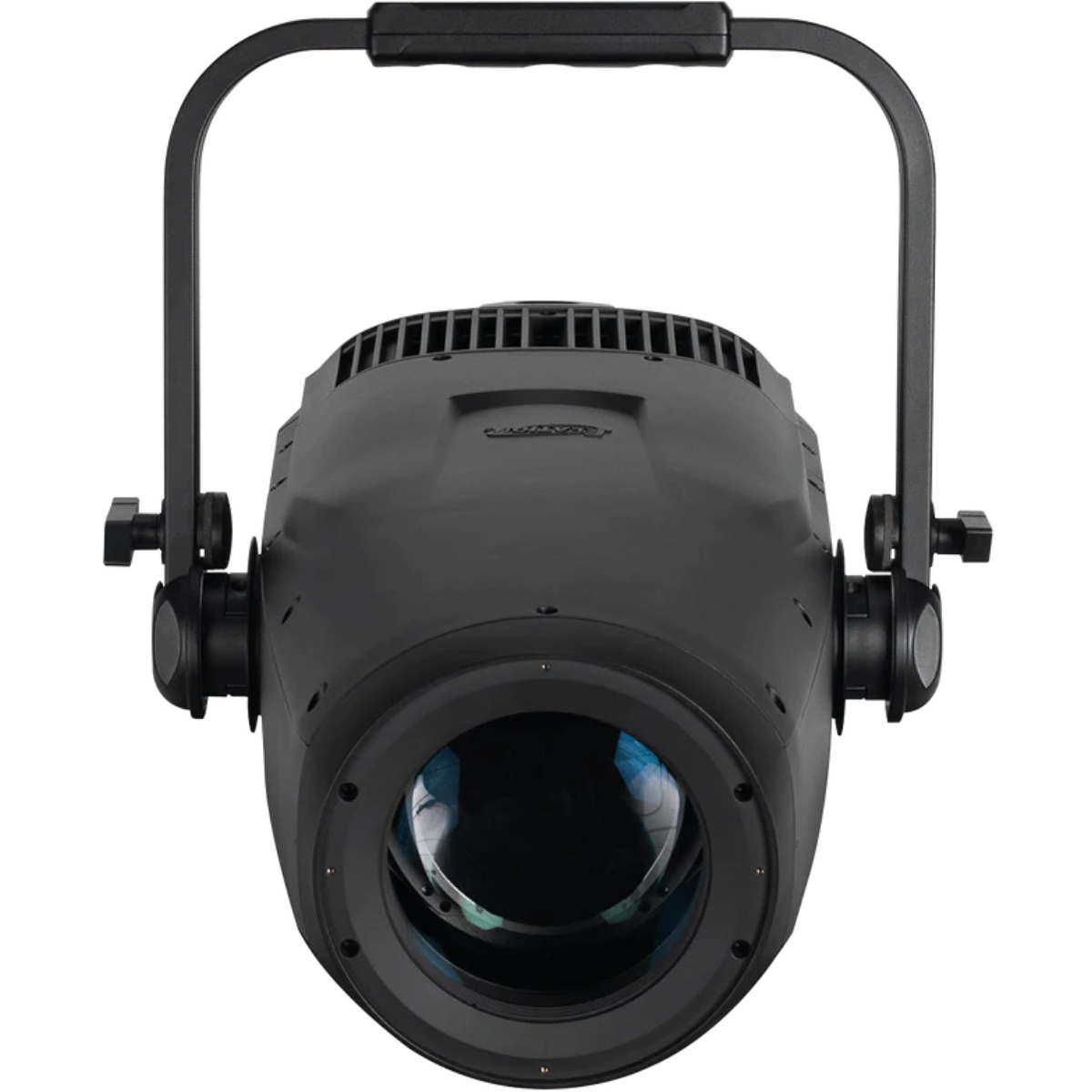

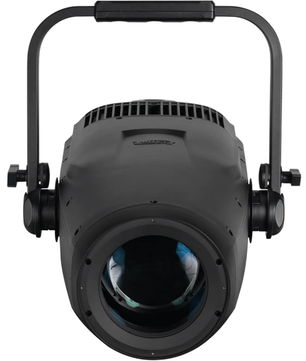

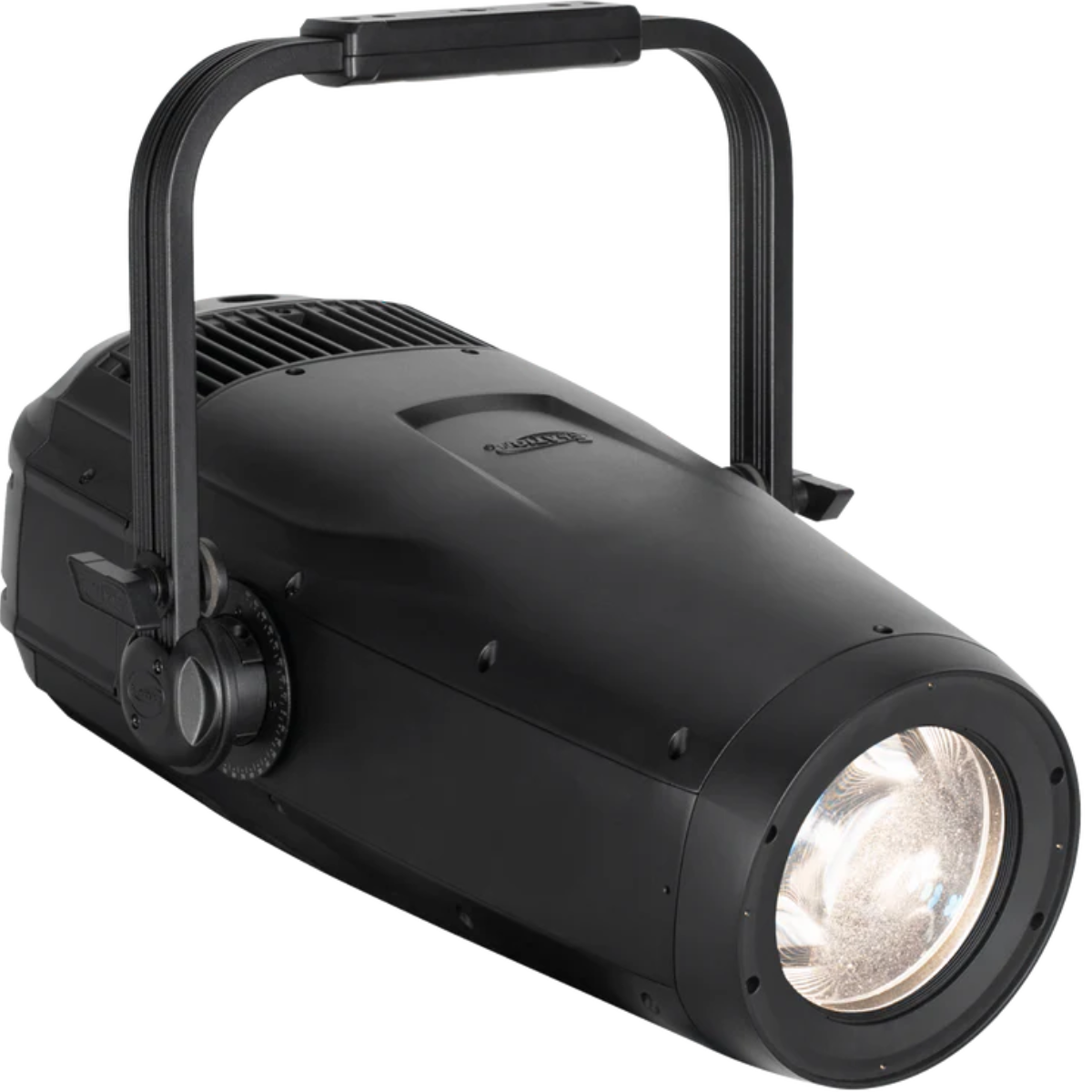

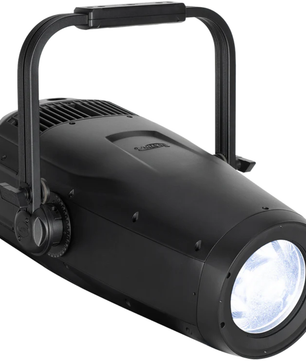

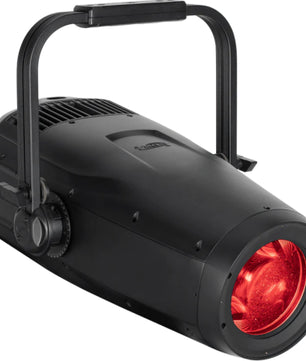

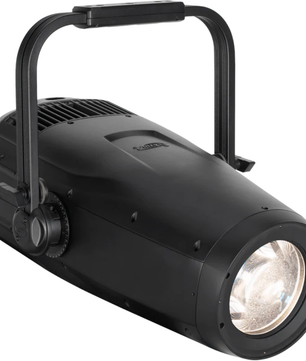

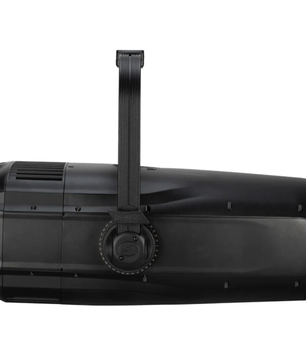

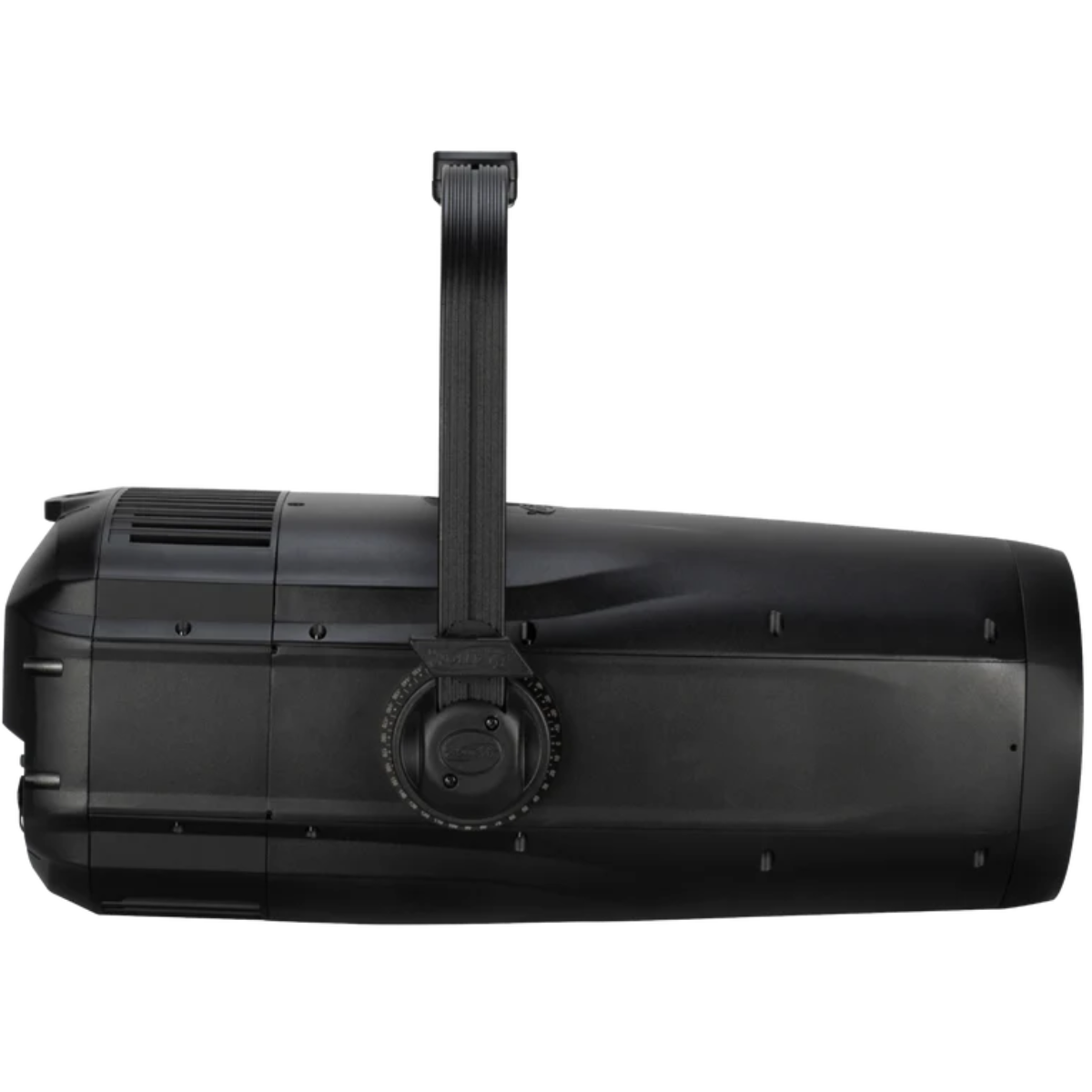

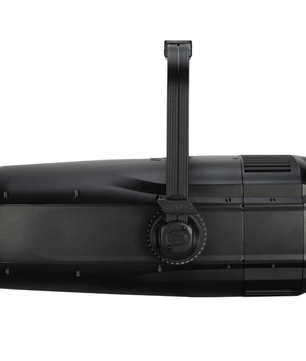

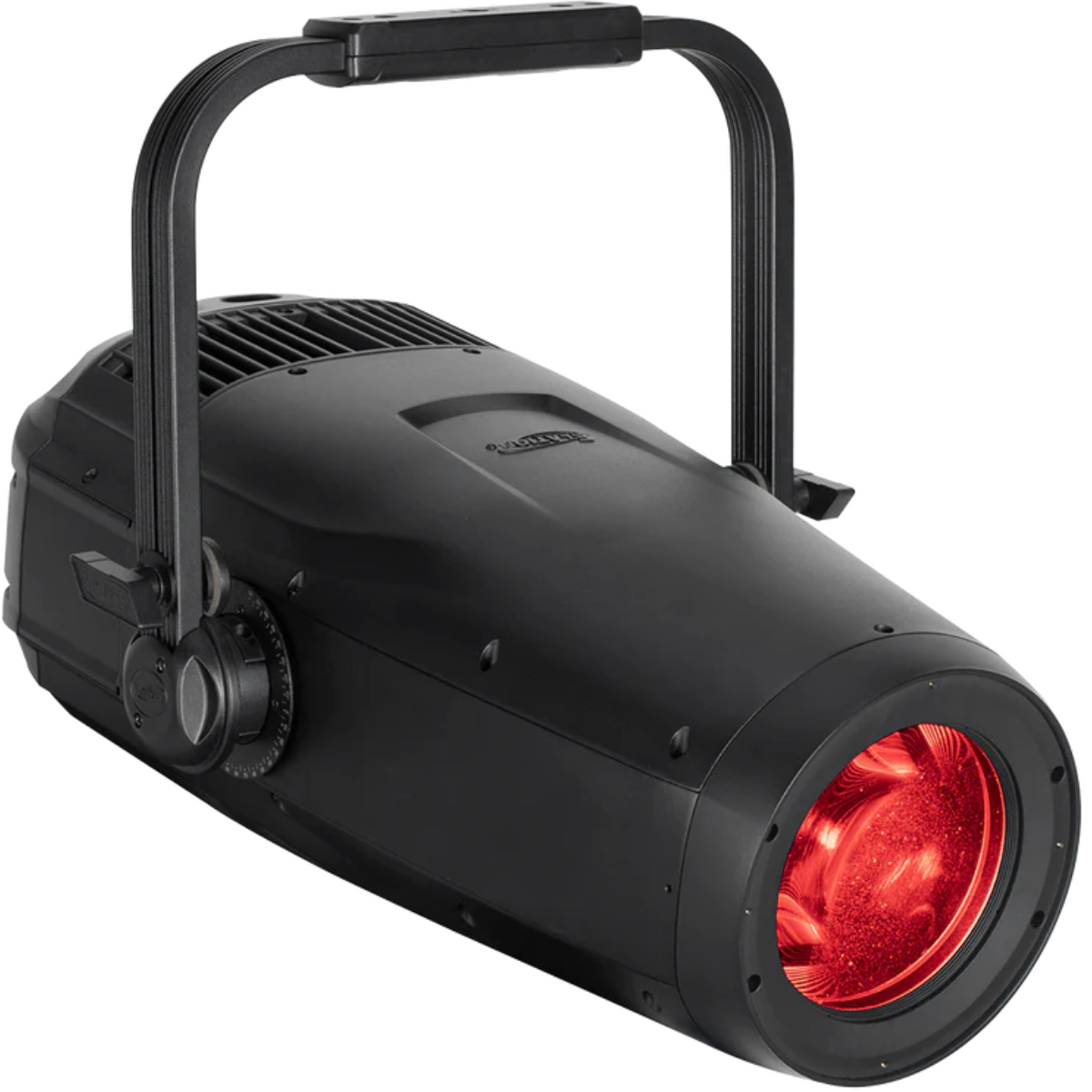

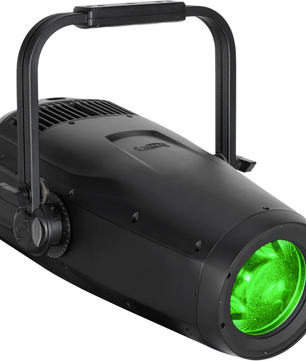

IP65 LED Spot Fixture

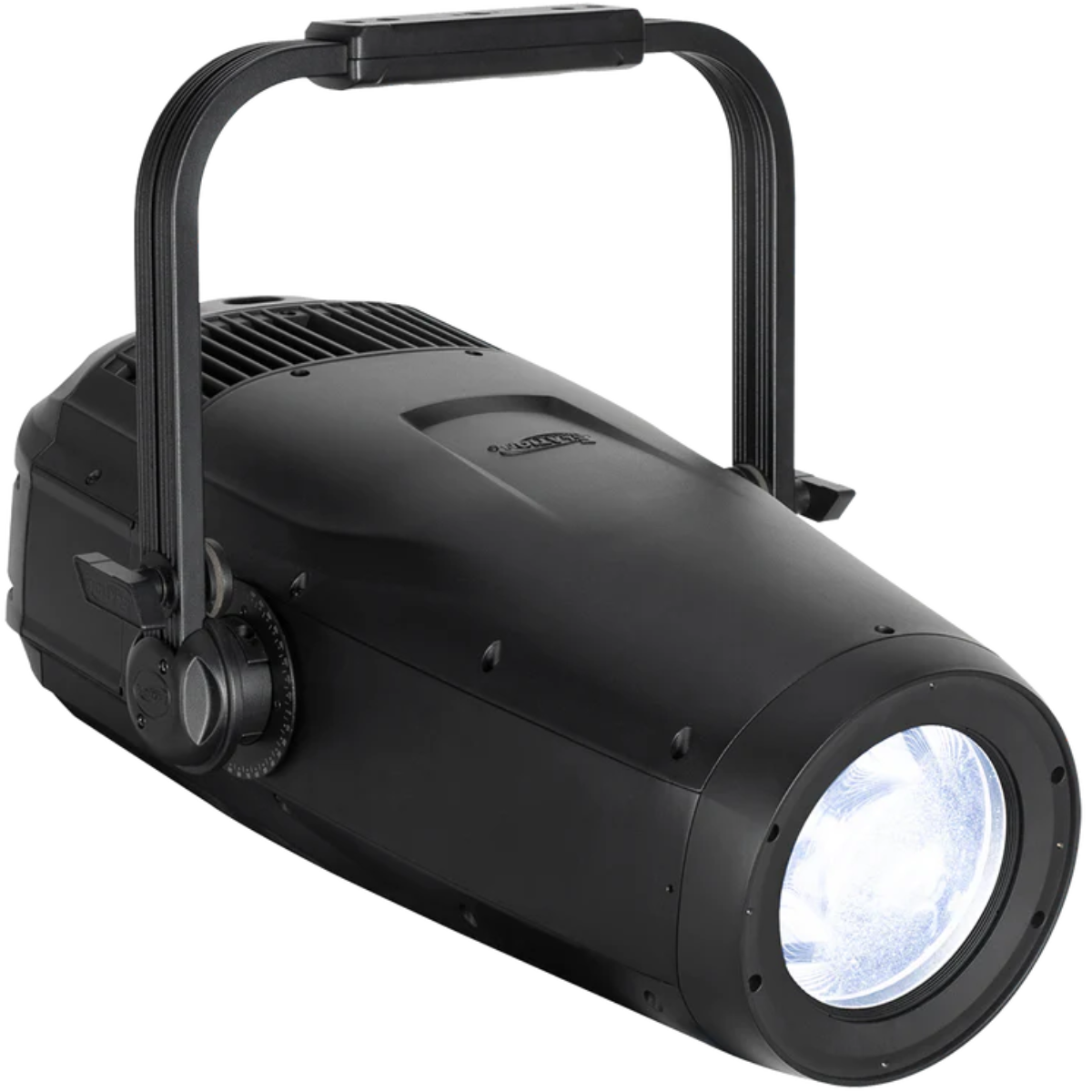

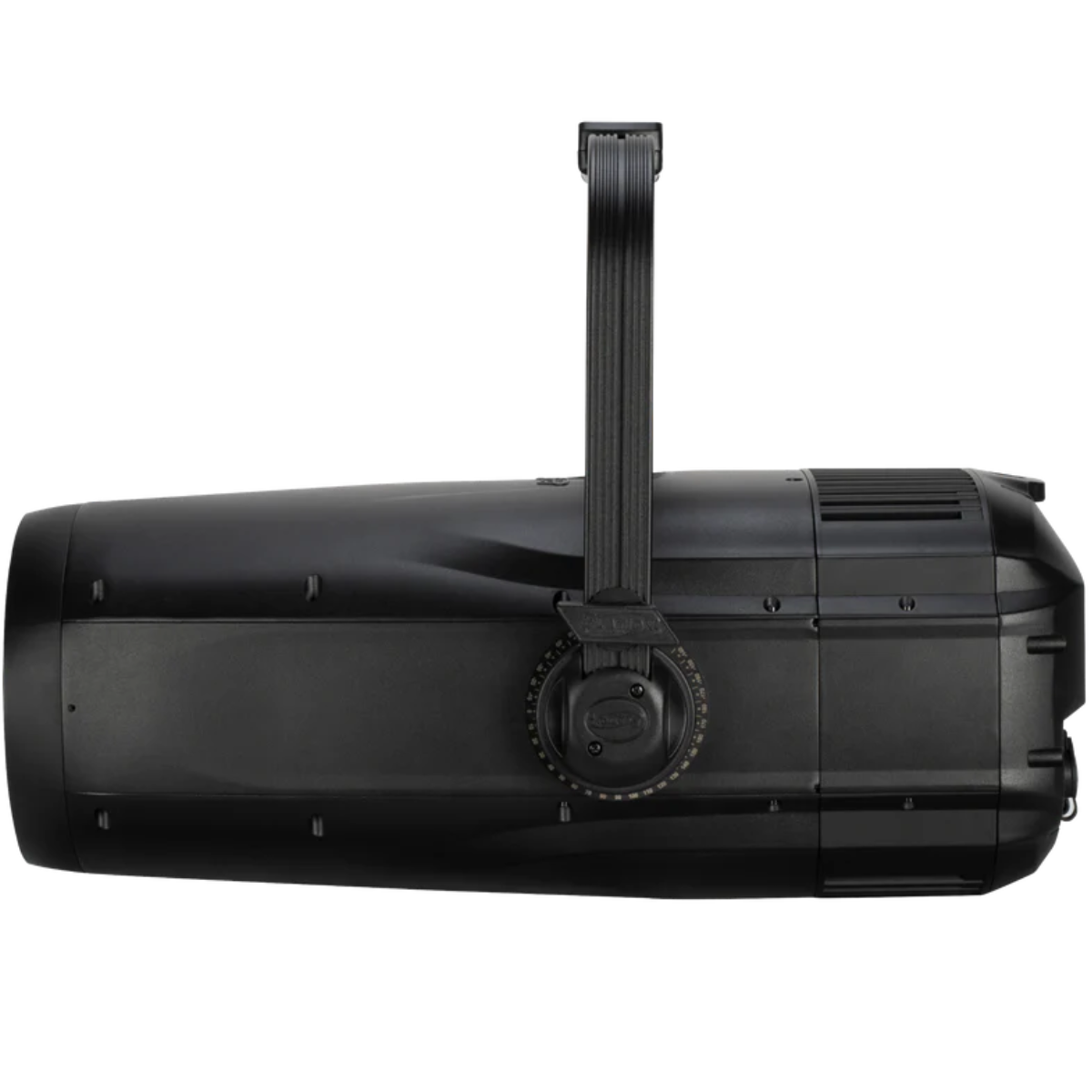

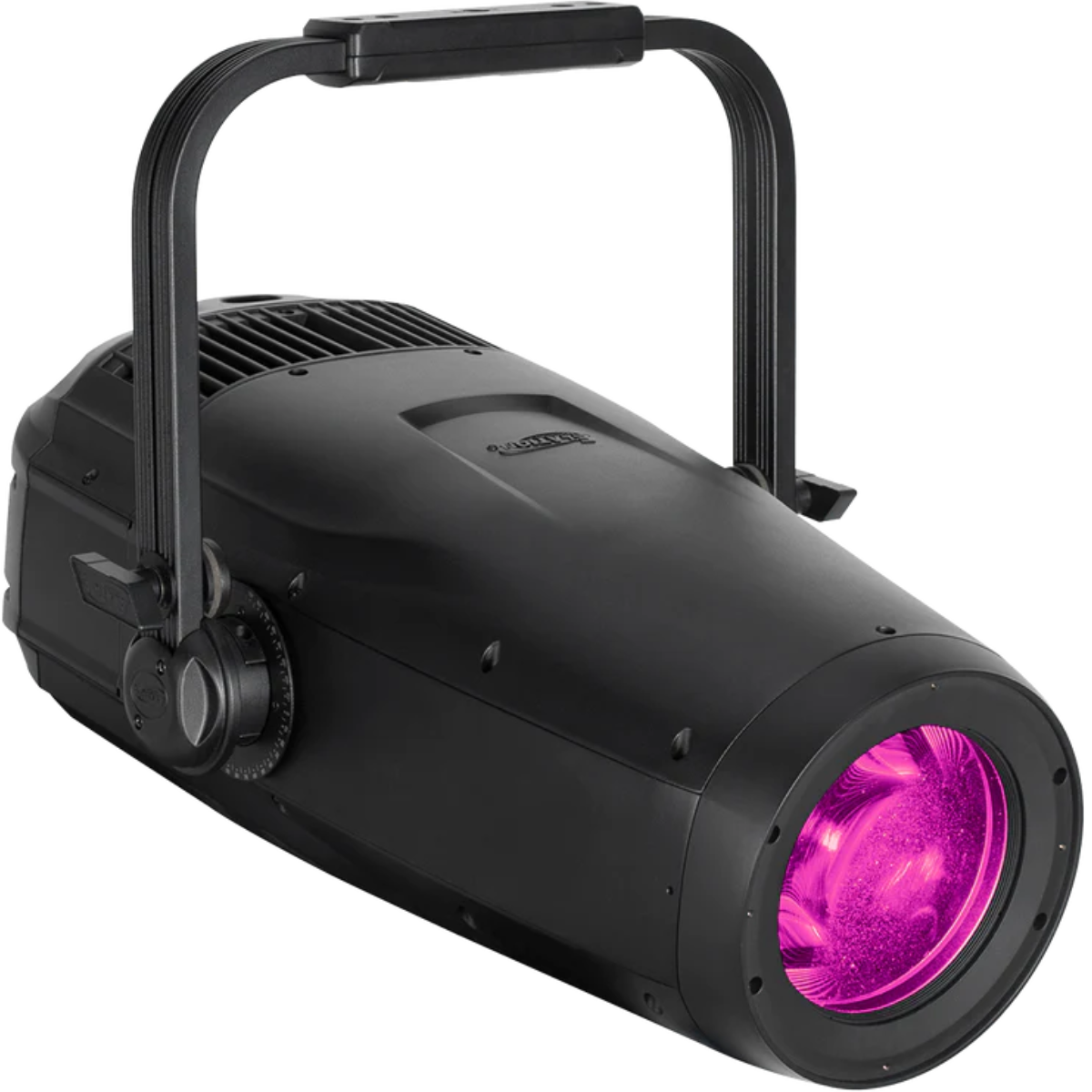

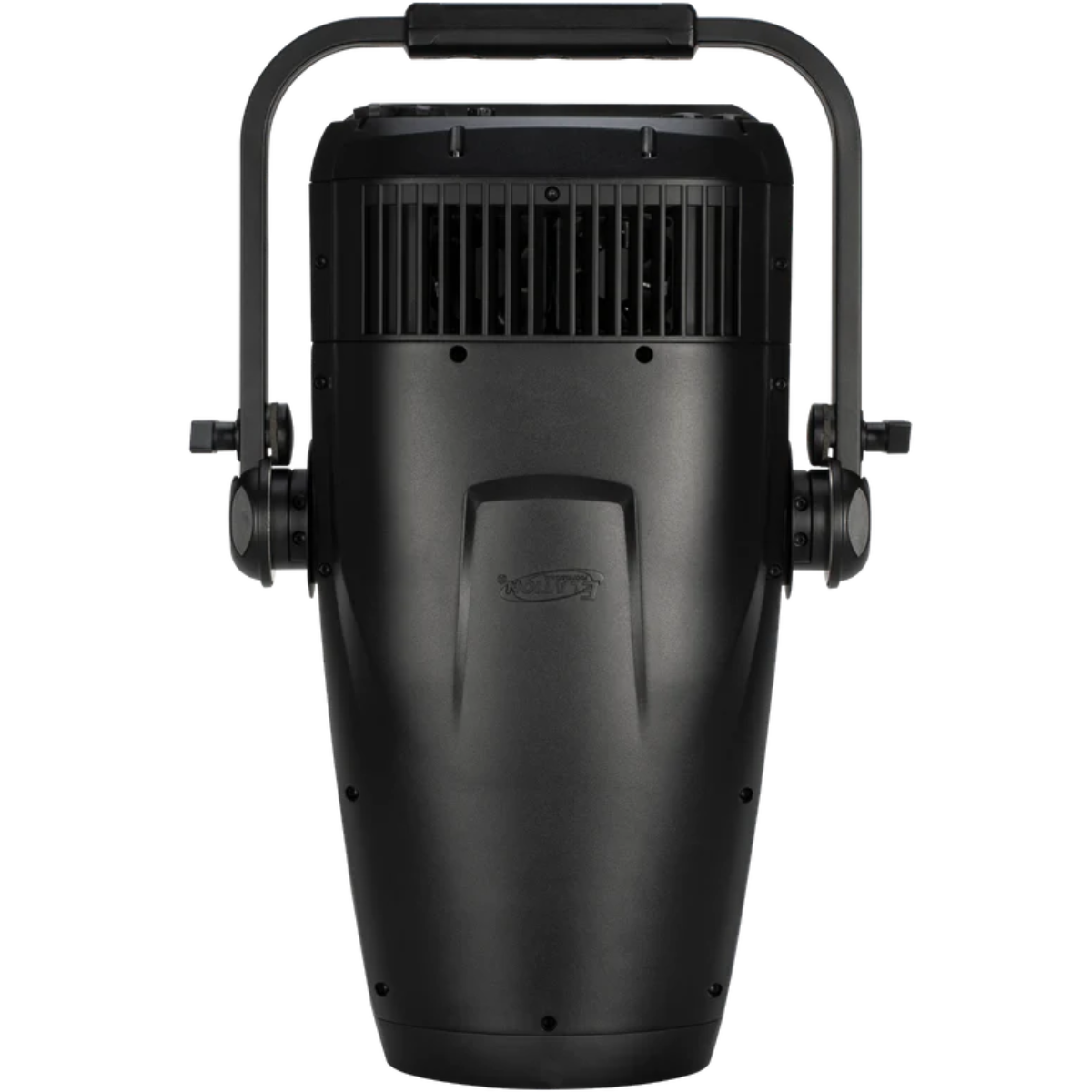

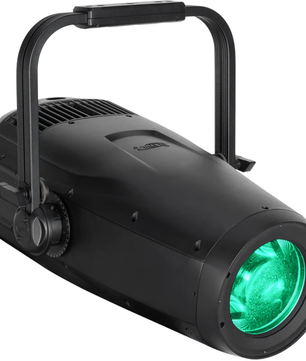

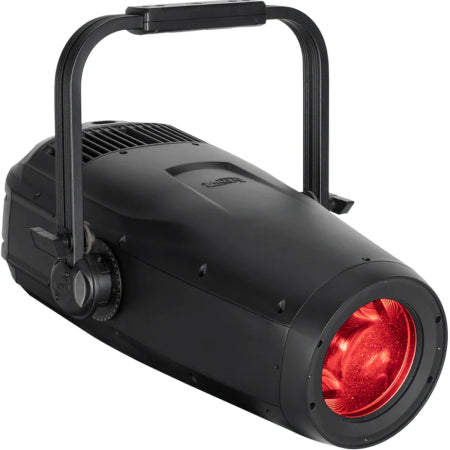

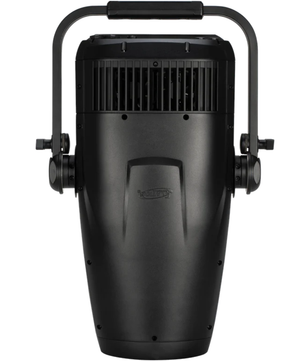

The Elation KLS445 is a full-featured IP65-rated LED spot fixture designed for precise projection, broad color control, and reliable operation in indoor or outdoor production environments. Its high-output RGBMA LED engine, wide motorized zoom, automated gobos, animation wheel, prisms, and frost make it useful for stages, theaters, live events, installations, and other applications requiring flexible static spot lighting.
Elation KLS445 Competitive Differences
- 305W RGBMA LED engine delivers 10,600 lumens with a CRI of 92
- IP65-rated construction supports indoor and outdoor applications
- Wide motorized zoom range from 7° to 50°
- Six rotating and indexing glass gobos plus seven fixed glass gobos
- Animation wheel, variable frost, and dual prism effects
- Variable CCT control from 2400K to 8500K with green and magenta adjustment
- Optional motorized framing and iris module expands beam-shaping capabilities
Elation KLS445 Description
The Elation KLS445, also known as the KL Spot IP, combines a 305W 6500K RGBMA LED engine with an enhanced optical system designed to produce sharp projections and consistent color. Its homogenized red, green, blue, mint, and amber LED array delivers 10,600 lumens while maintaining a CRI of 92 for accurate color reproduction.
A motorized 7°–50° zoom allows the fixture to create narrow beams, broad washes, and a range of projection sizes without changing lenses. The optical design and lens coatings help minimize unwanted color shifting and aberrations throughout zoom and focus adjustments.
The fixture includes six rotating and indexing glass gobos, seven fixed glass gobos, and an animation wheel for textured and dynamic projections. A variable frost filter, four-facet round prism, four-facet linear prism, high-speed shutter, and electronic strobe provide additional effects for concerts, theatrical productions, corporate events, and permanent installations.
RGBMA color mixing is supported by CMY and RGB emulation modes, variable color temperature adjustment from 2400K to 8500K, green and magenta correction, and a virtual gel swatch book. DMX and RDM support, adjustable LED frequency, IP65 data and power connections, and an optional motorized framing and iris module provide flexible integration into professional lighting systems.
KLS445 Features
- 305W 6500K RGBMA LED engine
- 10,600-lumen total fixture output
- 30,000-hour average LED life under test-lab conditions
- CRI of 92
- IP65-rated housing
- Motorized zoom range from 7° to 50°
- RGBMA color array with red, green, blue, mint, and amber LEDs
- CMY and RGB emulation modes
- Variable CCT adjustment from 2400K to 8500K
- Green and magenta shift adjustment
- Virtual gel swatch book
- Six rotating and indexing glass gobos
- Seven fixed glass gobos
- Integrated animation wheel
- Variable frost filter
- Four-facet round prism
- Four-facet linear prism
- Variable 16-bit dimming curves
- High-speed electronic shutter and strobe
- DMX-adjustable LED frequency
- DMX and RDM protocol support
- Four-button touch control panel

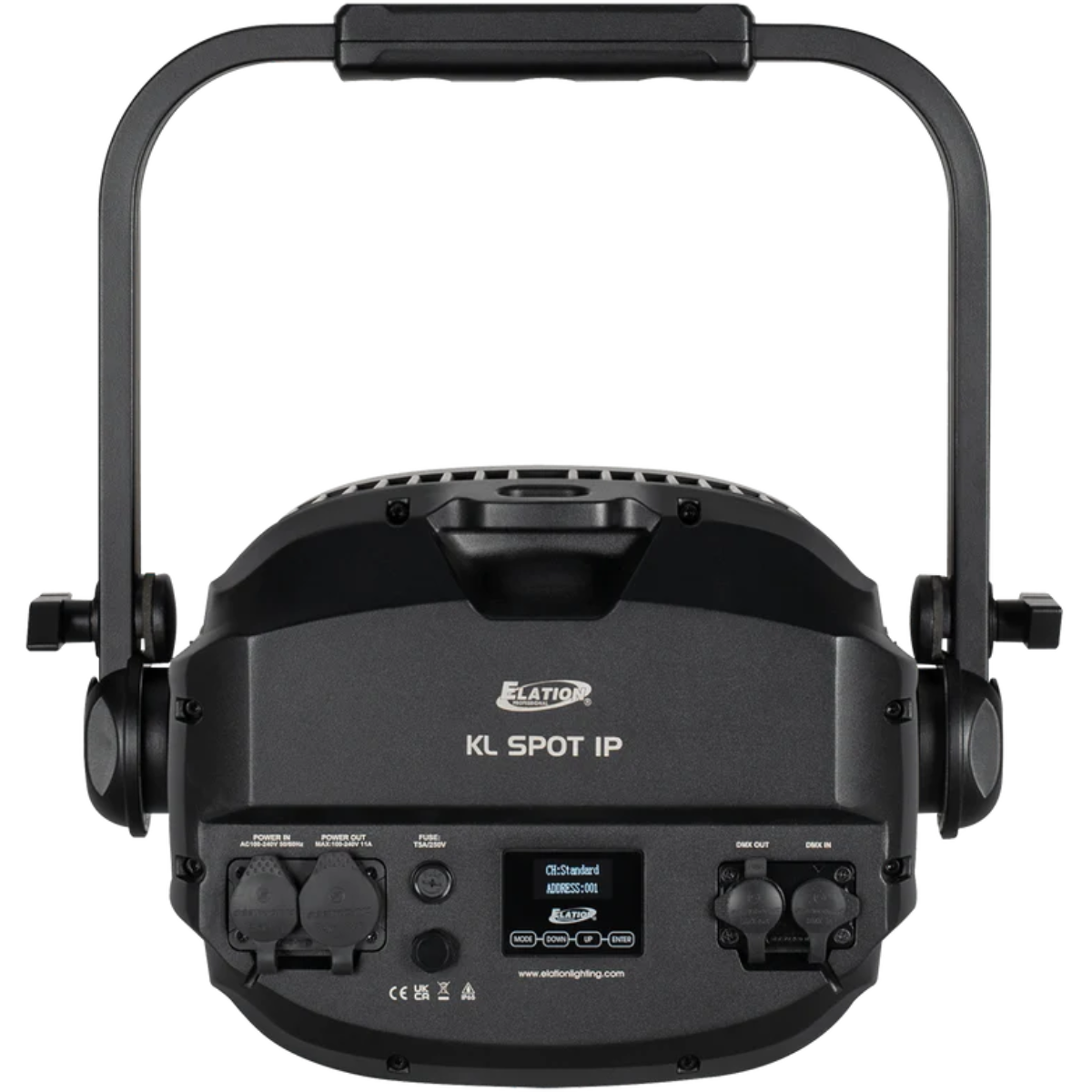

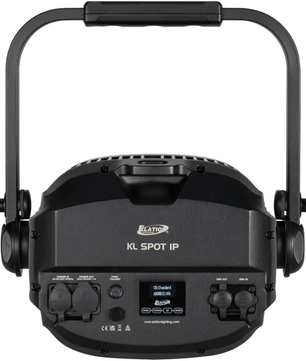

- IP65 5-pin DMX input and output
- IP65 locking power input and output
- Optional motorized framing and iris module
KLS445 Specifications
- Light Source: 305W 6500K RGBMA LED engine
- Average LED Life: 30,000 hours under test-lab conditions
- Total Lumen Output: 10,600 lumens
- CRI: 92
- Zoom Range: 7°–50°
- Color Temperature Range: 2400K–8500K
- Rotating Gobos: 6 rotating and indexing glass gobos
- Fixed Gobos: 7 fixed glass gobos
- DMX Modes Without Framing Module: 24 or 32 channels in RGB mode; 22 or 28 channels in CMY mode
- DMX Modes With Framing Module: 34 or 50 channels in RGB mode; 32 or 46 channels in CMY mode
- Dimming Control: 16-bit
- Control Protocols: DMX and RDM
- DMX Connections: IP65 5-pin input and output
- Power Connections: IP65 locking input and output
- Input Voltage: AC 100–240V, 50/60Hz
- Maximum Power Consumption: 448W
- Power Thru Capacity: 11A; up to 2 units at 115V or 5 units at 240V
- Operating Temperature: 14°F to 113°F (-10°C to 45°C)
- Thermal Output: 1,406.7 BTU/hr, ±10%
- Fixture Body Length: 9.5 in (242 mm)
- Length with Yoke at 90°: 17.4 in (442.5 mm)
- Width: 17.5 in (445.5 mm)
- Height: 23.6 in (559.2 mm)
- Height with Yoke at 0°: 26.1 in (662.9 mm)
- Weight: 51.1 lb (23.2 kg)
- Weight with Framing Module: 55.1 lb (25 kg)
- Ratings and Approvals: CE, cETLus, IP65, FCC, and UKCA
What's In The Box
- Elation KLS445 KL Spot IP fixture
- IP65 locking power cable
