Electro-Voice EKX-15P | 15in - 134dB

EKX-15P
15-Inch Two-Way Powered Loudspeaker

QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
High-efficiency 1500 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-15P via high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

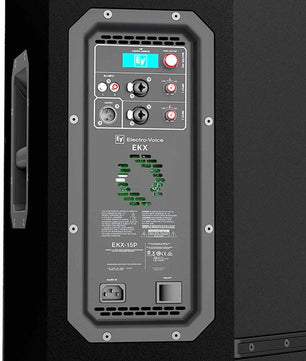

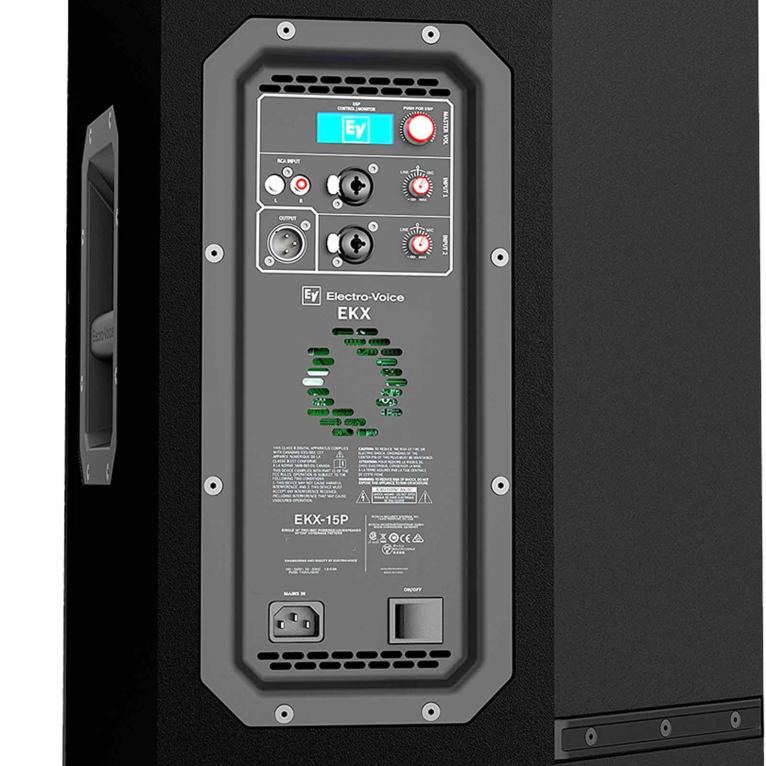

Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
Crossover Frequency 1.7 k Hz
Enclosure Material 15 mm, plywood with EVCoat
Frequency Response (-10 dB) 48 Hz - 20 kHz Hz Full space measurement using the music DSP preset
Frequency Response (-3 dB) 55 Hz - 18 kHz Hz Full space measurement using the music DSP preset
Grill 18 AWG steel with powdercoat
HF Transducer DH-1M 1-inch titanium compression driver
LF Transducer EVS-15M 381 mm (15 in)
Maximum SPL 134 dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output
Power Consumption 1.8 A Current rating is 1/8 power
Power Rating 1500 W
Shipping Weight 29.5 kg (65.04 lbs)
Suspension (8) M10 threaded mounting points
Height 16RU 685 mm (26.97")
Width 432 mm (17.01")
Depth 429 mm (16.89")
Weight Net 24.4 kg (53.79 lbs)
