The American DJ LP 12 HEX is a lightweight LED Par fixture powered by twelve 5-watt HEX LEDs for rich RGBWA+UV color mixing. Designed for portable setups or permanent installation, it offers a 25-degree beam angle, DMX control, and convenient power daisy chaining.
LED Par Light
American DJ LP 12 HEX is a compact LED Par light designed for colorful stage washes, uplighting, and effect lighting in both mobile and installed environments. Its lightweight housing, 25-degree beam angle, and RGBWA+UV LED engine make it a practical choice for small stages, bars, lounges, fun centers, events, and truss warming applications.
American DJ LP 12 HEX Competitive Differences
- Twelve 5W HEX LEDs with RGBWA+UV color mixing for a broader palette and UV effect capability
- Lightweight plastic body with included metal scissor yoke for portable use or permanent installation
- Selectable 4 or 8 DMX channel modes with auto, sound active, and Primary/Secondary operation
- IEC power in/out connections for daisy chaining power up to 8 units at 120V
American DJ LP 12 HEX Description
The American DJ LP 12 HEX is built for users who need a compact wash fixture that is easy to transport, mount, and operate. Powered by twelve 5-watt HEX LEDs, it delivers RGBWA+UV color mixing that gives DJs, venues, and event producers more flexibility than standard RGB fixtures.
Its 25-degree beam angle makes it well suited for stage washing, wall washing, accent lighting, and truss warming effects. The fixture is small enough for tighter setups while still providing useful output for mobile entertainment, bars, lounges, and other small to mid-size applications.
The housing is made from durable plastic to reduce weight, while the included metal scissor yoke adds practical mounting flexibility. This combination makes the LP 12 HEX a strong fit for entertainers and installers who want a fixture that is easy to handle without giving up key control and installation features.

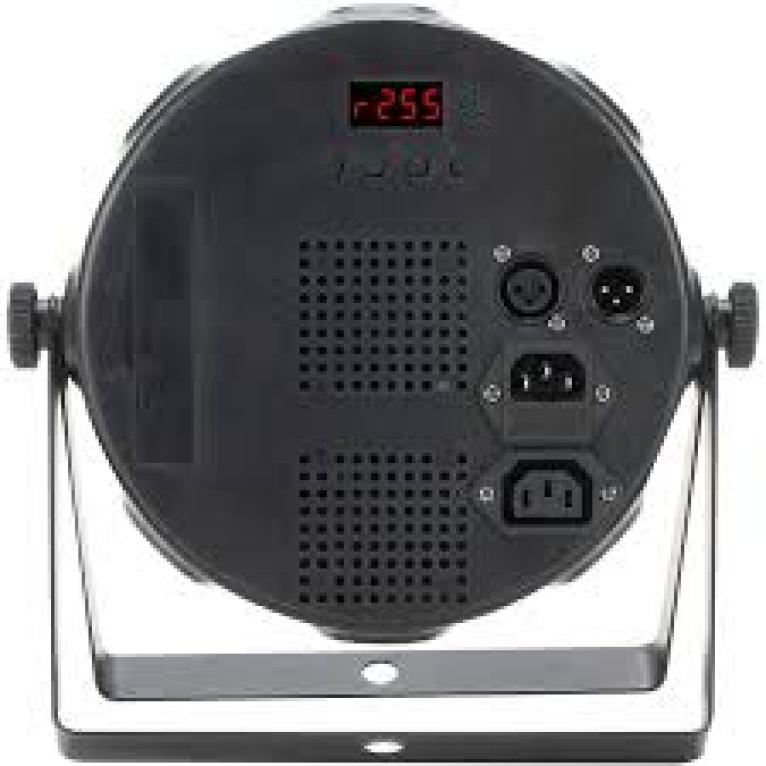

For operation, the unit supports sound active mode, built-in programs, and DMX control through 3-pin DMX in/out connections. A 4-button menu with LED display simplifies navigation, while IEC in/out power connections allow multiple fixtures to be linked together for cleaner setups.
LP 12 HEX Features
- 12 x 5W HEX LEDs
- RGBWA+UV color mixing
- 25-degree beam angle
- UV wavelength: 395-400nm
- Selectable 4 or 8 DMX channels
- Auto mode, sound active mode, and Primary/Secondary modes
- 0-100% dimming
- Variable strobe
- 4 push-button menu with LED display
- Scissor yoke included
- 3-pin DMX In/Out
- IEC In/Out power connections
- Daisy chain power up to 8 units at 120V
- Designed for portable use or permanent installation
LP 12 HEX Specifications
- LEDs: 12 x 5-Watt HEX LEDs (RGBWA+UV: Red, Green, Blue, White, Amber + UV)
- Beam Angle: 25°
- Ultra Violet Wavelength: 395-400nm
- DMX Channels: 4 or 8 selectable
- Power Consumption: 54W max
- Power Input: 100-240V, 50/60Hz
- Fuse: F2A 250V
- Dimensions: 10 x 10 x 4.25 in (250 x 250 x 105 mm)
- Weight: 3 lb (1.2 kg)
- UPC: 818651026894
- SKU: LP 12 HEX
