Enttec Open DMX USB | USB to DMX widget

$67.00

Order within [hour] to get by [date_end]

Quantity

Pickup available at NJ Warehouse.

Usually ready in 1 hour

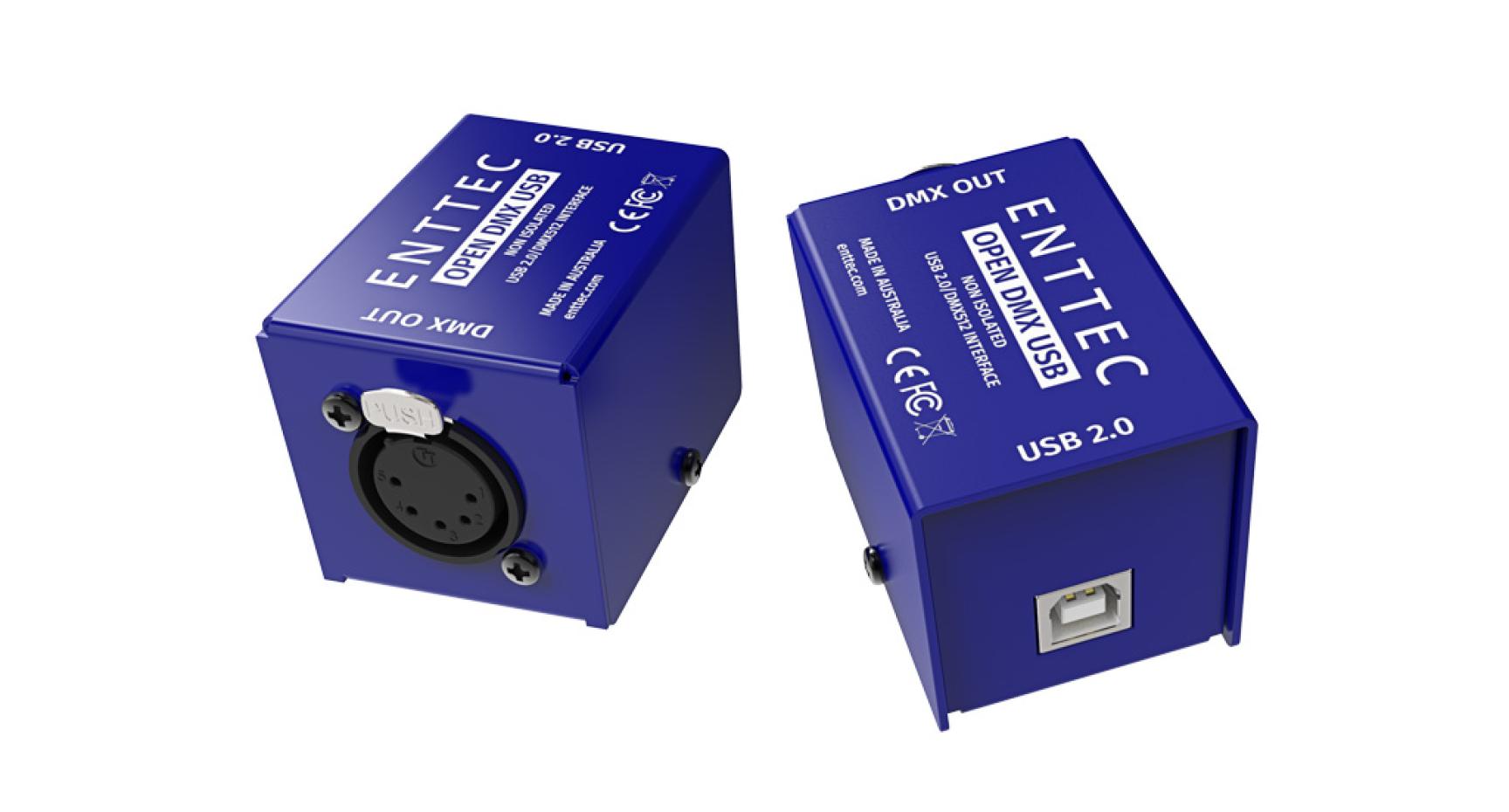

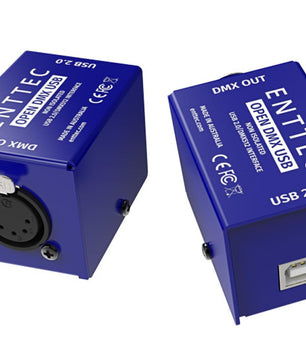

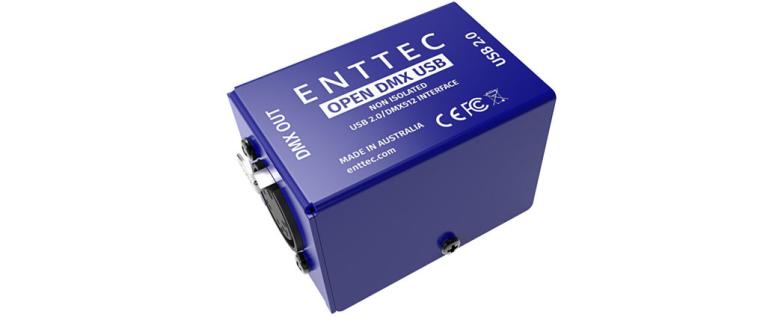

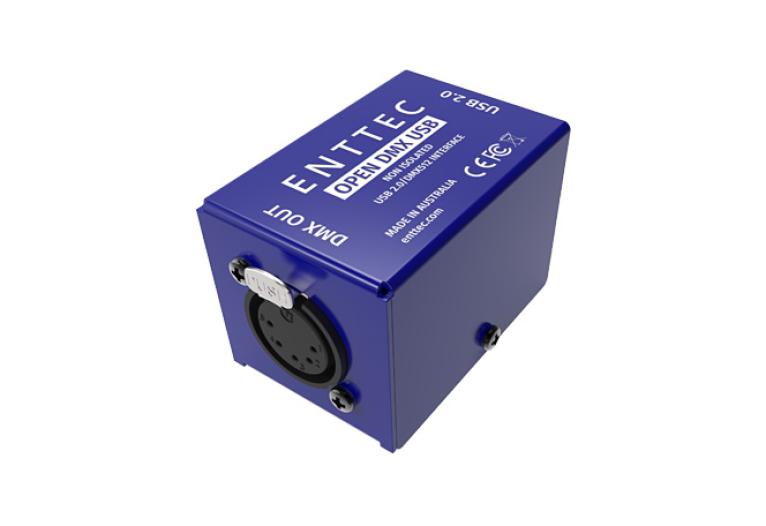

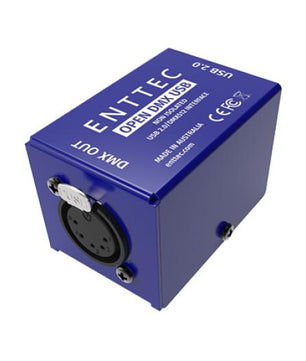

Enttec Open DMX USB | USB to DMX widget

NJ Warehouse

Pickup available, usually ready in 1 hour

238 U.S. 206
Byram Township NJ 07821
United States

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

The OPEN DMX USB is a DMX widget used to output
DMX from a computer. Simply connect it using it’s
USB 2.0 Type B port and launch your compatible
software.
The single Female 5 Pin DMX XLR output gives the
ability to control 512 channels (1 Universe) of DMX
through a range of compatible 3rd party software or
your own custom application using ENTTEC’s OPEN
DMX USB’s API.
The OPEN DMX USB is discovered as a USB Serial
Device or virtual COM Port dependent on the FTDI
driver installed on your system.
The Open DMX USB’s output is processed directly on
the computer’s processor. (For devices with frame
buffers and microprocessor to structure an output,
see the ENTTEC DMX USB PRO and DMX USB PRO
Mk2).
Designed for the hobbyist, or users who do not
require the added features and protection offered
in other ENTTEC DMX USB products.
Features
Compatible with a wide range of 3rd party
software.
Designed to be powered from computer over
USB.
One female 5 Pin XLR DMX port (output only).
Output up to 512 channels (software permitting).
Able to integrate into custom projects with the
use of the OPEN DMX USB API.

SPECIFICATION:

Connectors
1* DMX Output
(Female XLR5)
1* USB 2.0 Type-B
IP rating IP20
LED indicators Yes
Supported protocols USITT DMX512-A
Standalone playback No
MIDI No
Maximum output
channels 1 universe (512ch)1
Max. output refresh rate 40FPS2
Configuration software No
Firmware updates No
Input voltage 5V DC (via USB)
Input current 300mA
Power draw 1.5W
Environmental Operating
temperature
0°-50°C
32°-122°F
Environmental Operating
humidity
5- 95%
(non-condensing)
Body material Folded Aluminium
Mounting options N/A
Unit dimensions 77x40x40 mm
Unit weight 61 g / 0.13lbs
Shipping dimensions 125x75x70 mm
Shipping weight 0.16kg / 0.35lbs
Warranty 3-year return to base
manufacturer warrantyConnectors
1* DMX Output
(Female XLR5)
1* USB 2.0 Type-B
IP rating IP20
LED indicators Yes
Supported protocols USITT DMX512-A
Standalone playback No
MIDI No
Maximum output
channels 1 universe (512ch)1
Max. output refresh rate 40FPS2
Configuration software No
Firmware updates No
Input voltage 5V DC (via USB)
Input current 300mA
Power draw 1.5W
Environmental Operating
temperature
0°-50°C
32°-122°F
Environmental Operating
humidity
5- 95%
(non-condensing)
Body material Folded Aluminium
Mounting options N/A
Unit dimensions 77x40x40 mm
Unit weight 61 g / 0.13lbs
Shipping dimensions 125x75x70 mm
Shipping weight 0.16kg / 0.35lbs
Warranty 3-year return to base
manufacturer warranty
