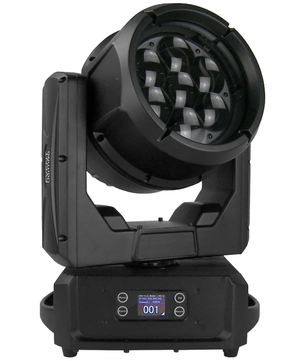

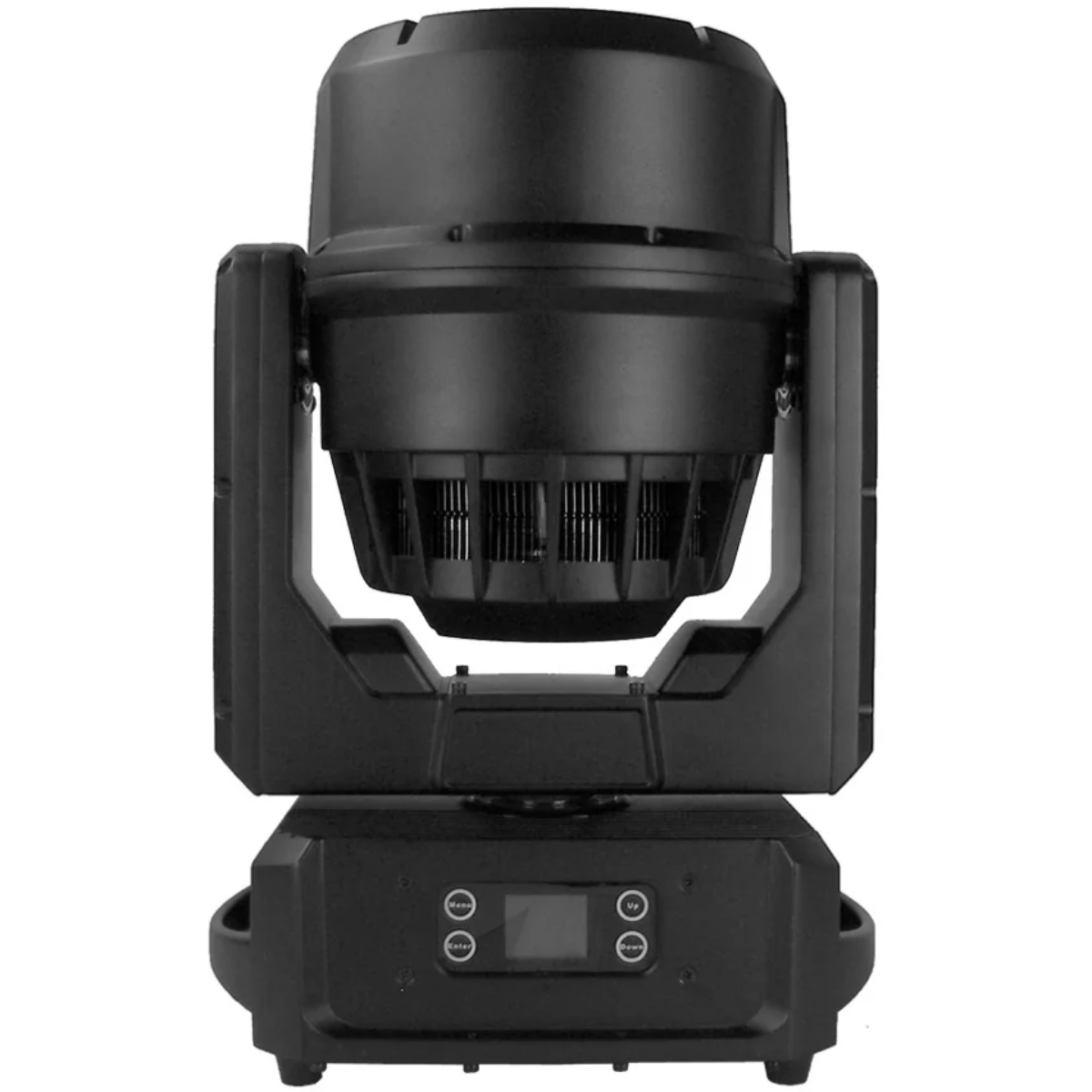

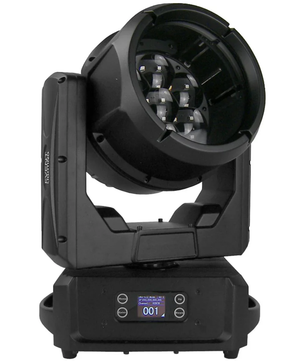

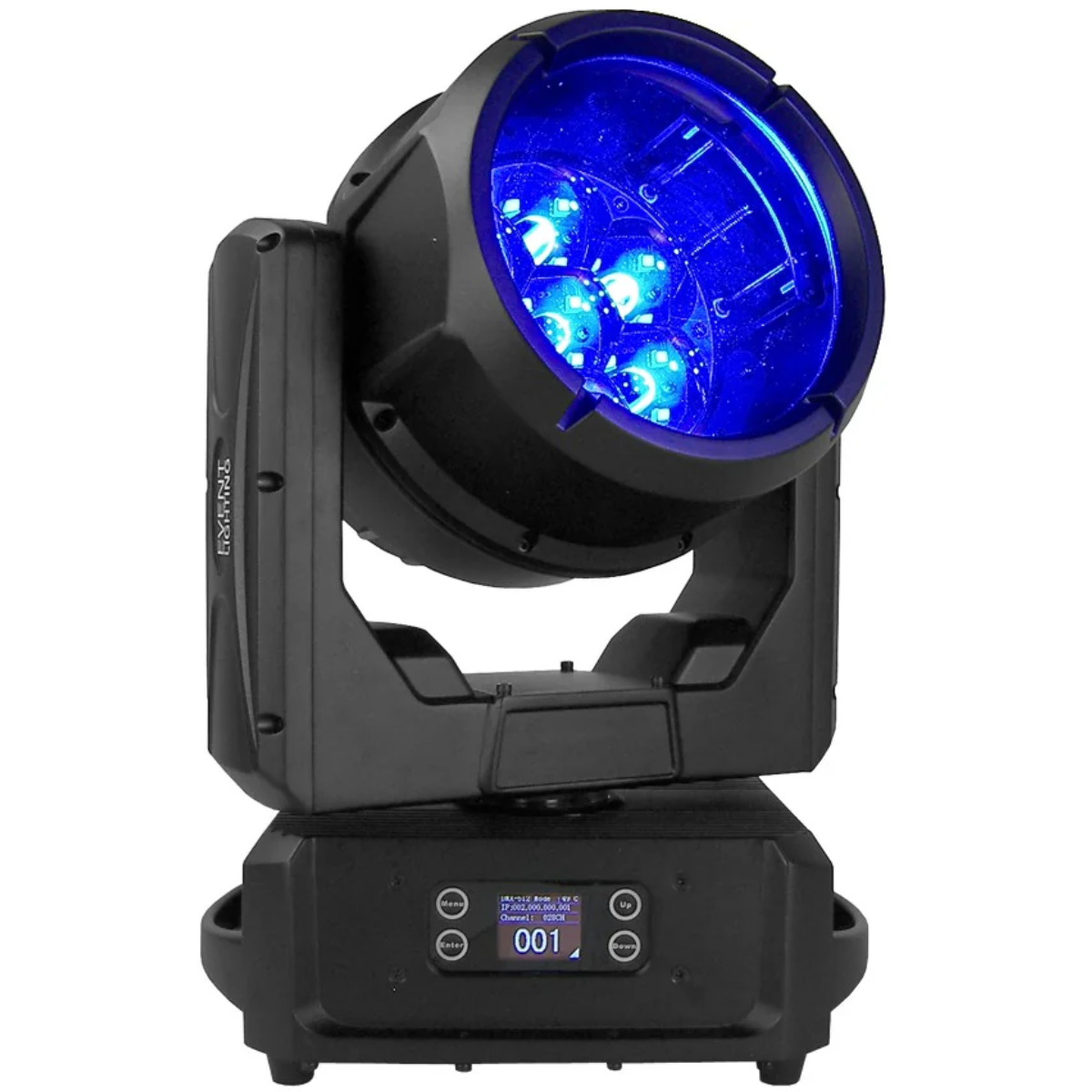

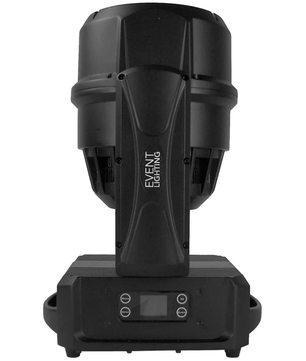

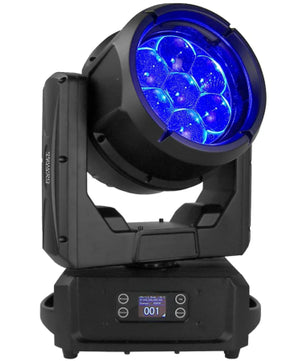

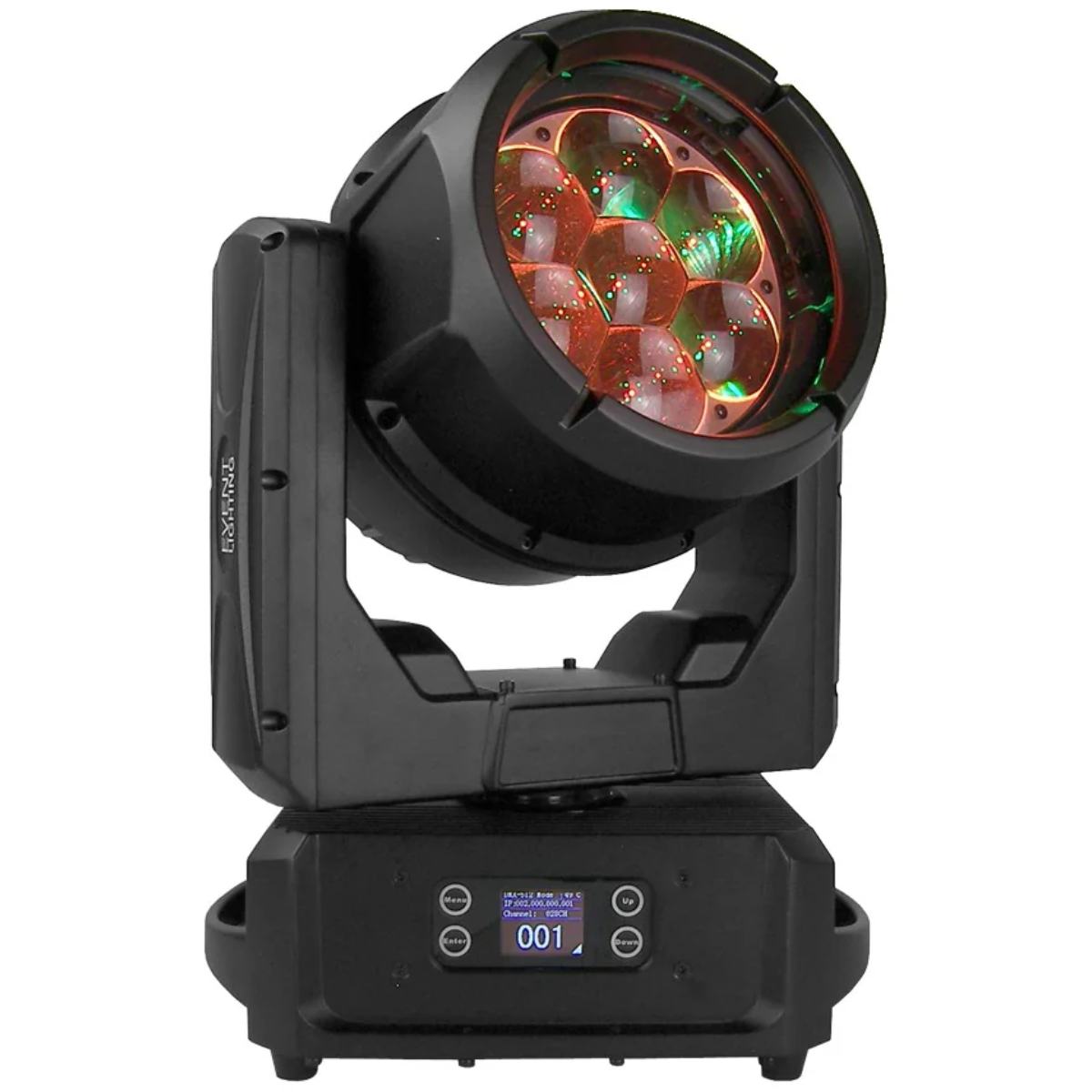

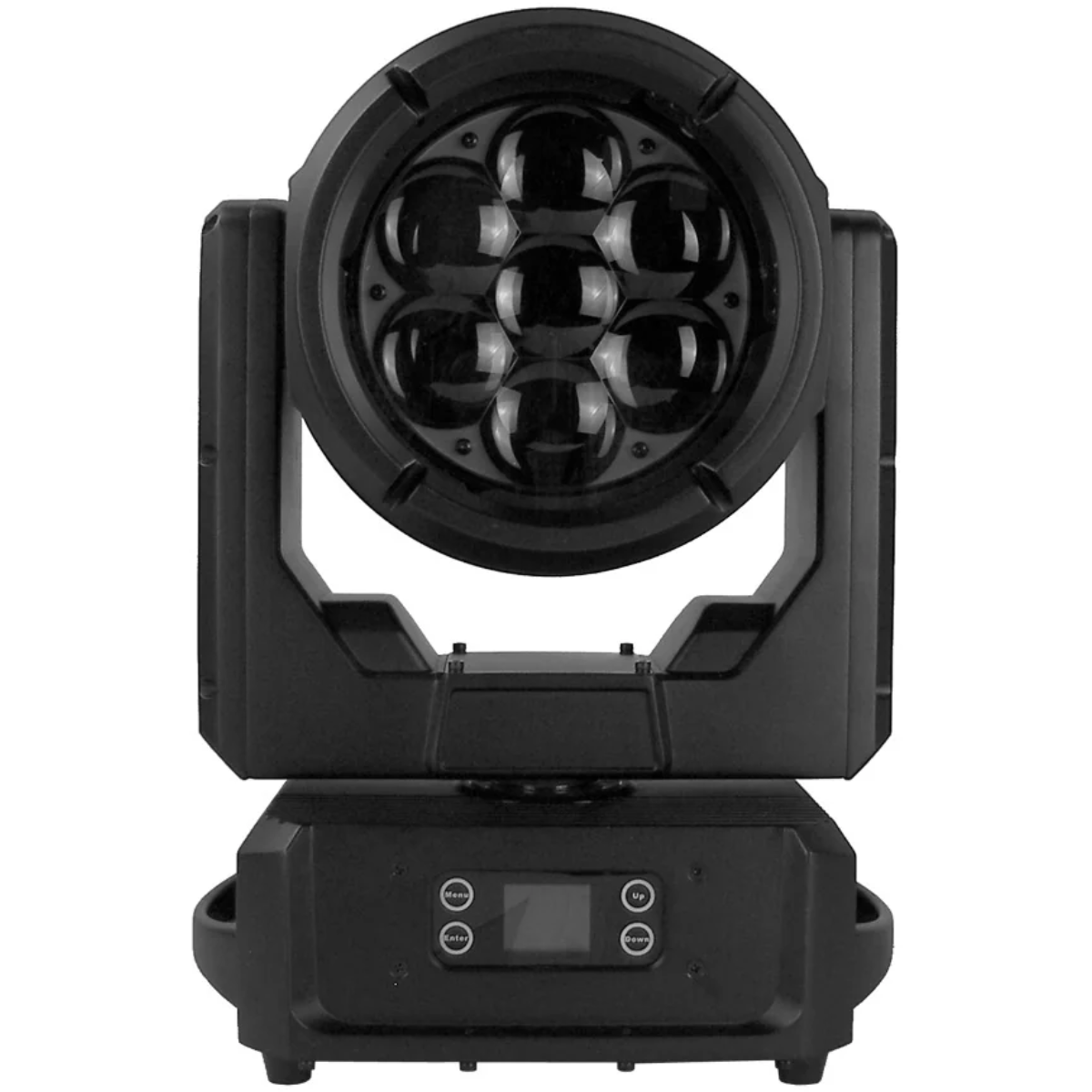

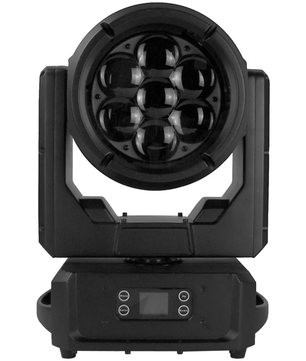

IP65 Moving Head Zoom Wash

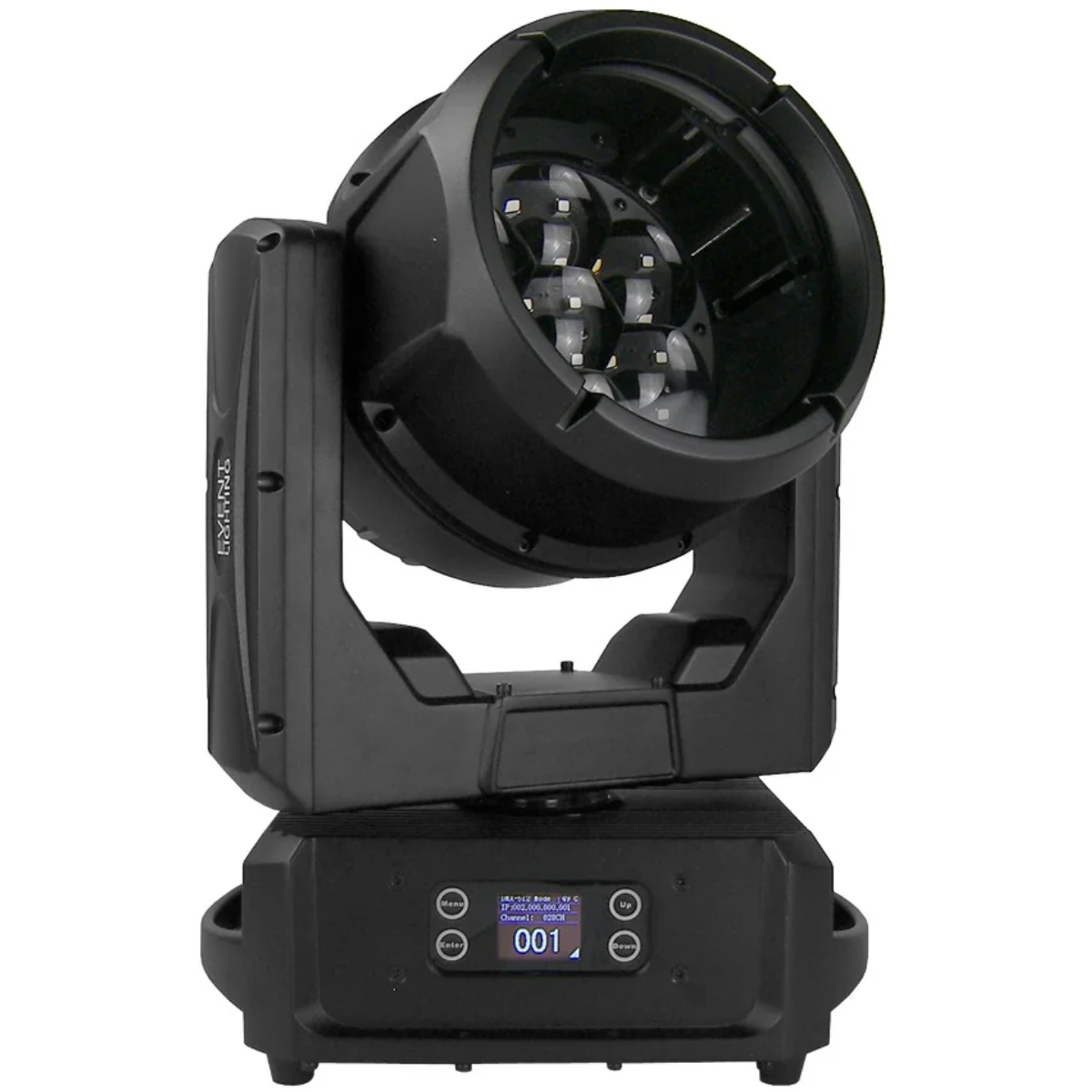

Event Lighting DELUGEM7X60WFX is a compact IP65 moving head zoom wash built for indoor or outdoor lighting applications that need bright RGBW color mixing, dynamic beam effects, and flexible control. Its 7 x 60W RGBW LED engine, Aura LEDs, motorized zoom, and rotating front lens make it suitable for stages, events, production environments, and architectural wash applications.
Event Lighting DELUGEM7X60WFX Competitive Differences

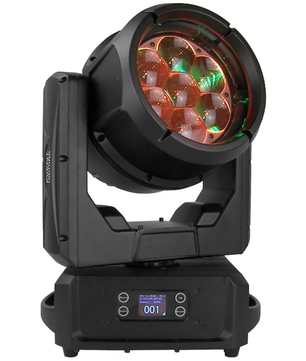

- 7 x 60W RGBW LEDs with 28 x 0.5W RGB Aura LEDs for layered wash and effect looks
- IP65-rated housing with rotating front lens for split beam effects and outdoor-ready performance
Event Lighting DELUGEM7X60WFX Description
The Event Lighting DELUGEM7X60WFX is designed as a versatile moving head wash fixture for productions that require power, compact size, and weather-resistant reliability. Its RGBW LED source provides rich color mixing, while the dedicated RGB Aura LEDs add a separate visual effects layer for eye-catching looks.
With motorized zoom from 3° to 45°, the DELUGEM7X60WFX can shift from tight aerial beams to wide wash coverage. Individual pixel control allows more detailed mapping and dynamic programming, while the rotating front lens creates a split beam effect for unique aerial and wash visuals.
The fixture supports DMX, RDM, ArtNet, and sACN control, with 5-pin DMX and RJ45 in/out connections for flexible integration into modern lighting rigs. Its full-color 180° reversible LCD control panel simplifies local setup, and software updates can be performed via RJ45 cable.
Built with ABS and steel in a matte black finish, the IP65-rated housing is made to handle demanding event environments. True1 power in/out connections, included Omega brackets, and compatibility with the DELM7X60CASE4 road case make it practical for touring, rentals, festivals, and permanent installs.
DELUGEM7X60WFX Features
- IP65 moving head zoom wash fixture
- 7 x 60W RGBW LED light source
- 28 x 0.5W RGB Aura LEDs
- Motorized zoom from 3° to 45°
- Rotating front lens for split beam effects
- Individual pixel control

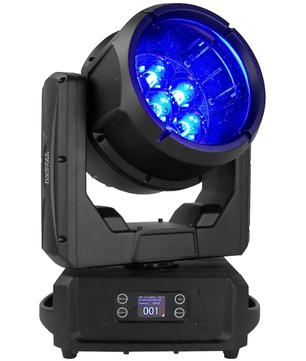

- Aura LED effects
- 0–100% 16-bit dimming
- Strobe effect
- 540° pan and 205° tilt movement
- DMX, auto, sound active, and master/slave operation modes
- DMX, RDM, ArtNet, and sACN control protocols

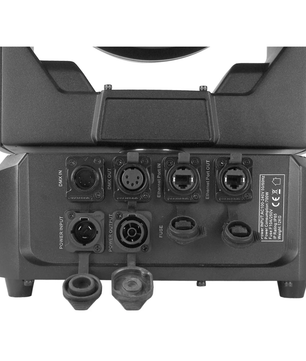

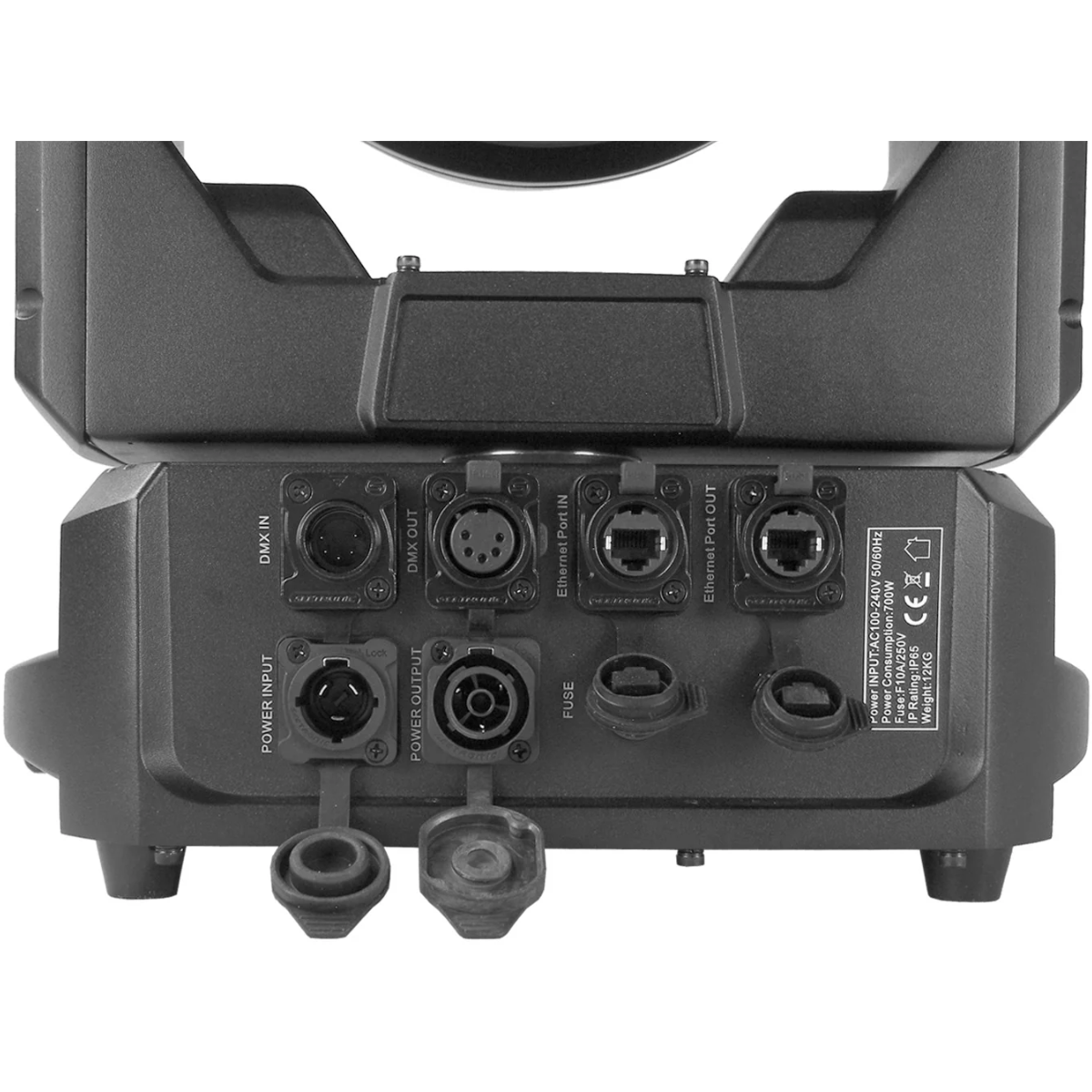

- 5-pin DMX in/out and RJ45 in/out control interface

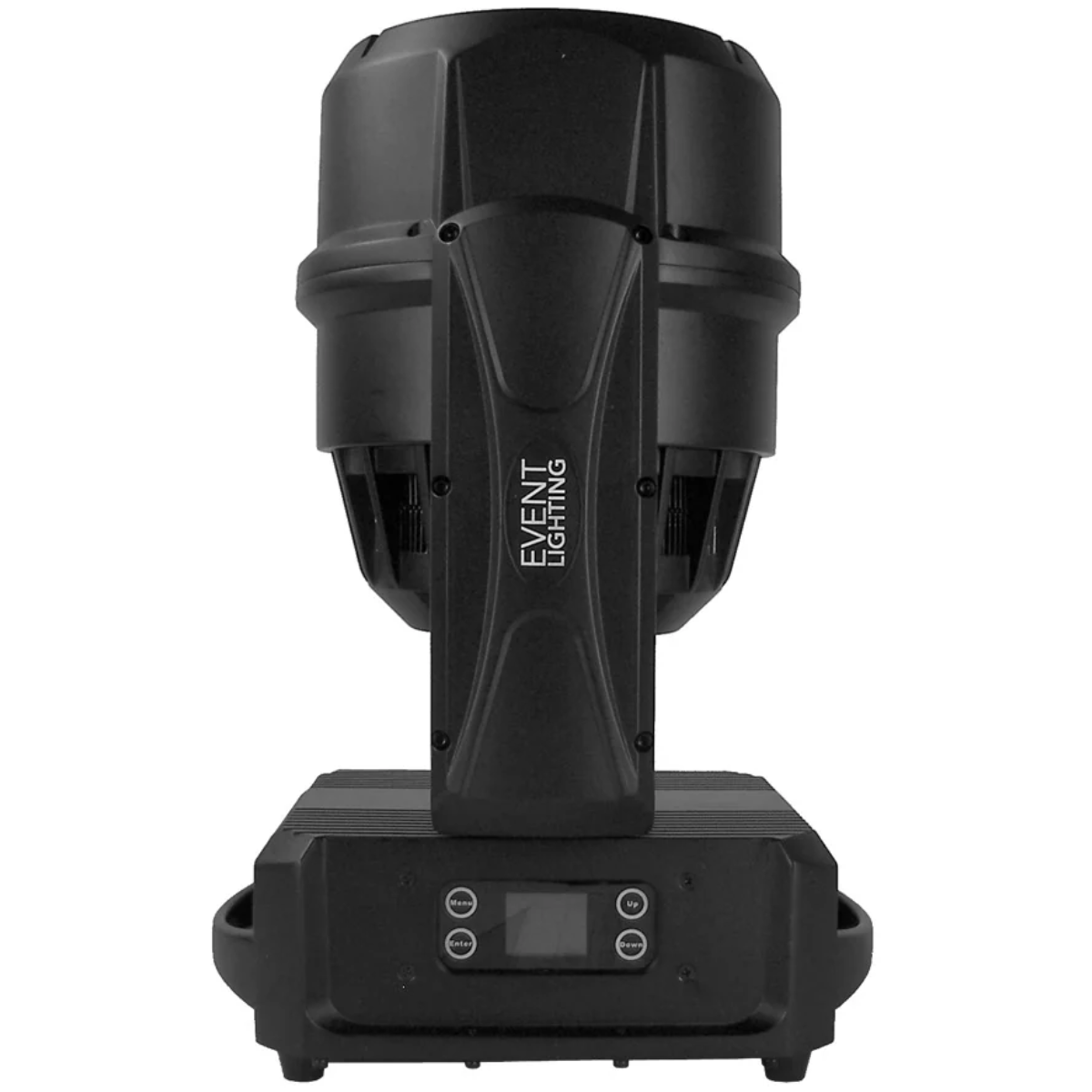

- Full-color 180° reversible LCD control panel
- Software upgrade via RJ45 cable
- IP65 True1 power in/out connection
- ABS and steel housing with matte black finish
- 2 Omega brackets included
DELUGEM7X60WFX Specifications
- Light Source: 7 x 60W RGBW LEDs; 28 x 0.5W RGB LEDs
- Beam Angle: 3°–45°

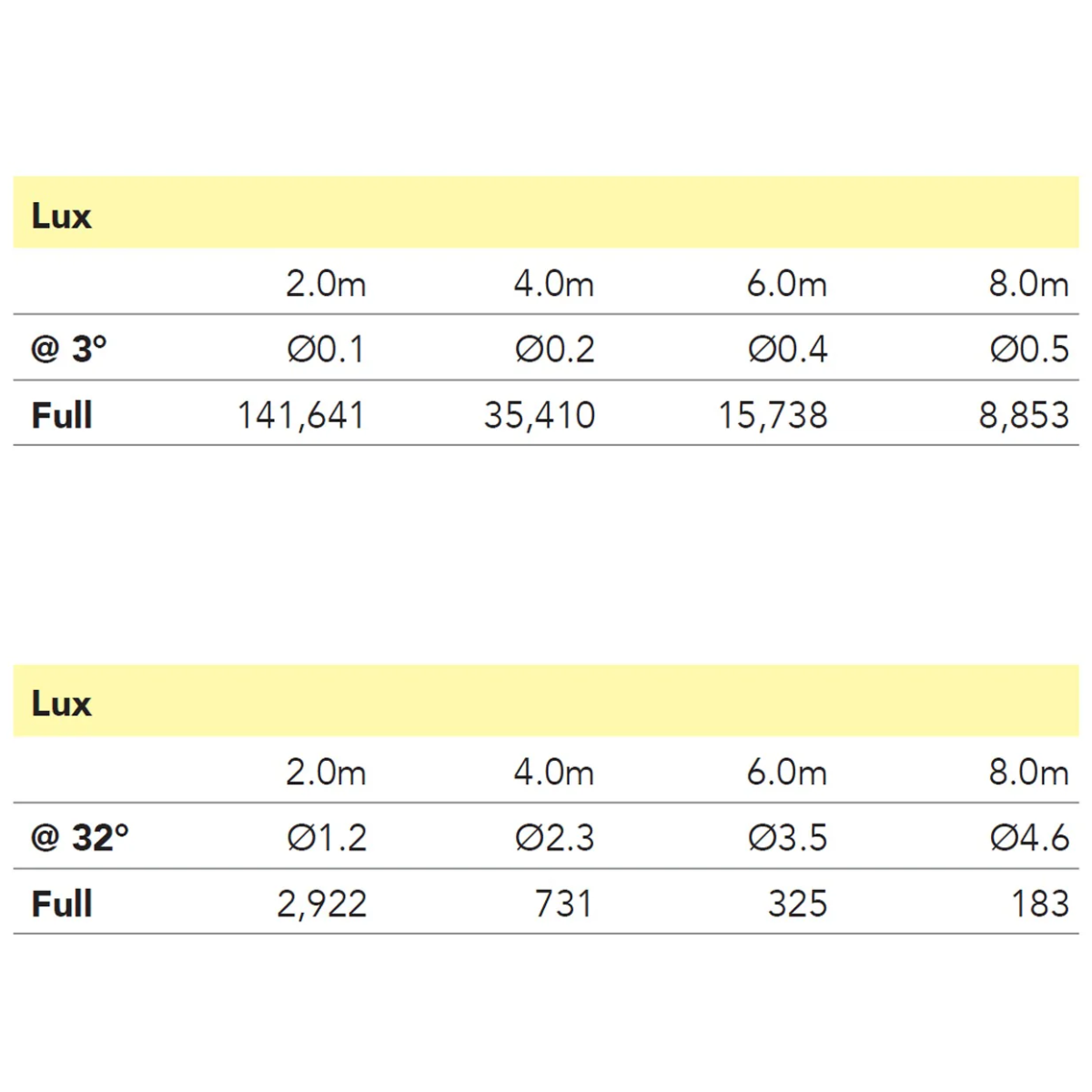

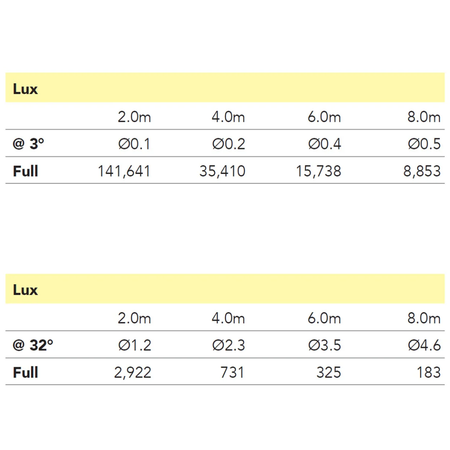

- Output: 141,641 lux @ 2 m (3°); 2,922 lux @ 2 m (32°)
- LED Lifespan: 50,000 hours
- Dimming: 0–100%, 16-bit
- Pixel Control: Yes
- Aura LED Effects: RGB LEDs
- Strobe: Yes
- Zoom: Motorized, 3°–45°
- Pan: 540°
- Tilt: 205°
- Input Voltage: 100–240V AC, 50/60 Hz
- Maximum Power Consumption: 700W
- Power Connection: IP65 True1 In/Out
- Operation Modes: DMX, Auto, Sound Active, Master/Slave
- Control Protocols: DMX, RDM, ArtNet, sACN
- DMX Channels: 28 / 49 / 105 / 127
- Control Interface: 5-Pin DMX In/Out, RJ45 In/Out
- Display: Full-Color 180° Reversible LCD Control Panel
- Software Upgrade: Via RJ45 Cable
- Housing Materials: ABS and Steel, Matte Black Finish
- IP Rating: IP65

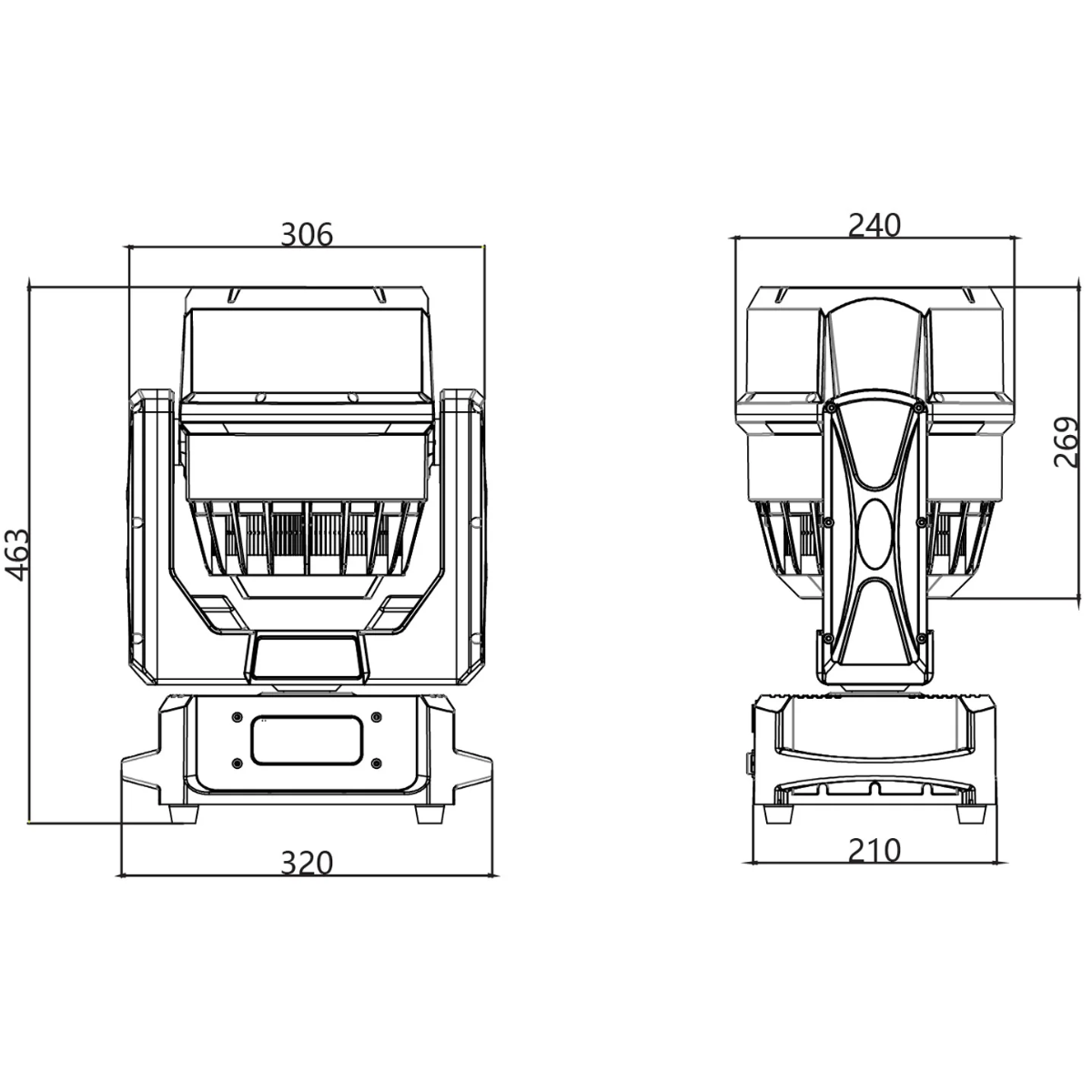

- Dimensions: 12.2 x 8.3 x 18.2 in (310 x 210 x 463 mm)
- Net Weight: 26.5 lb (12 kg)
- Compatible Road Case: DELM7X60CASE4
What's In The Box
- Event Lighting DELUGEM7X60WFX Moving Head
- 2 x Omega brackets
