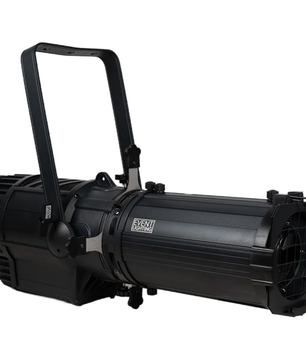

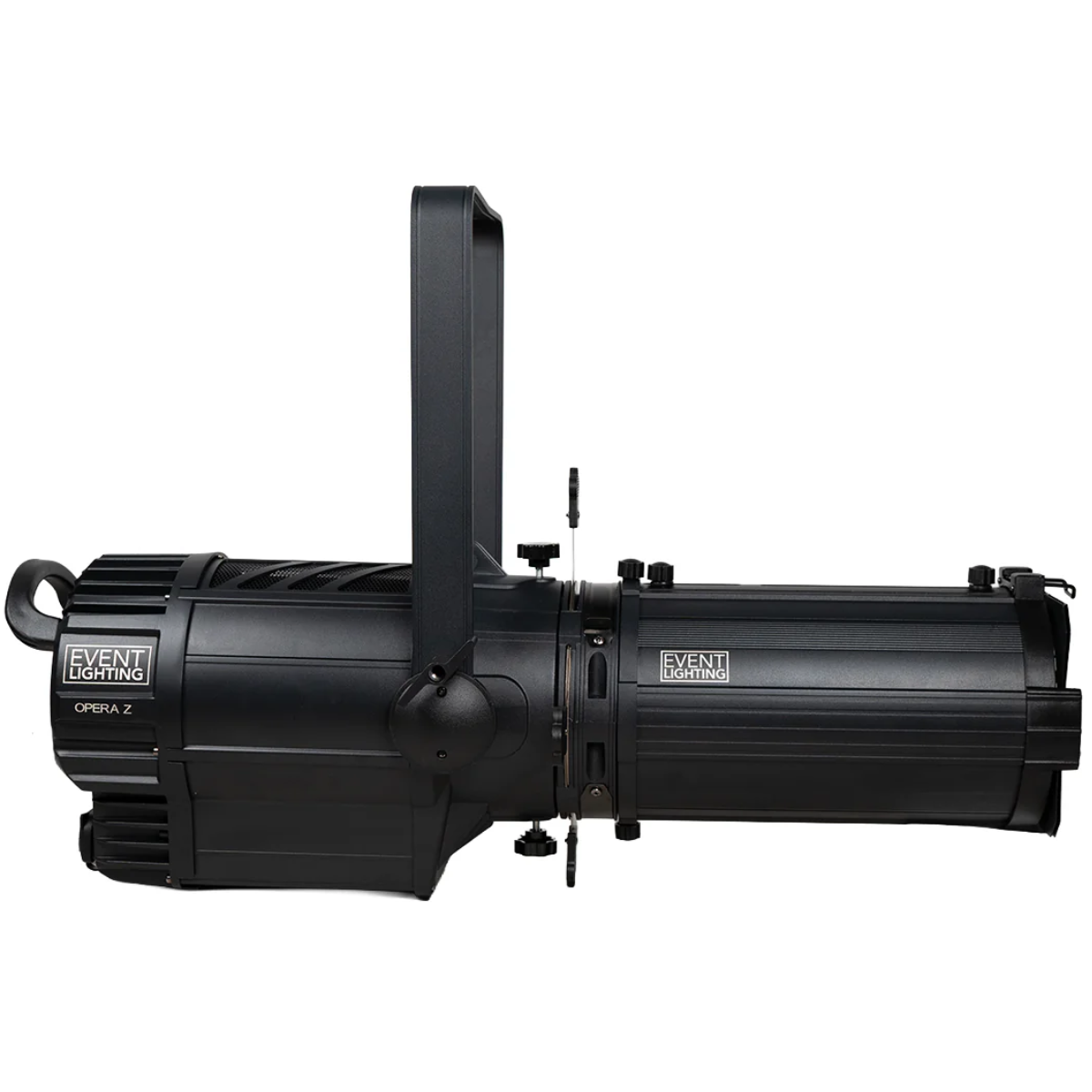

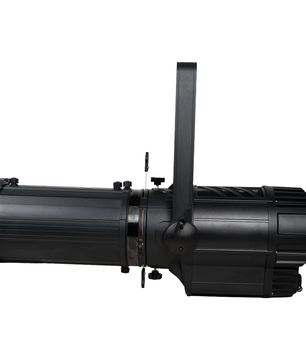

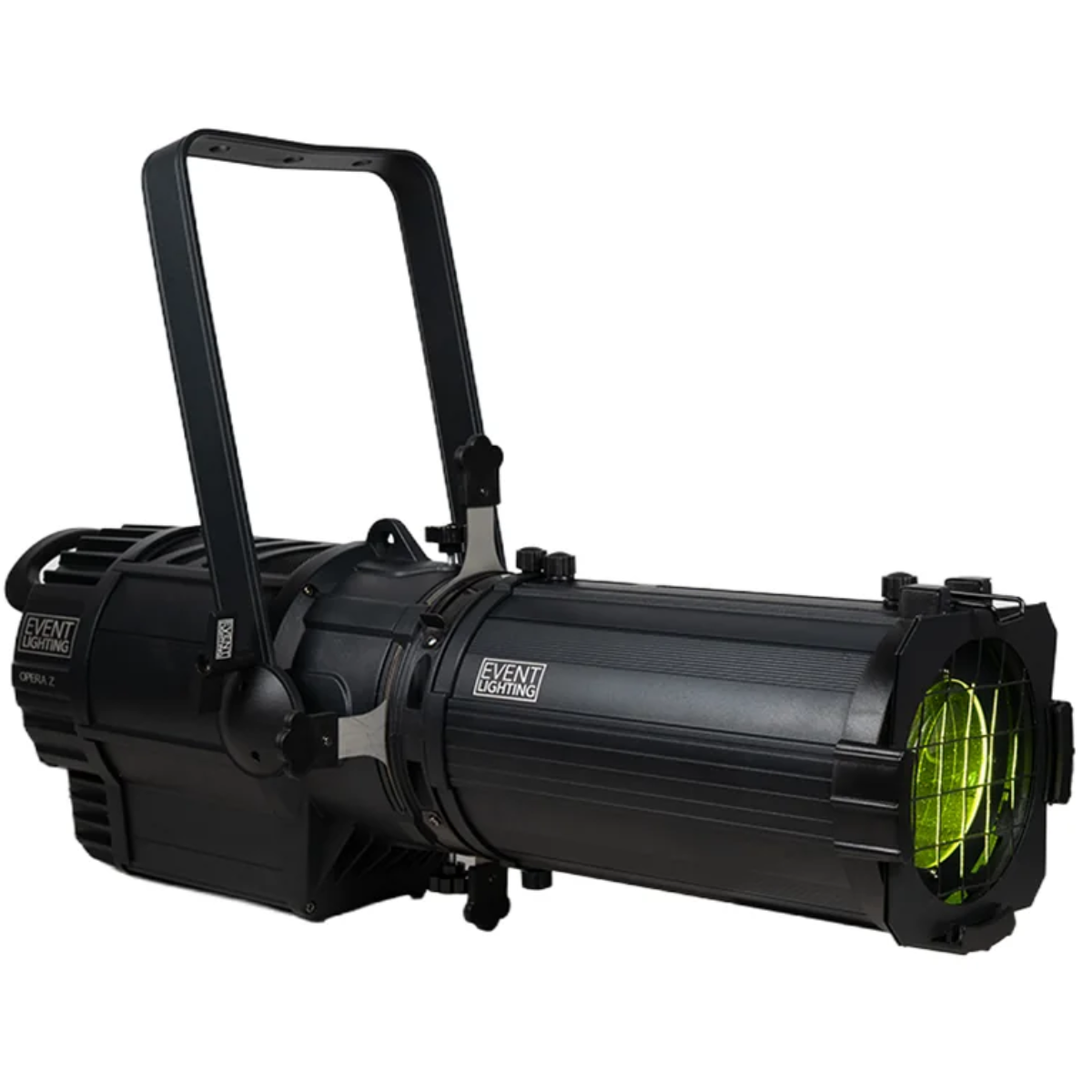

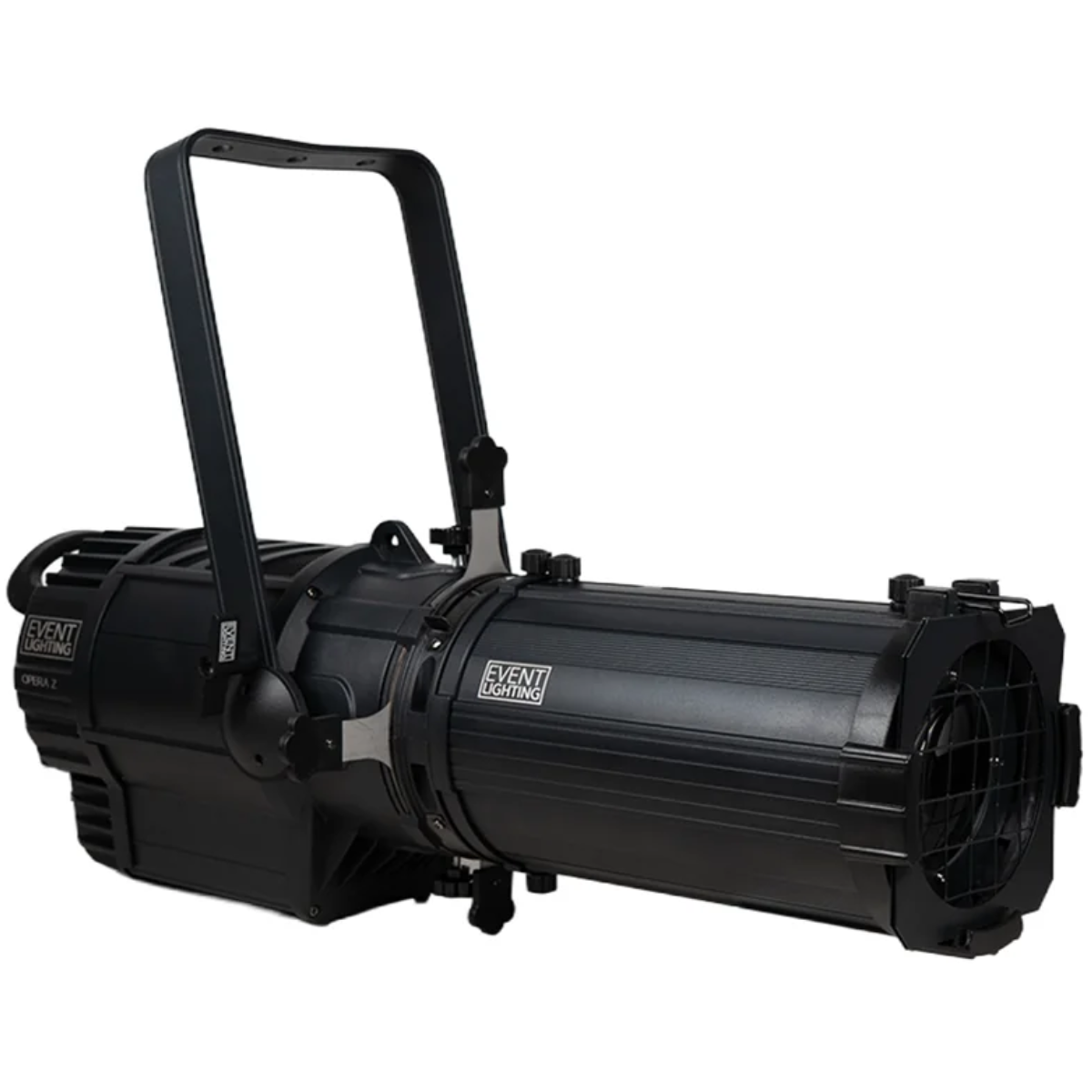

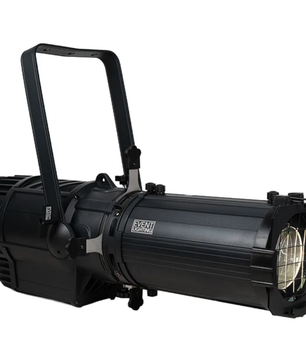

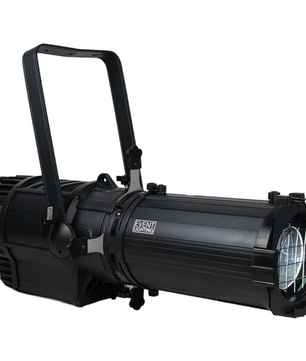

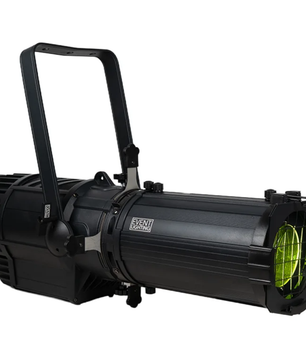

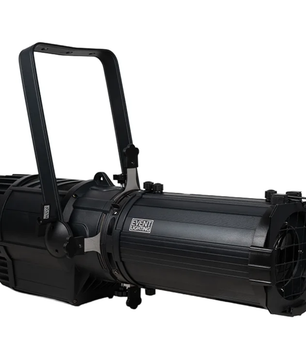

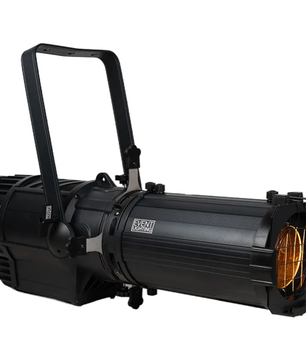

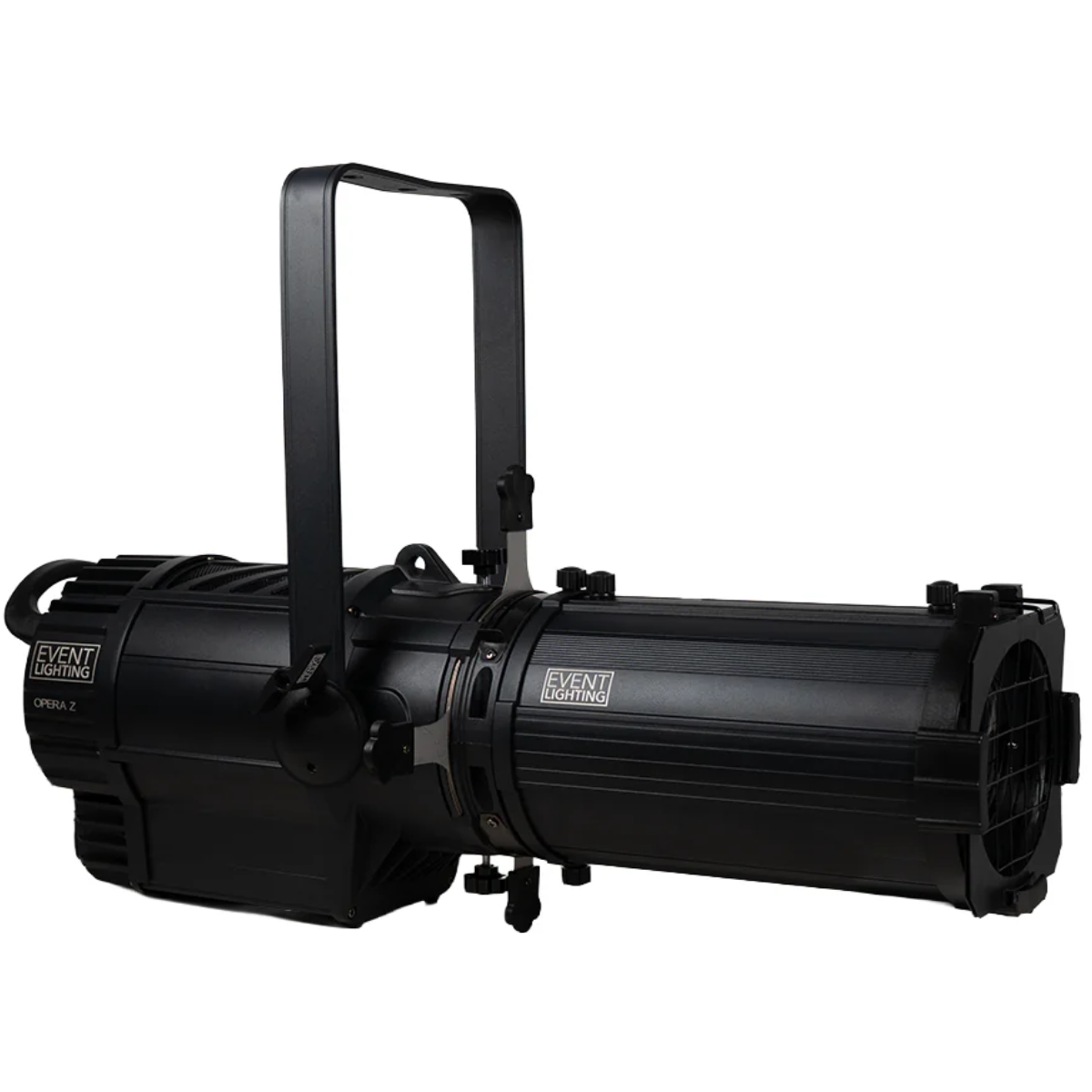

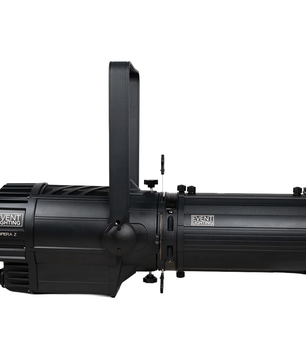

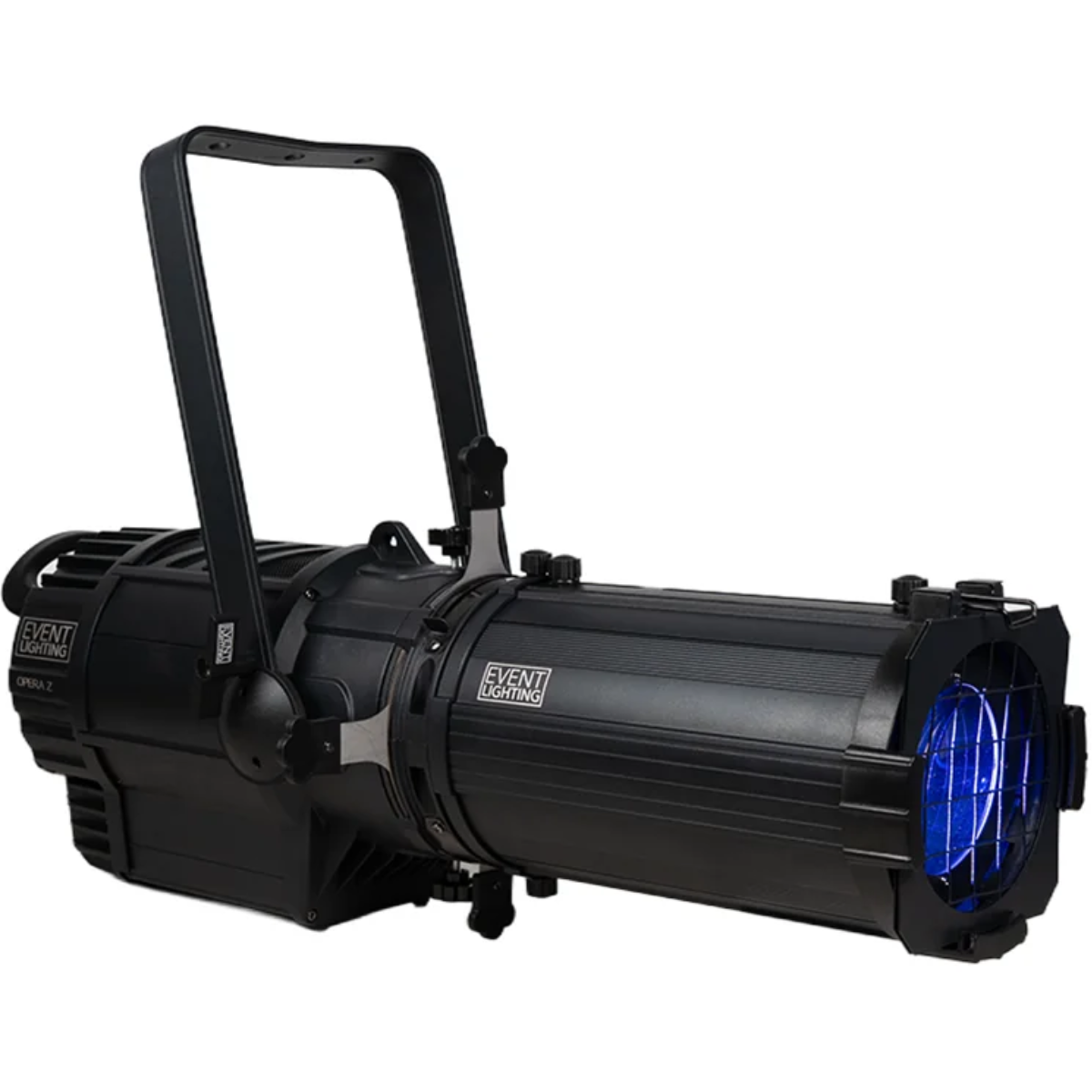

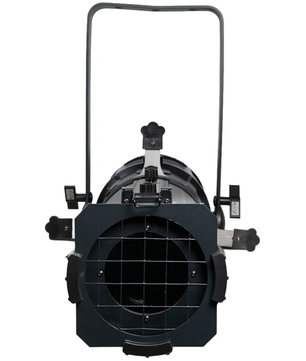

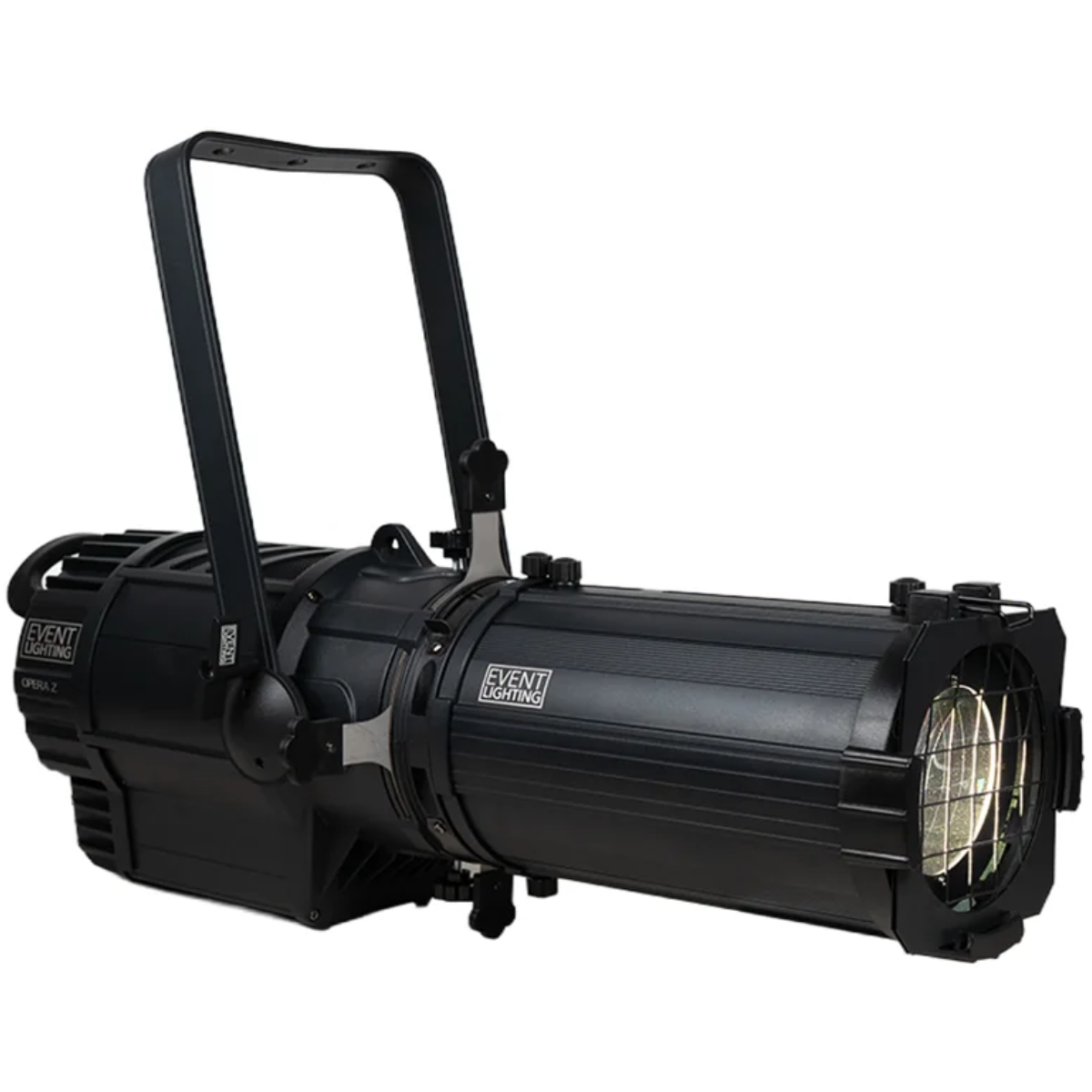

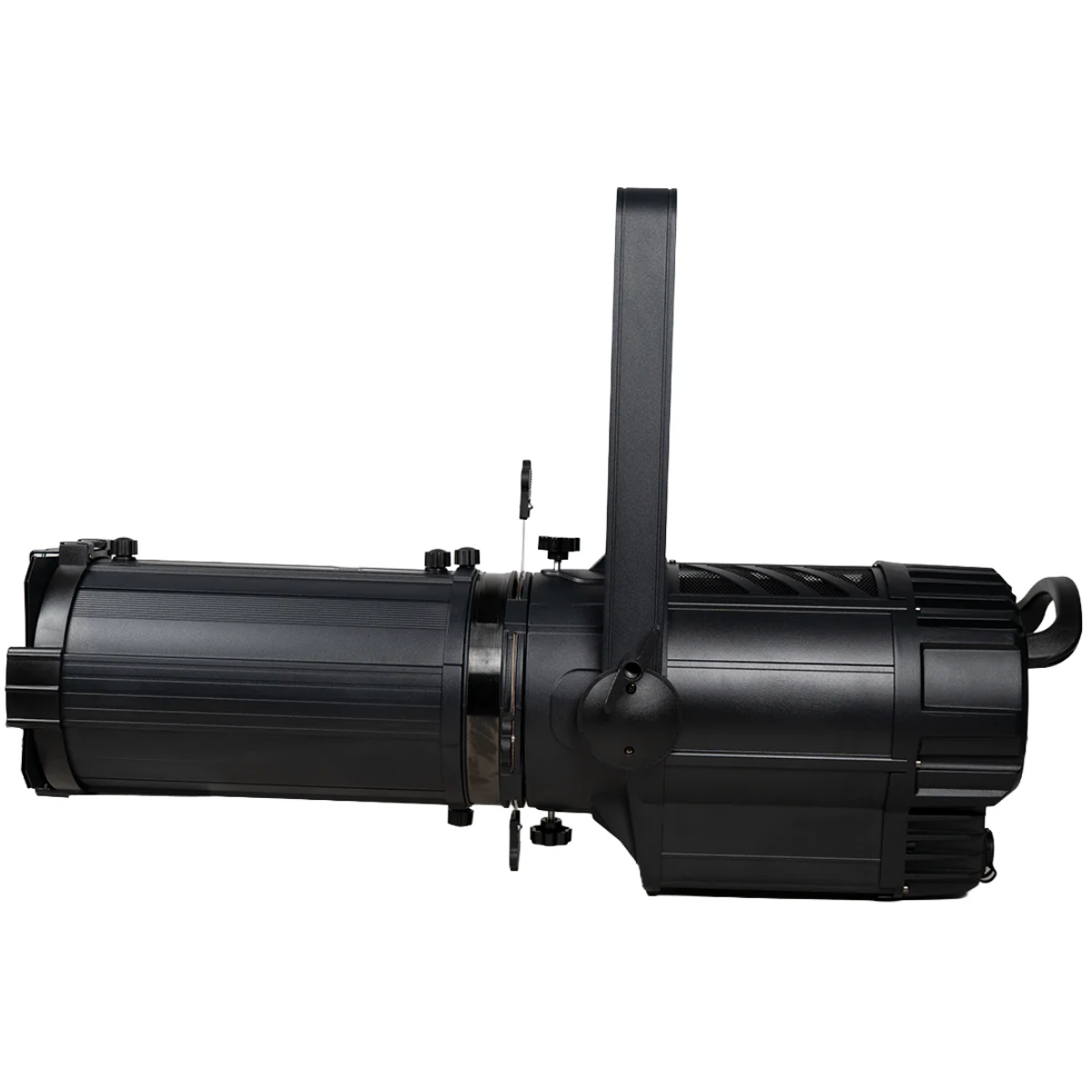

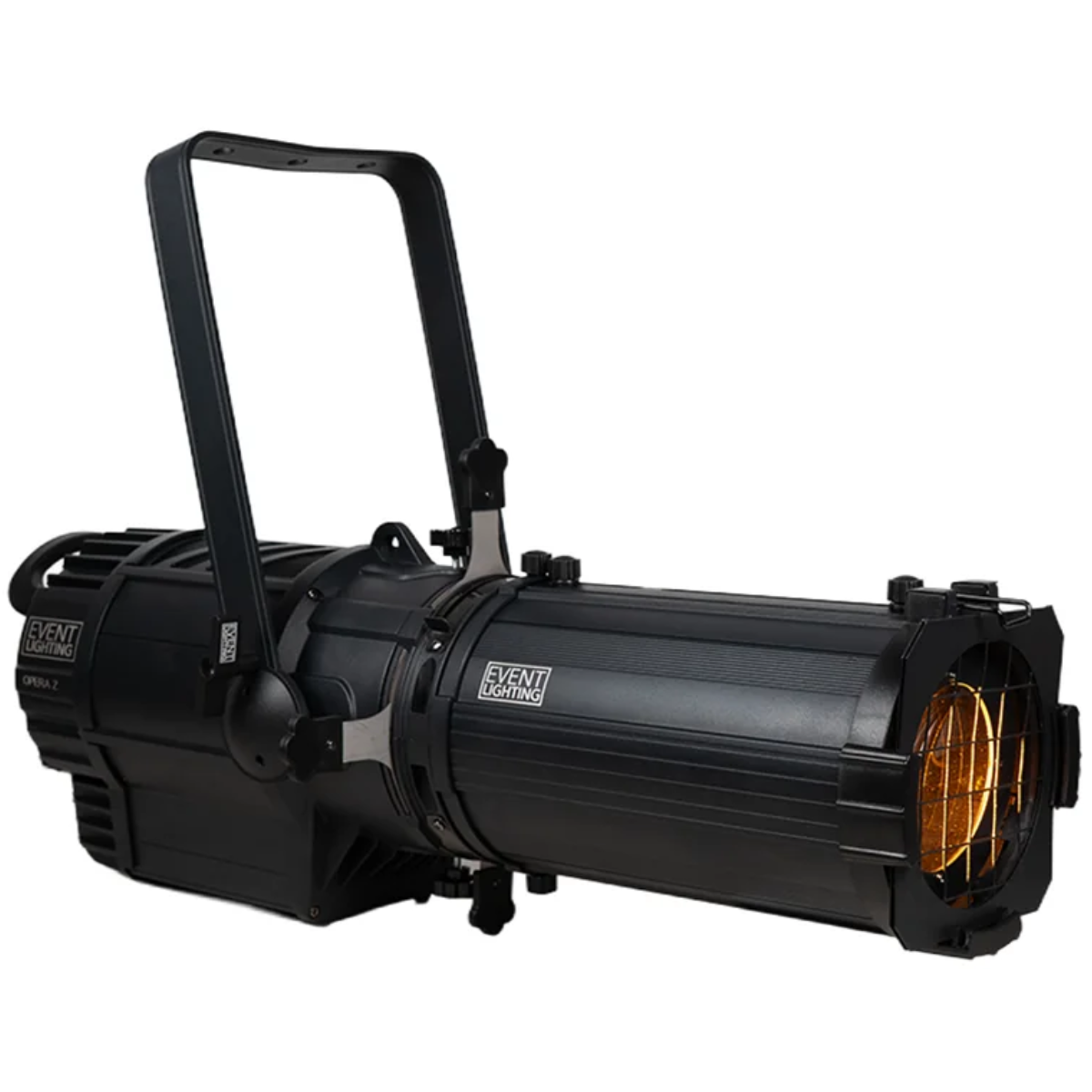

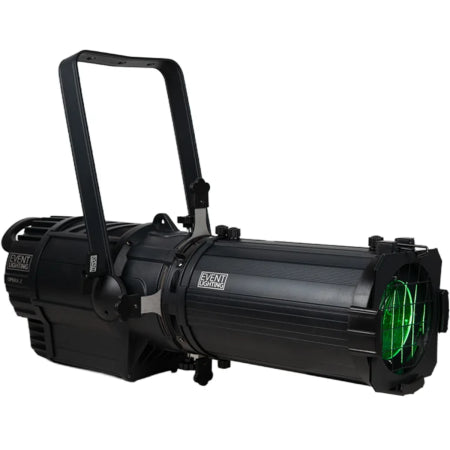

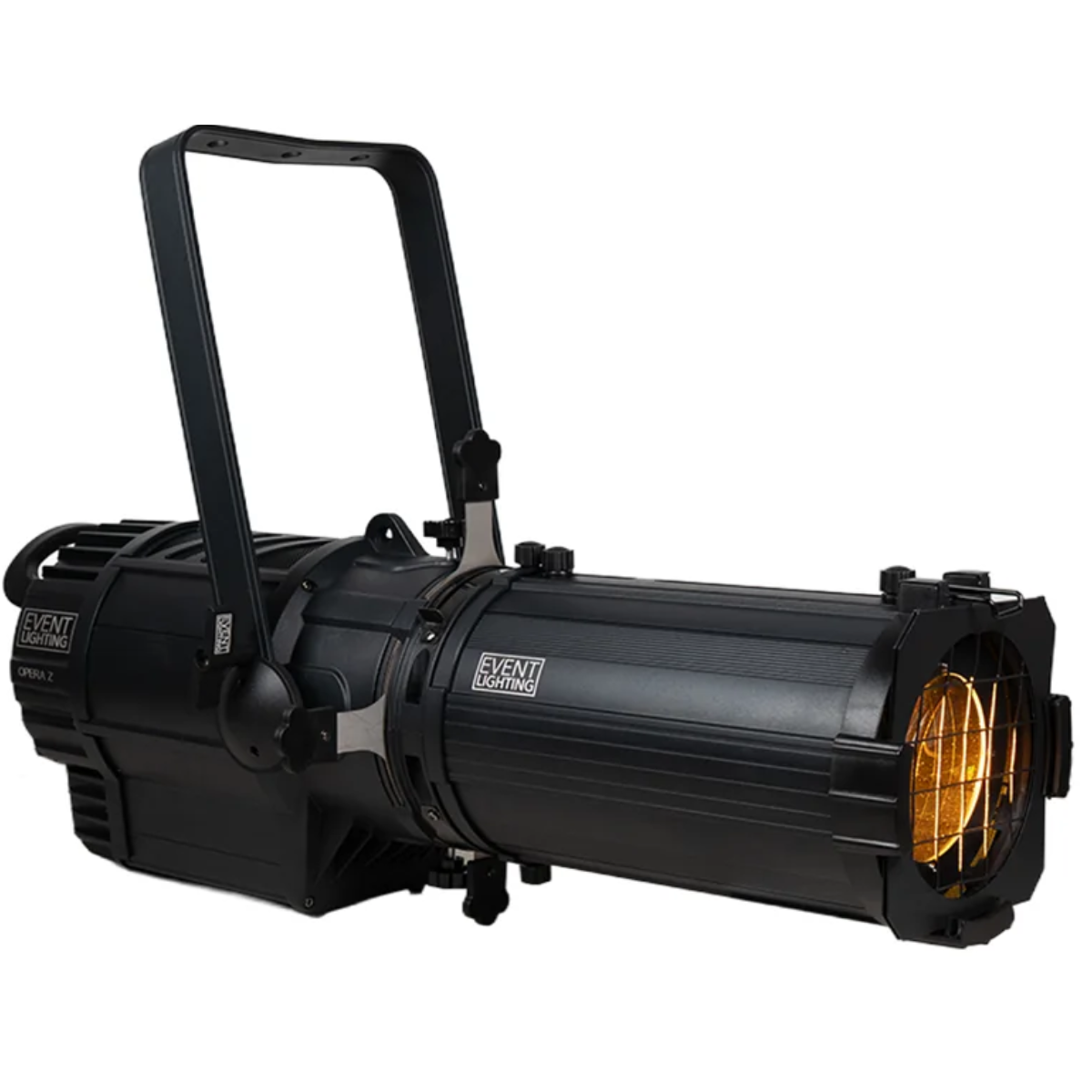

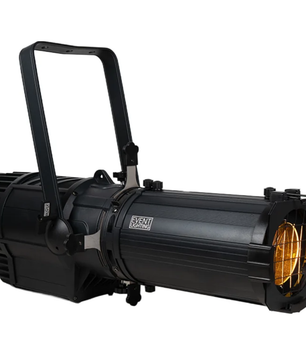

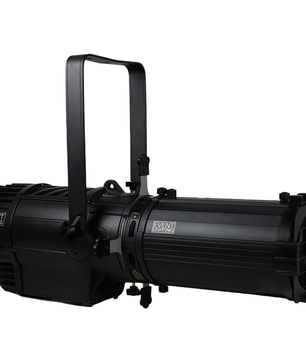

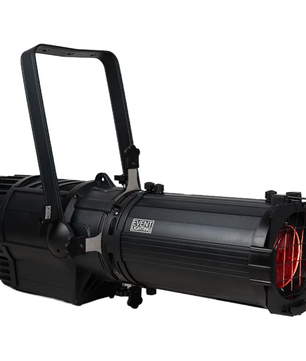

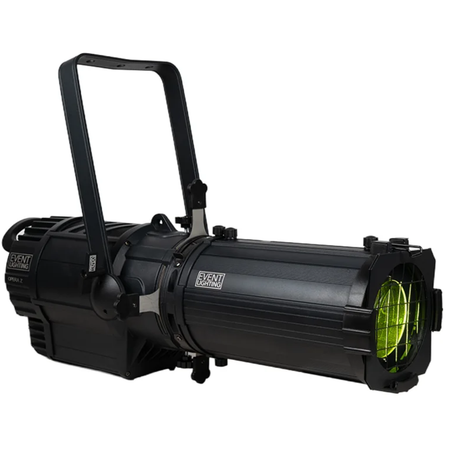

Event Lighting OPERAZ300FCP | 300W RGBALC LED Profile | Manual Zoom 15°–40°

RGBALC LED Profile Fixture

Event Lighting OPERAZ300FCP is a high-performance LED profile fixture designed for theatrical, stage, and production lighting where both precision and color flexibility are essential. Featuring a powerful RGBALC LED engine and manual zoom, it allows for accurate beam shaping and advanced color mixing in a single fixture.

Event Lighting OPERAZ300FCP Competitive Differences

• 300W RGBALC LED engine for extended color range including amber, lime, and cyan
• High CRI ≥90 for accurate color rendering on stage and camera
• Manual zoom from 15° to 40° for flexible beam control
• Quiet cooling system under 25dB for theater and studio environments

Event Lighting OPERAZ300FCP Description

The Event Lighting OPERAZ300FCP is built for lighting designers who require both precise control and creative color capability. Its 300W RGBALC LED engine provides a wide and balanced color spectrum, enabling accurate color mixing along with enhanced whites and pastels for stage and broadcast applications.

With a manual zoom range of 15° to 40°, this fixture can be adapted to various lighting roles, from tight spot projection to broader stage coverage. As a profile fixture, it is well-suited for shaping light, isolating performers, and projecting gobos when paired with the optional gobo holder.

The fixture features high CRI performance (≥90), ensuring natural skin tones and consistent color reproduction. Its 16-bit dimming allows for smooth fades without stepping, while the strobe function adds dynamic lighting capabilities for live productions.

Designed with professional environments in mind, the unit uses a quiet cooling system combining a low-noise fan and copper heat pipe, maintaining operation under 25dB. The durable housing and included gel frame make it a practical solution for touring, theater, and fixed installations.

OPERAZ300FCP Features

• 300W RGBALC LED profile fixture
• Advanced color mixing with red, green, blue, amber, lime, and cyan LEDs
• Manual zoom: 15° to 40°
• CRI: ≥90
• 16-bit smooth linear dimming
• Strobe effect capability
• DMX, manual, and master/slave operation
• LCD display control panel
• Quiet cooling system with fan and copper heat pipe

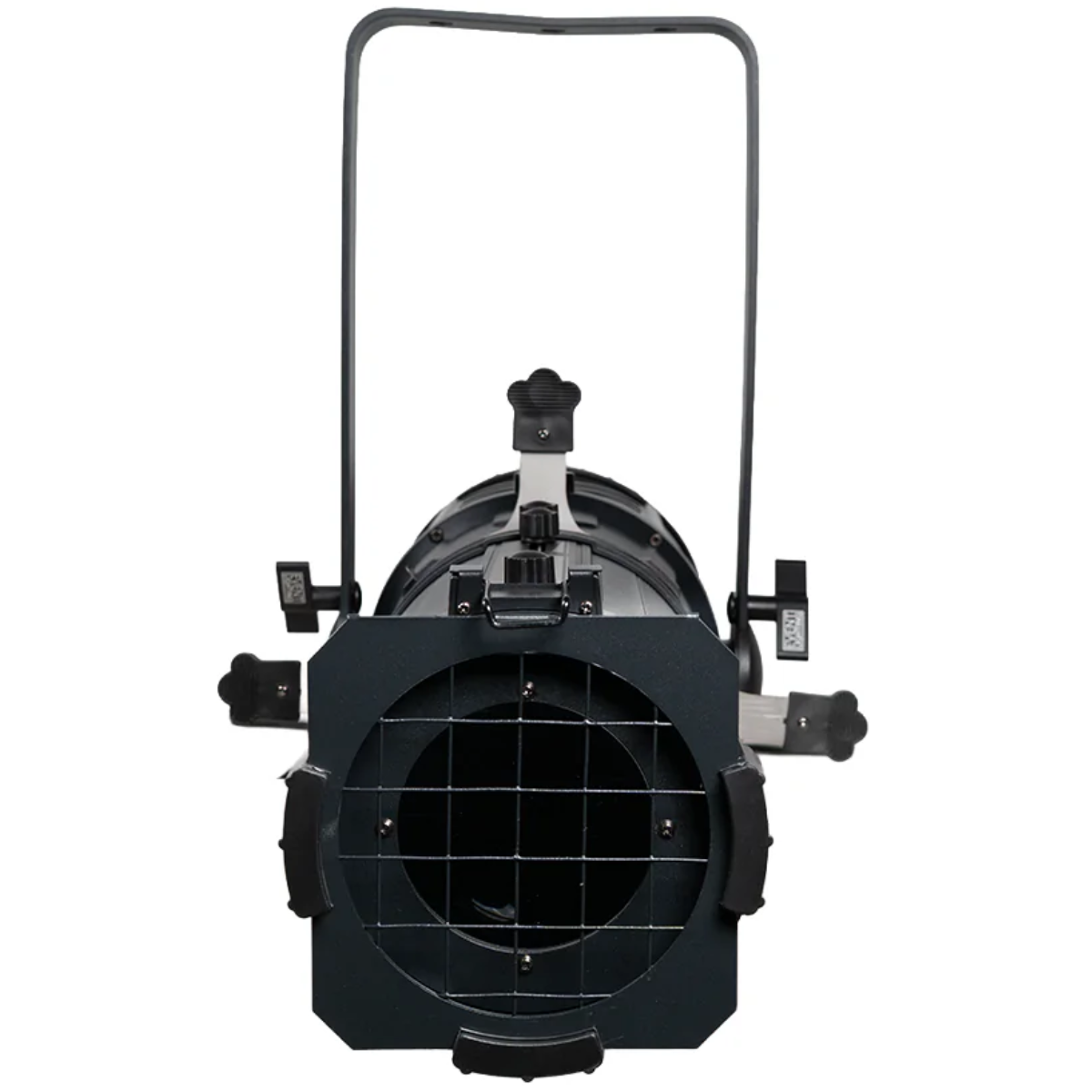

• Includes gel frame
• Optional gobo holder accessory available

OPERAZ300FCP Specifications

• Light Source: 300W RGBALC LED
• Beam Angle: 15° to 40°
• Zoom: Manual
• CRI: ≥90
• LED Lifespan: >50,000 hours
• Dimming: 16-bit linear
• Strobe: Yes
• DMX Channel Modes: 2 modes
• Control Modes: DMX, master/slave, manual dimming

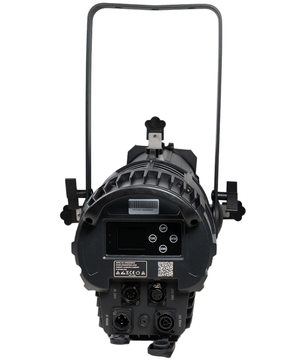

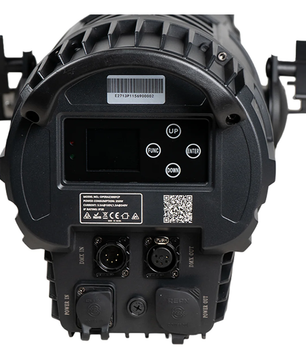

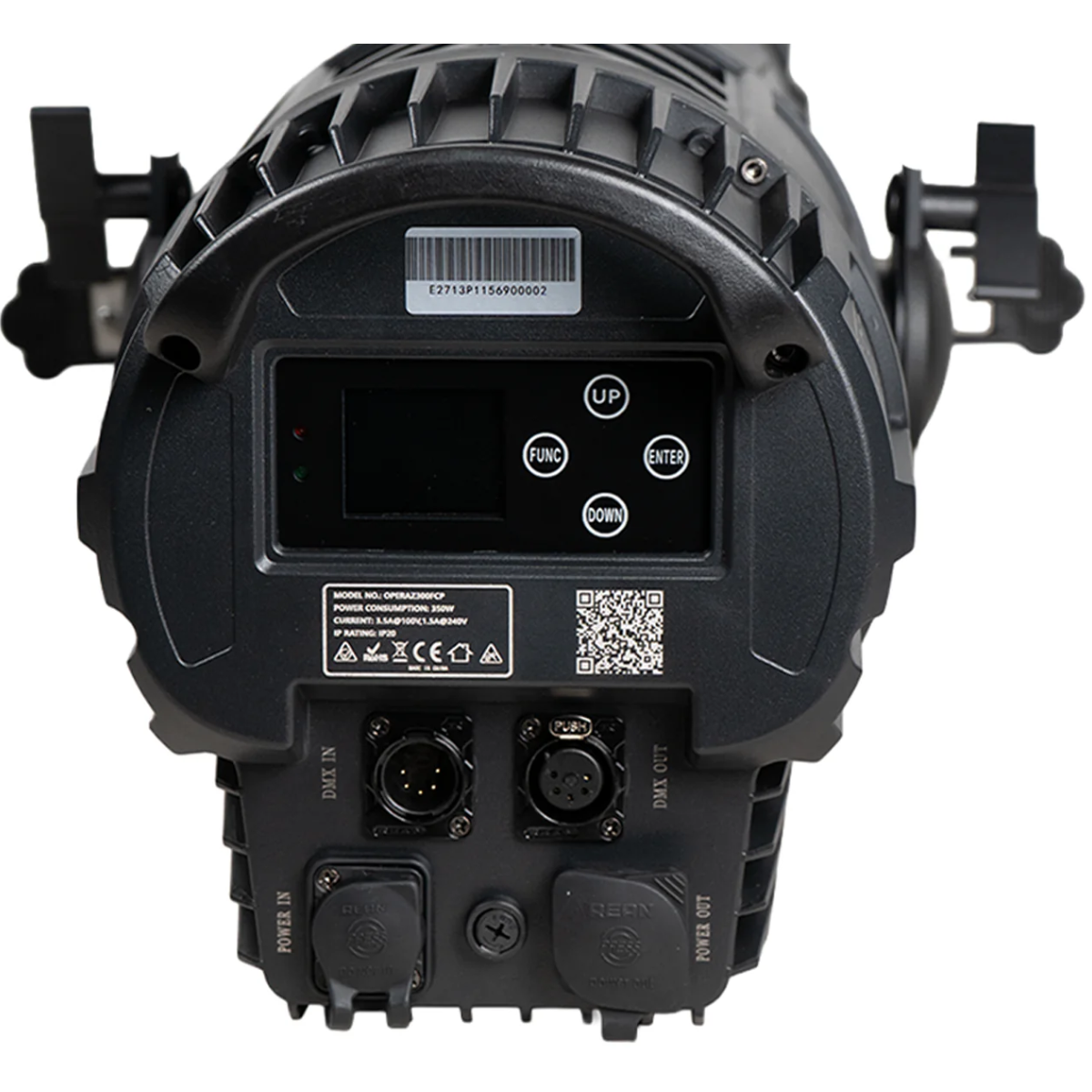

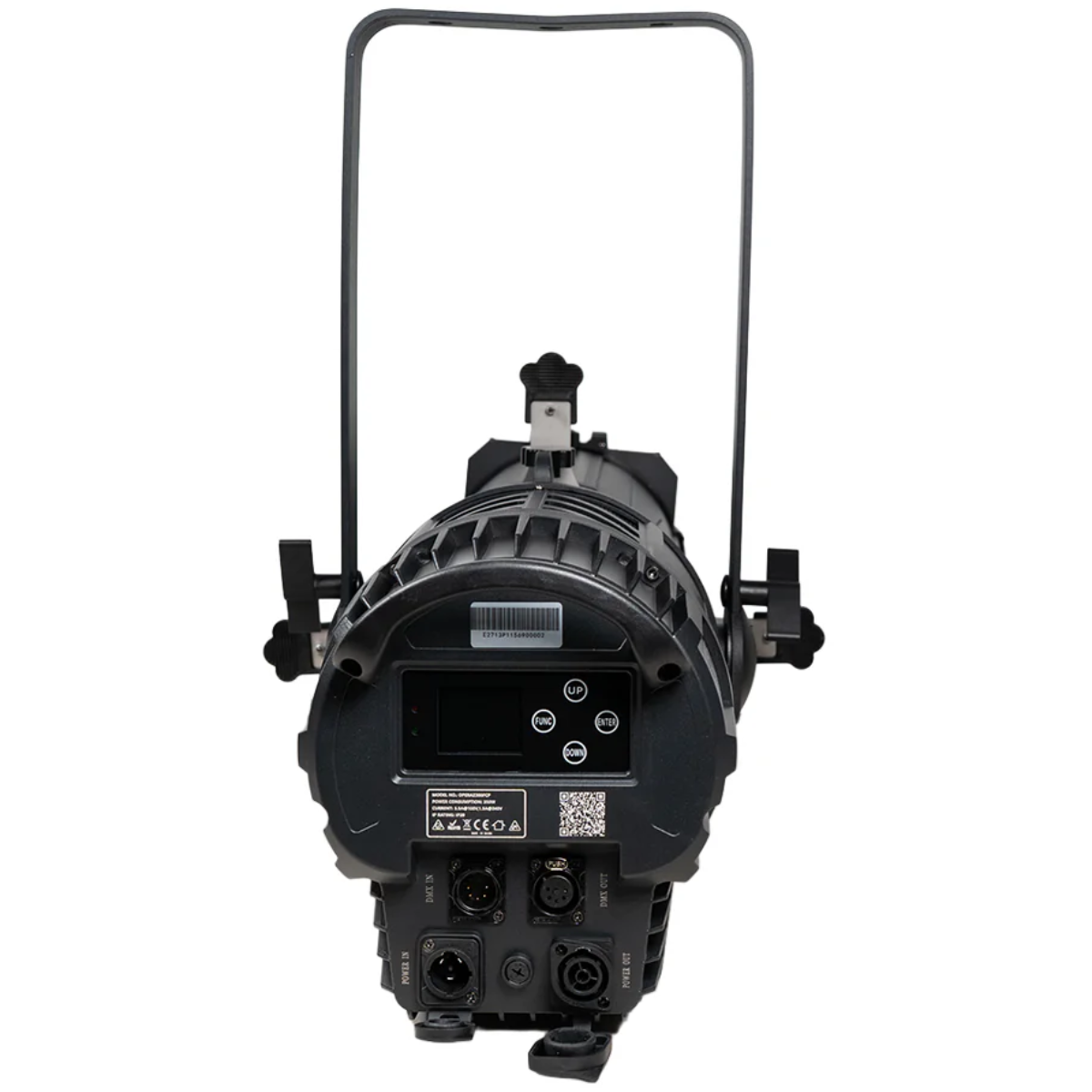

• Control Panel: LCD display
• DMX Connection: 5-pin XLR in/out
• Power Supply: 100 to 240V AC, 50/60Hz
• Power Consumption: 350W
• Power Connection: True1 in/out
• IP Rating: IP20
• Cooling: Quiet fan (<25 dB @ 3.3 ft / 1 m) with copper tube
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Dimensions: 27.5 x 9.3 x 10.6 in (700 x 235 x 270 mm)
• Weight: 20.7 lb (9.4 kg)

What's In The Box

• Event Lighting OPERAZ300FCP fixture
• Gel frame
• Power cable
