Global Truss SQ-4110-75 | 0.75m F34 Square Truss Segment | 2in Tubing with 2mm Wall

F34 Square Truss Segment

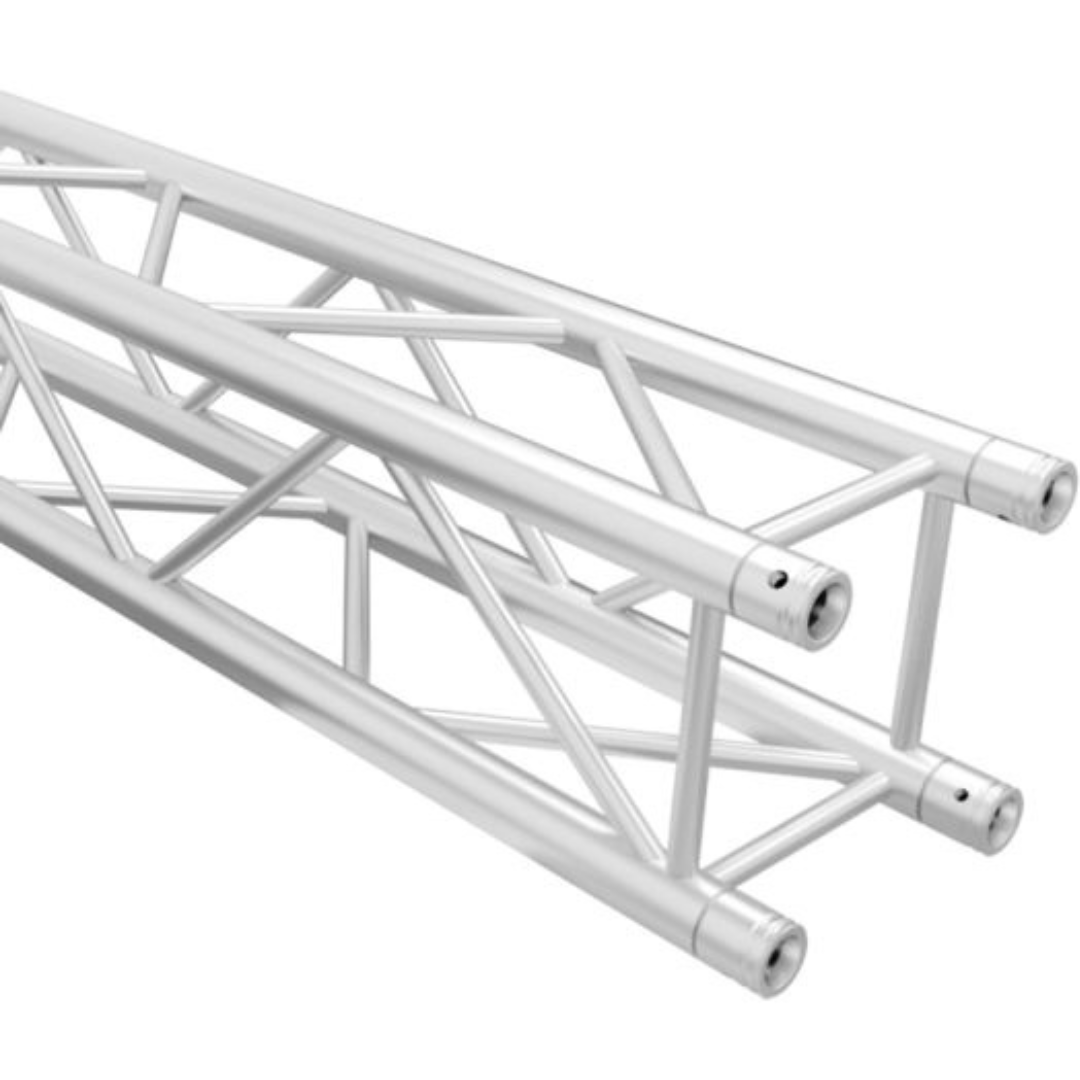

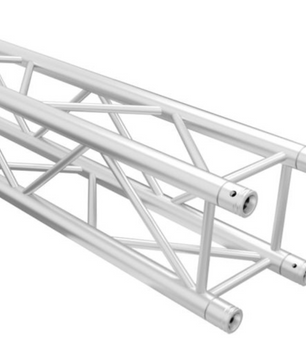

The Global Truss SQ-4110-75 is a short-length aluminum truss section from the F34 series, measuring 0.75 meters (2.46 feet) in length. Built with robust 2-inch outer diameter tubing and 2mm wall thickness, it's designed for use in professional lighting rigs, display structures, and portable event systems.

Global Truss SQ-4110-75 Competitive Differences

• Compact 0.75m length ideal for tight spaces or custom truss designs
• Durable 2in aluminum tubing with reinforced 2mm wall thickness

Global Truss SQ-4110-75 Description

The Global Truss SQ-4110-75 offers a reliable and space-efficient trussing solution for professionals who need precise structural components. Part of the trusted F34 square truss system, this segment is ideal for building tight corners, extending height in small increments, or creating custom frame designs. Made from high-strength aluminum, the SQ-4110-75 features 2-inch (50mm) main tubing and 3/4-inch (20mm) diagonal bracing for added rigidity. The 2mm thick tubing walls ensure durability while maintaining a manageable weight of 14 lbs (6.36 kg). This truss segment is compatible with all F34 series components, making it a versatile addition to any modular rigging system for stages, clubs, exhibitions, or mobile setups.

Model Features

• Fits F34 square truss systems
• Made from high-grade aluminum alloy
• Compact size for flexible structure design
• Diagonal bracing enhances load stability

Model Specifications

• Overall Length: 2.46 ft (0.75 m)
• Overall Width: 11 7/16 in (290 mm)
• Outer Diameter Tubing: 2 in (50 mm)
• Diagonal Bracing: 3/4 in (20 mm)
• Wall Thickness: 0.08 in (2 mm)
• Unit Weight: 14 lbs (6.36 kg)
