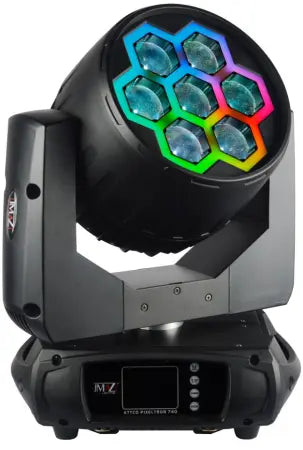

JMaz Pixl Tron 740Z | 7 x 40W RGBW LED Wash Moving Head

JMAZ PIXL TRON 740Z | 7 x 40W RGBW LED Wash Moving Head w/ Zoom and Tron Effects

The JMAZ PIXL TRON 740Z LED Wash Moving Head is designed to elevate your performance with stunning visual effects and impressive stage presence. Featuring 7 powerful 40W RGBW LEDs and 90 RGB SMDs, this fixture offers 280W of brightness and mesmerizing TRON-like effects. Ideal for professional stages, night clubs, and music video productions, the PIXL TRON 740Z ensures your event stands out.

Main Features

• 7 x 40W 4-IN-1 Quad RGBW LEDs & 90 x 0.2W RGB LEDs
• DMX512, Master-Slave, Sound Active, and Built-in Shows
• Individually Pixel Control on Each LED and Pixel Control Rings
• Built-in Wireless DMX Technology

Competitive Differences

• Honeycomb Tron Effect Overlay
• Wide Zoom Range: 6° to 60°
• High Temperature Engineered Plastic and Cast Aluminum Casing
• Wi-MAZ Wireless DMX Technology

Technical Specifications

• Light Source: 7 x 40W RGBW LEDs, 90 x 0.2W RGB SMDs
• Color System: RGBW LEDs, RGB SMDs
• Pan Angle: 630°
• Tilt Angle: 270°
• Pan/Tilt Resolution: 8 / 16 Bit
• Dimmer: 0-100% Linear Dimmer
• Max Power Consumption: 350W
• Input Voltage: 110-240V, 50HZ/60HZ
• Zoom: 6° to 60°
• Control Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
• DMX Channels: 25/31/59 Channel Modes
• Display: 2.4″ TFT LCD Display
• IP Rating: 20
• Cooling: Fan
• Dimensions: 12″ x 15.6″ x 15.6″
• Weight: 21 lbs

What's in the Box

• 1 x PIXL Tron 740Z
• 1 x User Manual
• 2 x Omega Brackets
• 1 x 3ft 3-pin DMX Chord
• 1 x 3ft PowerCON Chord
• 1 x RF Remote
