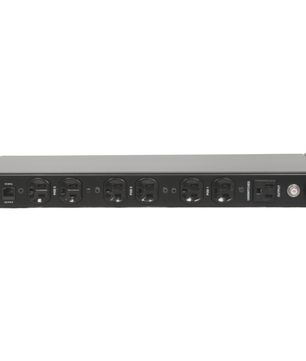

Juice Goose CQ1515 | 15A Rackmount Power Sequencer | 3-Stage Activation with Surge Protection

Rackmount Power Sequencer

Juice Goose CQ1515 is a 15-amp, 1U rackmount AC power sequencer designed to safely power up and down multiple pieces of audio, AV, or control equipment. With three-stage sequencing and integrated surge protection, it’s an ideal solution for installed systems that require stable, coordinated power distribution and remote control capabilities.

Juice Goose CQ1515 Competitive Differences

• Three-stage sequencing with selectable delay (2, 10, 20, or 30 seconds)
• Built-in surge protection with replaceable MOVs

Juice Goose CQ1515 Description

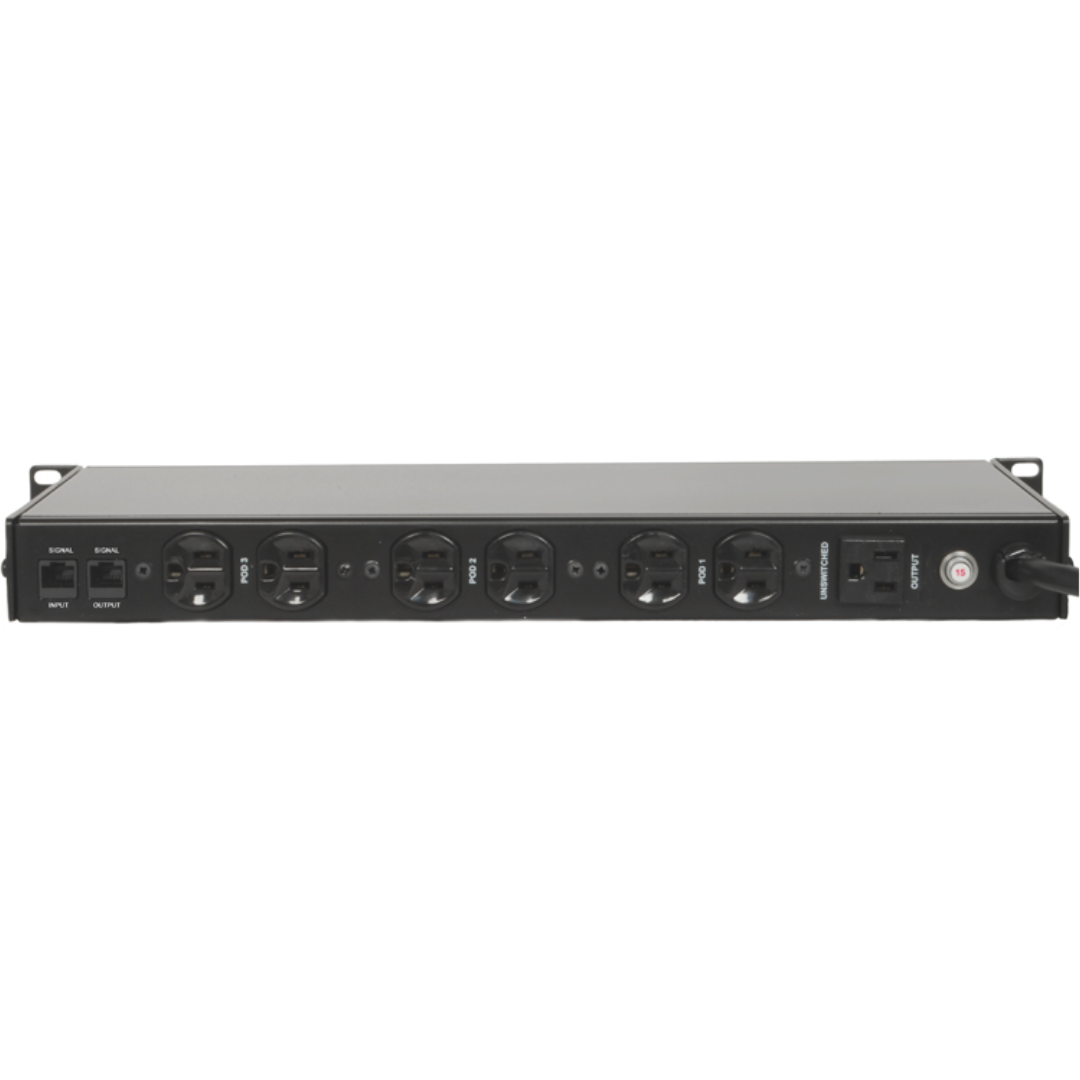

The Juice Goose CQ1515 brings intelligent power control to rack-mounted systems requiring up to 15 amps of current. Designed for front-of-house, AV, or control system use, it allows multiple devices to power on and off in a managed sequence — protecting equipment and reducing inrush current loads. The unit includes six sequenced NEMA 5/15R outlets and one unswitched outlet on the rear panel. Each pair of outlets (called a Power Pod) activates in order, with delay timing customizable via internal DIP switches. This makes the CQ1515 ideal for powering signal processors first, then amplifiers or other high-draw equipment later. Installation is flexible: the CQ1515 can act as a standalone device, be controlled via contact closure, or be linked to other Juice Goose CQ units using RJ-45 control cables. Its LED indicators provide clear real-time feedback on both sequencing and surge protection status. Reliable surge protection is provided by a triple MOV system across line and neutral with no ground contamination, offering 300 joules of protection and easy replacement if needed.

Model Features

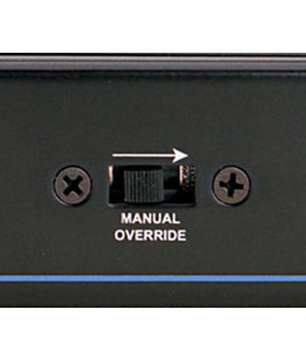

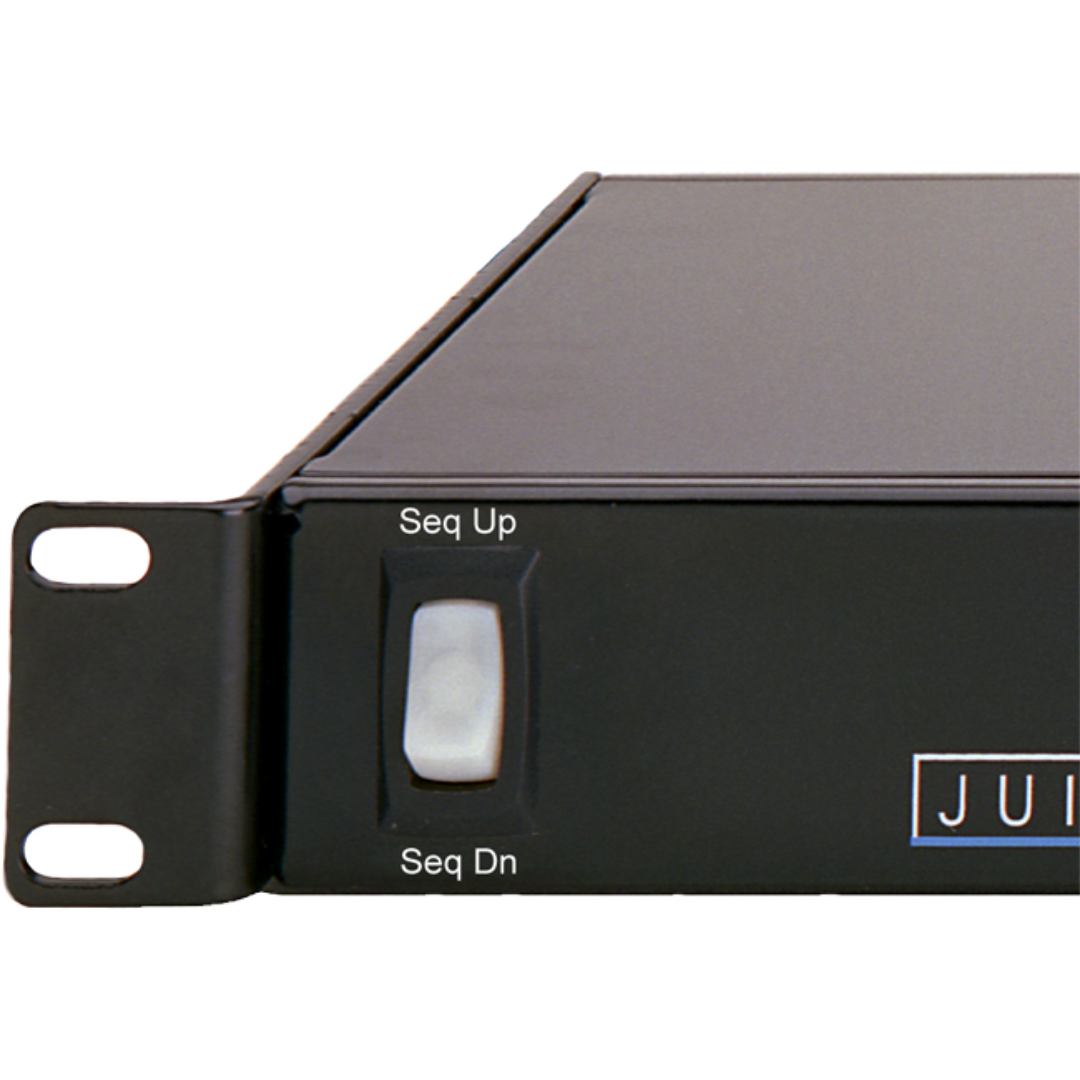

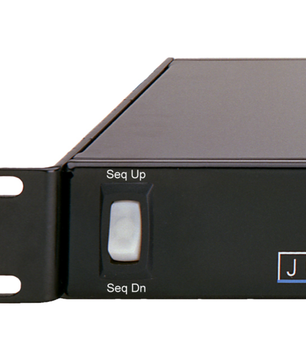

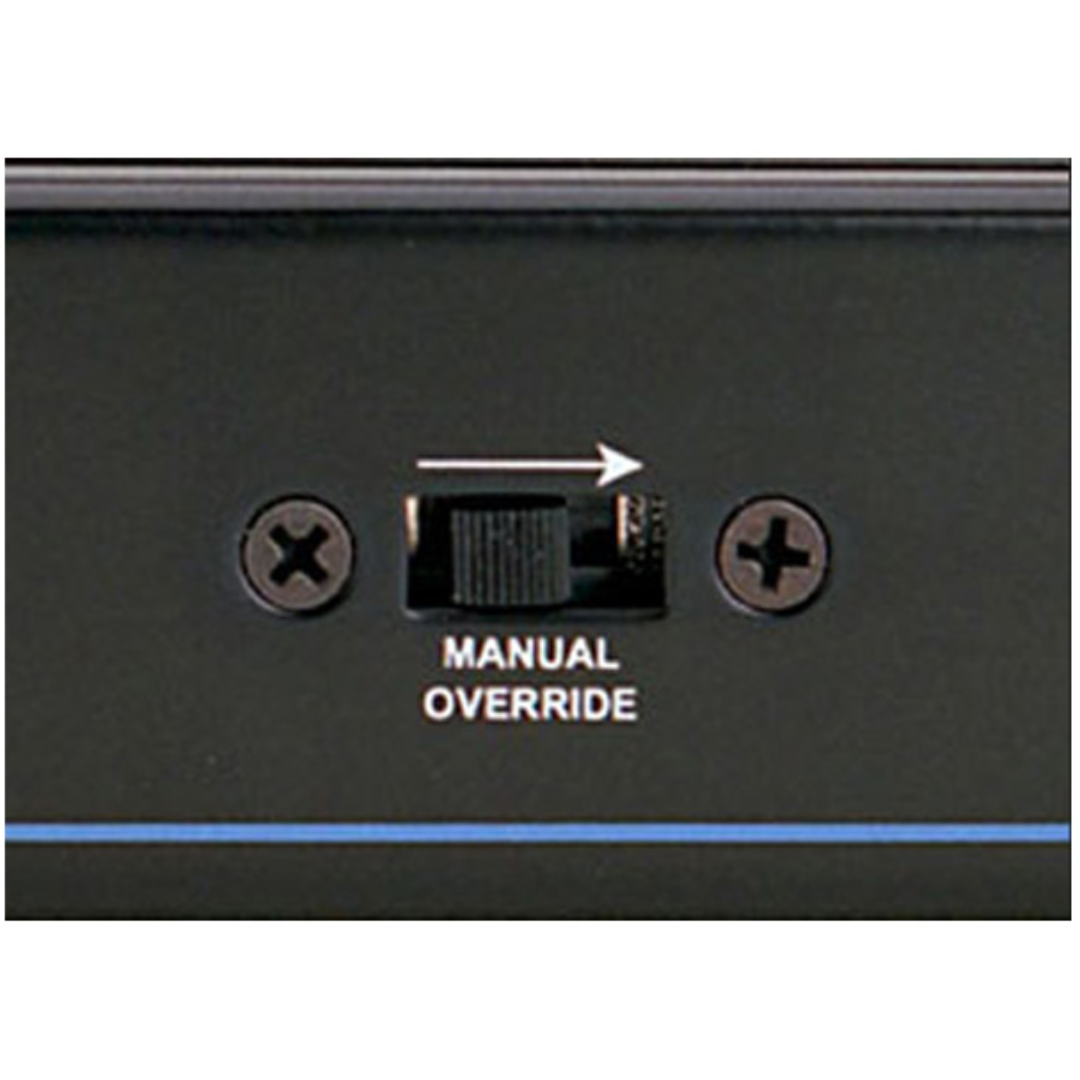

• Three-stage sequencing with front-panel switch and manual override
• 6 sequenced AC outlets + 1 unswitched outlet
• Selectable delay timing (2, 10, 20, or 30 seconds)
• Integrated, replaceable surge protection module
• Remote control via contact closure or daisy-chained CQ devices
• LED indicators for processor and output relay status

Model Specifications

• Max Output Current: 15A
• Surge Protection: Triple MOV, 300 Joules, 10,000A peak
• Sequence Events: 3
• Sequence Delay Options: 2, 10, 20, or 30 seconds
• Power Input: 7ft 14/3 SJ cable with NEMA 5/15P plug
• Power Output: 6 x NEMA 5/15R sequenced + 1 unswitched
• Input Voltage: 120V AC, 60Hz
• Signal Connections: RJ-45 (8-wire)
• Chassis Dimensions: 1.75 x 19 x 7 in
• Weight: 10 lb

What's In The Box

• Juice Goose CQ1515 unit
• Attached power cable with NEMA 5/15P plug
• User manual
