LD Systems MAILA EasyMount+ | Truss & Shackle Mount Adapter | 105 kg Load Capacity

Line Array Truss Mount Adapter

LD Systems MAILA EasyMount+ is a heavy-duty mounting adapter designed for flown MAILA array configurations. Built for truss or shackle suspension, it provides secure, DGUV Regulation 17-compliant rigging with tool-free installation and full 360° alignment—even under load.

Constructed from powder-coated steel, this mount serves as the foundation for suspended MAILA systems, attaching directly to the MAILA SPA or MAILA COL amplifier module for safe and efficient flown applications.

LD Systems MAILA EasyMount+ Competitive Differences

• DGUV Regulation 17 (BGV C1) compliant for professional flown use
• Tool-free installation to MAILA SPA or MAILA COL modules
• 360° rotation and alignment even under full system load
• Supports up to 8x MAILA SAT + 1x MAILA COL configuration

LD Systems MAILA EasyMount+ Description

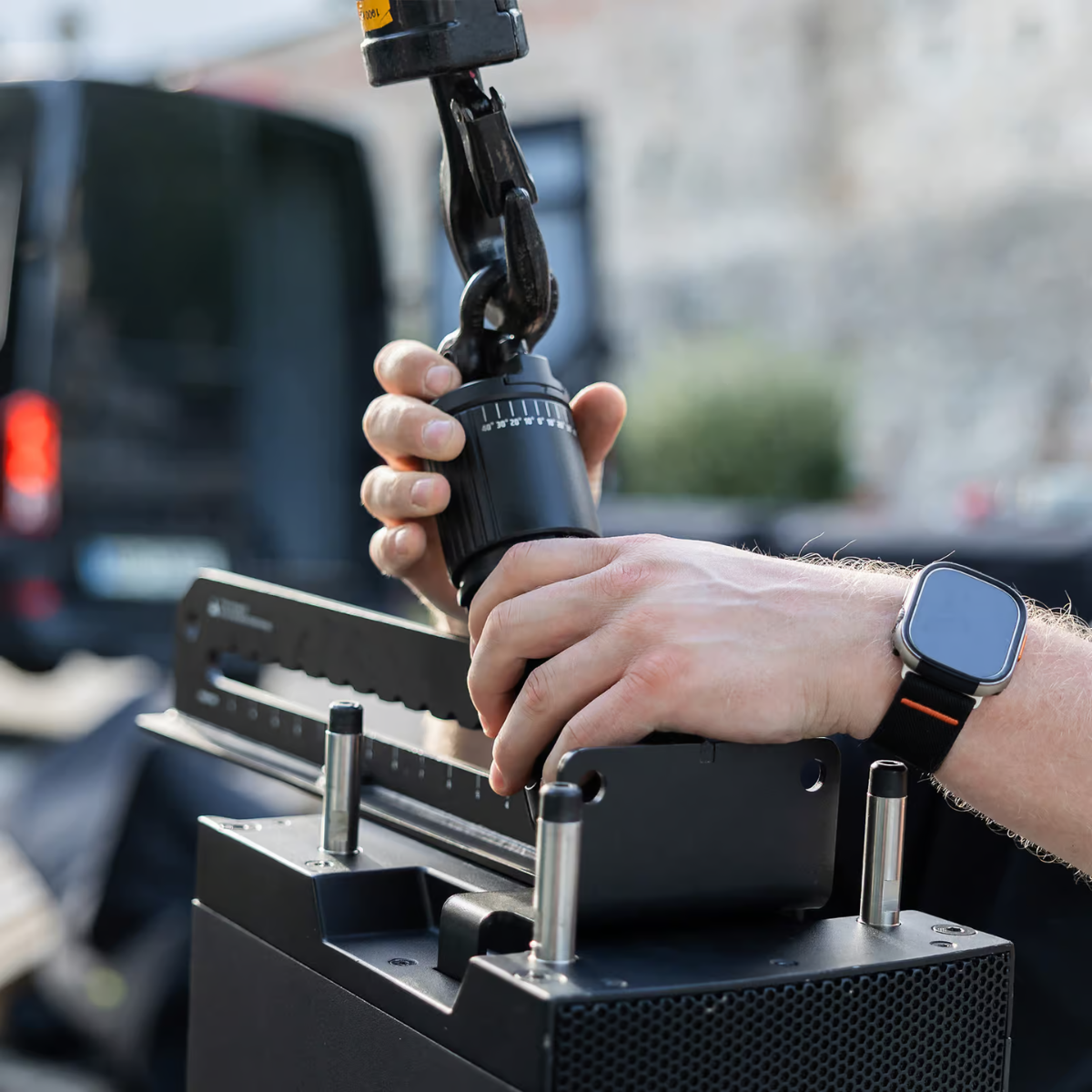

The LD Systems MAILA EasyMount+ is engineered to provide safe and flexible suspension for flown MAILA array systems. Designed for attachment to the MAILA SPA or MAILA COL amplifier module—the base of every flown MAILA configuration—it allows quick, tool-free assembly for streamlined event setup.

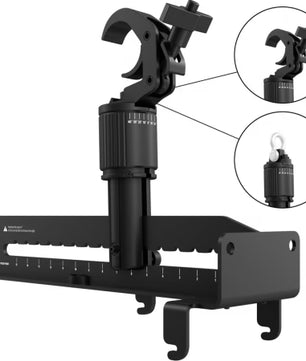

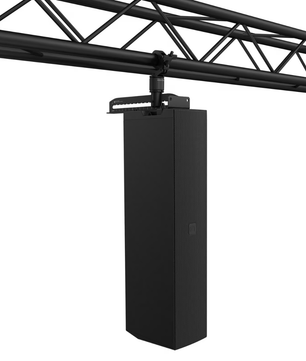

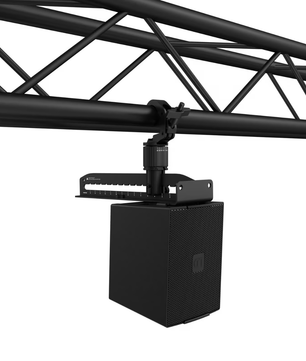

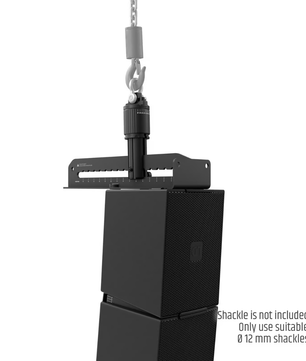

Built from robust steel with a durable powder-coated finish, the EasyMount+ meets DGUV Regulation 17 (BGV C1) standards for professional rigging applications. The included self-lock tube clamp enables secure truss attachment, while the supplied shackle bracket provides an alternative suspension method. (Note: A Ø 12 mm shackle is required but not included.)

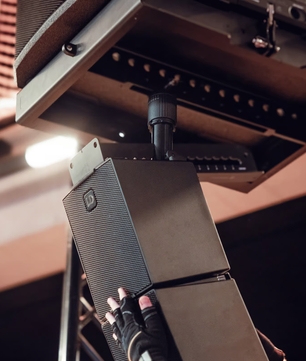

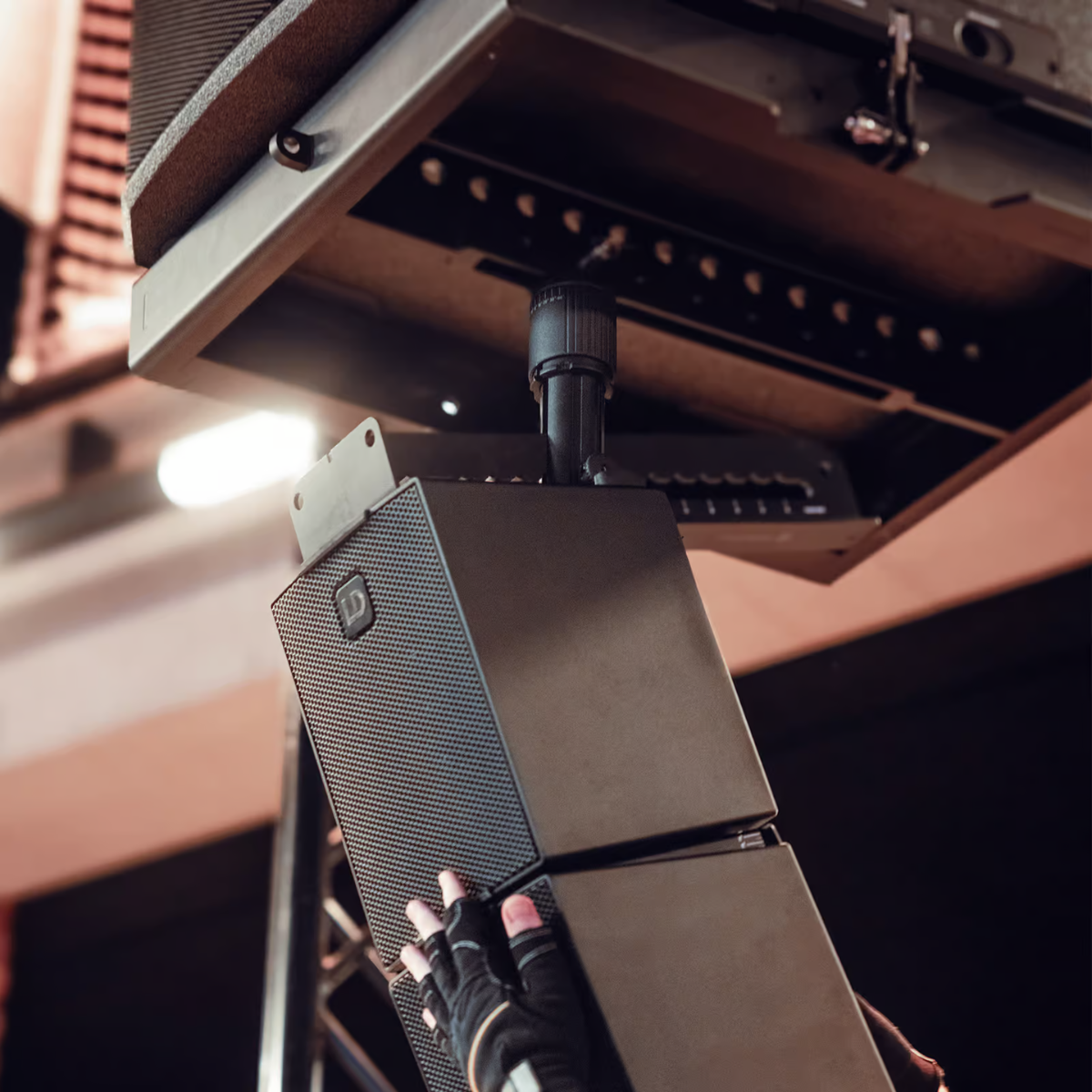

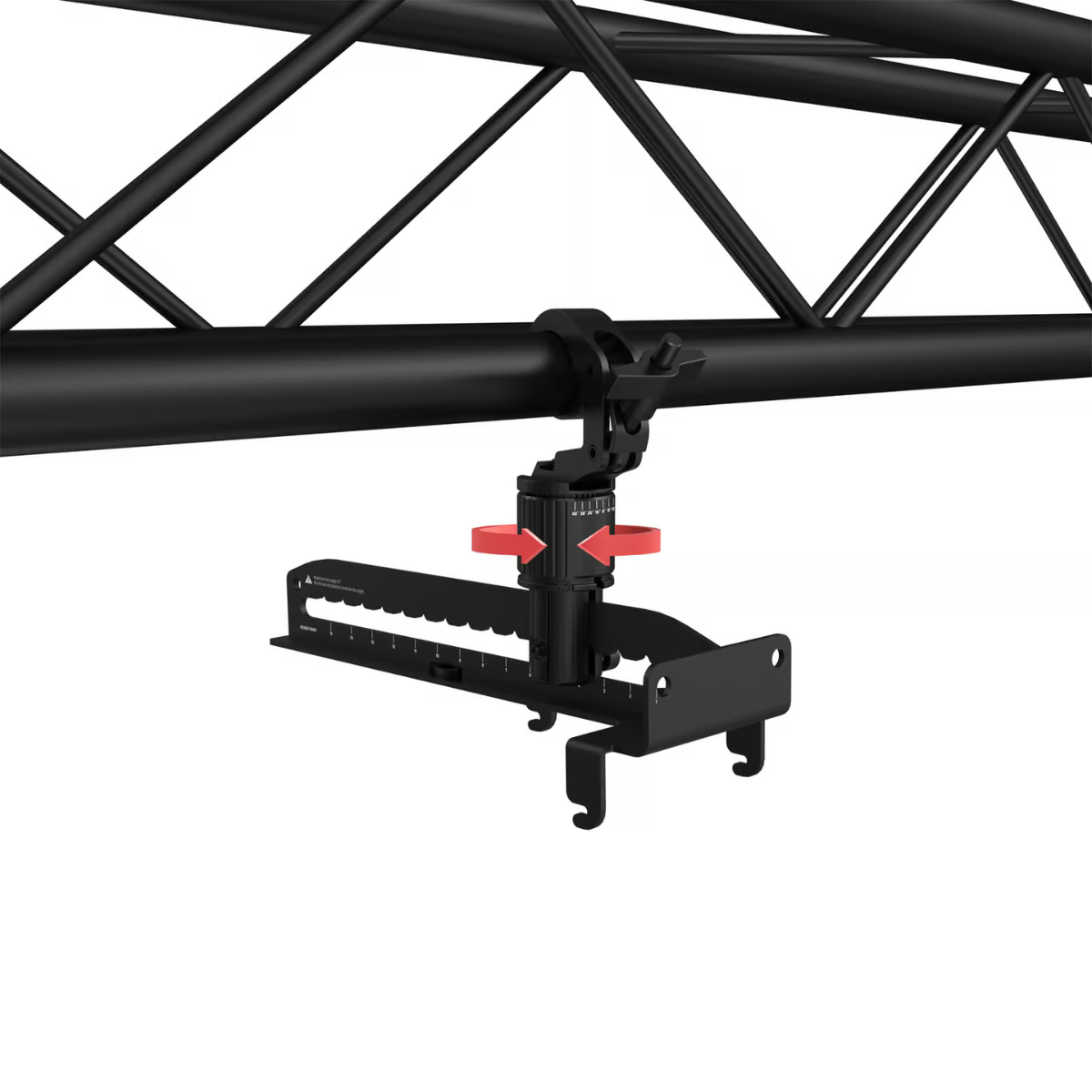

Once installed, the mount allows smooth 360° rotation for precise horizontal alignment—even under load with multiple MAILA SAT or MAILA COL modules attached. A clever collar mechanism secures vertical alignment and allows fast tilt adjustment, supporting up to a 15° tilt angle.

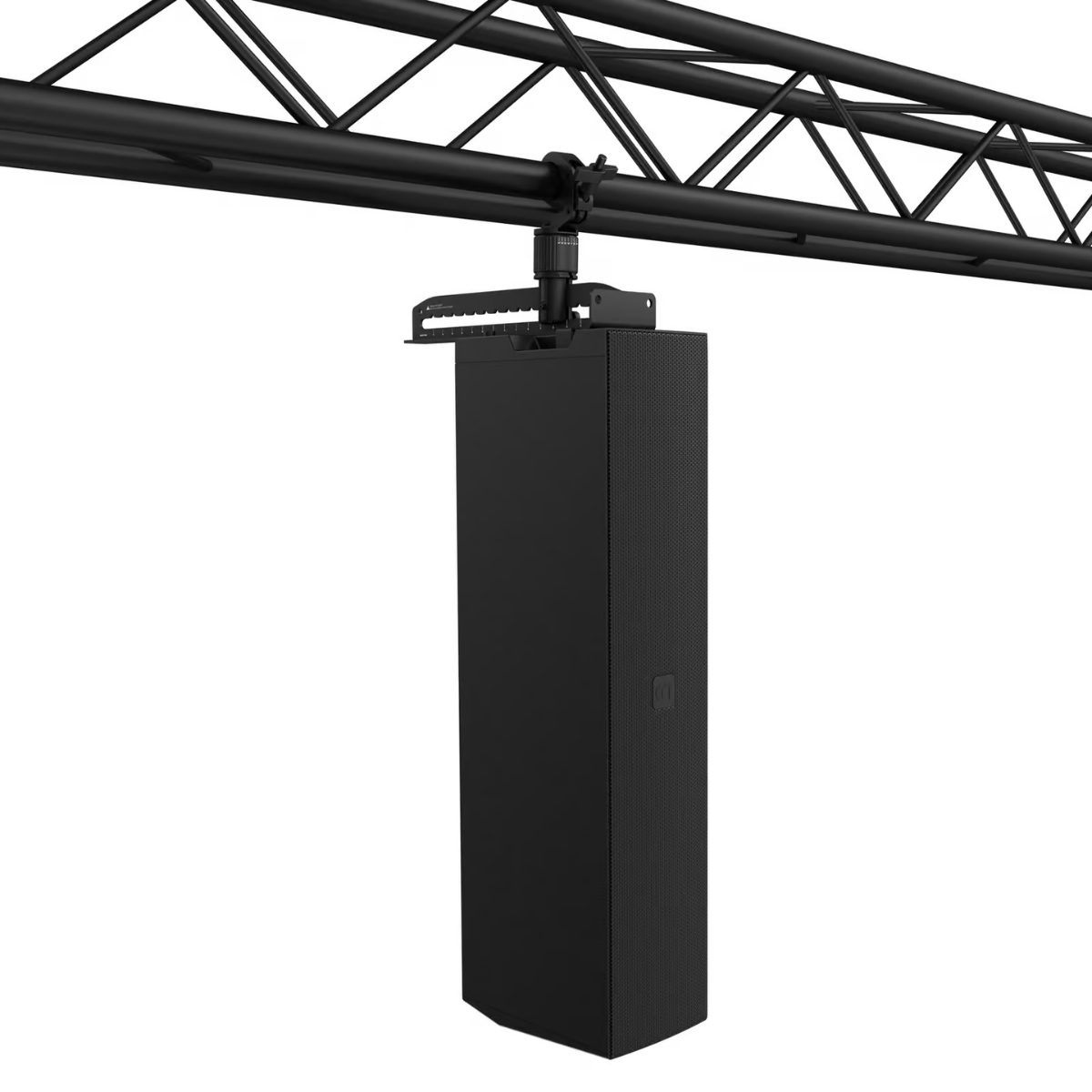

With a maximum load capacity of 105 kg, the EasyMount+ can support configurations of up to eight MAILA SAT modules plus one MAILA COL, making it ideal for professional touring, event production, and permanent installations requiring reliable flown array performance.

MAILA EasyMount+ Features

• Truss mount adapter for flown MAILA array systems

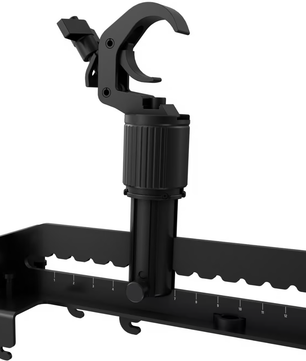

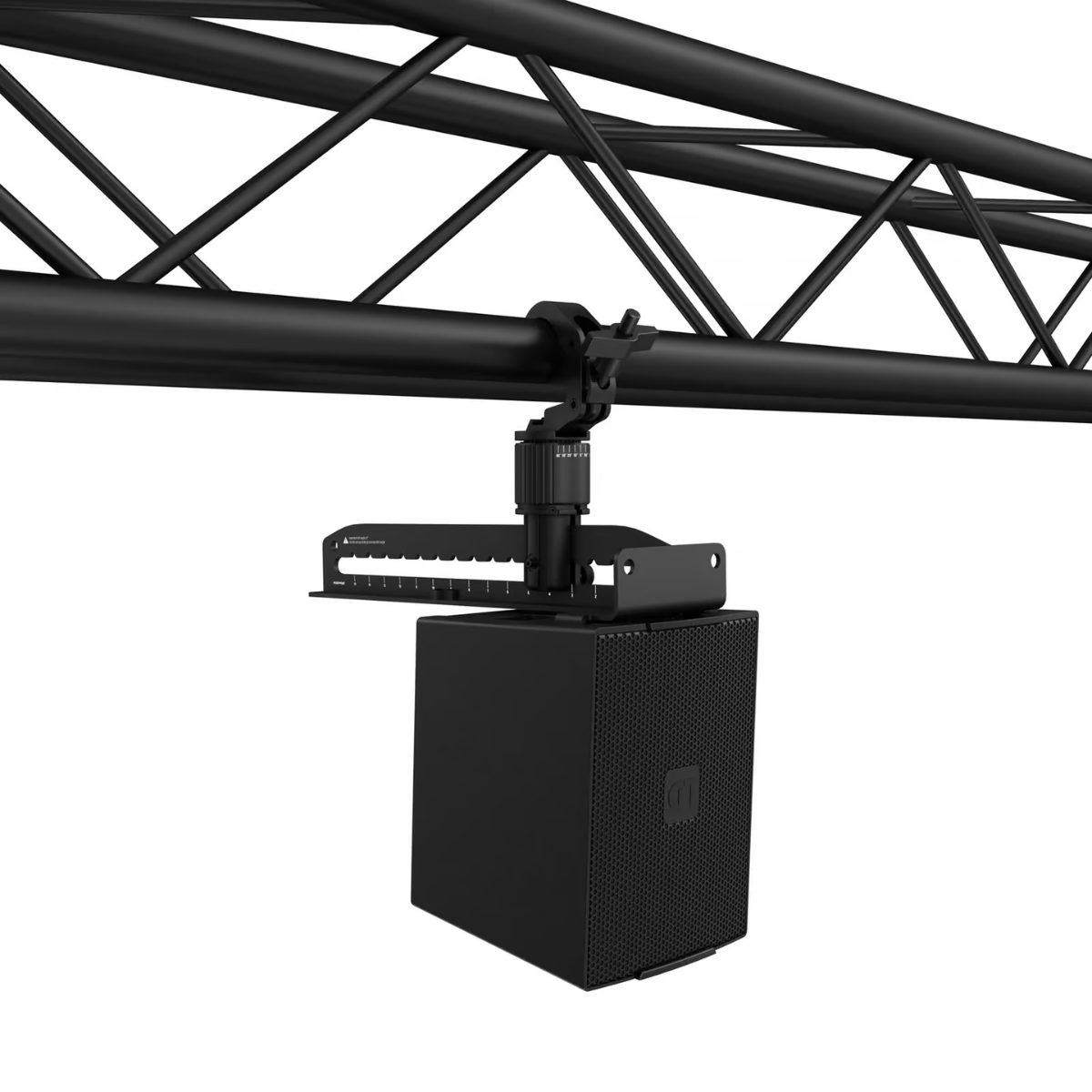

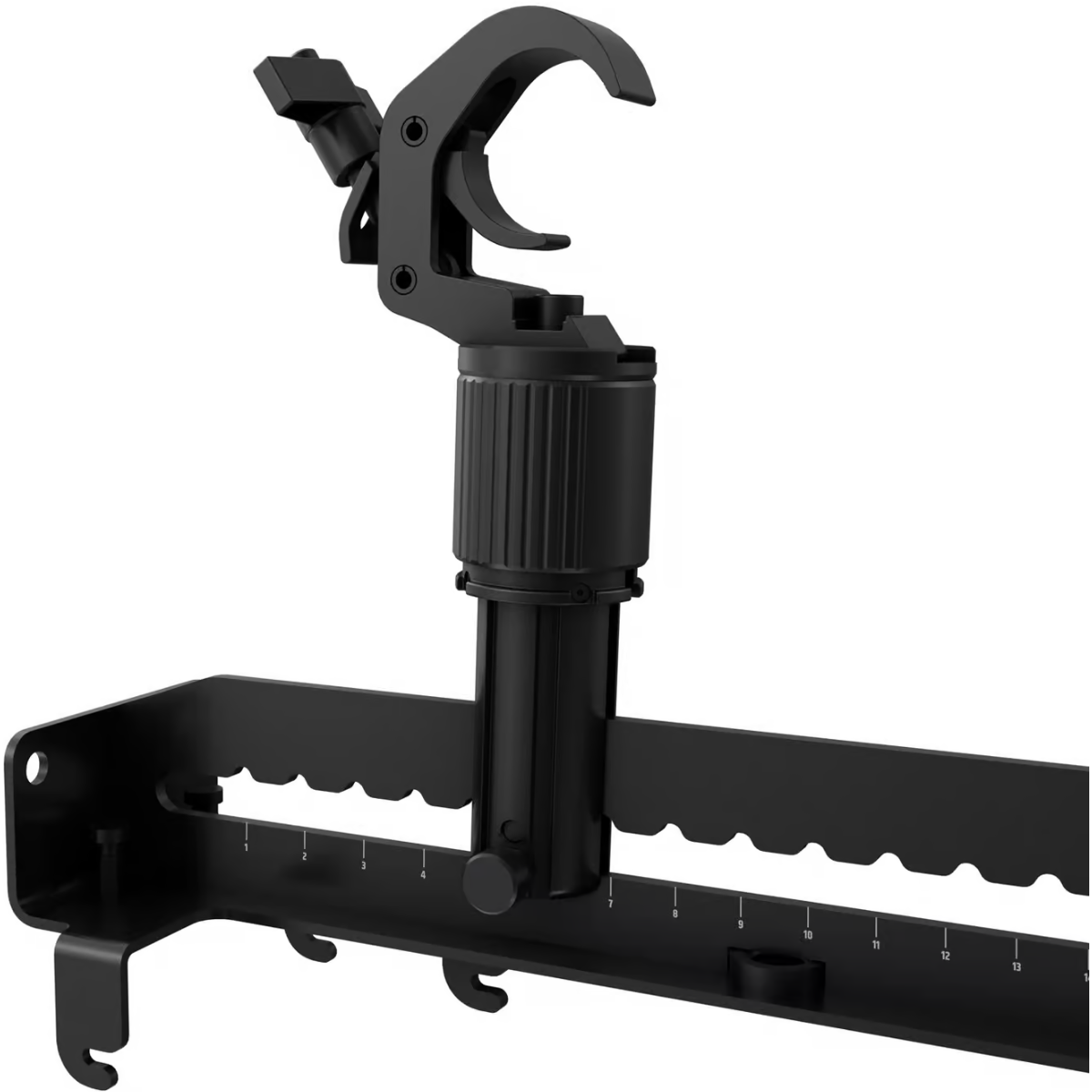

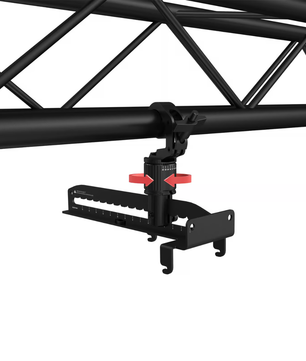

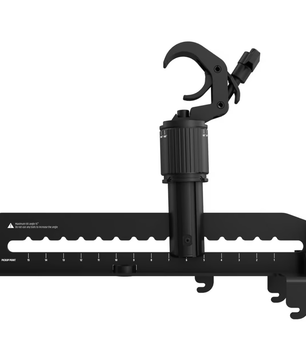

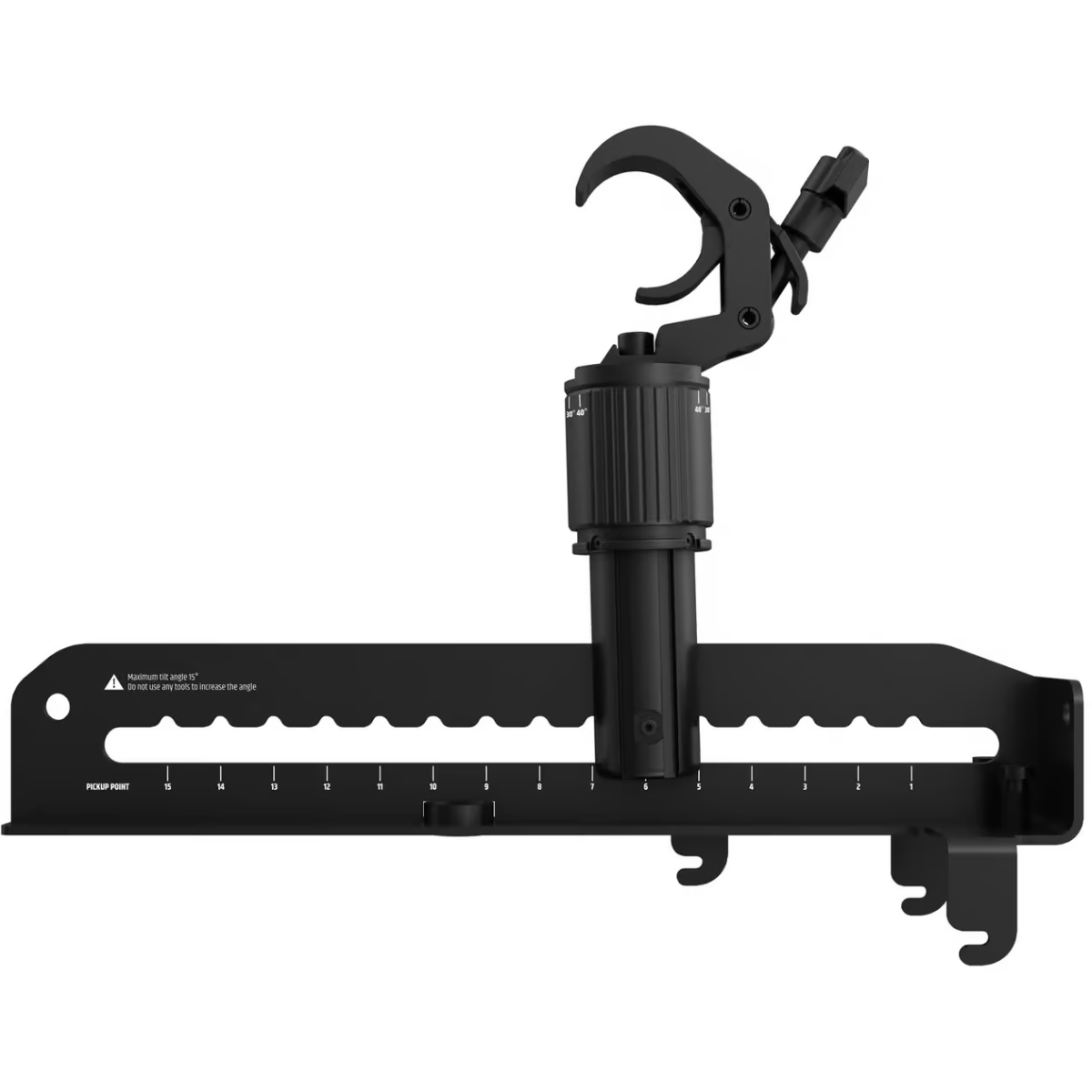

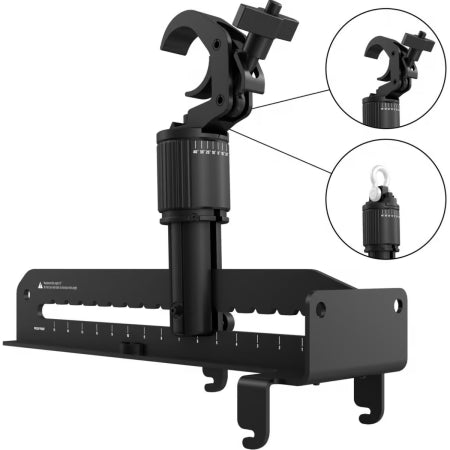

• Enables truss mounting via self-lock tube clamp

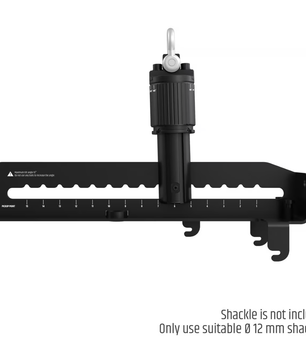

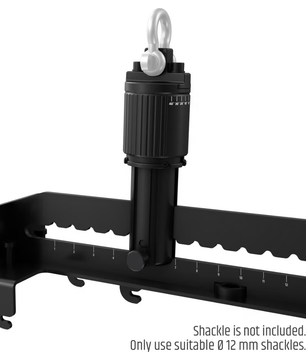

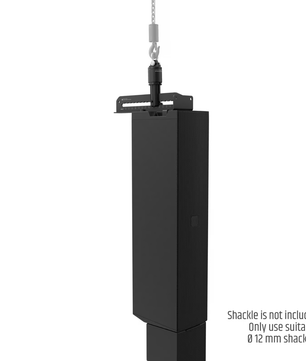

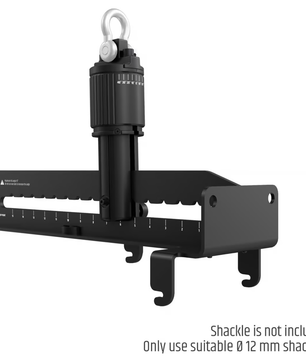

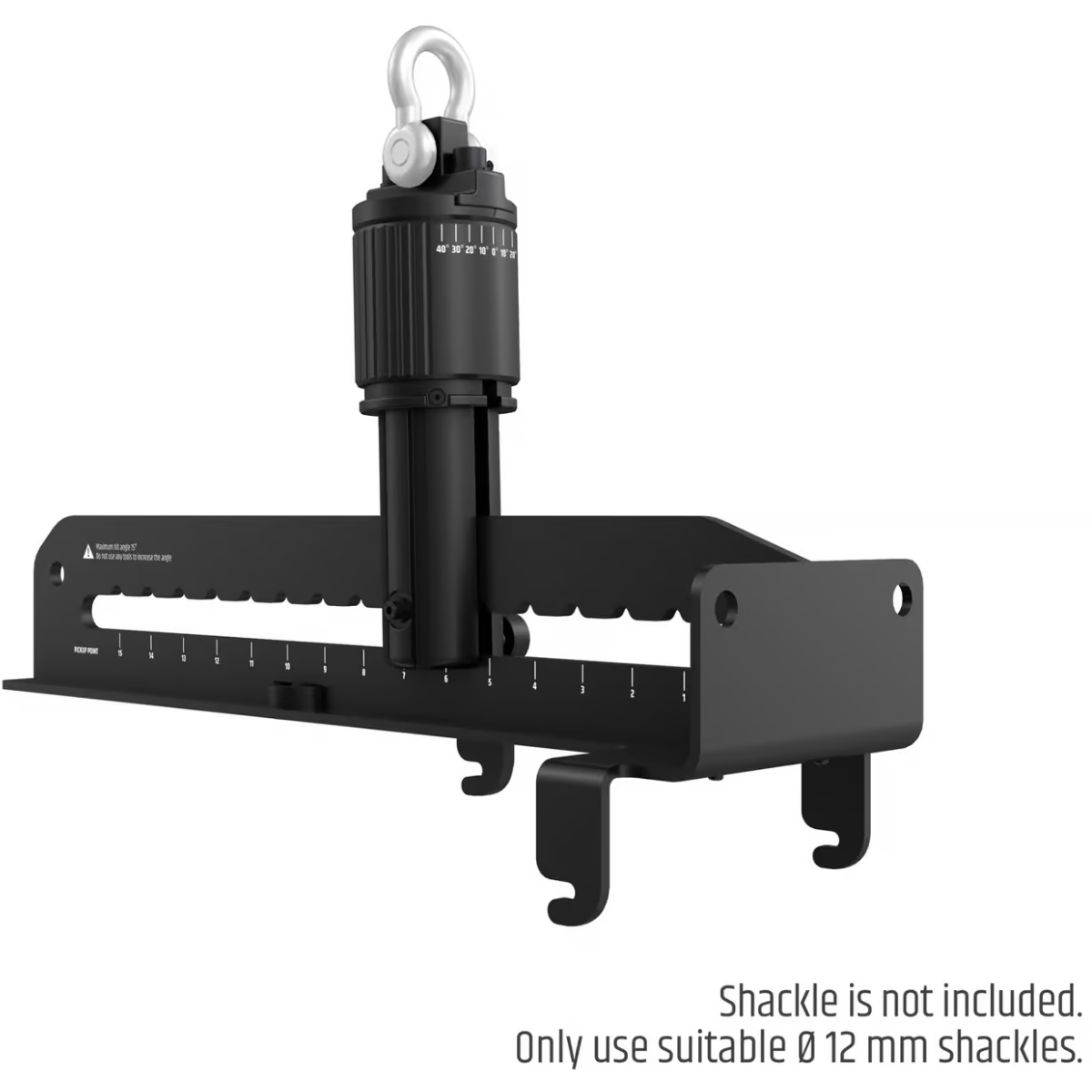

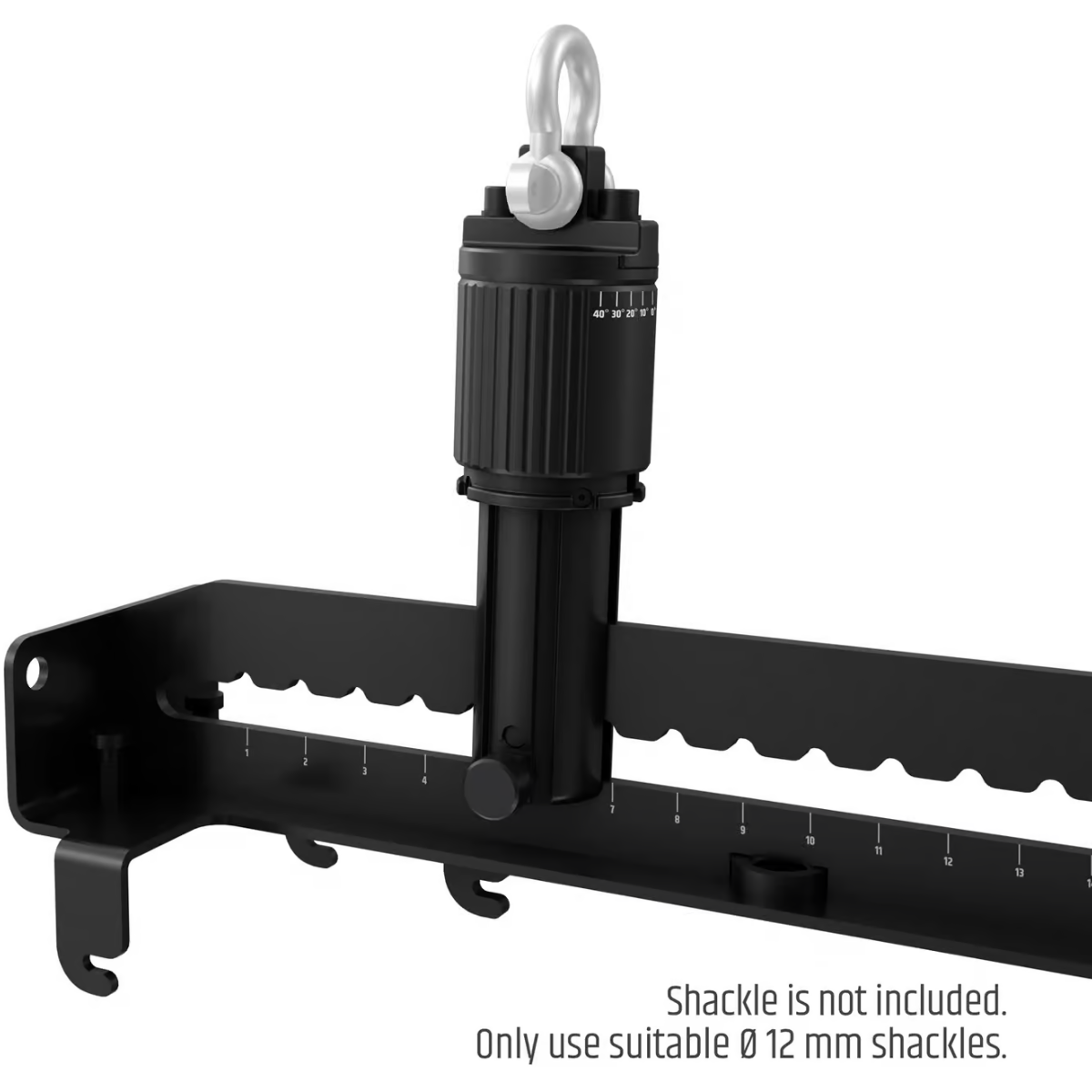

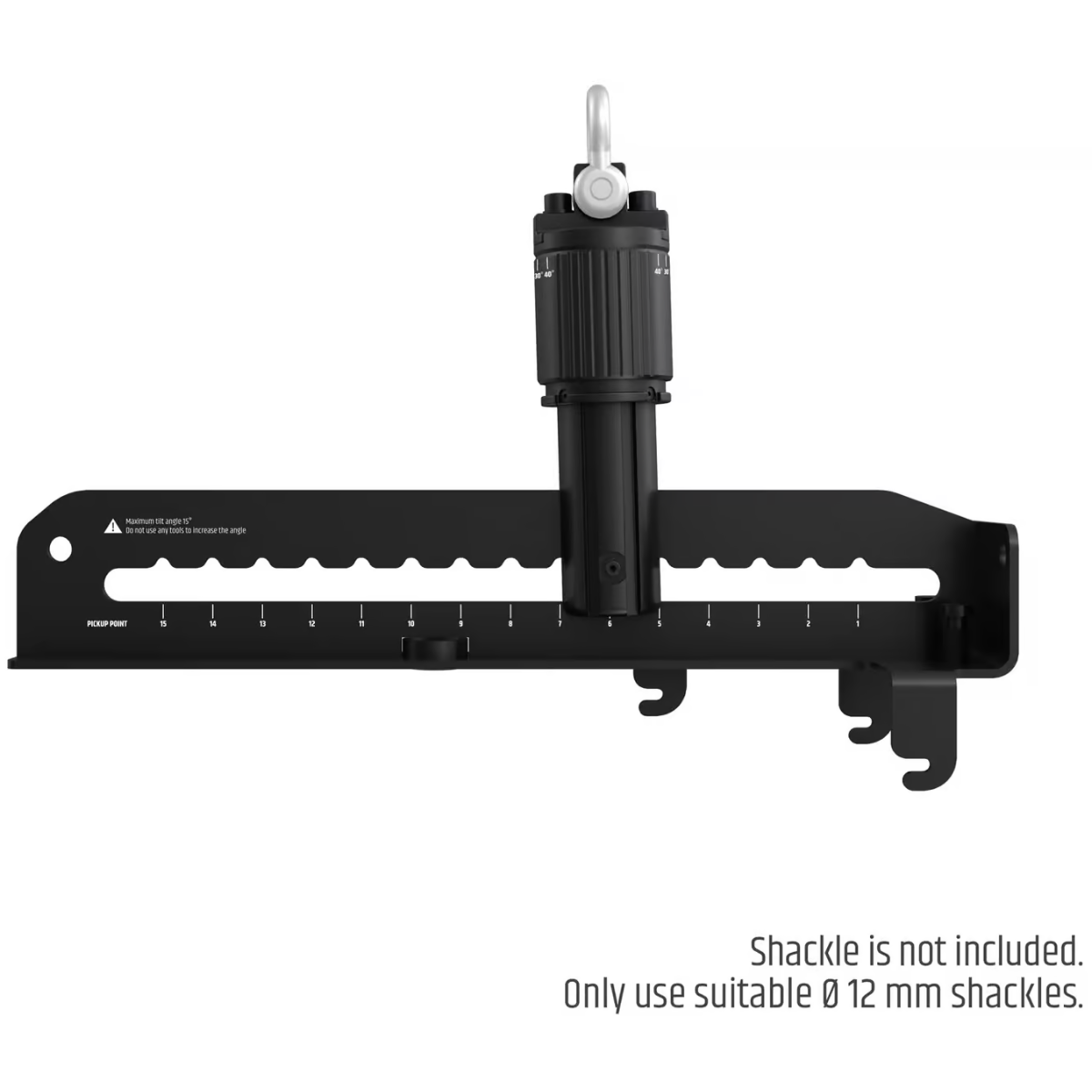

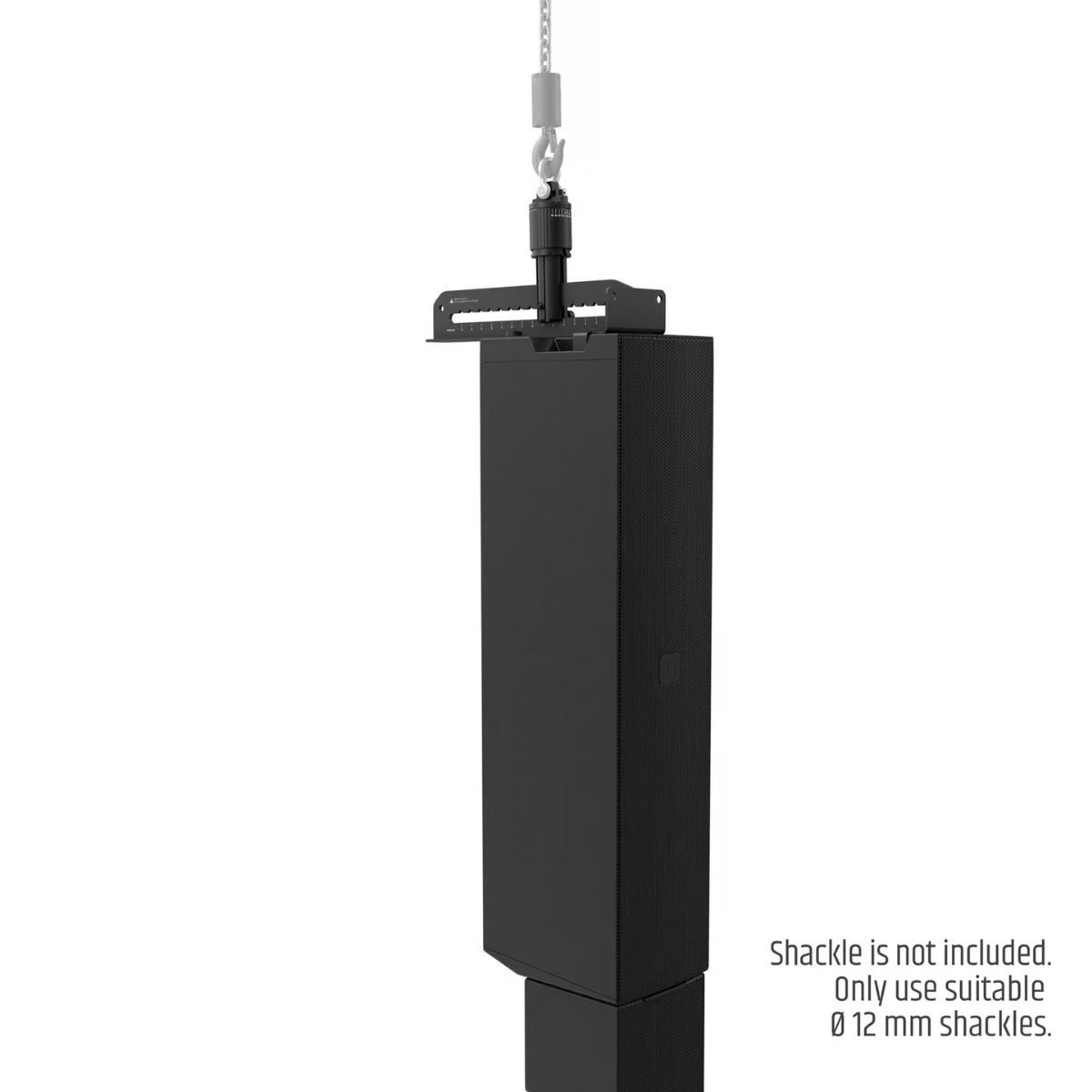

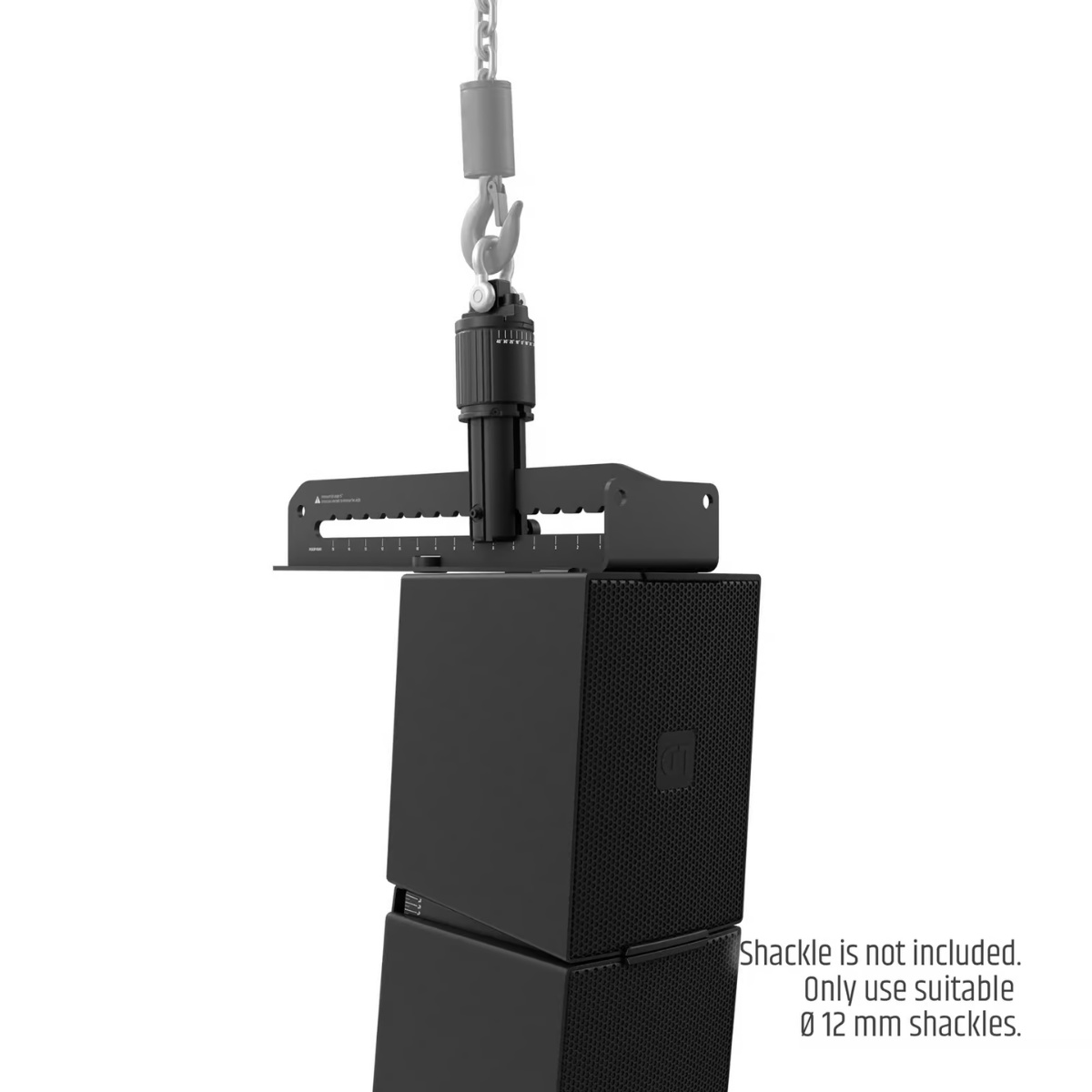

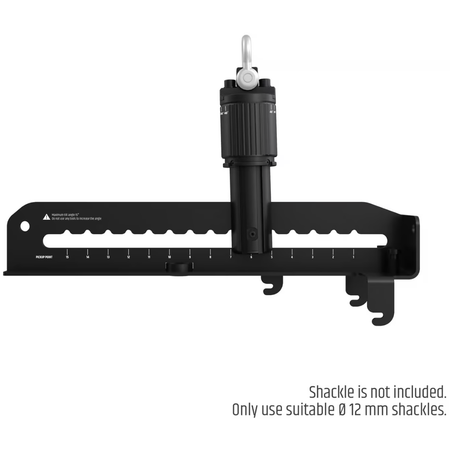

• Alternative shackle suspension option (Ø 12 mm shackle required, not included)

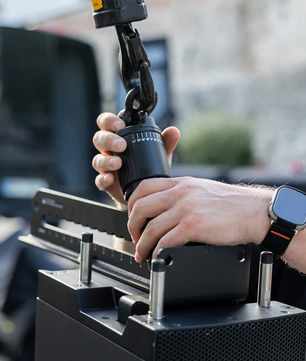

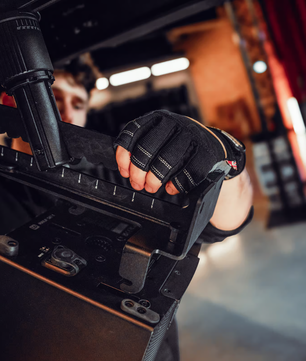

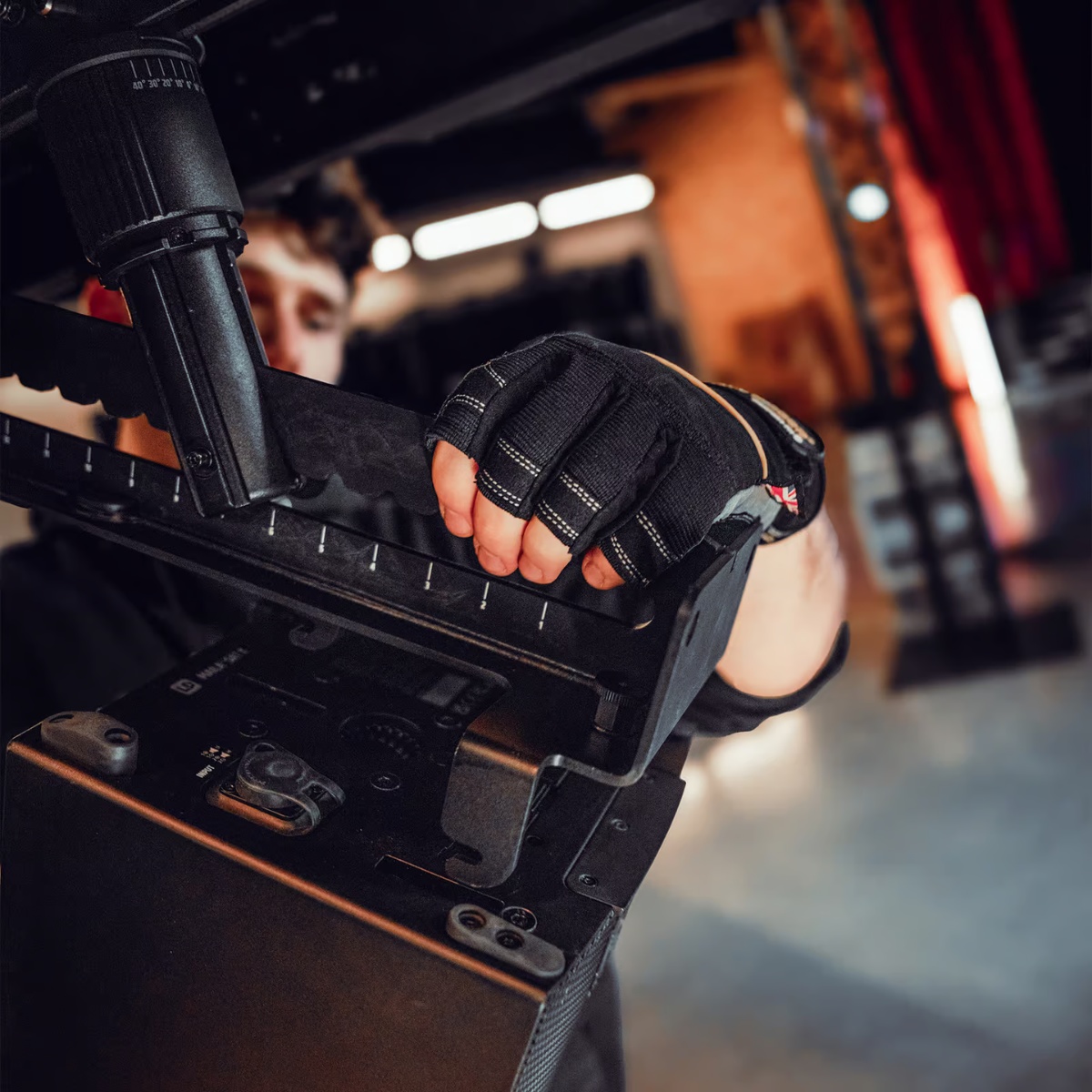

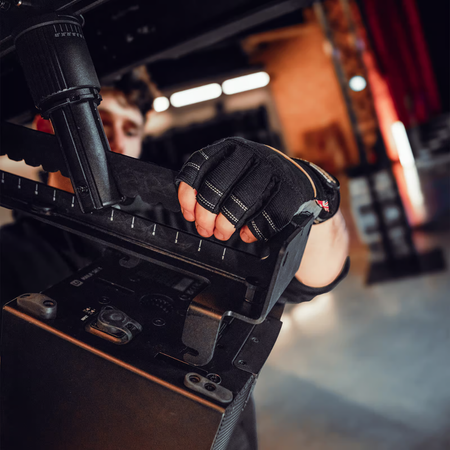

• Tool-free attachment to MAILA SPA or MAILA COL modules
• 360° rotation for precise system alignment
• Secure vertical alignment collar
• Maximum configuration: 8x MAILA SAT + 1x MAILA COL
• Maximum load capacity: 105 kg
• Steel construction with durable powder coating
• Conforms to DGUV Regulation 17 (BGV C1)

MAILA EasyMount+ Specifications

• Mounting Type: Clamp
• Maximum Load: 231.49 lb (105 kg)
• Tilt Angle: 15°
• Clamp Range: 1.38 in (35 mm)
• Material: Steel
• Coating: Powder coated
• Dimensions (W x H x D): 5.87 x 14.04 x 18.07 in (149 x 356.5 x 458.9 mm)
• Weight: 11.93 lb (5.41 kg)
• Color: Black

What's In The Box

• MAILA EasyMount+ mounting adapter
• Self-lock tube clamp
• Shackle bracket
