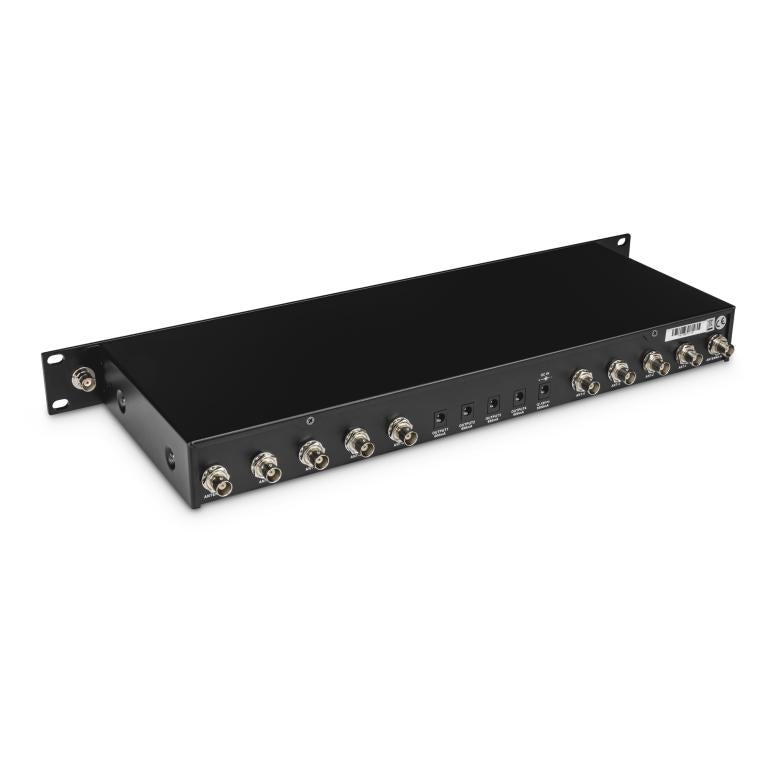

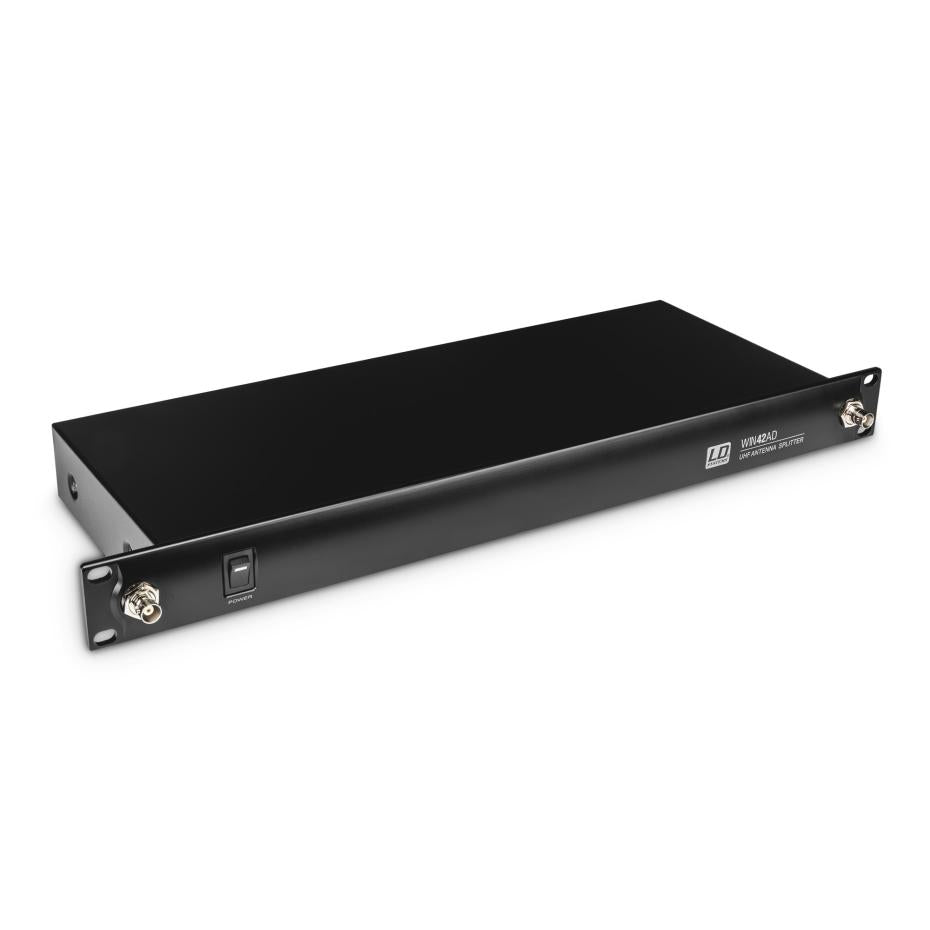

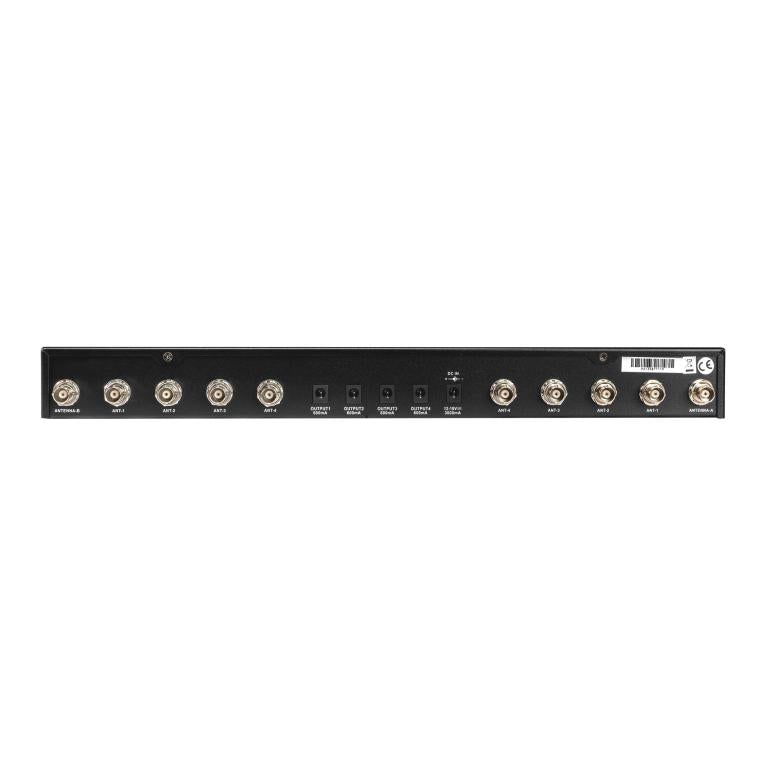

LD Systems WIN 42 AD | 4-way Antenna Split Box

LD Systems WIN 42 AD | 4-way Antenna Split Box

$399.99

Order within [hour] to get by [date_end]

Quantity

Pickup available at NJ Warehouse.

Usually ready in 1 hour

LD Systems WIN 42 AD | 4-way Antenna Split Box

NJ Warehouse

Pickup available, usually ready in 1 hour

238 U.S. 206
Byram Township NJ 07821
United States

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Antenna Split Box 4-way for all types of wireless microphone systems working in a range between 500 and 900 MHz.

SPECIFICATIONS:

General
Product type Wireless Microphone System Accessories
Type Antenna Splitter
Frequency band 500 - 900 MHz
Frequency bandwidth 400 MHz
Signal gain 3 dB
Antenna inputs 2
Antenna input connection BNC
Input impedance 50 Ohm(s)
Power supply for antenna booster 9 V
Antenna outputs 4 x 2
Antenna output connection BNC
Output impedance 50 Ohm(s)
Power supply for radio receiver 4 x 12 - 18 V DC V
Operating voltage 12 - 18 V DC, 3A
Operating voltage 12 V DC - 18 V DC (100 mA)
Width 482 mm
Height 44.4 mm
Depth 160 mm
Weight 4,672 kg
Accessories (included) 10 x BNC Kabel, 0.5m, 2 x BNC adapter, 4 x DC cable, 0.5m, 4 x Output 600 mA, Plastic case, Power supply
