48V Power Driver for Prisma Mini Fixtures

The Magmatic Prisma Driver 8 is a compact and rugged DMX driver system designed to power and control up to eight Prisma Mini UV LED fixtures simultaneously. Built for easy integration into architectural, entertainment, and installation environments, it offers precision dimming control, versatile mounting options, and robust connection interfaces.

Magmatic Prisma Driver 8 Competitive Differences

Supports up to 8 Prisma Mini UV fixtures with individual DMX control
Onboard 4-button interface with multiple dimming and delay modes

Magmatic Prisma Driver 8 Description

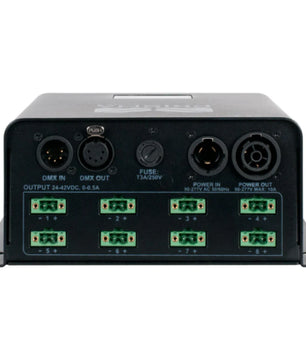

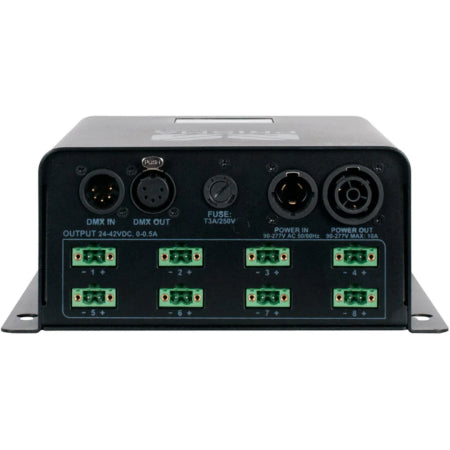

The Prisma Driver 8 serves as the central power and control hub for Magmatic's Prisma Mini series, including the Prisma Mini Par 20, Prisma Mini Par 45, and Prisma Mini Bar 20. It delivers a steady 48VDC power supply with up to 8.3 amps and allows for individual DMX control of each connected fixture via eight 2-pin bare wire terminal blocks. Engineered for both performance and durability, the unit is housed in a rugged aluminum enclosure and includes keyhole slots for secure wall or surface mounting. The onboard interface provides manual control and setup via a 4-button panel, while DMX-512 and RDM protocol support ensures compatibility with most lighting control systems. Its compact footprint and locking connectors for both power and DMX in/out make it ideal for touring setups, permanent installations, or any application requiring reliable UV fixture control.

Model Features

48VDC driver for up to 8 Prisma Mini fixtures
Individual DMX-512 control with multiple dimming/delay modes

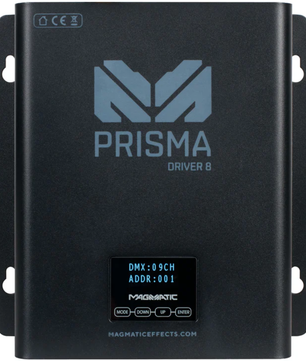

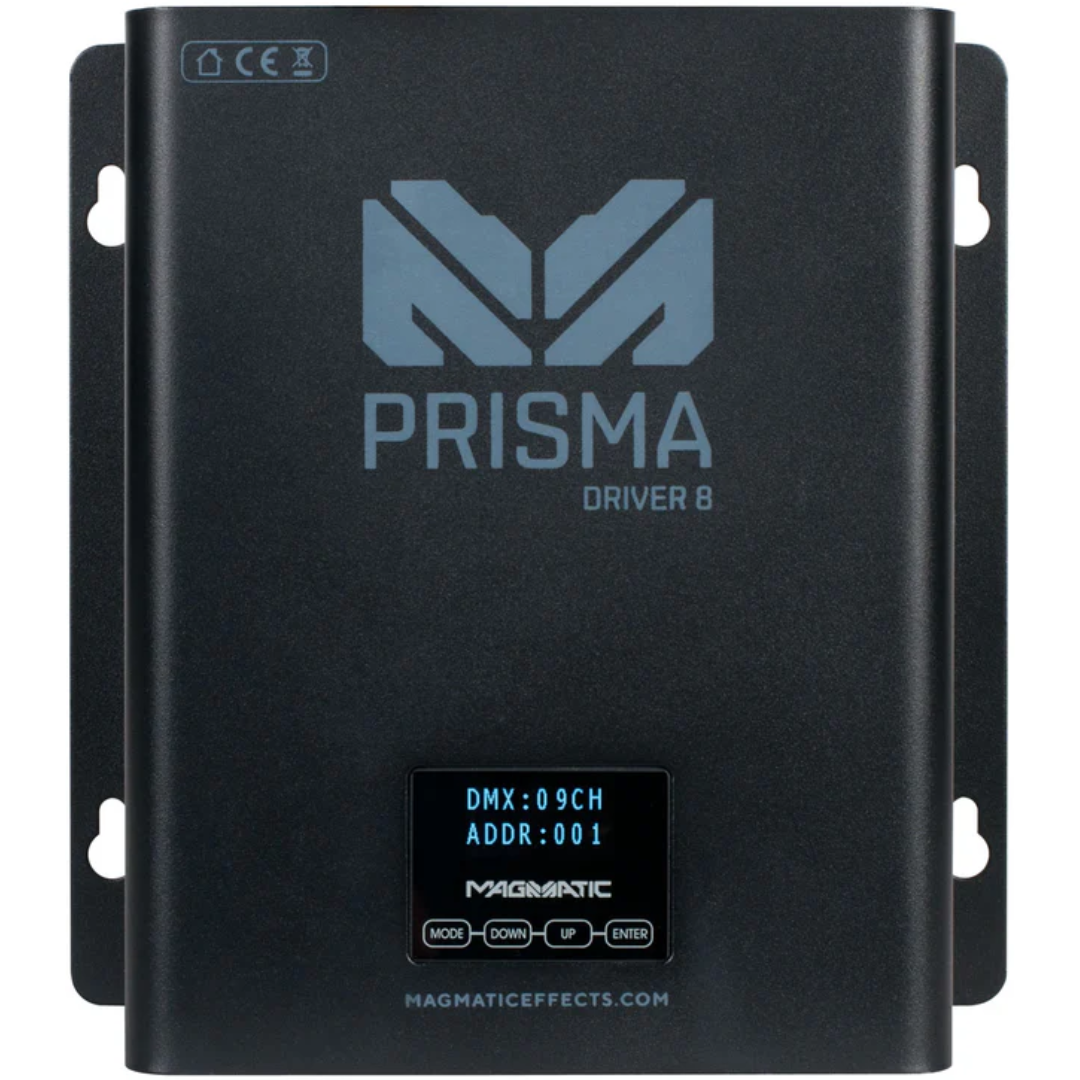

Onboard 4-button control interface

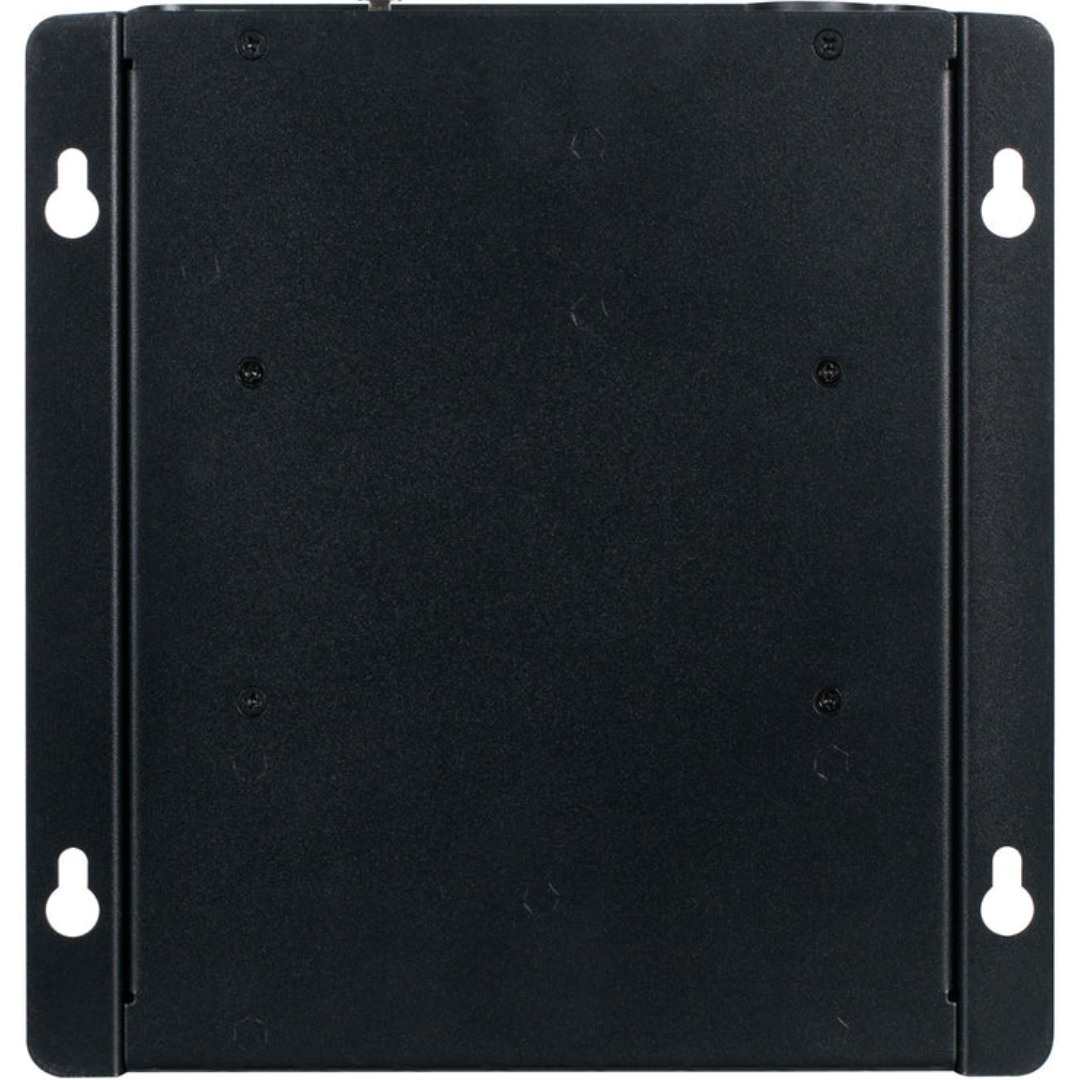

Rugged aluminum housing with surface mounting slots
Locking power and 5-pin DMX XLR connectors

Model Specifications

Power Output: 48VDC, 8.3A (167W Max)
Input Voltage: 100–240V AC, 50/60Hz
Control Protocols: DMX-512, RDM, Manual
DMX I/O: Locking 5-pin XLR
Fixture Outputs: 8x 2-pin bare wire terminals
Dimensions: 8.9 x 8.4 x 3.5 in (225 x 212 x 88 mm)
Weight: 5.7 lb (2.6 kg)
Operating Temp: 14°F to 113°F (-10°C to 45°C)
Certifications: CE, cETLus | IP Rating: IP20

What's In The Box

Prisma Driver 8 unit
Mounting hardware
User instructions
