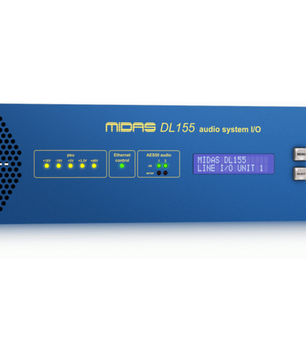

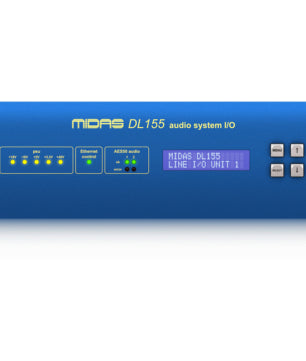

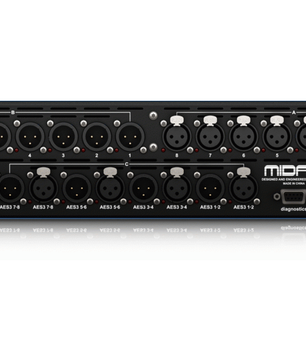

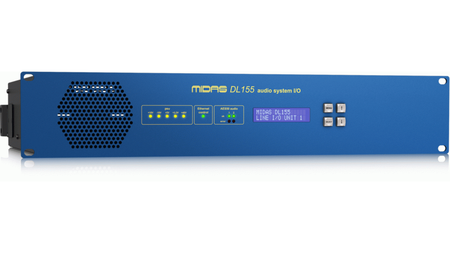

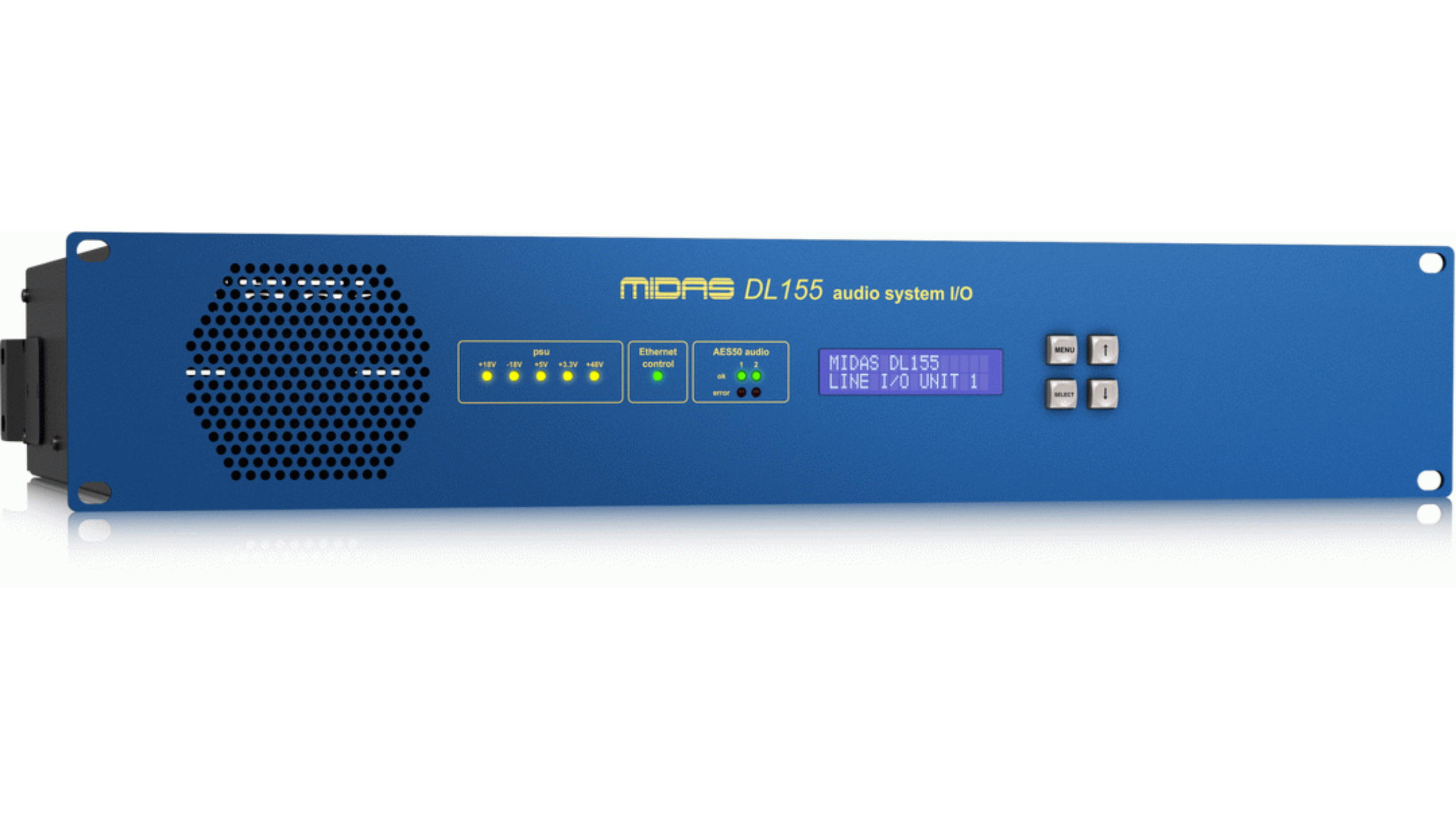

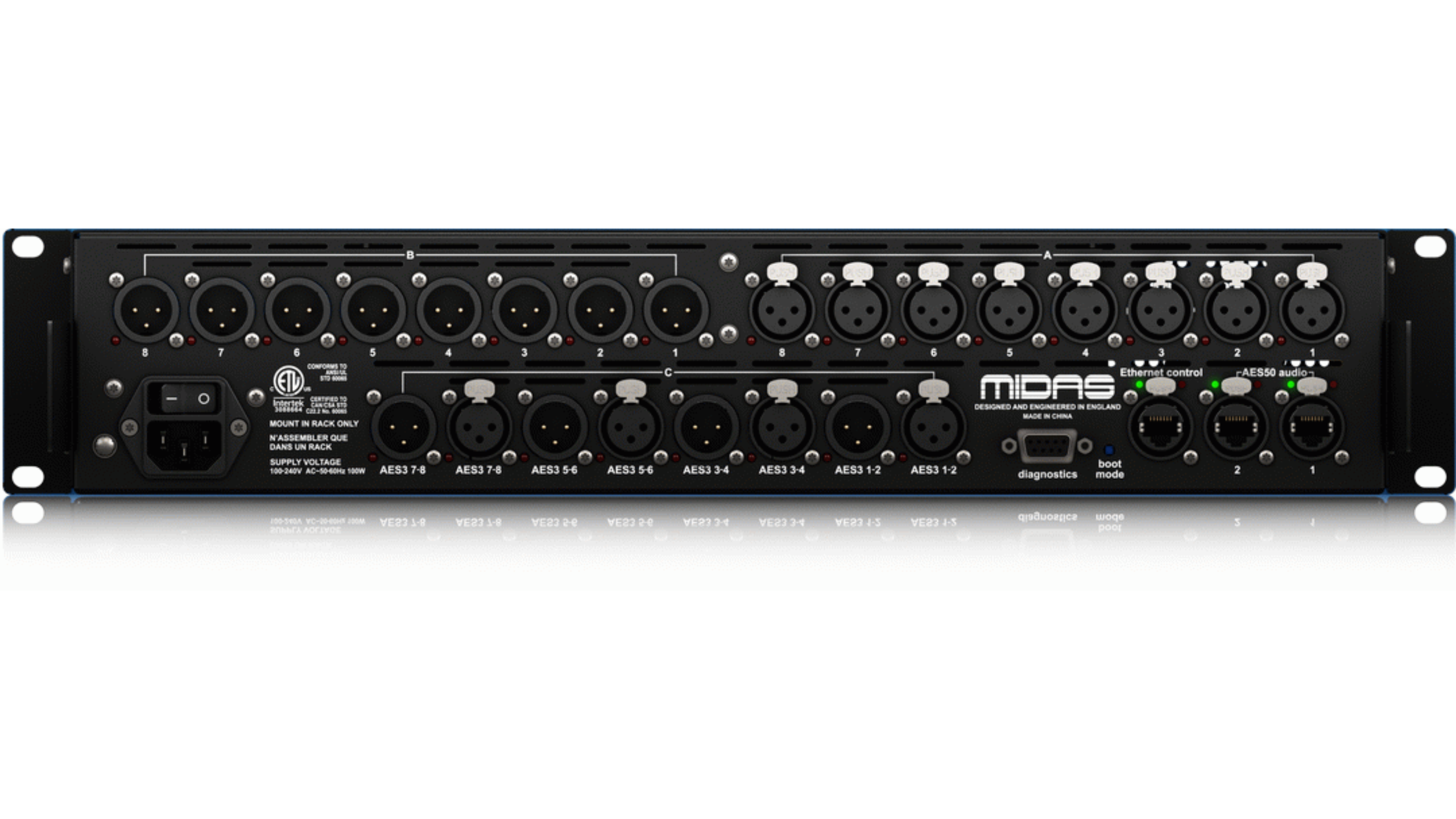

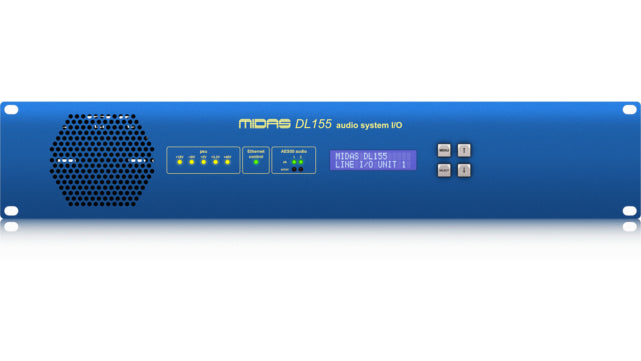

Midas DL155 | 16x16 AES3 Stage Box | 96kHz Remote I/O via CAT5

Digital Stage Box

Midas MDS-DL155 is a high-performance 16-input, 16-output digital stage box designed for seamless integration into digital audio networks. Perfect for live sound reinforcement and studio applications, this unit delivers reliable, high-fidelity audio transfer over long distances using standard CAT5/5e cable. Its compact form factor and rugged construction make it a versatile solution for touring and permanent installs alike.

Midas MDS-DL155 Competitive Differences

• 8 AES3 (AES/EBU) digital input and output pairs
• Remote operation up to 100 meters via CAT5/5e

Midas MDS-DL155 Description

Built with professional audio standards in mind, the Midas MDS-DL155 offers precise and transparent signal transmission using AES3 digital audio formats. Each channel pair supports high-resolution digital audio, with sample rate options of 48kHz or 96kHz to suit a range of system requirements. The unit features 8 AES3 digital input pairs and 8 AES3 digital output pairs, equating to 16 channels in and 16 channels out. In addition, it provides 8 electronically balanced low-impedance analog line outputs, giving you analog connectivity alongside digital flexibility. Housed in a durable metal enclosure, the DL155 is rack-mountable and road-ready. Its remote-control capabilities over Ethernet make it an ideal partner for Midas consoles or other AES50-compatible systems. Whether you’re running FOH in a live venue or routing digital signals in a broadcast setting, the DL155 brings both simplicity and power to your workflow.

Model Features

• 16x16 channel digital I/O via 8 AES3 (AES/EBU) pairs
• 8 electronically balanced analog line outputs
• Selectable 96kHz or 48kHz sample rate
• Remote operation up to 100m using standard CAT5/5e cable

Model Specifications

• Max SPL: N/A (digital device)
• Power Output: N/A
• Dimensions: 18.9 x 14.8 x 3.5 in (48.3 x 37.6 x 8.8 cm)
• Weight: 15.2 lb (6.9 kg)
• UPC: N/A

What's In The Box

• Midas MDS-DL155 stage box
• Power cable
• Quick start guide
