Pioneer DJ DJM-A9 | 4‑Channel DJ Mixer | Bluetooth, Dual USB & FX Suite
4-Channel Professional DJ Mixer

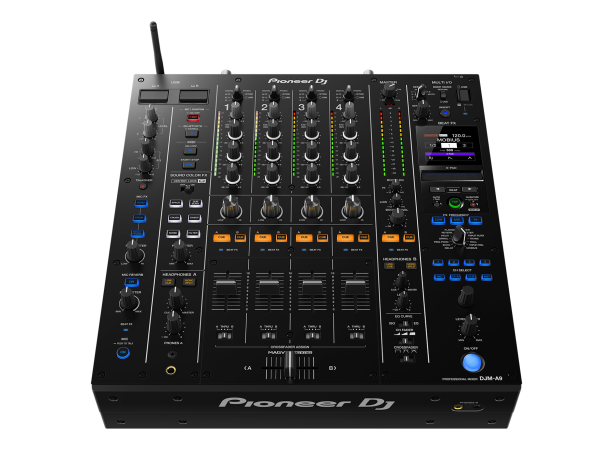

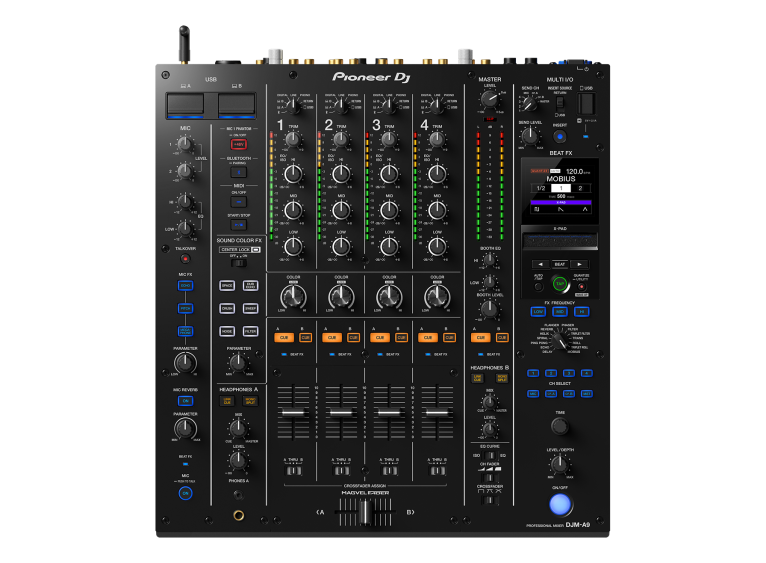

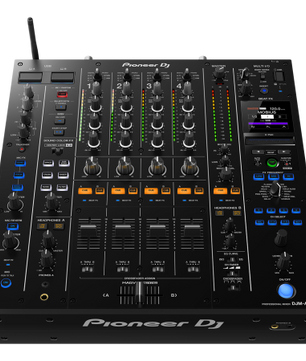

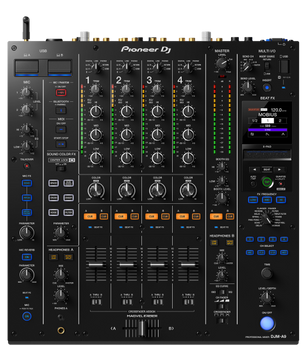

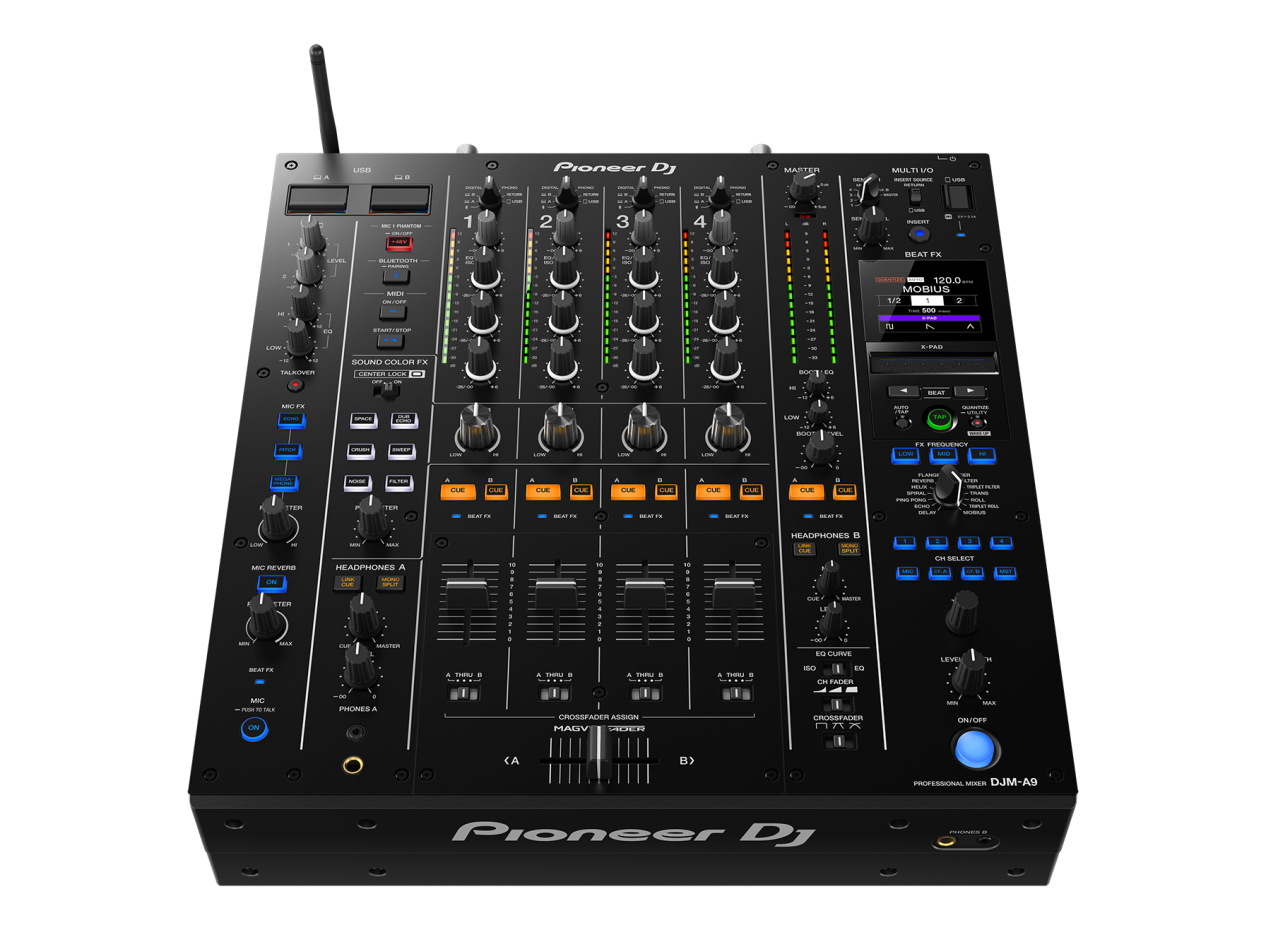

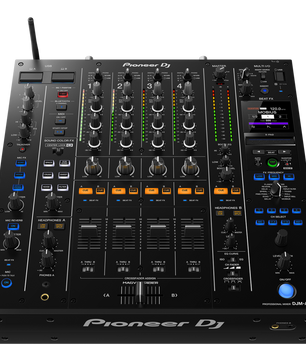

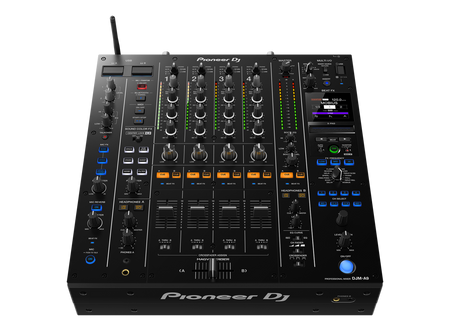

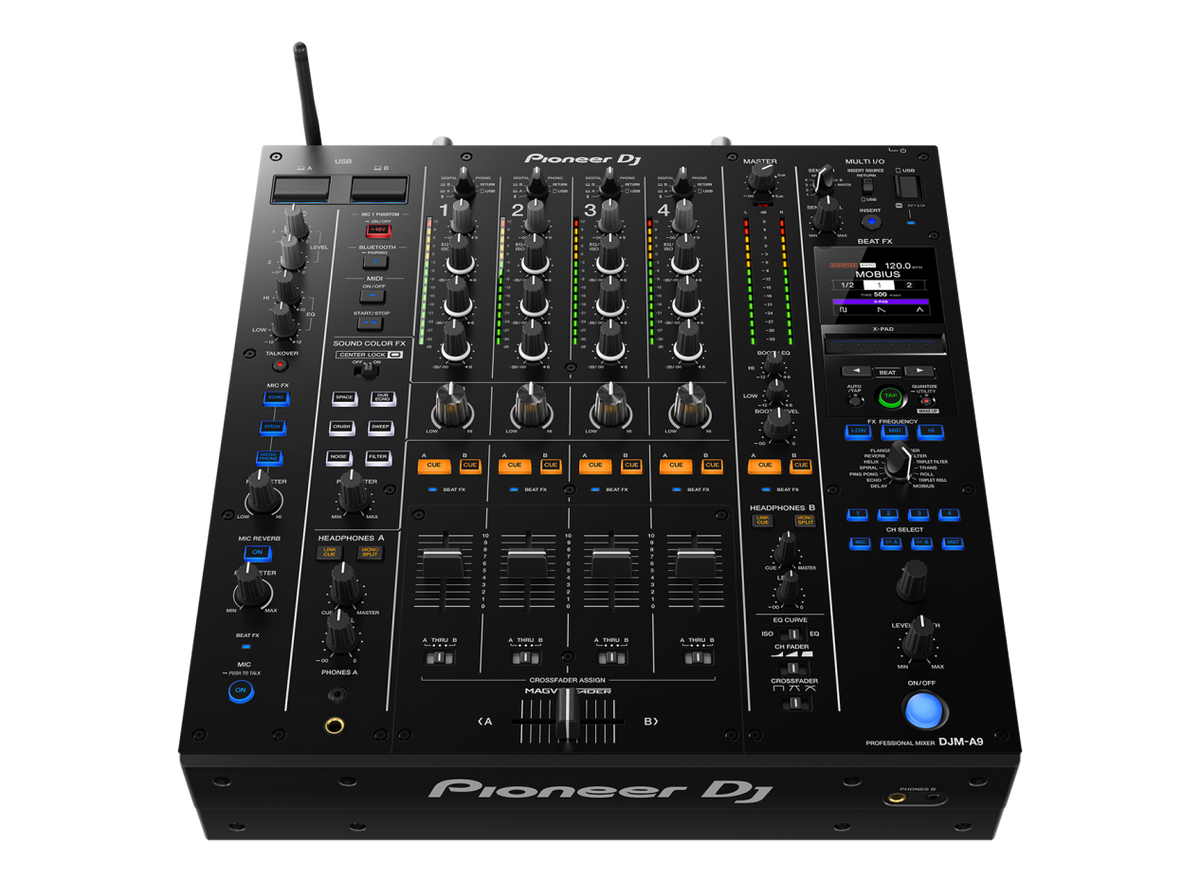

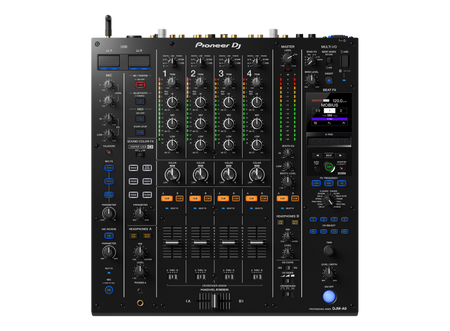

The Pioneer DJ DJM-A9 is a 4-channel professional DJ mixer designed for club installations, touring DJs, festivals, and high-end performance setups. Featuring 32-bit ESS Technology audio converters, 96kHz sampling, a third-generation MAGVEL FADER crossfader, 14 Beat FX, and Sound Color FX with Center Lock controls, this mixer combines high-resolution sound with extensive performance features. Dual USB Type-B and Type-C connections, Bluetooth audio input, independent headphone monitoring, and advanced microphone processing provide flexible options for professional DJs and sound engineers.
Pioneer DJ DJM-A9 Competitive Differences
- 32-Bit High-Resolution Audio: ESS Technology 32-bit A/D converters on the channel inputs and 32-bit D/A converters on the master and booth outputs deliver detailed audio reproduction with 96kHz sampling.
- Third-Generation MAGVEL FADER: Responsive crossfader technology and refined channel faders provide smooth mixing and precise scratching control.
- Sound Color FX with Center Lock: Selectable Center Lock stops the effect knobs at the center position to help prevent accidentally crossing between positive and negative effect parameters.
- 14 Beat FX with Color Display: Dedicated effects section includes a horizontal X-Pad, color display, and creative effects such as Mobius, Triplet Filter, and Triplet Roll.
- Enhanced Microphone Processing: Phantom-powered microphone input supports compatible condenser microphones, with Echo, Pitch, Megaphone, Reverb, and Push To Talk functionality.
- Dual Computer Connectivity: Two USB Type-B and two USB Type-C ports allow two computers to connect simultaneously for DJ changeovers and back-to-back performances.
- Bluetooth 5.0 Audio Input: Wireless audio reception allows compatible devices to send audio directly to any mixer channel for playback and effects processing.
- Independent Headphone Monitoring: Two separate headphone monitoring sections feature dedicated cue controls, volume adjustments, and mix balance controls.
- Advanced External Effects Routing: Multi I/O section includes an independent channel selector and send/return connectivity for integrating external effects processors.
Pioneer DJ DJM-A9 Description
The Pioneer DJ DJM-A9 represents an advanced evolution of the professional 4-channel club mixer, providing improved audio quality, refined controls, and expanded connectivity compared with the DJM-900NXS2. Its audio architecture incorporates ESS Technology 32-bit A/D converters in the channel input section and 32-bit D/A converters for master and booth outputs. Combined with 96kHz sampling and carefully selected audio components, this design provides clear, detailed sound for both the main sound system and DJ booth monitoring.
The mixer offers responsive performance controls designed for demanding club and festival environments. Increased spacing around the 3-band EQ and isolator knobs makes adjustments more comfortable, while bright channel level indicators improve visibility during performances. Smooth channel faders and the third-generation MAGVEL FADER crossfader support precise transitions and scratching. Sound Color FX feature selectable Center Lock functionality, allowing DJs to turn effect knobs quickly without unintentionally moving past the center position into the opposite effect range.
The expanded effects section features 14 Beat FX, including Mobius, Triplet Filter, and Triplet Roll. A dedicated color display provides visual information about the selected effect, while the horizontal X-Pad enables expressive real-time adjustments. Echo and Ping Pong effects can be manipulated to produce analog tape-style variations. Dedicated channel selection buttons simplify effect routing, and the Multi I/O section provides independent send and return functionality for integrating compatible external effects processors.
Designed for professional performances and collaborative DJ sets, the DJM-A9 includes two USB Type-B ports and two USB Type-C ports for connecting two computers simultaneously. Bluetooth 5.0 audio input allows wireless audio from compatible devices to be routed through any of the four channels. Two independent headphone monitoring sections let DJs cue different channels during transitions, while the 2-band booth EQ provides separate monitoring adjustments. The enhanced microphone section includes phantom power for compatible condenser microphones, dedicated microphone effects, and Push To Talk control. Microphone audio can also be excluded from the recording output when capturing a clean DJ mix.
The DJM-A9 integrates with rekordbox and Serato DJ Pro, including supported DVS workflows, and provides compatibility with the DJM-REC recording application. Built-in Wi-Fi connectivity supports Stagehand remote monitoring and management through a compatible network configuration, while ShowKontrol and PRO DJ LINK Bridge integration support coordinated audio, lighting, and video productions. With extensive analog and digital connectivity, professional audio conversion, and flexible performance controls, the DJM-A9 is suited for nightclubs, touring DJs, festivals, broadcast environments, and permanent DJ installations.
DJM-A9 Features
- 4-channel professional DJ mixer for club, festival, and touring applications
- ESS Technology 32-bit A/D converters for channel inputs
- 32-bit D/A converters for master and booth outputs
- 96kHz audio sampling rate
- Third-generation MAGVEL FADER crossfader for precise mixing and scratching
- Refined channel faders with smooth operating response
- 3-band channel EQ and isolator controls with increased knob spacing
- Bright channel level LEDs for improved visibility
- Sound Color FX with selectable Center Lock functionality
- 14 Beat FX with dedicated color display and horizontal X-Pad
- Mobius, Triplet Filter, and Triplet Roll effects
- Analog tape-style modulation options for Echo and Ping Pong effects
- Dedicated Beat FX channel selection buttons
- Multi I/O section with independent channel selection for external effects
- Dedicated send and return connections for compatible external processors
- Phantom-powered microphone input for compatible condenser microphones
- Microphone effects include Echo, Pitch, Megaphone, and Reverb
- Microphone Push To Talk button
- Option to exclude microphone audio from the recording output
- Two independent headphone monitoring sections
- Dedicated headphone cue, volume, and mix balance controls for each monitoring section
- 2-band booth EQ for independent booth monitor adjustment
- Two USB Type-B and two USB Type-C connections for simultaneous computer connectivity
- Bluetooth 5.0 wireless audio input with SBC and AAC support
- Wireless audio can be routed to any mixer channel
- Built-in Wi-Fi connectivity for supported network features
- rekordbox compatibility with DVS support
- Serato DJ Pro compatibility with DVS support; separate license or subscription may be required
- DJM-REC application support for recording and streaming
- Stagehand remote management compatibility
- ShowKontrol and PRO DJ LINK Bridge compatibility for coordinated productions
- Lockable power cord in supported regions
- Firmware Update Manager support
DJM-A9 Specifications
- Product Type: 4-Channel Professional DJ Mixer
- Channels: 4
- Channel EQ/ISO: 3-Band
- Channel EQ Range: -26dB to +6dB
- Audio Sampling Rate: 96kHz
- A/D Converter: 32-Bit ESS Technology
- D/A Converter: 32-Bit ESS Technology
- Frequency Response: 20Hz - 40kHz (Line)
- Signal-to-Noise Ratio (USB/Digital Input): 114dB
- Signal-to-Noise Ratio (Line): 105dB
- Signal-to-Noise Ratio (Phono): 88dB
- Signal-to-Noise Ratio (Microphone): 79dB
- Total Harmonic Distortion: 0.005% (Line to Master 1)
- Crossfader: Third-Generation MAGVEL FADER
- Sound Color FX: Center Lock Knobs
- Beat FX: 14
- Beat FX Display: Color Display
- Beat FX Control: Horizontal X-Pad
- Microphone Effects: Echo, Pitch, Megaphone, Reverb
- Microphone Phantom Power: Supported on MIC 1
- Microphone Control: Push To Talk
- Booth EQ: 2-Band

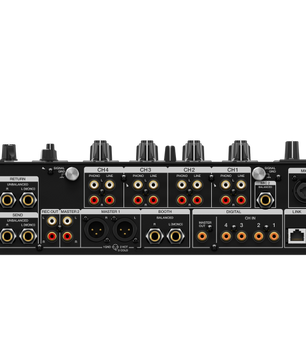

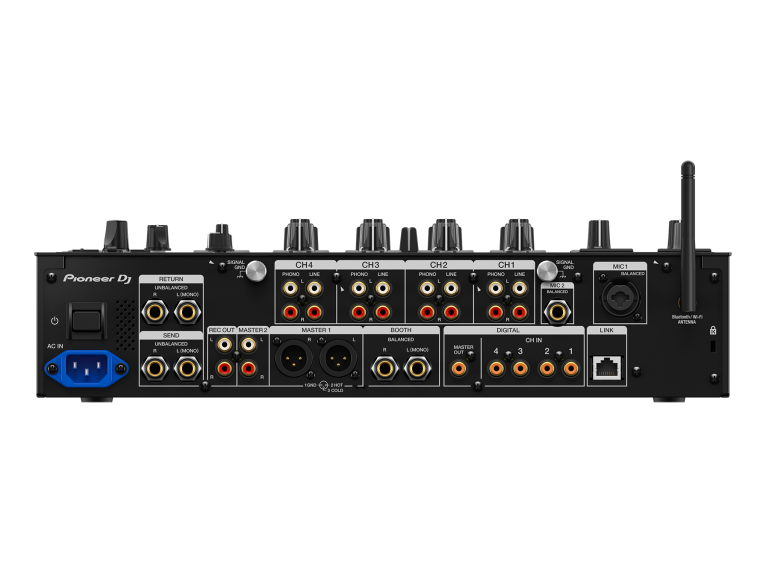

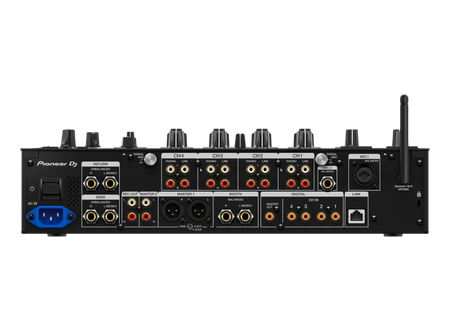

- Digital Inputs: 4 x Coaxial
- Line Inputs: 4 x Stereo RCA
- Phono Inputs: 4 x Stereo RCA
- Microphone Inputs: 1 x XLR / 1/4-Inch TRS Combo, 1 x 1/4-Inch TRS
- Master Outputs: 1 x Balanced XLR, 1 x RCA
- Booth Outputs: 1 x Stereo 1/4-Inch TRS Pair
- Recording Output: 1 x Stereo RCA
- Digital Master Output: 1 x Coaxial
- Headphone Outputs: 2 x 1/4-Inch Stereo, 2 x 3.5mm Stereo Mini
- USB Type-A: 1
- USB Type-B: 2
- USB Type-C: 2
- External Effects Send: 1 x 1/4-Inch TS
- External Effects Return: 1 x 1/4-Inch TS
- LAN Terminal: 1 x 100BASE-TX
- Wireless Audio: Bluetooth 5.0
- Bluetooth Audio Codecs: SBC, AAC
- Wireless LAN: IEEE 802.11 a/b/g/n/ac
- Compatible DJ Software: rekordbox, Serato DJ Pro
- Supported Production Applications: ShowKontrol, PRO DJ LINK Bridge, Stagehand
- Power Consumption: 46W
- Dimensions (W x D x H): 16.04 x 18.04 x 4.25 in (407.4 x 458.3 x 107.9 mm)
- Height with Wireless Antenna Upright: 5.54 in (140.7 mm)
- Weight: 22.49 lb (10.2 kg)
What's In The Box
- Pioneer DJ DJM-A9 4-Channel Professional DJ Mixer
- Power Cord (Lockable in Supported Regions)
- Quick Start Guide
- Precautions for Use
- Warranty Information (Region Dependent)
