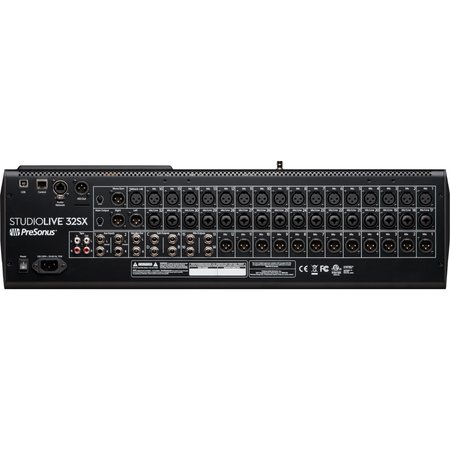

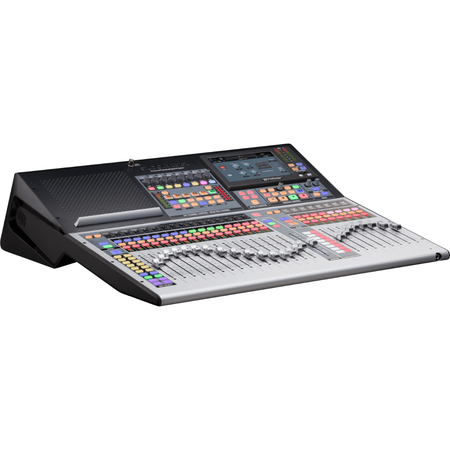

Digital Mixing Console

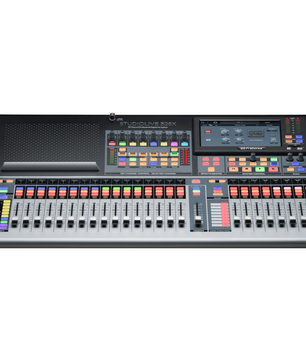

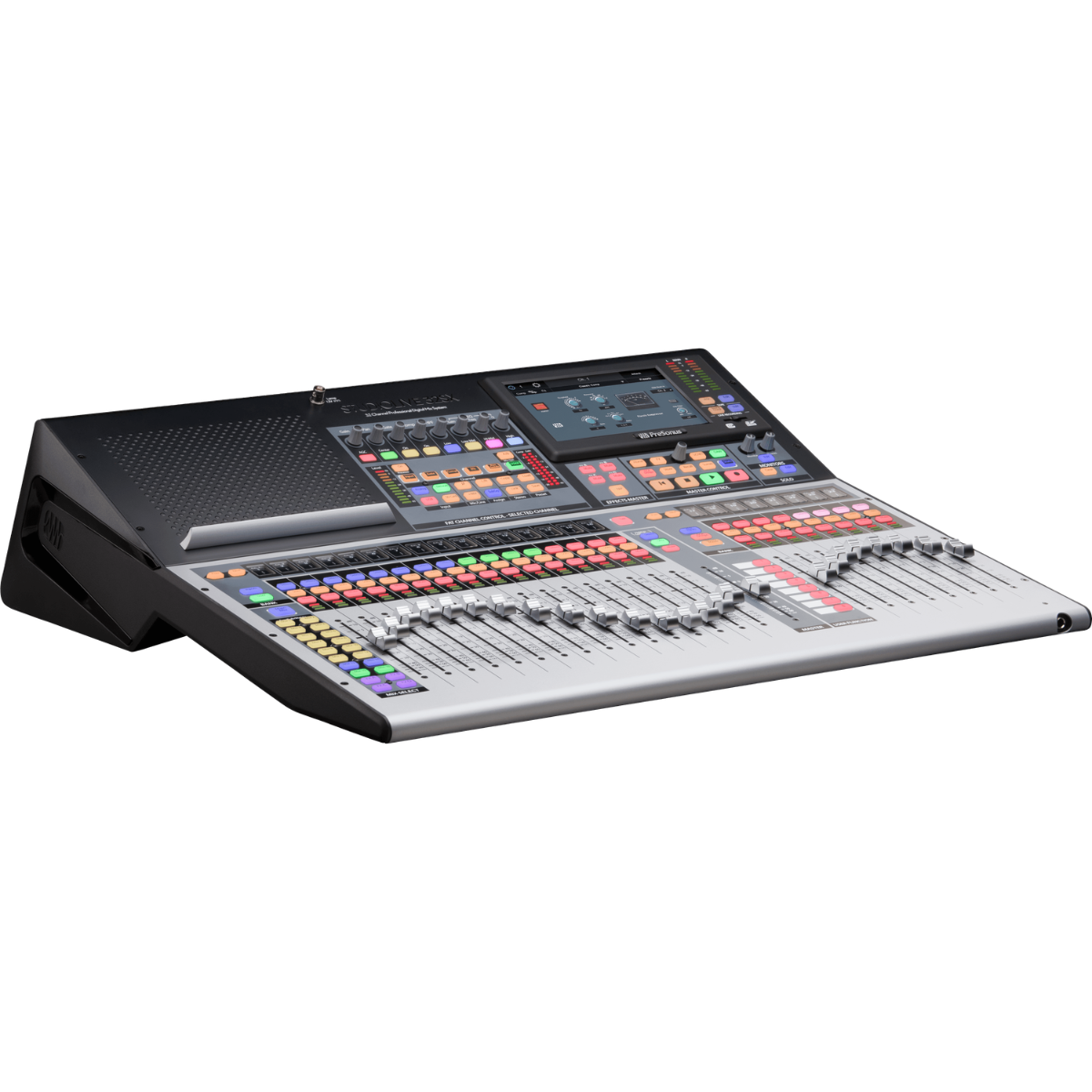

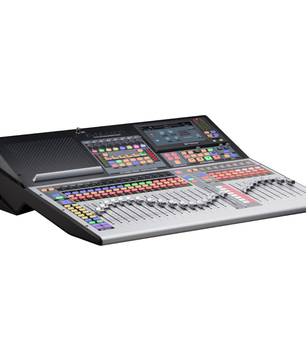

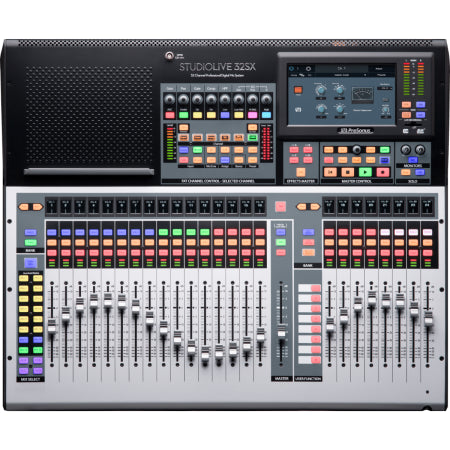

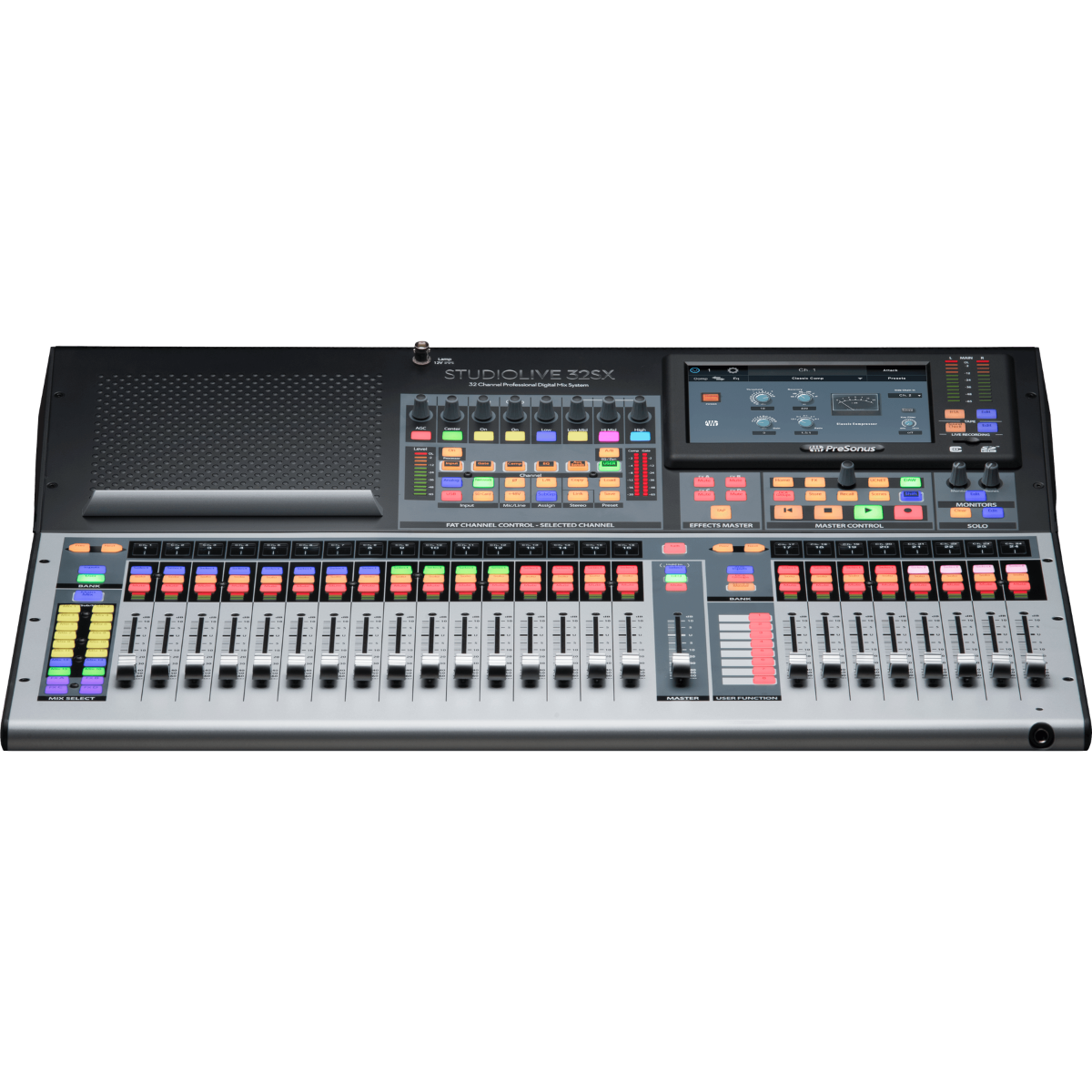

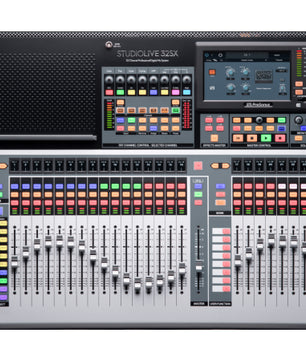

PreSonus StudioLive 32SX is a compact yet powerful digital mixing console designed for live sound, installations, and studio production. With its unique split-fader layout, extensive DSP processing, and advanced networking capabilities, it provides fast, intuitive control and flexible system expansion.
PreSonus StudioLive 32SX Competitive Differences
- Split-fader workflow with 25 motorized faders for faster mixing and output control
- 32 XMAX-R recallable mic preamps with 40-channel mixing capability
- 64x64 USB audio interface with onboard SD multitrack recording
- AVB networking for seamless expansion with stage boxes and personal mixers
PreSonus StudioLive 32SX Description
The PreSonus StudioLive 32SX is built for engineers who need both power and efficiency in a streamlined console. Its split-fader design allows simultaneous control of input channels and mix outputs, improving workflow speed during live performances and complex productions.
Equipped with 32 XMAX-R mic preamps, the mixer delivers clean, high-headroom audio with full recall capability. The dual-core FLEX DSP engine powers Fat Channel processing on every input and output, including EQs, compressors, and effects, giving users complete control over their mix.
With 16 FlexMixes configurable as auxes, subgroups, or matrix mixes, along with 4 FX buses and 4 subgroups, the routing possibilities are extensive. The 24 DCAs allow for easy group control, making it simple to manage large channel counts efficiently.
The built-in 64x64 USB interface and onboard SD recorder enable full multitrack recording of all channels plus a stereo mix. AVB networking allows seamless integration with stage boxes, personal monitor mixers, and additional consoles, while optional Dante support expands connectivity for larger systems.
StudioLive 32SX Features
- 40-channel digital mixing console
- 32 XMAX-R recallable mic preamps
- 25 touch-sensitive motorized faders
- Split-fader workflow for inputs and outputs
- Dual-core FLEX DSP with Fat Channel processing
- 16 FlexMixes (aux, subgroup, or matrix)
- 4 FX buses and 4 subgroups
- 24 DCAs for group control
- 64x64 USB audio interface
- Onboard multitrack SD recorder with Virtual Soundcheck
- AVB networking for system expansion
- Optional Dante expansion support
- Includes Capture software and Fender Studio Pro license
StudioLive 32SX Specifications
- Channels: 40
- Mic Preamps: 32 XMAX-R
- Faders: 25 motorized, touch-sensitive
- Mix Buses: 24 total (16 FlexMixes, 4 FX, 4 subgroups)
- USB Audio Interface: 64x64
- AVB Networking: Yes
- Recording: USB and SD card multitrack
- Internal Processing: 32-bit floating point
- Dynamic Range: 115 dB (ADC/DAC)
- Total System Latency: 1.9 ms
- Phantom Power: +48V
- Power Consumption: 85W
- Voltage: 100–230V AC, 50/60Hz
- Dimensions: 26.0 x 23.0 x 6.5 in (660 x 584 x 165 mm)
- Weight: 30 lb (13.6 kg)
What's In The Box
- PreSonus StudioLive 32SX mixer
- Power cable (IEC)
- Software bundle (Capture and Fender Studio Pro license)
