ProX XT-JB6W-4W-BLK | F34 Universal Junction Box

ProX XT-JB6W-4W-BLK | F34 Universal Junction Box

$384.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

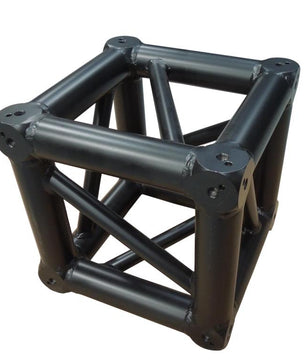

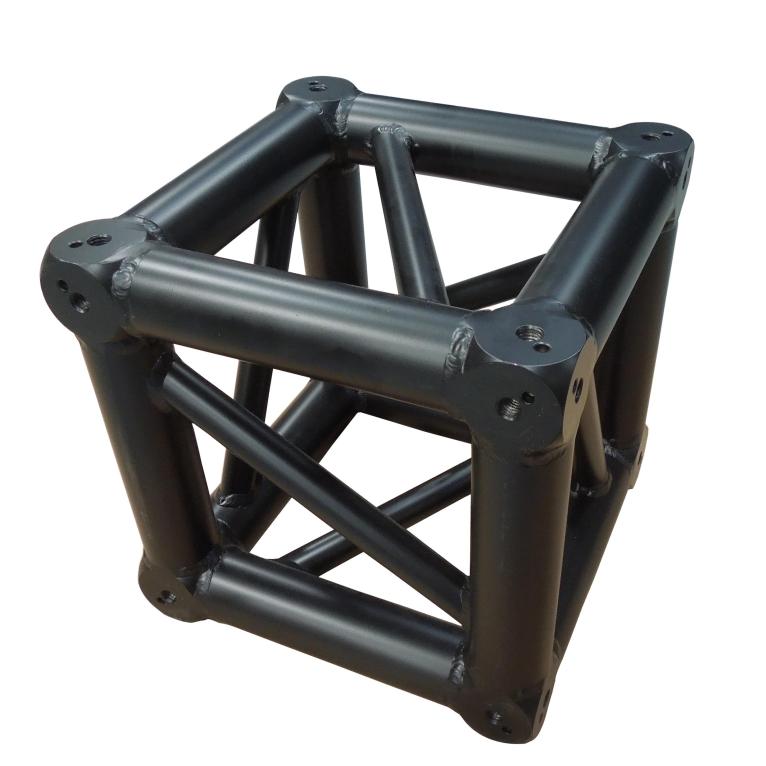

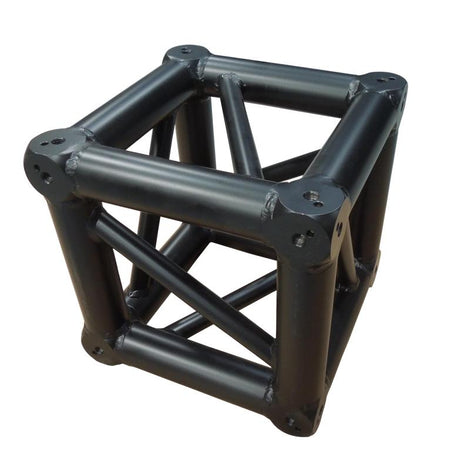

6-Way Square Truss Junction Block for F34 Stage Systems

The ProX XT-JB6W-4W-BLK is a heavy-duty, powder-coated 6-way junction box for F34 square truss configurations. Engineered for strength, durability, and visual appeal, this black aluminum junction box is the perfect solution for complex truss structures in staging, lighting, and installation setups. It features 3mm-thick walls and fits all ProX XT Series F34 square trussing components using standard 2" tubing and conical connectors.

ProX XT-JB6W-4W-BLK Competitive Differences

Heavy-duty 3mm tube wall: Reinforced design for extra strength and load handling.
Powder-coated black finish: Adds a sleek, professional aesthetic while enhancing scratch resistance.
Includes 16 half conical couplers: Ready for immediate use with ProX F34 trussing systems.
Environmentally friendly coating: Low-VOC powder coating reduces environmental impact.
Factory-direct and TUV-certified: Built in ProX’s own manufacturing facility with certified welding quality.

ProX XT-JB6W-4W-BLK Description

The ProX XT-JB6W-4W-BLK is an essential component for any advanced truss system, providing six connection points for structural expansion and load distribution. Manufactured using EN-AWT6 6082 aluminum alloy and finished in a durable black powder coat, this junction block not only adds visual appeal but also resists chipping, corrosion, and abrasion far better than painted alternatives. The box utilizes a tolerance-free conical connector system to ensure a secure, reliable connection with other F34 truss segments. With a wall thickness of 3mm, it offers superior structural integrity, making it ideal for mobile stages, concerts, permanent installations, and exhibitions. ProX’s black powder-coated truss system enhances your build's appearance while providing rugged performance backed by TUV-certified welding.

XT-JB6W-4W-BLK Features

6-way junction box for F34 truss systems
Black powder-coated finish for durability and aesthetics
3mm wall thickness for heavy-duty performance
2″ (50mm) main tube diameter
0.75″ (20mm) braces
Includes 16 half conical couplers (XT-CA-103 compatible)
Conical connector system for easy and secure attachment
Environmentally friendly, low-VOC powder coating
Manufactured in ProX-owned factory with TUV-certified welding

XT-JB6W-4W-BLK Specifications

Truss height: 11.42″ (290mm)
Truss width: 11.42″ (290mm)
Main tube: 2″ (50mm) diameter
Wall thickness: 0.11″ (3mm)
Bracing tubes: 0.75″ (20mm)
Material: EN-AWT6 6082 aluminum
Weight (approx.): 21 lb per 3.28 ft (9.5 kg per meter)
Finish: Black powder coat
Includes: 4 side couplers, 16 half conical couplers

What's In The Box

ProX XT-JB6W-4W-BLK 6-way truss junction box
16x Half conical couplers
4x Side couplers
