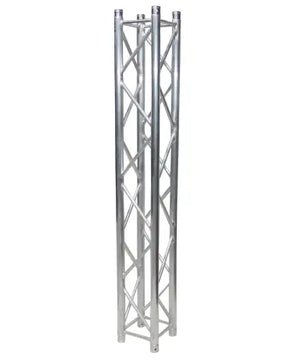

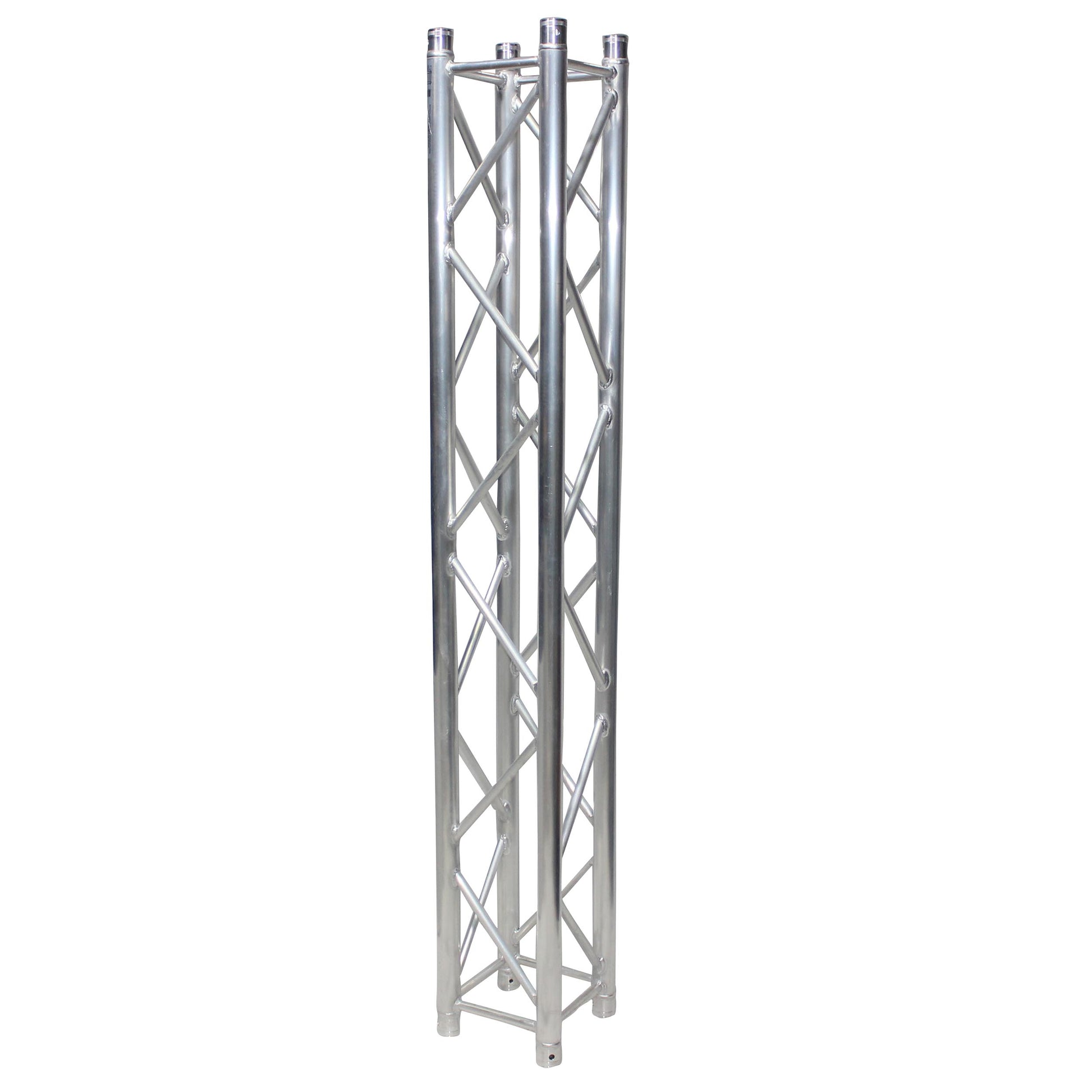

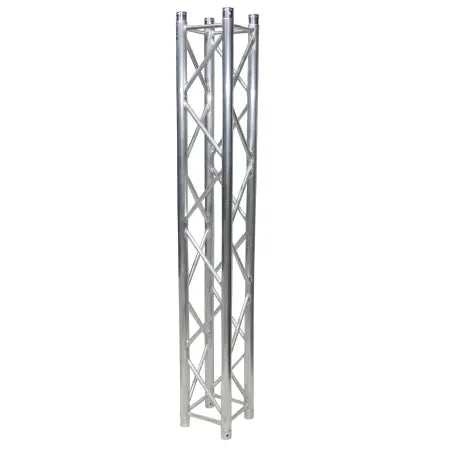

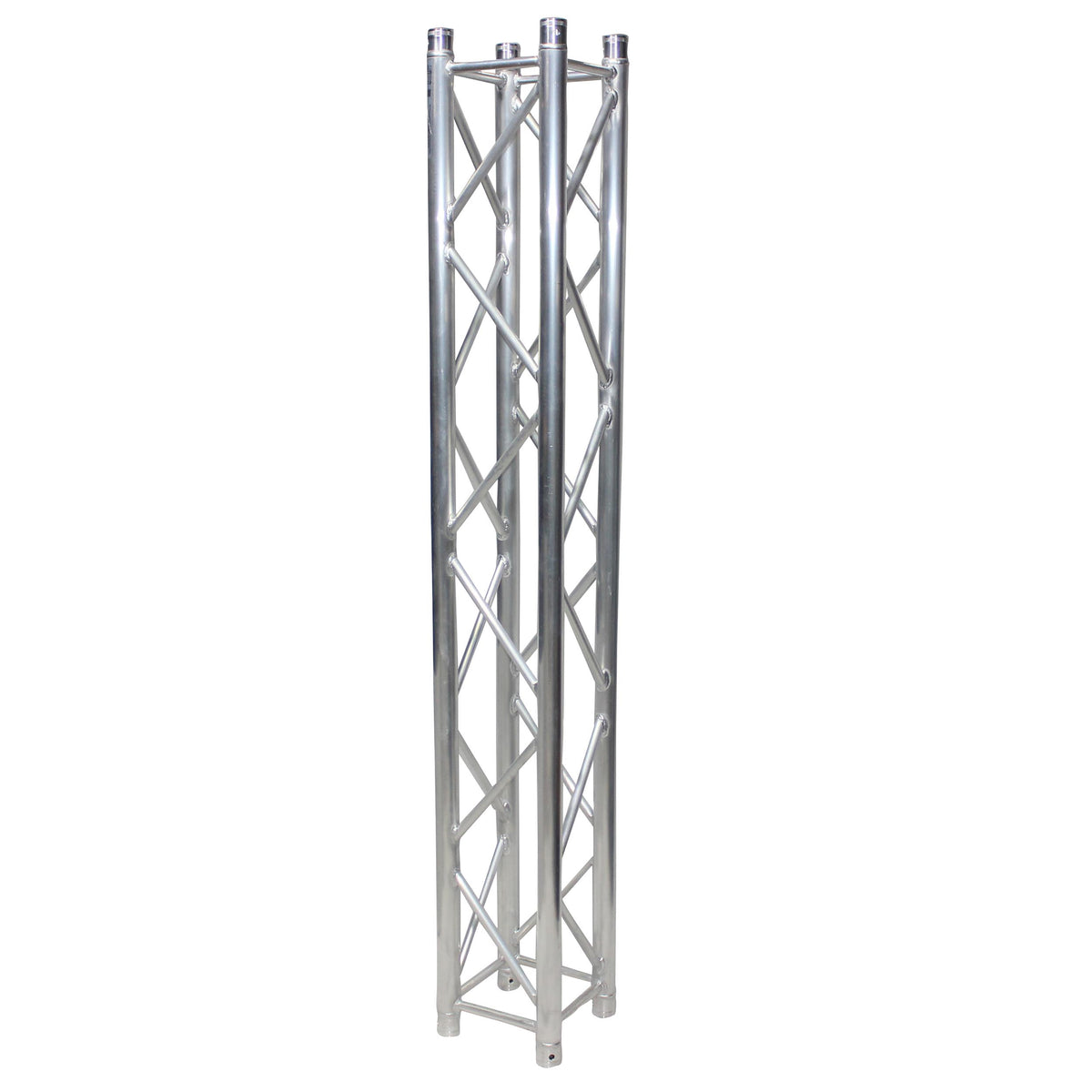

ProX XT-SQ656 | F34, 6.56ft Square Truss
Heavy‑Duty 6.56ft F34 Square Truss Segment
The ProX XT‑SQ656 is a 6.56 ft (2 m) F34 square truss segment crafted from EN‑AWT6 6082 aluminum for professional-grade strength and durability. Designed for demanding touring, rental, and permanent installations, this truss is ideal for lighting rigs, stage roofs, retail displays, and more.
ProX XT‑SQ656 Competitive Differences
- Constructed from high-strength EN‑AWT6 6082 aluminum alloy
- Includes ProX conical coupling system for genderless, rigid, and fast connections
- Compatible with most F34-style trussing from other manufacturers
- 2″ main tubing with 2 mm (0.08″) wall thickness and 0.75″ (20 mm) diagonal braces
- TUV certified aluminum welding and consistent manufacturing tolerances
- Capable of supporting spans up to 52.5 ft (16 m)
ProX XT‑SQ656 Description
The XT‑SQ656 from ProX is a rugged 6.56 ft (2 m) truss designed for high-frequency, load-intensive applications. Engineered for the entertainment and event industry, its square F34 design (11.42″ × 11.42″) is ideal for both mobile and permanent setups. The conical coupler system ensures quick alignment and a secure connection—no gendered ends required. Precision machining helps maintain structural rigidity, ease of assembly, and long-term durability.
Whether for stage lighting, exhibits, or venue installations, this truss segment meets professional expectations for performance and safety. The segment includes one connection hardware set and ships pre-certified with TUV-rated welds. Built to exacting tolerances in ProX’s factory, it provides superior reliability and compatibility with standard 50 mm trussing systems.
XT‑SQ656 Features
- 6.56 ft (2 m) square truss segment – F34 format
- Precision-welded EN‑AWT6 6082 aluminum
- Conical coupling system included (1 set)
- Compatible with major F34 truss brands
- Quick and tool-friendly setup with minimal wear
- Genderless connector design
- Made in ProX’s dedicated truss manufacturing facility
XT‑SQ656 Specifications
- Segment Length: 6.56 ft (2 m)
- Exterior Dimensions: 11.42″ H × 11.42″ W × 78.72″ L
- Weight: 31 lb (14.1 kg)
- Main Tube Diameter: 2″ (50 mm)
- Wall Thickness: 0.08″ (2 mm)
- Diagonal Braces: 0.75″ (20 mm)
