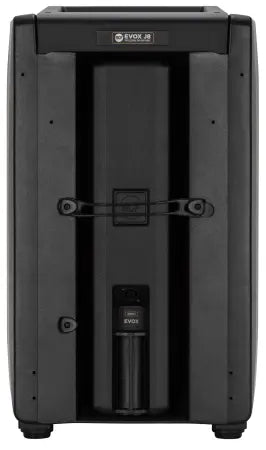

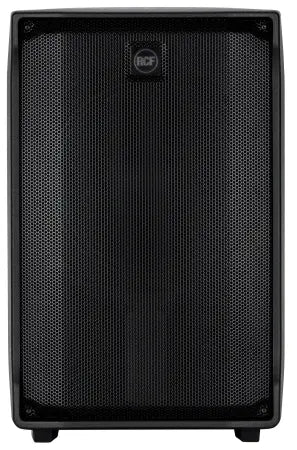

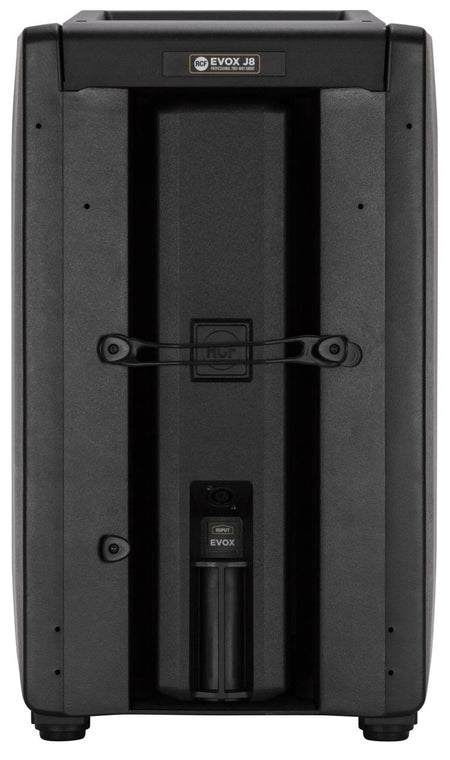

RCF Evox J8 | 12in Woofer – 128 dB | Portable Column PA System

High-Powered Portable PA System with Clear, Dynamic Sound

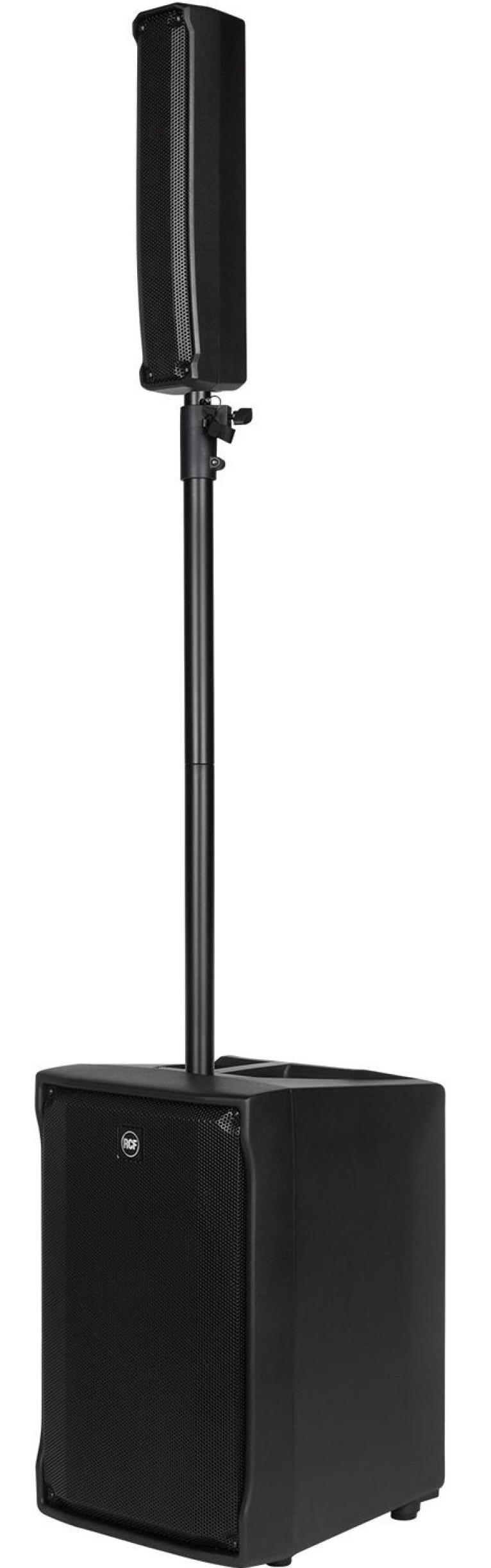

The RCF EVOX J8 is a versatile, high-performance portable PA system designed for dynamic sound clarity and powerful output. Combining a compact line array with a high-output 12” woofer, this system delivers 1400 watts of power, ideal for both live music and vocal presentations. Its advanced DSP processing with FiRPHASE ensures consistent audio quality across the frequency spectrum, making it perfect for events that require rich sound projection in a compact form factor.

RCF EVOX J8 Competitive Differences

• Powerful 1400W Class D amplification (700W RMS) for high sound quality
• FiRPHASE DSP processing for accurate phase response and clear audio
• Compact line source satellite with eight 2” full-range drivers for wide dispersion
• 12" woofer with high-power 2.5” voice coil in a bass reflex enclosure
• Portable composite enclosure designed for easy transport and setup

RCF EVOX J8 Description

The RCF EVOX J8 integrates advanced technology and a compact design to bring powerful sound to portable settings. Its line array module, equipped with eight 2” full-range drivers, delivers 120° horizontal coverage and 30° vertical dispersion, ensuring wide and consistent sound coverage. Coupled with a robust 12” woofer and 1400W amplification, the EVOX J8 produces a stunning 128 dB max SPL, making it ideal for larger venues and outdoor events. With FiRPHASE DSP, this system ensures minimal phase distortion, offering superior clarity and precise vocal reproduction. This unit’s rugged PP composite enclosure provides durability, and its compact size with a single top handle makes it easy to transport and set up. Whether you’re a DJ, musician, or event professional, the EVOX J8 is designed to meet the demands of portable audio applications with RCF’s renowned sound quality.

RCF EVOX J8 Features

• 128 dB Max SPL for powerful sound output
• 1400W peak power (700W RMS) with Class D amplification
• FiRPHASE DSP processing for consistent audio fidelity
• Eight 2” full-range drivers with 1” voice coils

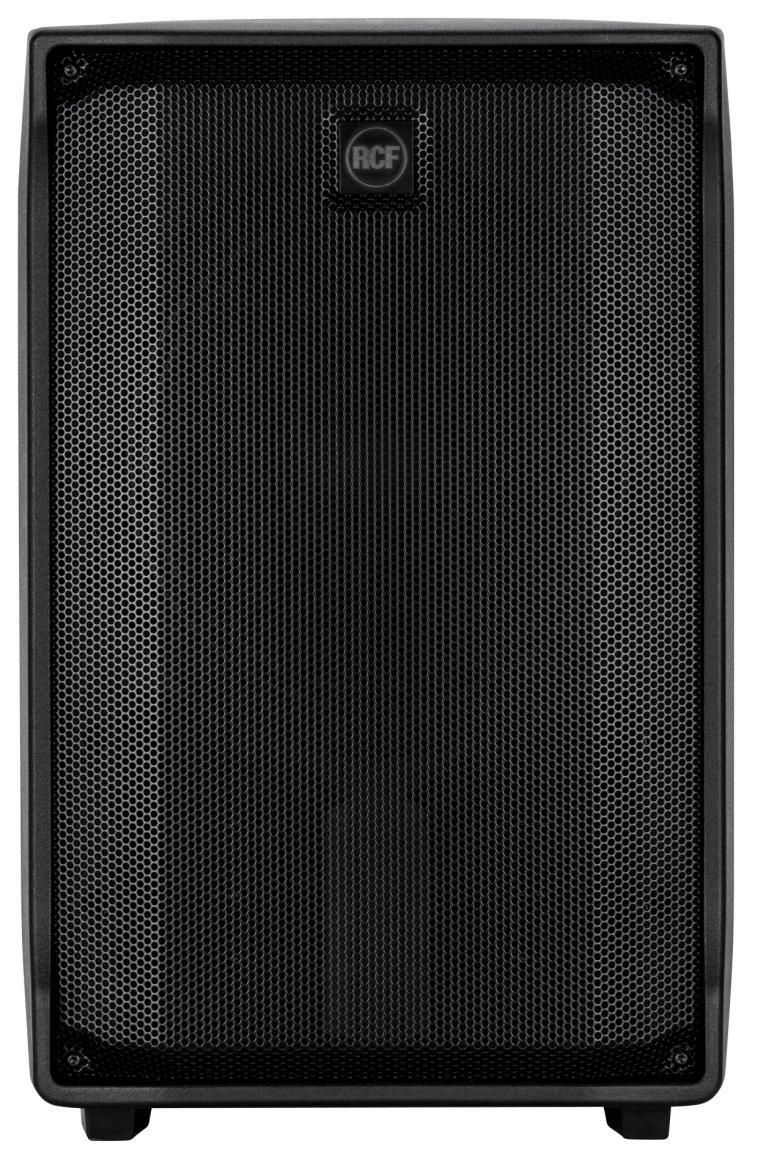

• 12” woofer with 2.5” high-power voice coil in a bass reflex cabinet
• 120° horizontal and 30° vertical coverage
• Compact composite enclosure with single top handle for portability
• Available in black and white finishes

RCF EVOX J8 Specifications

• Frequency Response: 40 Hz – 20,000 Hz
• Maximum SPL: 128 dB @ 1m
• Horizontal Coverage Angle: 120°
• Vertical Coverage Angle: 30°
• Transducers: 8 x 2” full-range (1” voice coil), 1 x 12” woofer (2.5” voice coil)
• Input Signal: Balanced/Unbalanced

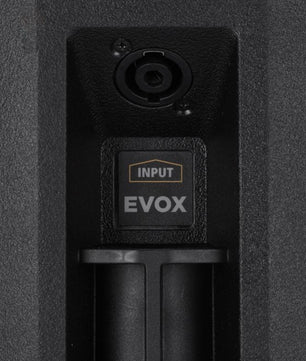

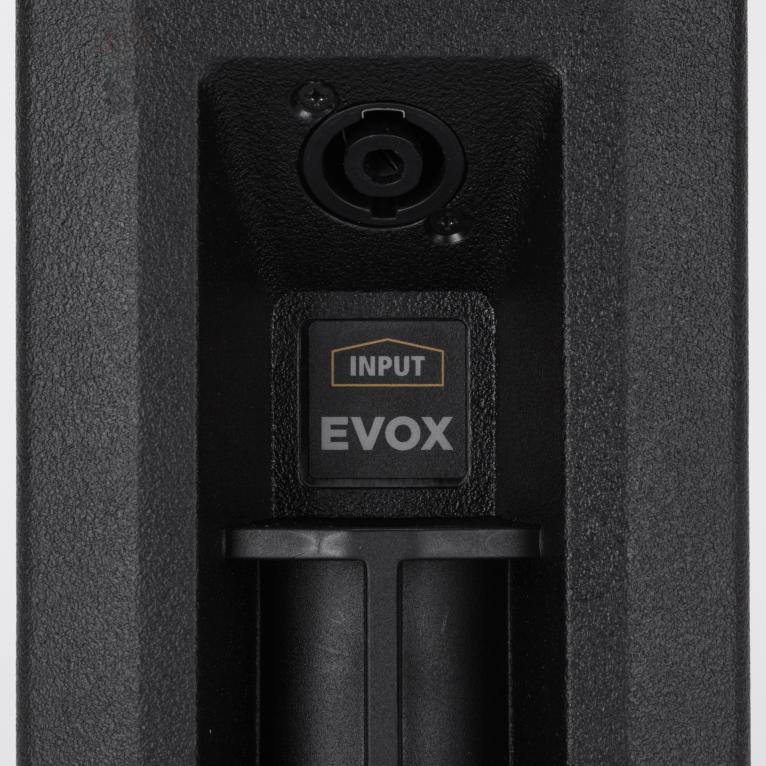

• Input Connectors: XLR, Jack

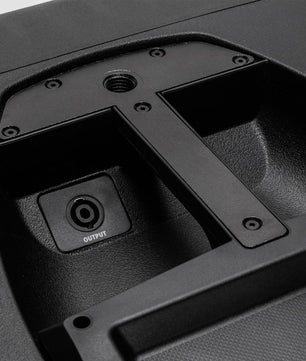

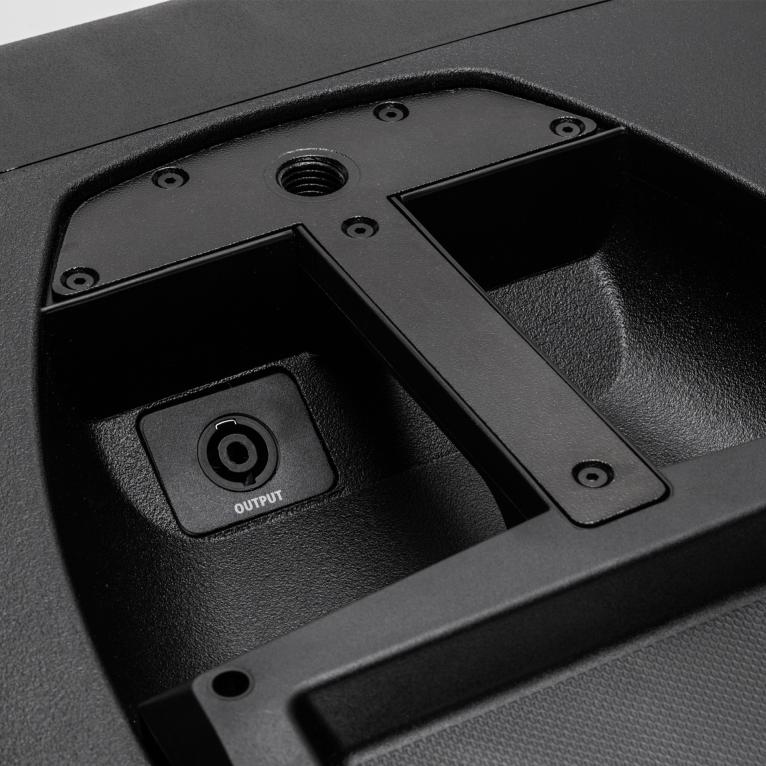

• Output Connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu
• Crossover Frequency: 220 Hz
• Protections: Thermal, RMS with Soft Limiter
• Controls: Volume, Boost, Mic/Line
• Cooling: Convection
• Power Requirements: VDE
• Cabinet Material: PP Composite
• Dimensions (HxWxD): 89.96 x 15.75 x 18.11 inches (2285 x 400 x 460 mm)
• Weight: 44.53 lbs (20.2 kg)
• Shipping Dimensions (HxWxD): 26.61 x 17.76 x 22.87 inches (676 x 451 x 581 mm)
• Shipping Weight: 65.92 lbs (29.9 kg)
