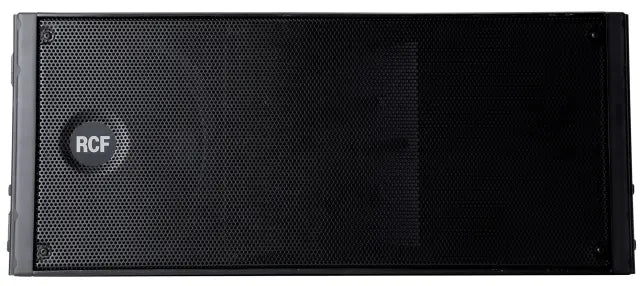

RCF HDL20A | Dual 10″ Woofers – 135 dB | Active PA Speaker

RCF HDL20A | Dual 10″ Woofers – 135 dB | Active PA Speaker

$3,299.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

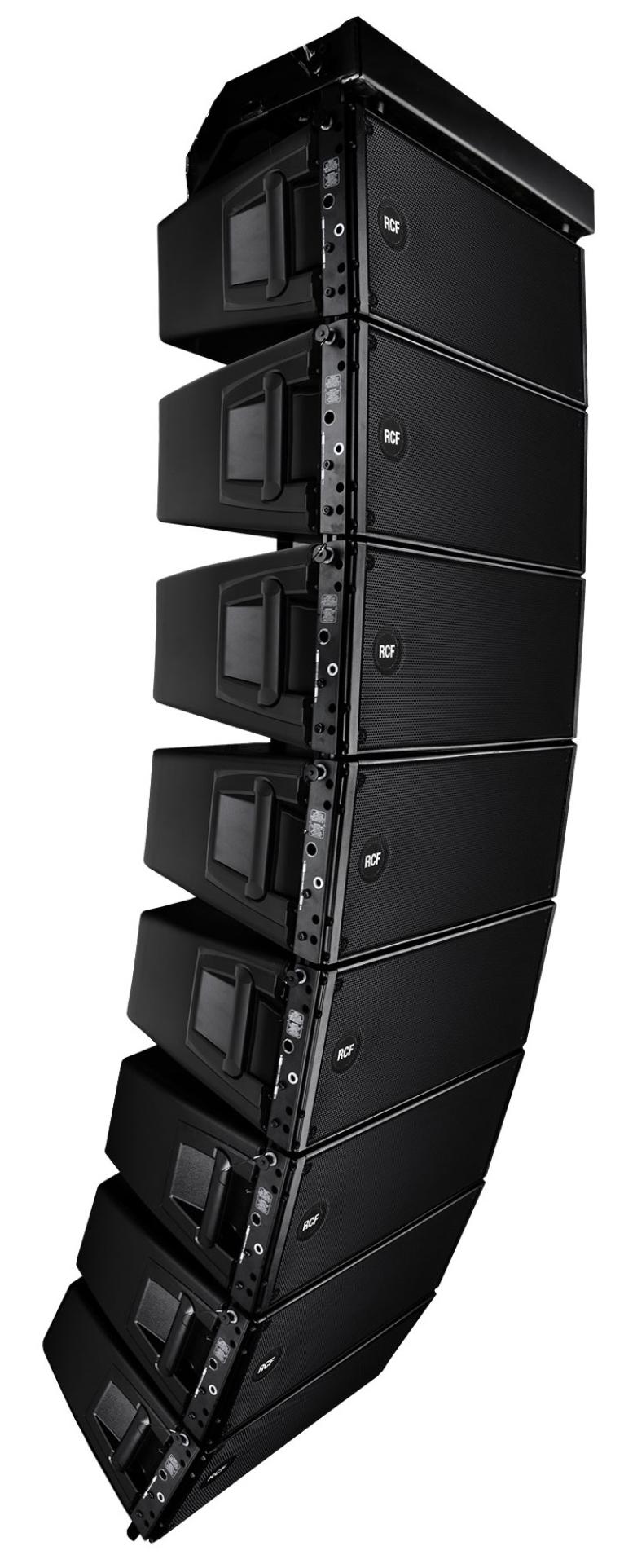

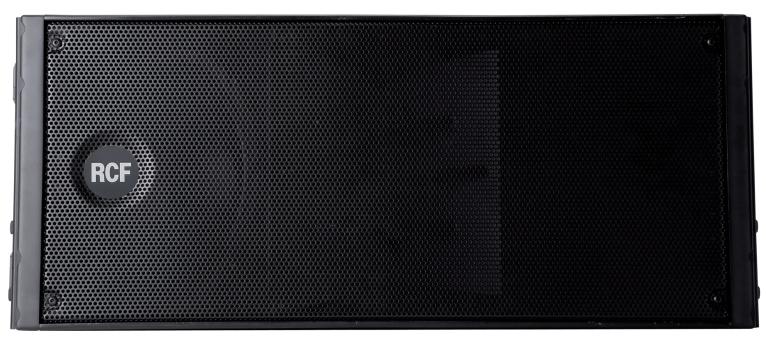

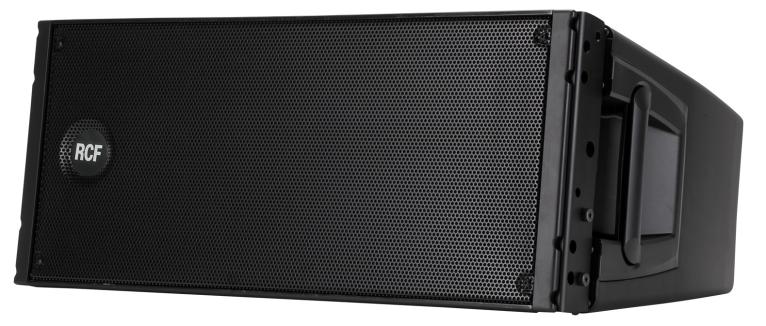

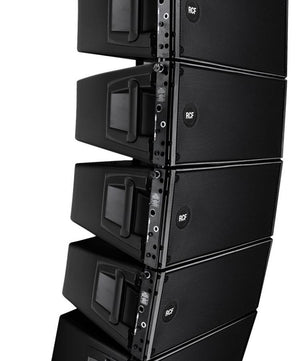

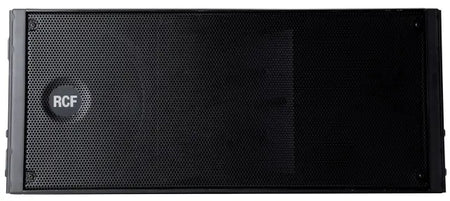

RCF HDL 20-A | 1400W Active Line Array Module with Dual 10" Woofers

The RCF HDL 20-A is a high-powered, active line array module designed for professional live sound reinforcement and installations. With a peak power of 1400W, this system delivers up to 135 dB SPL with a frequency response from 55 Hz to 20 kHz. Equipped with two 10" woofers and a 3" compression driver, the HDL 20-A provides exceptional clarity and projection, making it the ideal choice for large venues and outdoor events.

HDL 20-A Competitive Differences

1400W Peak Power with 135 dB Max SPL
55 Hz - 20 kHz Frequency Response
Dual 10" Woofers for Deep, Controlled Bass
3" Compression Driver for Superior Vocal Clarity
DSP Controlled Input Section with Selectable Presets
Tour-Grade Construction with Composite PP Enclosure

Full Product Description

The RCF HDL 20-A is engineered for exceptional performance in demanding live sound environments. Its 1400W Class-D amplifier powers two 10" woofers and a 3" compression driver, ensuring powerful bass and clear vocals across large spaces. The integrated DSP provides precise control with customizable presets for various acoustic environments, while the compact design and rugged construction make the HDL 20-A both easy to transport and durable enough for rigorous touring.

Features

1400W Peak Power, 700W RMS
135 dB Max SPL
Frequency Response: 55 Hz - 20 kHz
Dual 10" Woofers, 2.5" Voice Coil
3" Compression Driver, 2.0" Voice Coil
DSP Controlled Input with Selectable Presets

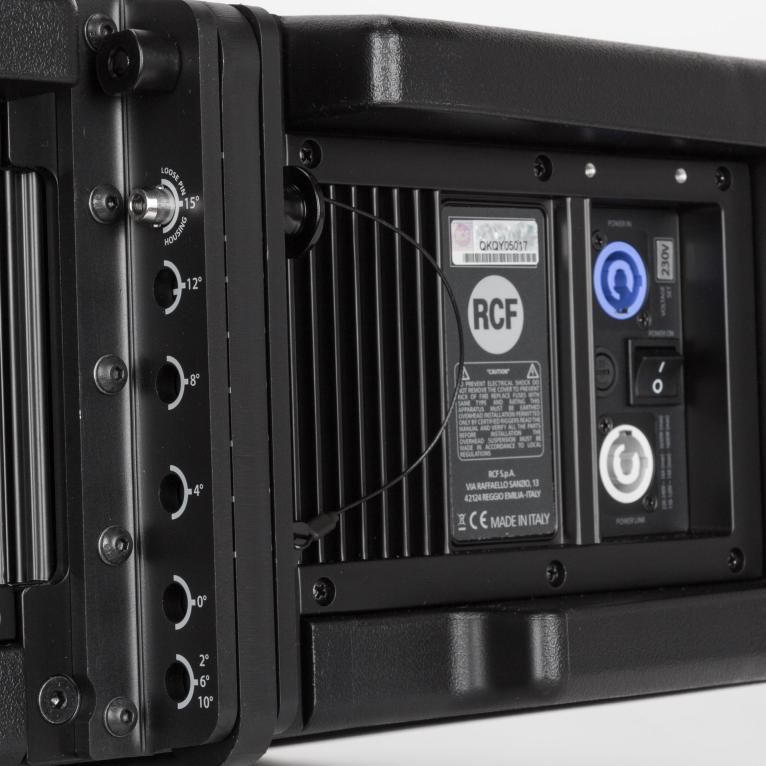

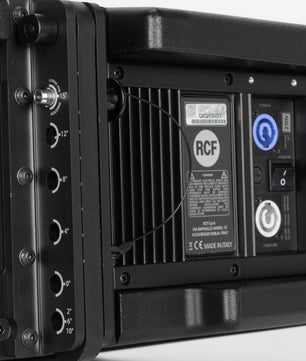

Tour-Grade Rigging and Hardware
Composite PP Enclosure with Structural Reinforcement

Specifications

Frequency Response: 55 Hz – 20 kHz
Max SPL @ 1m: 135 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 15°
Compression Driver: 1 x 2.0", 3.0" v.c
Woofer: 2 x 10", 2.5" v.c

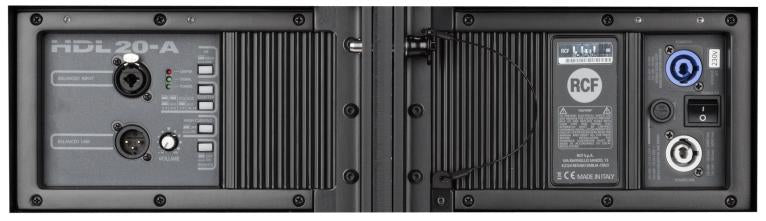

Input Connectors: XLR (Balanced/Unbalanced)
Output Connectors: XLR
Power Supply: 1400W Peak, 700W RMS
Cooling: Convection
Dimensions (H x W x D): 11.57" x 27.76" x 17.52"
Weight: 66.58 lbs
