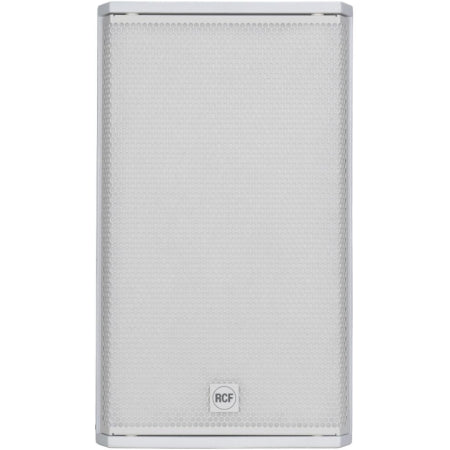

RCF NX 932A W | 12in - 132 dB | Touring-Grade Active Speaker with FiRPHASE & BMC

High-Performance Active Speaker

The RCF NX 932-A W is a white-finished, full-range active speaker designed for touring and high-end portable sound reinforcement. Engineered for superior clarity and headroom, it delivers 2100W of bi-amplified Class-D power through a 12" woofer and a 3" titanium compression driver. Its precise 100° x 70° coverage, FiRPHASE technology, and Bass Motion Control DSP ensure clear, consistent performance at every volume level—making it ideal for FOH, stage monitor, or satellite use.

RCF NX 932-A W Competitive Differences

• 3" titanium/neodymium HF driver with 800 Hz crossover for better vocal detail
• FiRPHASE and Bass Motion Control DSP for phase-accurate low-end performance

RCF NX 932-A W Description

The RCF NX 932-A W packs tour-grade power and pro-level DSP into a compact, white-painted birch enclosure built for clean installations or stylish stage setups. At its core is a 12” woofer with a 2.5” voice coil delivering tight, punchy bass, matched with a 3” titanium diaphragm compression driver. With a max SPL of 132 dB and frequency response down to 45 Hz, the NX 932-A W delivers full, distortion-free sound across a wide range of applications. The speaker’s 2100W amplifier (1400W LF + 700W HF) is ultra-efficient and fanless, using a machined aluminum heat sink for silent cooling. RCF's proprietary FiRPHASE technology ensures zero-degree phase linearity, while Bass Motion Control (BMC) allows extended low-frequency reproduction without affecting woofer stability. This combination produces crystal-clear imaging and powerful bass, even at high volume. Connectivity includes combo XLR/¼" input and XLR output, with RDNet integration for advanced remote control of EQ, delay, limiter, and system monitoring. The enclosure supports pole mounting, rigging via M10 points, and includes Quick Lock pins for fast setup. Whether deployed as a main FOH system, stage monitor, or flown unit, the NX 932-A W is a powerful and flexible speaker for professional sound environments.

Model Features

• 2100W peak Class-D bi-amplification (1400W LF + 700W HF)
• 12" woofer with 2.5" voice coil for tight low end
• 3" titanium/neodymium compression driver for extended HF detail
• 100° x 70° coverage via rotatable TRW waveguide
• FiRPHASE DSP for linear phase response
• Bass Motion Control excursion management
• Fanless convection cooling with aluminum heat sink
• RDNet control ready for advanced system integration
• White touring-grade plywood cabinet with rigging hardware

Model Specifications

• Max SPL: 132 dB
• Power Output: 2100W Peak (1400W LF + 700W HF)
• Frequency Response: 45 Hz – 20,000 Hz
• Crossover Frequency: 700 Hz
• Coverage Pattern: 100° H x 70° V
• Transducers: 12" woofer (2.5" VC), 3" titanium HF driver
• Input/Output: Combo XLR/Jack input, XLR output
• Controls: Volume, Linear/Boost/Stage modes
• Power Connection: powerCON TRUE1 TOP In/Out
• Enclosure: Plywood with white polyurea finish
• Dimensions: 24.41 x 14.25 x 15.94 in (620 x 362 x 405 mm)
• Weight: 50.49 lb (22.9 kg)

What's In The Box

• RCF NX 932-A W Speaker
• PowerCON TRUE1 TOP Cable
• User Documentation
