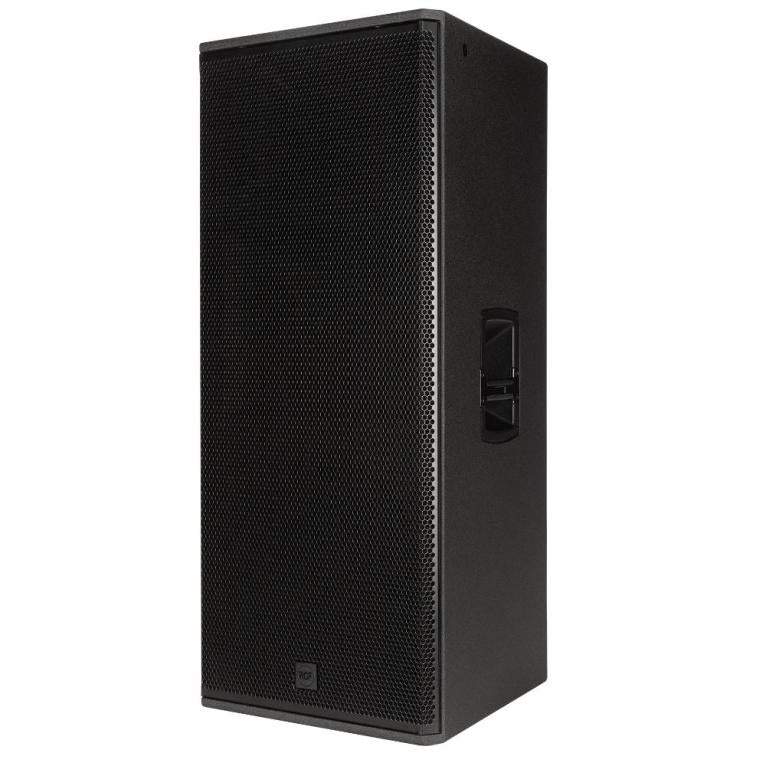

RCF NX 985A | 15in 3-Way - 138 dB | Touring Speaker with BMC & FiRPHASE DSP

Three-Way Active PA Speaker

The RCF NX 985A is a premium three-way powered loudspeaker designed for the most demanding live sound environments. Built with a high-output 15" woofer, dedicated 8" midrange driver, and a 1.75" neodymium compression driver, this cabinet delivers exceptional clarity and punch across the full frequency spectrum. With 2100 watts of peak Class-D amplification and a max SPL of 138 dB, it’s built for main FOH use in clubs, concerts, and touring rigs.

RCF NX 985A Competitive Differences

• Three-way design with 15" LF, 8" midrange, and 1.75" HF driver for unmatched clarity
• Bass Motion Control and FiRPHASE DSP for phase-correct audio and extended bass

RCF NX 985A Description

The NX 985A combines advanced engineering and powerful transducers in a full-sized touring-grade cabinet. The system is built around RCF’s cutting-edge amplifier platform, delivering 2100W peak power (1400W LF / 500W Mid / 200W HF) with zero fan noise thanks to passive convection cooling and an integrated aluminum heat sink. Its three-way architecture ensures accurate sound reproduction across all bands. A 15" woofer produces deep low-end punch, an 8" neodymium midrange on a dedicated waveguide enhances vocal clarity, and the 1.75" compression driver handles high frequencies with precision and minimal distortion. Proprietary Bass Motion Control (BMC) removes traditional high-pass filters for maximum bass extension without sacrificing woofer integrity. FiRPHASE technology ensures time-aligned output with minimal latency, ideal for high-impact audio applications where phase coherence is essential. Designed for both touring and installed use, the NX 985A features a rugged, all-plywood cabinet with multiple rigging points, ergonomic side handles, and PowerCON TRUE1 TOP connectors for IP-rated power input. Whether flown, pole-mounted, or ground-stacked, it’s built for flexibility and reliability under demanding conditions.

Model Features

• Max SPL: 138 dB for large-scale sound reinforcement
• 2100W Class-D amplifier (2-channel bi-amp)
• Three-way design: 15" woofer, 8" mid, 1.75" HF driver
• BMC for extended bass and improved woofer control
• FiRPHASE DSP for linear phase alignment
• Constant directivity coverage: 100° x 60°
• Tour-grade all-plywood cabinet with rigging points
• Fanless, convection-cooled design with aluminum heat sink
• IP-rated PowerCON TRUE1 TOP In/Out connectors

Model Specifications

• Max SPL: 138 dB
• Power Output: 2100W Peak (1400W LF / 500W Mid / 200W HF)
• Frequency Response: 40 Hz – 20,000 Hz
• Crossover: Bass/Mid: 320 Hz, Mid/High: 1200 Hz
• Dispersion: 100° x 60°
• Dimensions: 42.32 x 18.15 x 18.7 in (1075 x 461 x 475 mm)
• Weight: 99.21 lb (45 kg)
• Inputs: Combo XLR/Jack (balanced/unbalanced)
• Outputs: XLR
• Controls: Linear, 2 Speakers, High Pass, Volume
• Cooling: Convection (fanless)
• Power Connections: PowerCON TRUE1 TOP In/Out

What's In The Box

• RCF NX 985A Speaker
• PowerCON TRUE1 Cable
• User Guide
