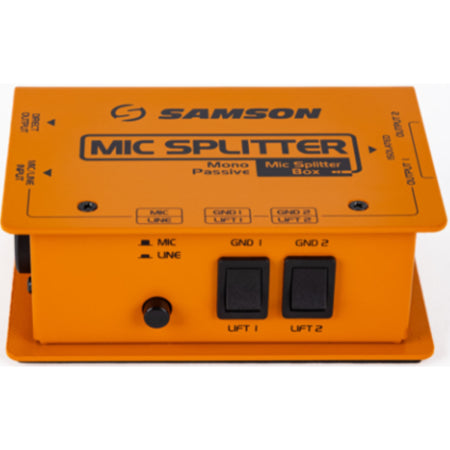

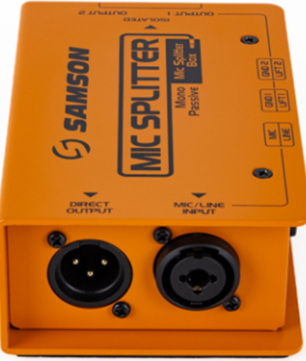

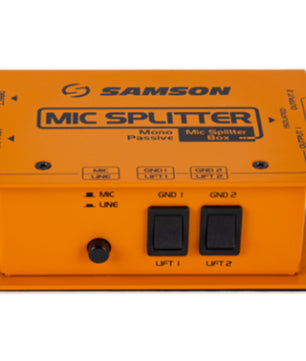

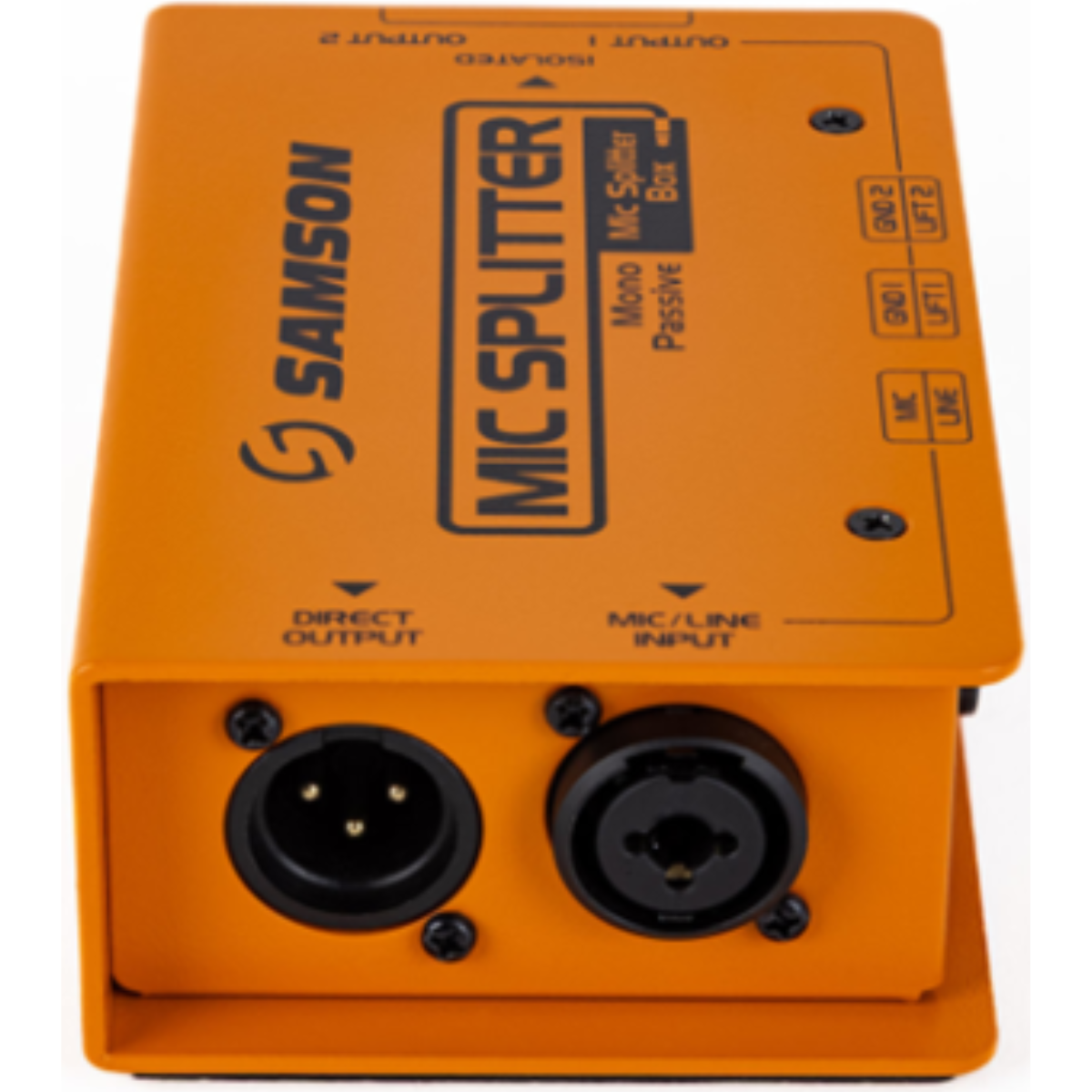

Samson SAMICSPLITT | XLR/TRS Mic Splitter | Passive 3-Output Signal Splitter

Samson SAMICSPLITT | XLR/TRS Mic Splitter | Passive 3-Output Signal Splitter

$99.99

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Passive Mic Splitter

Samson SAMICSPLITT is a passive signal splitter designed to duplicate microphone or line-level signals for live sound, studio, and stage applications. With a combo XLR/TRS input, one XLR thru output, and two isolated XLR outputs, it provides a simple way to send the same signal to front-of-house mixers, monitor consoles, audio interfaces, or recording systems without requiring external power.

Samson SAMICSPLITT Competitive Differences

Passive mic and line signal splitting with no external power supply required
XLR/TRS combo input accepts either 3-pin XLR or 1/4 in TRS connections
One XLR thru output plus two isolated XLR outputs for flexible routing
Ground lift controls on isolated outputs help reduce hum and noise
Durable 14-gauge steel chassis built for stage and studio use

Samson SAMICSPLITT Description

The Samson SAMICSPLITT is built for users who need a clean, straightforward way to split one incoming signal into multiple destinations. Its single combo input accepts either an XLR microphone cable or 1/4 in TRS cable, making it easy to integrate into different live sound and recording setups.

For output routing, the SAMICSPLITT includes one XLR thru output along with two isolated XLR outputs. This makes it useful for sending a signal to a front-of-house mixer, monitor console, broadcast feed, audio interface, or backup recording system from a single source.

A Mic/Line switch allows the input level to be set appropriately for the connected source, while ground lift controls on the isolated outputs help reduce unwanted hum and noise. Because the unit is passive, it requires no power supply, making setup fast and dependable.

Housed in a rugged 14-gauge steel enclosure, the Samson SAMICSPLITT is designed for repeated use in demanding stage, rehearsal, and studio environments where reliable signal routing is essential.

SAMICSPLITT Features

Passive microphone and line-level signal splitter
Durable all-metal enclosure
14-gauge steel chassis
XLR/TRS combo input
Accepts 3-pin XLR or 1/4 in TRS input cables
Mic/Line input level switch
One XLR thru output
Two isolated XLR outputs
Ground lift controls on isolated outputs
No external power supply required
Designed for live sound, studio, monitoring, and recording applications

SAMICSPLITT Specifications

Type: Passive Mic Splitter
Inputs: 1 x XLR/TRS Combo
Outputs: 1 x XLR Thru, 2 x XLR Isolated Outputs
Height: 1.95 in
Width: 3.38 in
Depth: 5 in
Weight: 1.5 lb
Manufacturer Part Number: SAMICSPLITT
