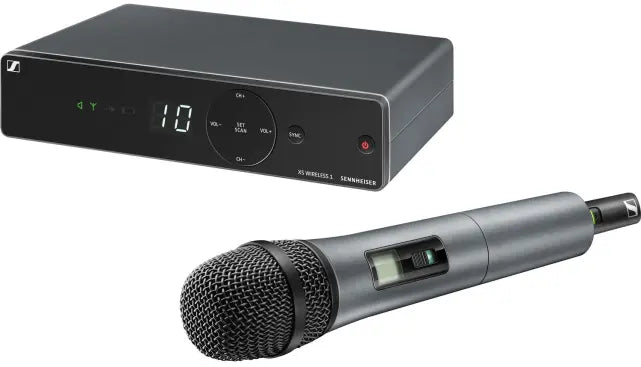

Sennheiser XSW 1-825-A | UHF Wireless Handheld Vocal Mic System with e825 Capsule (A: 548–572 MHz)

Wireless handheld microphone system for live vocals and presentations

The Sennheiser XSW 1-825-A is a complete UHF wireless vocal microphone system designed for singers, presenters, and live performers. Operating in the 548–572 MHz frequency range (Band A), this system offers reliable wireless performance with simple setup and intuitive operation—making it ideal for stages, conferences, and theaters.

Sennheiser XSW 1-825-A Competitive Differences

• Includes the trusted e825 dynamic cardioid microphone capsule for clear vocal pickup
• UHF analog wireless system with 80 frequency channels and up to 10 compatible systems
• Antenna-switching diversity reception ensures reliable signal stability
• Automatic frequency management and remote channel sync for fast, interference-free setup
• Receiver features integrated antennas and dual outputs (XLR and 1/4")
• Compact and lightweight receiver with easy-to-read LED display
• Includes all essential accessories: mic clamp, 2 AA batteries, and 12V power adapter

Sennheiser XSW 1-825-A Description

The Sennheiser XSW 1-825-A wireless vocal set combines professional-grade performance with user-friendly features, making it an excellent choice for performers who need freedom of movement on stage. The included e825 handheld transmitter delivers clear, detailed vocals with its cardioid pickup pattern, ideal for cutting through live mixes while rejecting background noise. The EM-XSW 1 tabletop receiver offers selectable UHF frequencies and supports up to 10 simultaneous systems, making it scalable for medium to large venues. Its antenna-switching diversity technology ensures a stable connection by intelligently switching between antennas to minimize dropouts. With automatic frequency coordination and remote syncing, setup is quick and easy—even for non-technical users. Designed with both reliability and simplicity in mind, the XSW 1-825-A is ideal for musicians, houses of worship, educators, and public speakers. The system includes a mic clamp, power supply, and batteries—everything you need to get started out of the box.

XSW 1-825-A Features

• UHF analog wireless microphone system
• e825 dynamic cardioid microphone capsule for vocal clarity
• Antenna-switching diversity reception for reliable performance
• Automatic frequency management with remote syncing
• Up to 10 compatible systems per frequency band
• Integrated antennas and compact tabletop receiver
• Dual audio outputs: XLR and 1/4" TS
• Easy-to-read LED display on receiver
• Internal antenna handheld transmitter with mute switch
• Long battery life: up to 10 hours with 2 AA batteries (included)

XSW 1-825-A Specifications

• Wireless Technology: Analog UHF (Band A: 548–572 MHz)
• Number of RF Channels: 80
• Max Compatible Systems: 10
• Max Operating Range: 100 ft (30.5 m)
• Transmitter Type: Handheld with e825 mic capsule
• Polar Pattern: Cardioid
• Receiver Outputs: 1x XLR balanced, 1x 1/4" TS unbalanced
• Receiver Frequency Response: 50 Hz to 16 kHz (-3 dB)
• Transmitter Frequency Response: 80 Hz to 14 kHz
• Transmitter Gain Range: 0 to -30 dB (10 dB steps)
• Transmitter Output Power: 10 mW
• Receiver Gain Range: 45 dB (5 dB steps)
• Receiver Display: Alphanumeric LED
• Transmitter Display: LCD (non-backlit)
• Power Supply: 12 VDC at 300 mA (adapter included)
• Battery Type: 2x AA (included)
• Battery Life: Up to 10 hours
• Receiver Dimensions: 7.9 x 1.7 x 5 in (200 x 42 x 127 mm)
• Transmitter Dimensions: 10.2 x 2 in (260 x 50 mm)
• Receiver Weight: 12 oz (340 g)
• Transmitter Weight: 8.6 oz (245 g)
• UPC: 615104278615

What's In The Box

• Sennheiser e825 Handheld Microphone with Transmitter
• EM-XSW 1 Tabletop Receiver
• Microphone Clamp
• NT 12-5 CW Power Adapter
• 2x AA Batteries
