Smoke Factory SF-0110 | Carpet Crawler + Data II + Flight Case | CO₂ Ground Fog Bundle with 2600W Fog Machine

CO₂-Based Ground Fog System

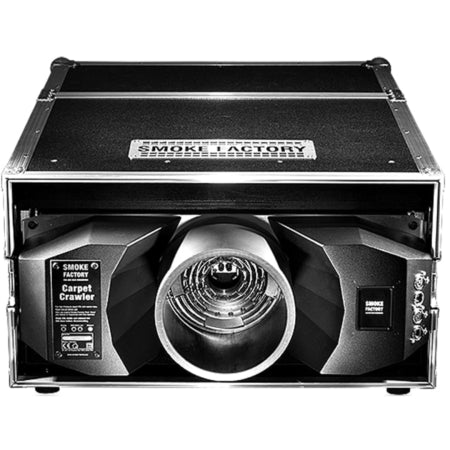

Smoke Factory SF-0110 is a complete low-lying fog solution combining the Carpet Crawler CO₂ fog cooler, a powerful Data II fog machine, and a durable flight case. Designed for stage, touring, and special effects applications, this system produces thick, white, ground-hugging fog — ideal for dramatic entrances, theatrical effects, or dance floors.

Smoke Factory SF-0110 Competitive Differences

• Bundled with a 2600W Data II fog machine — ready to fog out of the case
• Advanced control: Touch display, DMX, ArtNet, sACN, analog, and timer

Smoke Factory SF-0110 Description

The Carpet Crawler uses CO₂ cooling technology to create a dense ground fog effect that hugs the floor and dissipates before rising. In this configuration, it’s bundled with a Data II 2600W fog machine and a custom flight case — delivering plug-and-play operation with all necessary hoses included. The unit features professional-grade control options, including 5-pin DMX512, analog 3-pin input (for cable or radio remote), and Ethernet for ArtNet and sACN protocols. Its intuitive touchscreen interface allows you to easily adjust DMX addressing, output profiles, and timer settings. Once powered up, the system is ready to fog in just 7 minutes, and the canister-based fluid system allows for quick changes using the built-in quick-release mount. This complete kit is ideal for high-performance environments, offering high fog density and control flexibility — whether used in standalone mode, with a console, or in an automated show rig. This bundle includes a 5 m CO₂ hose, a 10 m fog hose, and arrives packed in a rugged flight case for touring reliability.

Model Features

• Complete low-fog bundle: Carpet Crawler + Data II + flight case
• Uses CO₂ cooling to create dense, low-lying fog
• Touchscreen control for profiles, DMX, ArtNet, and sACN settings
• 3-channel operation — fog, air, and CO₂ individually controllable
• Quick-release fluid system for fast canister swaps
• Includes hoses: 5 m CO₂ hose and 10 m fog hose
• Made in Germany with high-quality components

Model Specifications

• Power Output: 2600W (Data II fog machine)
• Power Requirement: 240 V / 50 Hz
• Fog Time: ~30 seconds to 100%; continuous fog possible
• Heat-Up Time: ~7 minutes
• Fluid Consumption: 240 ml/min (max), 70 ml/min (continuous)
• Control Options: Ethernet (ArtNet / sACN), DMX512 (5-pin), Analog 0–10V (3-pin), Stand-Alone, Timer
• Weight: 104.4 lb (47.34 kg) including fog machine, case, lids, and hoses

What's In The Box

• Smoke Factory Carpet Crawler
• Smoke Factory Data II fog machine (2600W)
• Touring flight case with lid
• 5 m CO₂ hose
• 10 m fog hose
• Power cable
• Touchscreen control interface
