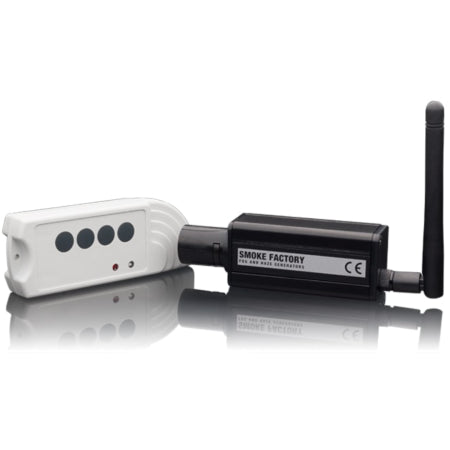

Smoke Factory SF-0513 | Wireless Remote Control | 433 MHz for All Analog Foggers & Hazers

Wireless Fog & Hazer Remote

Smoke Factory SF-0513 is a universal 433 MHz wireless remote control system designed for all Smoke Factory fog and haze machines equipped with an analog input. Built for reliability and range, this UHF system allows precise fog control from a distance—ideal for live production, theater, and mobile events.

Smoke Factory SF-0513 Competitive Differences

• Works with all analog-controlled Smoke Factory foggers and hazers
• Supports multi-receiver control and 4 programmable channels

Smoke Factory SF-0513 Description

The Smoke Factory SF-0513 wireless remote system offers professional-grade control over fog and haze effects from distances up to 100 meters. Consisting of a hand-held transmitter and receiver, this UHF system operates on selectable 433.62 MHz or 434.22 MHz frequencies for interference-resistant performance. The system is pre-programmed at the factory to operate on Frequency 1 (433.62 MHz) and can be easily adjusted using an internal jumper. The transmitter supports up to four channels, enabling control of individual receivers or groups. Multiple handsets can be paired to one receiver, or a single transmitter can control several receivers—ideal for synchronized multi-machine setups. To activate fogging, users must press and hold Button 1. A brief press will not trigger the unit, ensuring intentional activation during performances. The fogging stops immediately upon release, providing precise manual control. With a compact, lightweight build and rugged RF signal transmission capable of penetrating walls and concrete, the SF-0513 is engineered for dependable use in both fixed installations and mobile environments.

Model Features

• Compatible with all Smoke Factory fog and haze machines with analog input
• UHF remote system (transmitter + receiver)
• Press-and-hold function ensures precise fog control
• Range: Up to 100 meters (with line of sight)
• Controls up to 4 channels—individual or grouped receivers
• 433 MHz (default) or 434 MHz selectable frequency
• Ready to use out of the box—pre-paired
• Penetrates walls and reinforced concrete

Model Specifications

• Frequencies: 433.62 MHz (Freq 1), 434.22 MHz (Freq 2)
• Modulation: RF
• Max Transmission Power: 10 mW
• Bandwidth: 100 kHz
• Range: Approx. 100 m (optimal conditions)
• Transmitter Dimensions: 10 x 3.7 x 1.9 cm
• Receiver Dimensions: 12.5 x 3.1 x 9.5 cm (with antenna)
• Transmitter Weight: 41 g
• Receiver Weight: 88 g
• Made in Germany

What's In The Box

• Handheld RF Transmitter
• Receiver Unit with Antenna
• User instructions
