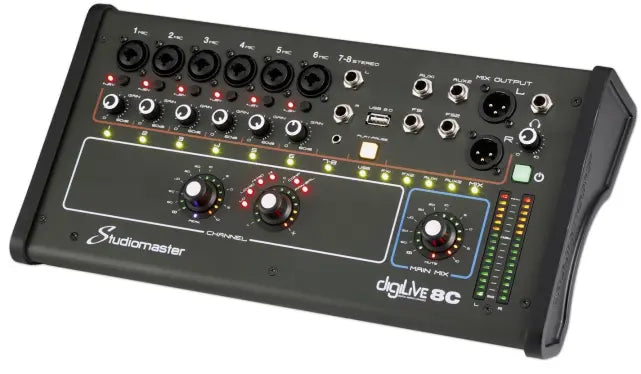

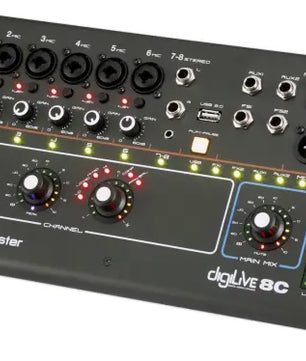

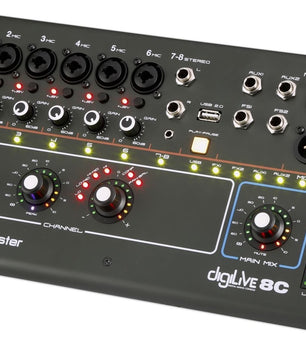

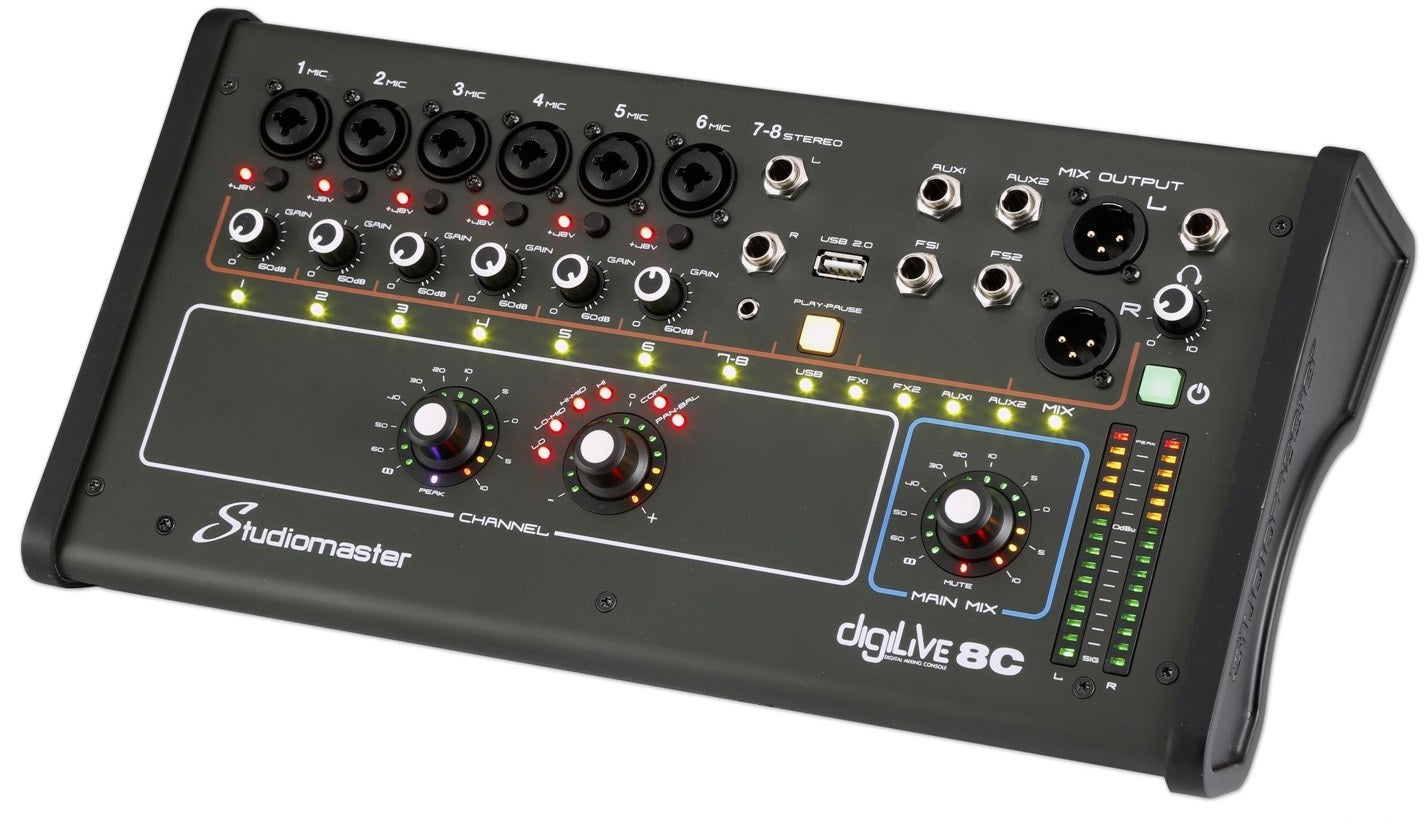

Studio Master DigiLive 8C | 8-Channel Digital Mixer with Wi-Fi, FX Busses & USB Recording

Compact Digital Mixer with Wi-Fi Control and Built-In Effects

The Studiomaster DigiLive 8C is a compact, feature-rich digital mixer designed for versatility, mobility, and ease of use. Whether you're mixing live sound, recording, or streaming, this 8-input mixer provides professional performance with an intuitive analogue-style interface. With Wi-Fi/LAN control, built-in effects, and a compact form factor, it's the perfect solution for small venues, mobile setups, or home studios.

Studiomaster DigiLive 8C Competitive Differences

• 8 analogue inputs, including 6 MIC/LINE combo XLR/TRS and 1 stereo input (3.5mm & dual TRS)
• Cross-platform remote control via Wi-Fi or LAN using any web browser
• 4 internal effect busses with 2 programmable reverbs and 2 delays
• Full-featured USB interface for playback, recording, scene storage, and updates
• Three user modes: FULL, BASIC, and LOCK for streamlined or advanced operation
• Analogue-style mixing with visual bus routing and quick double-tap fader resets
• Built-in media player and simultaneous stereo WAV recording of main mix
• High-quality dynamics including compression and gate, with preset save/recall
• Ultra-compact design with professional balanced I/O

Studiomaster DigiLive 8C Description

The Studiomaster DigiLive 8C is engineered for users who want the feel of an analogue mixer with the power of digital control. With 8 input channels (6 MIC/LINE and 1 stereo), the mixer supports full front-panel control and offers ultra-responsive operation through three rotary encoders. The intuitive interface provides flexible operation modes—FULL for advanced control, BASIC for simplified operation, and LOCK to limit access for basic tasks like media playback or fader use. A 4-band parametric EQ and high-pass filter provide precision tonal shaping, while the internal FX engine includes two programmable reverbs and two delays. For monitoring and routing, the DigiLive 8C features stereo monitor outputs, a headphone out, and a powerful 31-band graphic EQ on the main mix. With analogue-style double-tap-to-zero fader control and visual bus routing, users get fast, accurate control over every mix scenario. Remote control is seamless via Wi-Fi (external module required) or hardwired LAN using any device with a web browser—no app required. Additionally, the media player supports playback of MP3 and WAV files, and allows one-touch recording of the stereo main mix to USB.

DigiLive 8C Features

• 8 analogue input channels
• 6 MIC/LINE combo XLR/TRS inputs
• 1 stereo input (3.5mm mini jack or stereo TRS)
• 4 internal stereo FX busses
• 2 mono AUX sends
• Stereo PFL and main mix busses
• Built-in media player with simultaneous stereo WAV recording
• 4-band parametric EQ with preset save
• High-pass filter (HPF)
• Compression and gate dynamics with preset library
• Assignable footswitch input
• Three operation modes: FULL, BASIC, LOCK
• Double-tap fader reset and analogue-style control
• Cross-platform remote control via Wi-Fi or LAN
• USB for recording/playback, scene storage, and updates

DigiLive 8C Specifications

• Inputs: 6 MIC/LINE combo XLR/TRS, 1 stereo TRS (1/4") and 3.5mm mini jack
• Master output: Balanced XLR (L/R)
• Stereo monitor output: TRS jack
• Headphone output: TRS jack
• Internal busses: 4 stereo FX, 2 mono AUX, stereo PFL, Main Mix
• Sample frequency: 48 kHz
• AD/DA conversion: 48 kHz / 24-bit
• DSP: 40-bit floating point SHARC processor
• 31-band graphic EQ on main mix outputs
• USB ports: 2 (playback, recording, updates, storage)
• Network connectivity: External Wi-Fi module or RJ45 LAN
• Power: 90-240V ~ 50/60Hz, 12VDC output
• Weight: 17.6 lb (8 kg)
