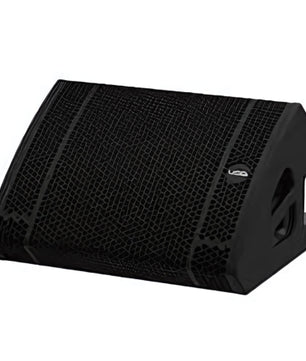

VOID Acoustics ArcM 12 | 12in - 133 dB

$3,091.08

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Compact and Versatile Unpowered Stage Monitor

The ArcM 12 is a powerful, multi-functional unpowered stage monitor designed to meet the needs of any performance setting. Whether used as a near-field booth monitor, a conventional stage wedge, or mounted for front-of-house applications, the ArcM 12’s flexible design makes it an essential tool for live venues and AV setups. Lightweight and ergonomically optimized, this monitor ensures easy handling and portability without compromising on sound quality.

ArcM 12 Competitive Differences

High-powered 12” + 1.4” coaxial neodymium transducer for clear, powerful sound
Dual wedge angles for both stage and near-field monitoring
Integral pole mount for 35 mm diameter poles, adding setup flexibility
Low-profile design, enhancing stage aesthetics
Rugged polyurea finish for durability in demanding environments
Optimized dimensions for efficient truck packing and transport
Rear mounting plate (Type 80) for wall or ceiling fixing

ArcM 12 Description

The ArcM 12 brings flexibility and acoustic precision to any performance environment. With its high-efficiency 12” coaxial transducer, this monitor delivers consistent, high-quality sound with minimized port noise and air distortion, thanks to advanced FEA analysis. Its unpowered design ensures seamless integration with existing professional sound infrastructure, making it a versatile option for venues, live events, and corporate AV settings. Designed with convenience in mind, the ArcM 12 is built for mobility and ease of use, featuring ergonomic handles and a low-profile construction that enhances stage aesthetics.

ArcM 12 Features

12” + 1.4” coaxial neodymium transducer for high-power sound
Dual-angle design for stage and near-field monitoring
Integral 35 mm pole mount
Ergonomic handles for easy transport
Compact, truck-friendly dimensions
Durable polyurea finish for heavy-duty use
Type 80 mounting plate for secure wall or ceiling mounting

ArcM 12 Specifications

Frequency Response: 60 Hz - 18 kHz ±3 dB
Efficiency: 100 dB 1W/1m
Crossover Point: 1.2 kHz (acoustic)
Nominal Impedance: 8 Ω (passive); 8 Ω (LF) and 16 Ω (HF) (active)
Power Handling: 500 W AES
Maximum Output: 130 dB continuous, 133 dB peak
Driver Configuration: Coaxial 12” LF and 1.4” HF neodymium
Dispersion: 80° horizontal x 80° vertical
Connectors: 2 x 4-pole speakON™ NL4
Dimensions (H x W x D): 13” x 21.7” x 18.2” (330 x 550 x 463 mm)
Weight: 41.9 lbs (19 kg)
Rigging: Integral top hat, type 80 mounting bracket
Finish: Textured polyurea
