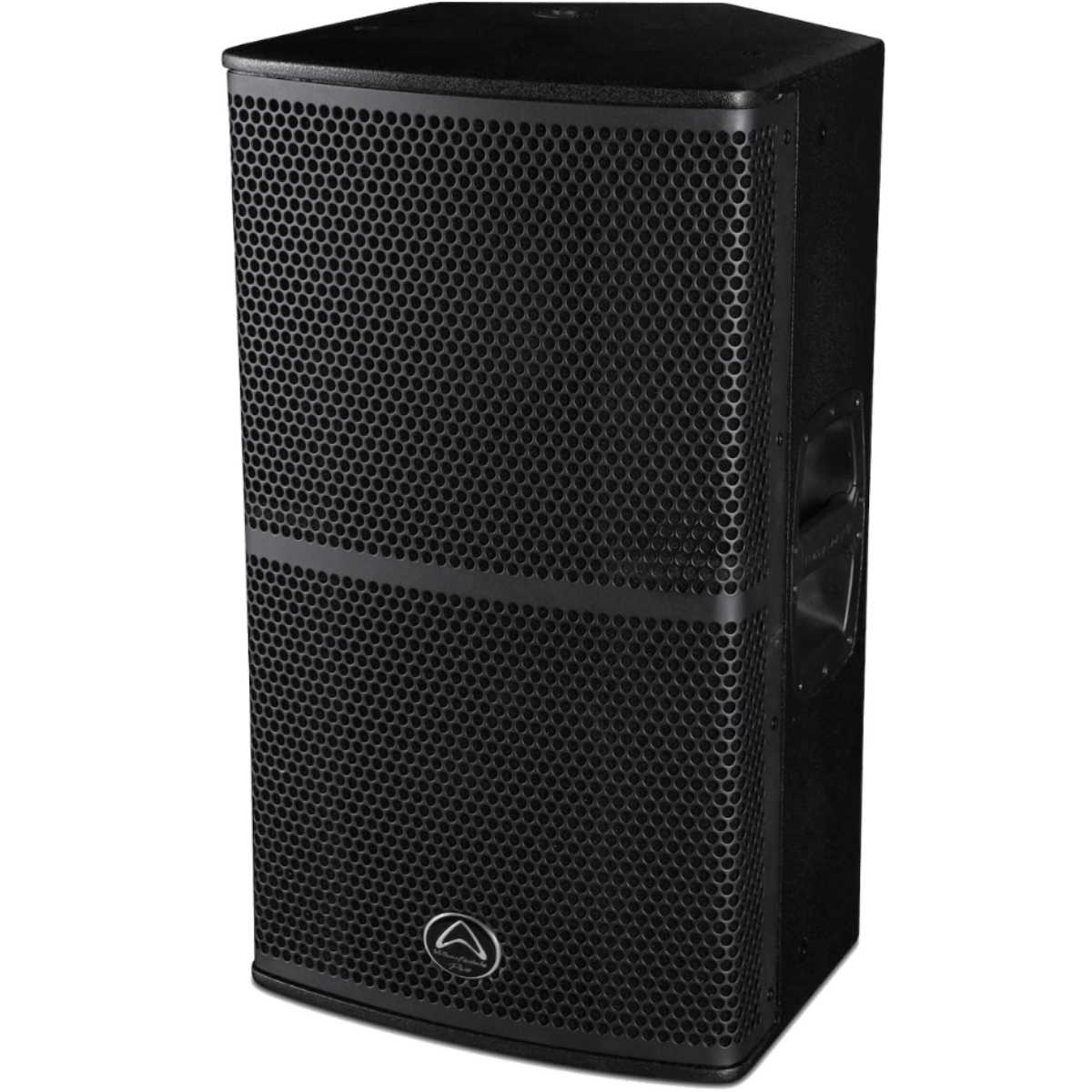

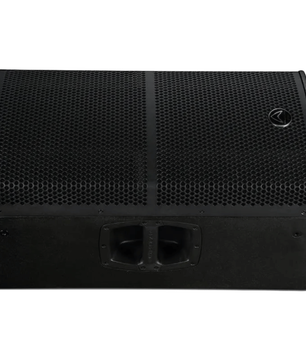

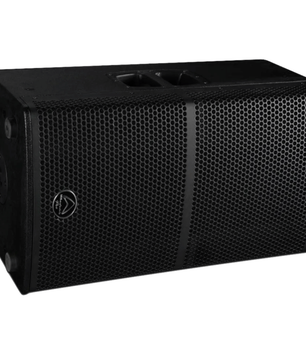

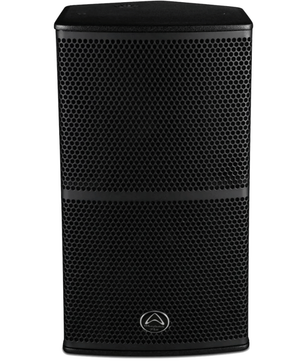

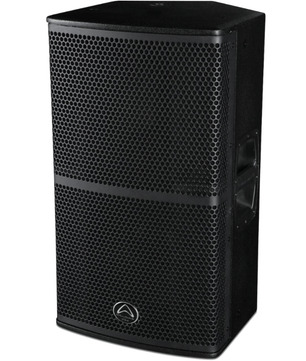

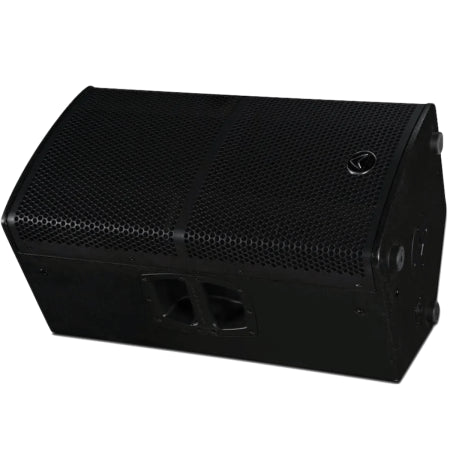

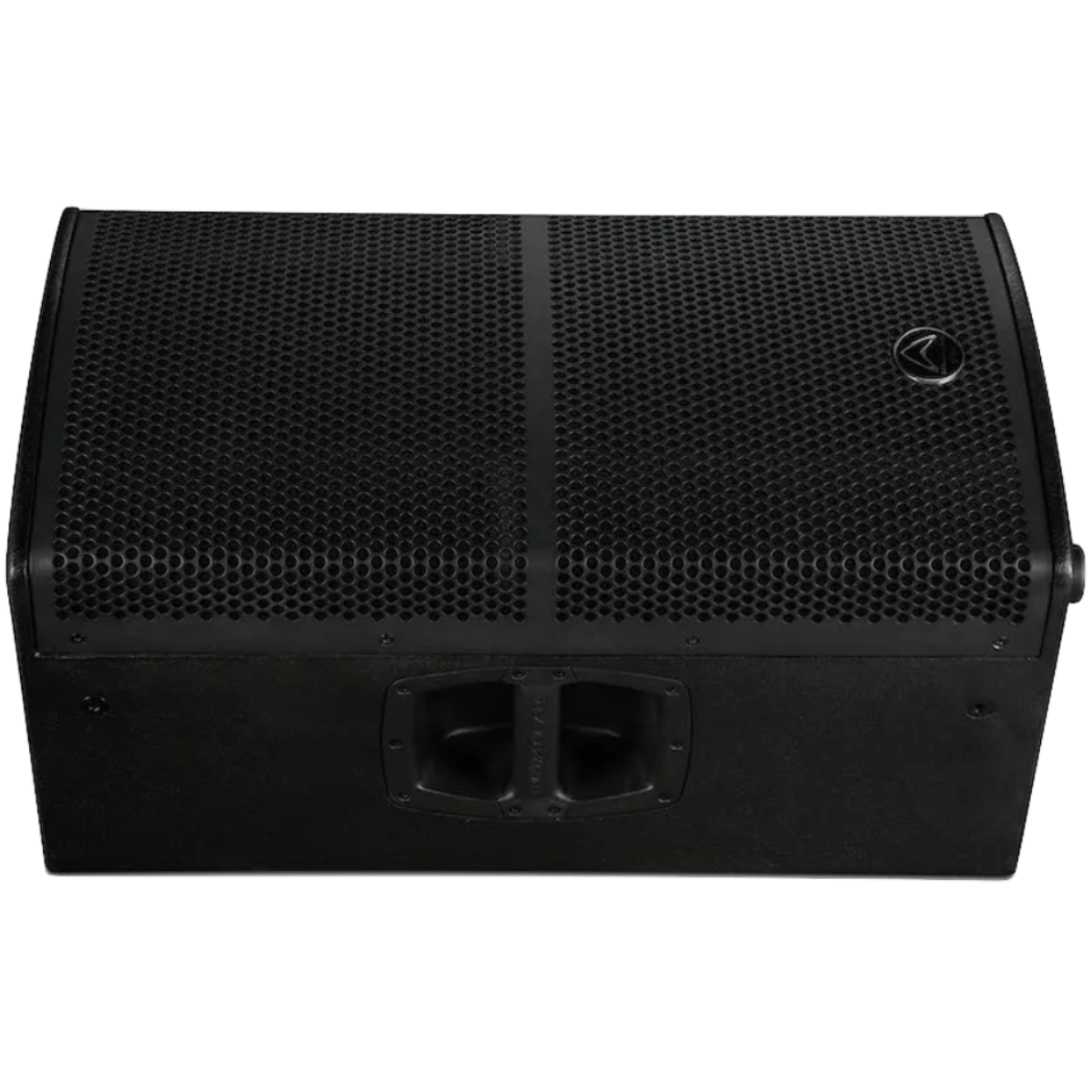

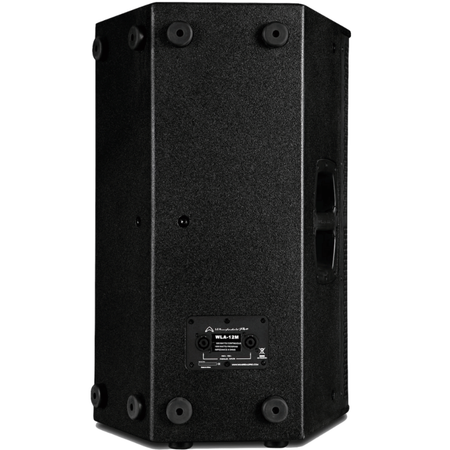

Wharfedale Pro WLA-12MX | 12in Passive Floor Monitor | Rotatable 90° x 60° Waveguide

Passive Floor Monitor Speaker

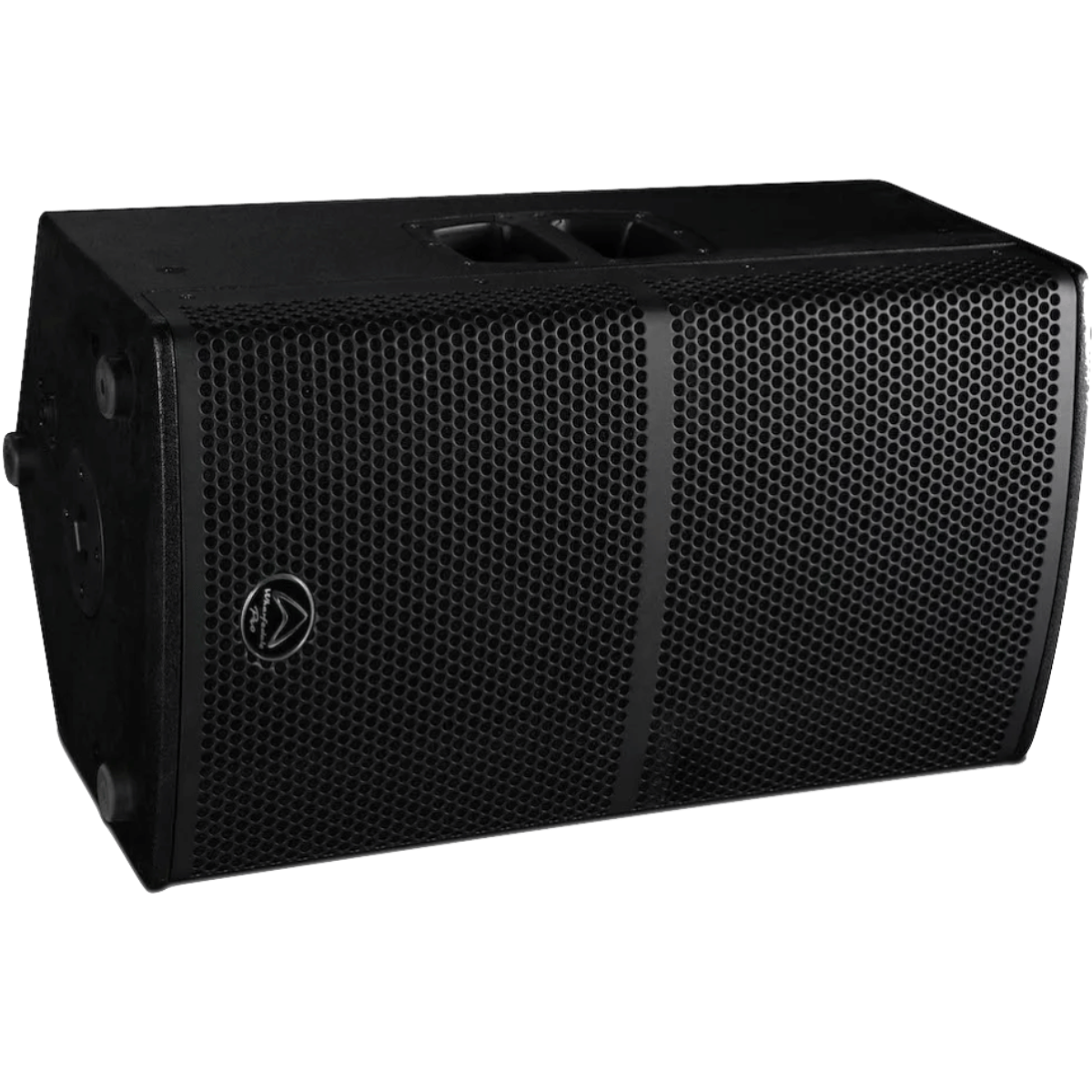

Wharfedale Pro WLA-12MX is a 12-inch 2-way passive floor monitor engineered for powerful stage monitoring and flexible live sound deployment. Built from birch plywood with a rotatable waveguide and high-output compression driver, it delivers reliable performance for touring, installed sound, and professional stage applications.

Wharfedale Pro WLA-12MX Competitive Differences

• 12-inch passive 2-way floor monitor with 131 dB max SPL
• Rotatable 90° x 60° waveguide for flexible horizontal or vertical deployment
• 500W AES power handling with 2000W peak capacity
• Multiple speaker connector locations for adaptable stage setup

Wharfedale Pro WLA-12MX Description

The Wharfedale Pro WLA-12MX is designed for demanding monitoring applications where clarity, output, and reliability are critical. Its 12-inch LF driver with a 3-inch voice coil works alongside a newly developed 3-inch Neo HF compression driver to deliver detailed mids, clear highs, and consistent stage monitoring performance.

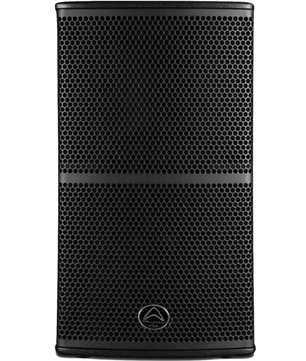

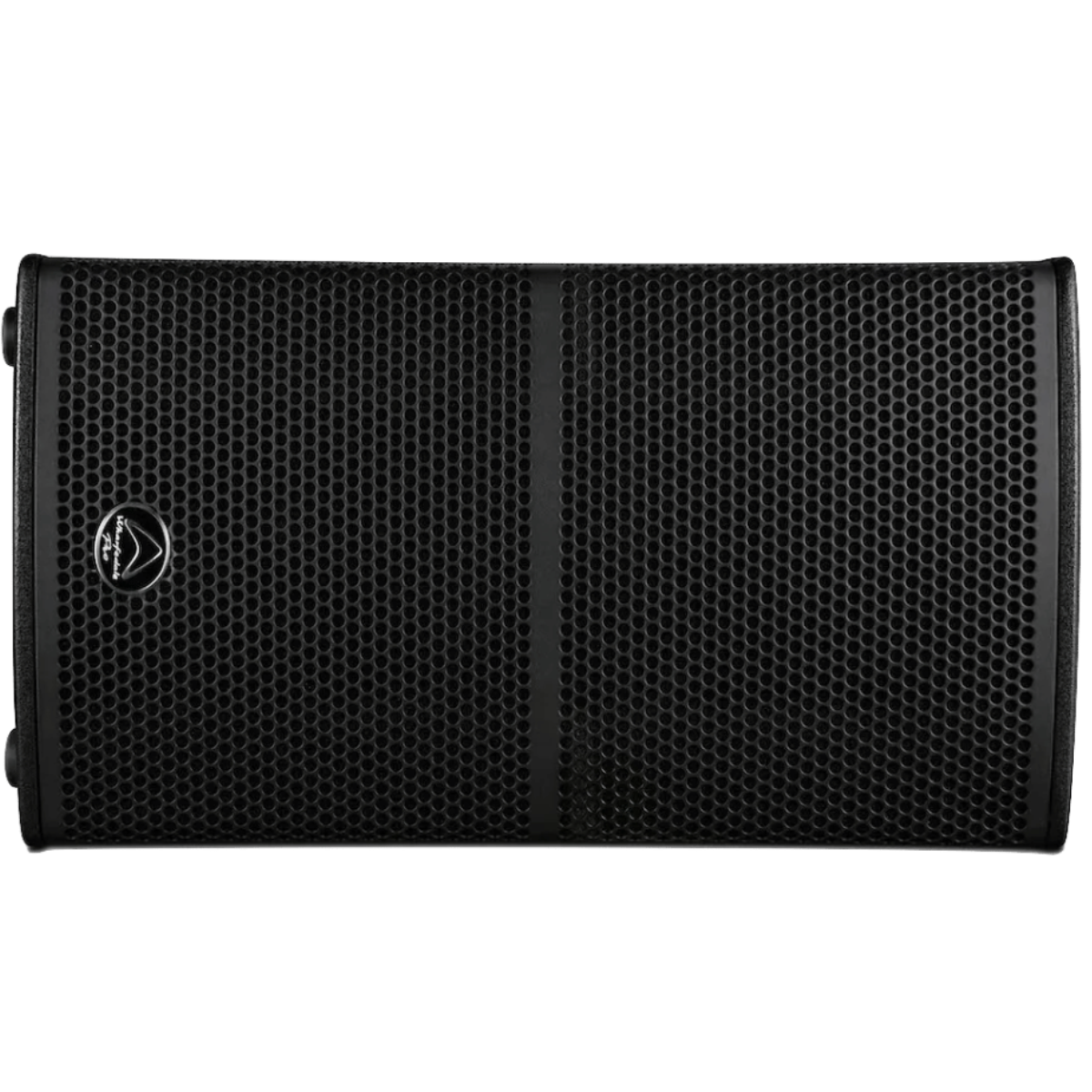

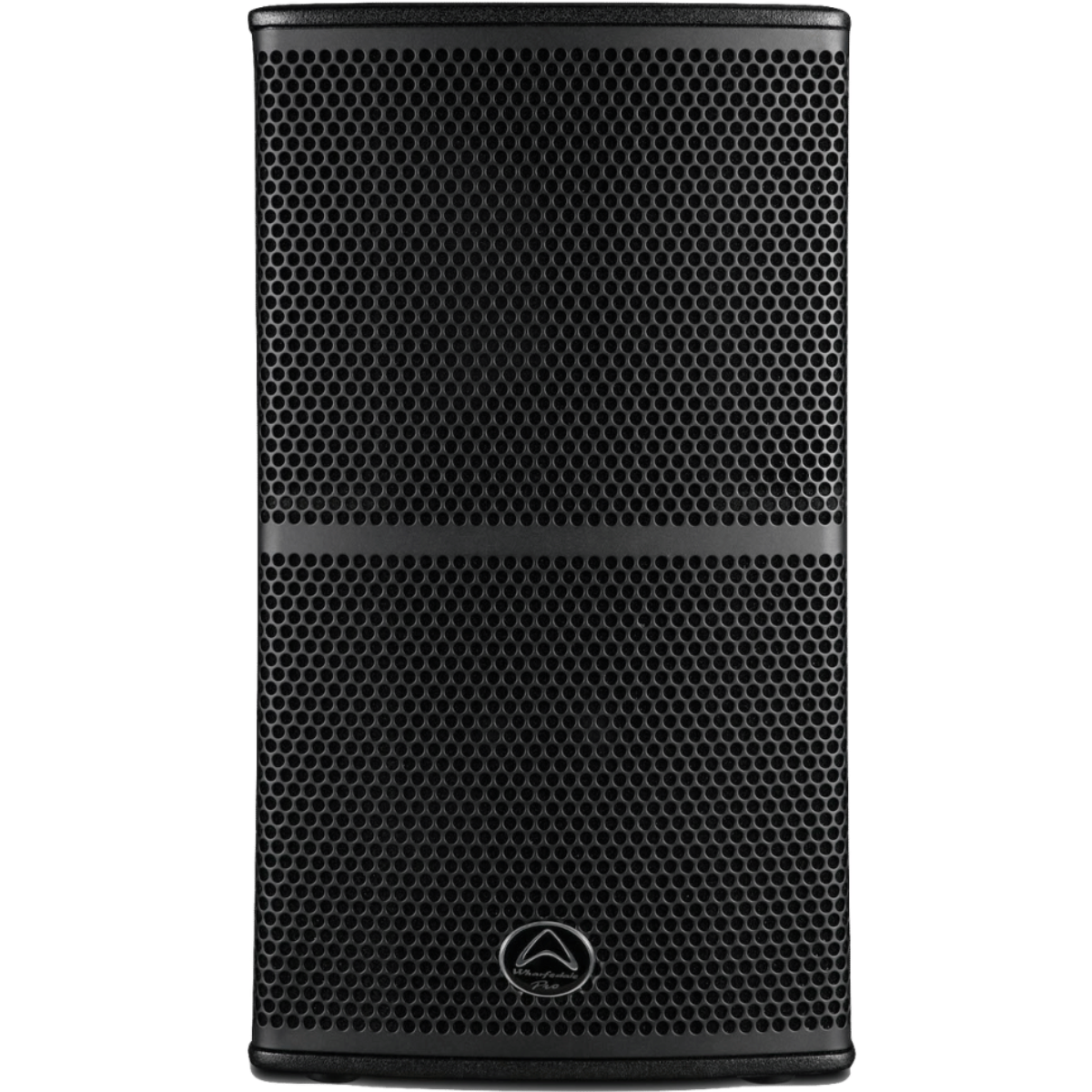

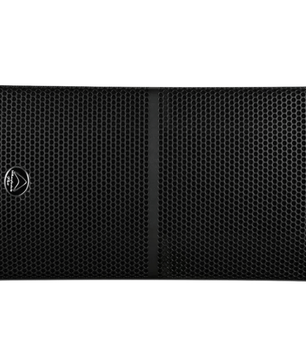

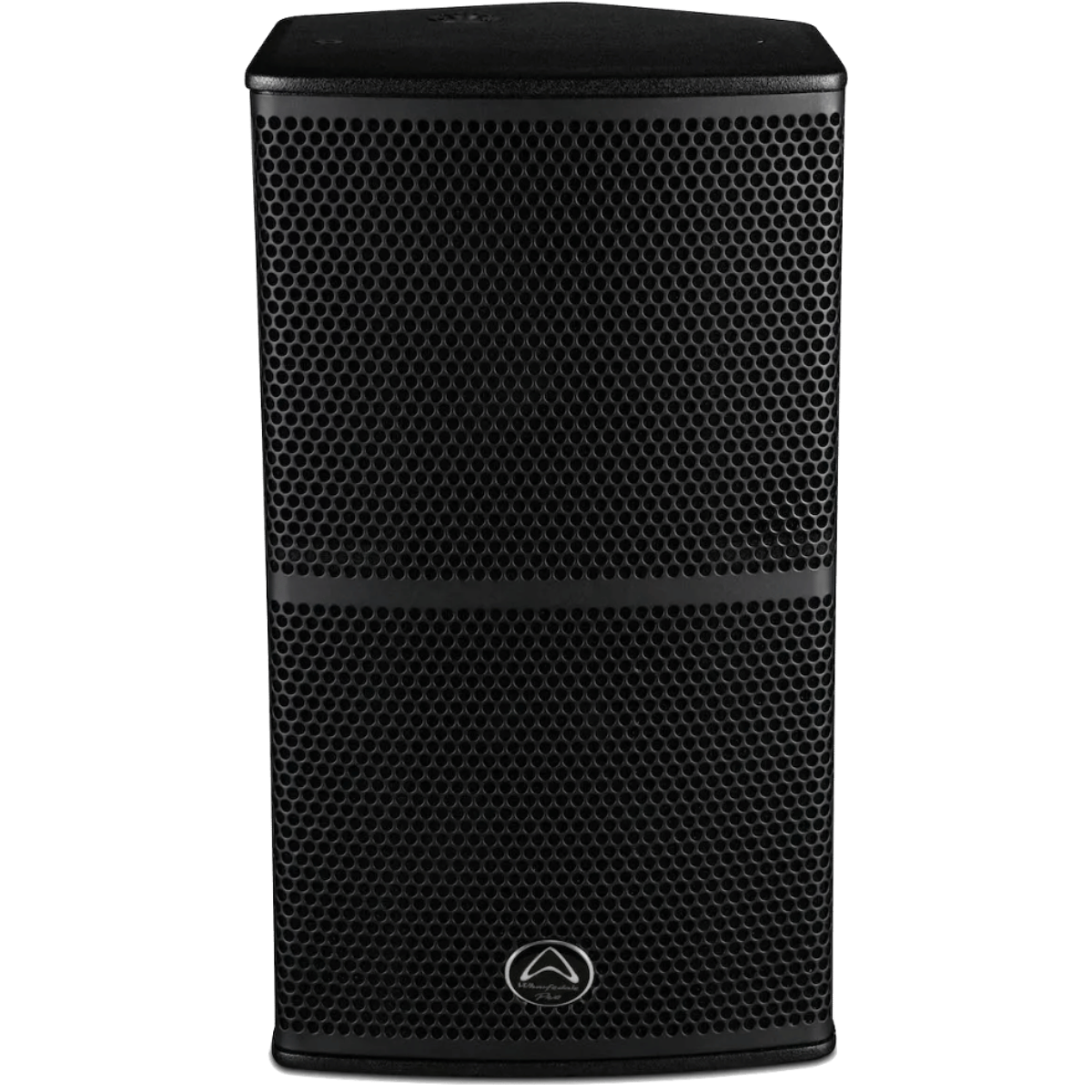

Constructed from durable 15 mm birch plywood, the enclosure is built to handle the rigours of touring and frequent setup. The black Tough-Tone finish and black steel grille provide additional protection while maintaining a professional appearance for live productions and installations.

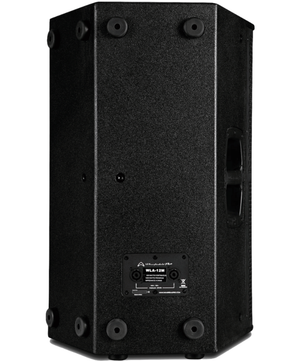

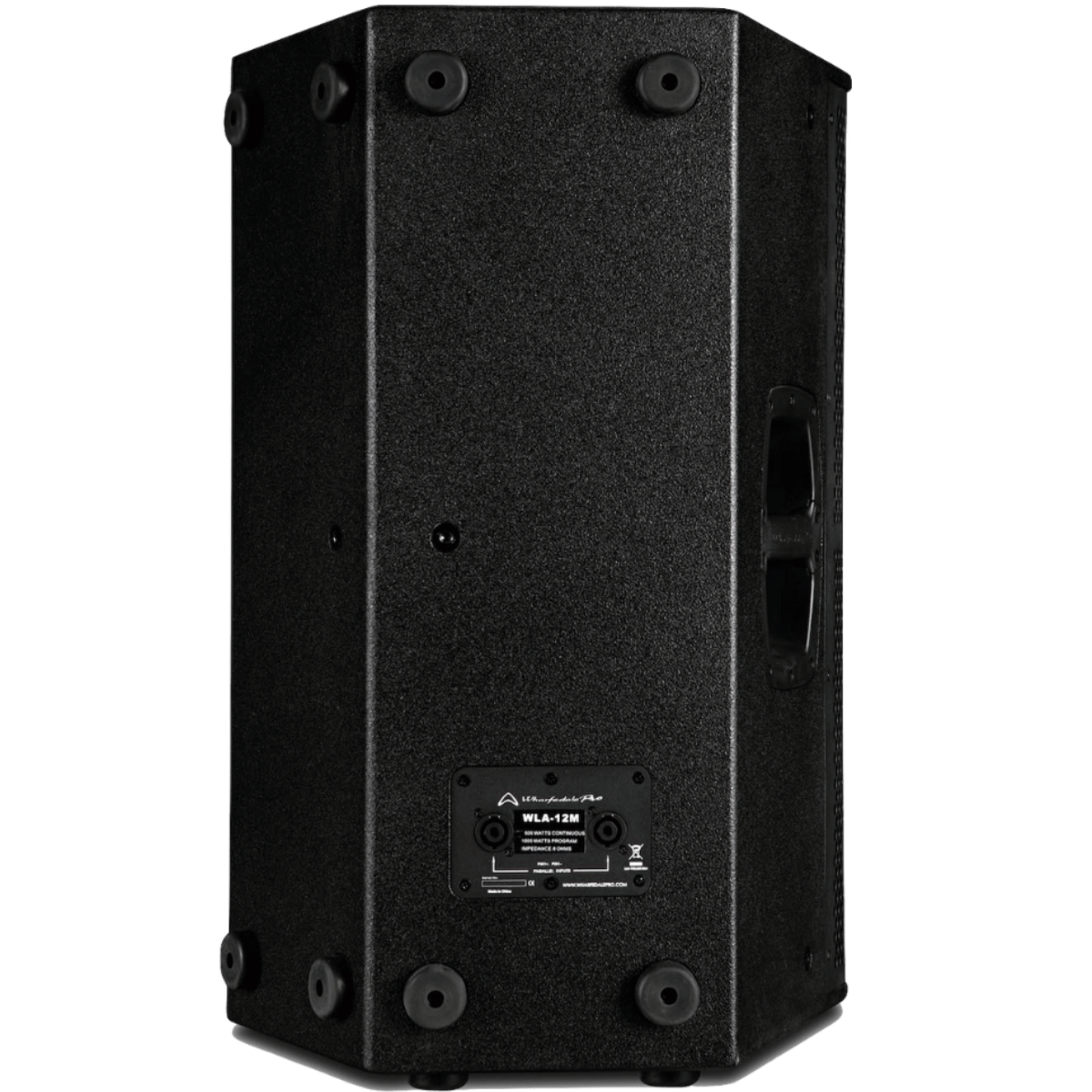

The WLA-12MX offers flexible deployment options for monitor, side-fill, or front-of-house applications. Its rotatable square waveguide supports both horizontal and vertical orientation, while four 4-pole speaker connectors positioned on the top, side, and rear simplify cable routing in different stage layouts. A built-in 35 mm pole socket further expands placement options.

WLA-12MX Features

• 12-inch 2-way passive floor monitor
• 500W AES continuous power handling
• 1000W programme power handling
• 2000W peak power handling
• 131 dB max SPL at 1 m
• 12-inch LF driver with 3-inch voice coil
• 3-inch Neo HF compression driver
• 1.4-inch HF exit size
• Titanium HF diaphragm
• Rotatable 90° x 60° square waveguide
• 4 x 4-pole speaker connectors
• 15 mm birch plywood enclosure
• Black Tough-Tone finish
• Steel black grille
• 35 mm pole mount socket
• Supports ground, pole, and wall mount deployment
• M10 rigging points
• Integrated carry handles
• Preset library support

WLA-12MX Specifications

• Active or Passive: Passive
• System Type: Floor monitor
• Configuration: 2-way
• System Continuous Power: 500 W
• System Programme Power: 1000 W
• System Peak Power: 2000 W
• Max SPL at 1 m: 131 dB
• Frequency Response (+/-3 dB): 55 Hz - 20 kHz
• Frequency Range (-10 dB): 50 Hz - 20 kHz
• LF Driver Size: 12 in.
• LF Voice Coil Size: 3 in.
• LF Rated Impedance: 8 ohms
• LF Power: 500 W RE:AES2-2012
• HF Driver Type: Compression driver
• HF Voice Coil Size: 3 in.
• HF Diaphragm Material: Titanium
• HF Exit Size: 1.4 in.
• HF Power: 80 W RE:AES2-2012
• HF Rated Impedance: 8 ohms
• Nominal Coverage: 90° x 60° rotatable
• Sensitivity: 98 dB at 2.83 V / 1 m
• System Rated Impedance: 8 ohms
• Crossover Frequency: 1.9 kHz
• Recommended HPF: 50 Hz BW 18 dB/oct.
• Input Connector: 4 x 4-pole speaker connector
• Waveguide Type: Square
• Enclosure Material: Birch plywood
• Grille Material and Finish: Steel black
• Finish: Black Tough-Tone
• Handles: 2
• Deployment: Ground, pole, wall mount
• Pole Mount: 35 mm
• Rigging: Yes
• M10 Points: 10
• Bluetooth: No
• IP Certification: None
• Transformer: No
• Unpacked Dimensions: 658 x 372 x 400.1 mm / 25.9 x 14.6 x 15.8 in.
• Packed Dimensions: 746 x 442 x 470 mm / 29.4 x 17.4 x 18.5 in.
• Net Weight: 25.5 kg / 56.2 lb
• Gross Weight: 31.9 kg / 70.3 lb

What's In The Box

• WLA-12MX floor monitor
• User manual
