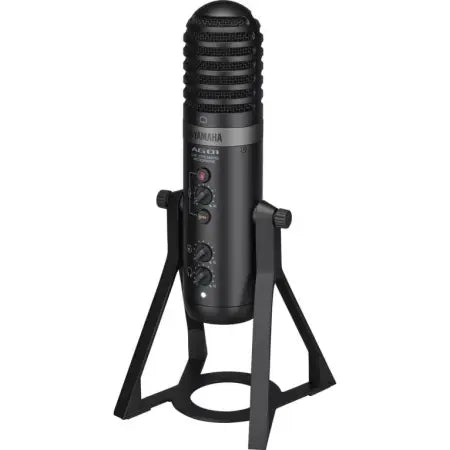

Yamaha AG01 | Black Live Streaming USB Mic

The black Yamaha AG01 is a stylish microphone that operates on USB bus power and provides a feature set well suited for live streaming and podcasting applications. The mic offers a condenser mic capsule with a cardioid polar pattern that picks up less unwanted background sounds, along with built-in DSP effects, including EQ, compression, and reverb, that you can use to sculpt a more professional sound.

The AG01 can be used with computers, iPads, and smartphones to record audio at resolutions of up to 192 kHz / 24-bit. The mic offers a 3.5mm TRS auxiliary input along with a 3.5mm TRRS input/output jack for smartphones. The internal digital mixer lets you blend the mic with these external sources, while the loopback function lets you add audio from connected USB devices and simultaneously stream to them with incurring monitoring issues.

Features:
For Podcasting, Streaming, VO, and More
3.5mm AUX Input + 3.5mm Phone In/Out
3.5mm Headphone Jack, Mute Button
Mixer with Loopback, Mix-Minus Switch
Cardioid Pickup for Less Background
Built-In Compressor, EQ & Reverb
Low/Mid/High Mic Gain Switch
Use with Computer, iPad, or Smartphone
Desktop Stand + 3/8" Mic Stand Thread
Includes USB Type-C to USB Type-A Cable

Specifications:
Microphone
Primary Applications Studio Recording, Podcast, Web-Streaming
Form Factor Desktop / Stand/Boom Mount
Intended Sound Sources Vocals, Speech/Voice Over, Instrument
Sound Field Mono
Capsule 1 x Electret Condenser
Polar Pattern Cardioid
Orientation Side Address
Circuitry Solid-State
High-Pass Filter None
Gain Adjustment Yes
On-Board Controls Direct Monitor Blend, FX, Gain/Sensitivity, Headphone Volume, Mic Mute
Performance
Frequency Range 30 Hz to 20 kHz
Maximum SPL 110 dB SPL
Sensitivity -34 dB
Equivalent Noise Level -103 dB
THD 0.01%
Connectivity
Output Connectors (Analog) None
Output Connectors (Digital) 1 x USB Type-C Female (on Mic)
Input Connectors 1 x 1/8" / 3.5 mm TRS Female (on Mic)
1 x 1/8" / 3.5 mm TRRS Female (on Mic)
Headphone Connector 1 x 1/8" / 3.5 mm
Cable Length 4.9' / 1.5 m
Wireless Connectivity None
Bluetooth None
Digital Audio
A/D Conversion 24-Bit
Sample Rate Up to 192 kHz
Digital Signal Processing Compressor, EQ, Limiter, Reverb
Operating System Support Windows, iPadOS, macOS/OS X
Mobile Device Compatibility iPad
Available Port USB 2.0
Power
Bus Power USB
Operating Voltage 5 V
Operating Current Consumption 900 mA
Physical
Color Black
Mounting Desktop Stand (Included)
Floor Mic Stand (via Integrated Hardware)
Mounting Thread Size Not Specified by Manufacturer
Included Case None
Included Filters None
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions H: 11.1 x W: 4.6 x L: 4.6" / H: 281 x W: 116 x L: 118 mm
Weight 2.6 lb / 1.2 kg
